FitCon100: EnGenius Fit On-Premises Management Network Controller
FitCon100: EnGenius Fit On-Premises Management Network Controller
For small businesses who need to manage access points and switches quickly and easily
The EnGenius FitController FitCon100 is for IT managers or admins at small businesses who need to manage access points and switches quickly and easily, FitController’s intuitive interface and simple plug-and-play integration securely provide efficient device management, cloud accessibility that allows remote management of multiple networks from a single portal without requiring a dedicated server.
DC Adapter is not included.
- FitController Datasheet
- EnGenius Fit FAQs
- FitCon100 Quick Start Guide
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is compatible with the EnGenius Fit line of products
Controller
Manage access points and switches quickly and easily from one device
Features
Specifications
- Plug and play installation. Simply plug into PoE Ethernet switch. No additional download or training required
- Fast deployment with quick-scan device registration & configuration
- Network management for up to 100 EnGenius Fit access point and switches
- License-free on-premises network management with a comprehensive line of wired and wireless networking products
- Hierarchy view to quickly structure customer sites and organize networks
- Network health view to analyze networks and report potential issues
- Multi-tenant user login privileges
- Device two-factor authentication to ensure only authorized devices are on the network
- Enhanced Wi-Fi security WPA3 for employee as well as guests
- Support up to 8 networks per user account
- Create separate employee and guest networks to keep traffic isolated
- Set limits to stop bandwidth hogs
- Built-in powerful Qualcomm Qual-Core CPU
- Micro SD slot for extra back-up
- 802.3af or DC12/1A input power source
Model
Qualcomm Cypress IPQ6010
Clock Rate
Quad-Core Cortex A53 1.8 GHz
Hardware Encryption Acceleration
Yes
System Memory
DDR4 1GB x 2
eMMC
8GB (MLC)
Interfaces and LEDs

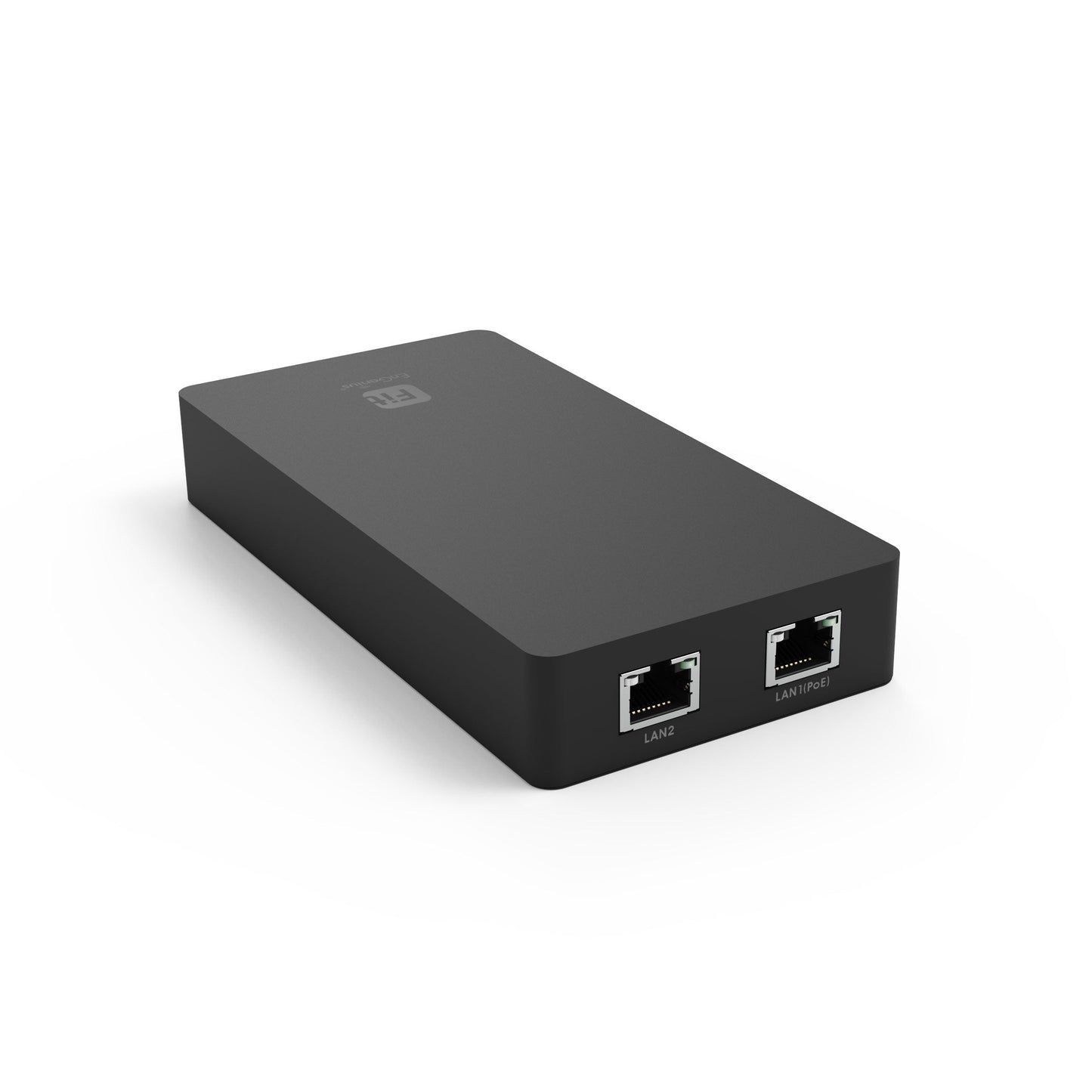

2 x 10/100/1000 Mbps RJ45 ports (1 x PoE)
1 x Micro SD Slot

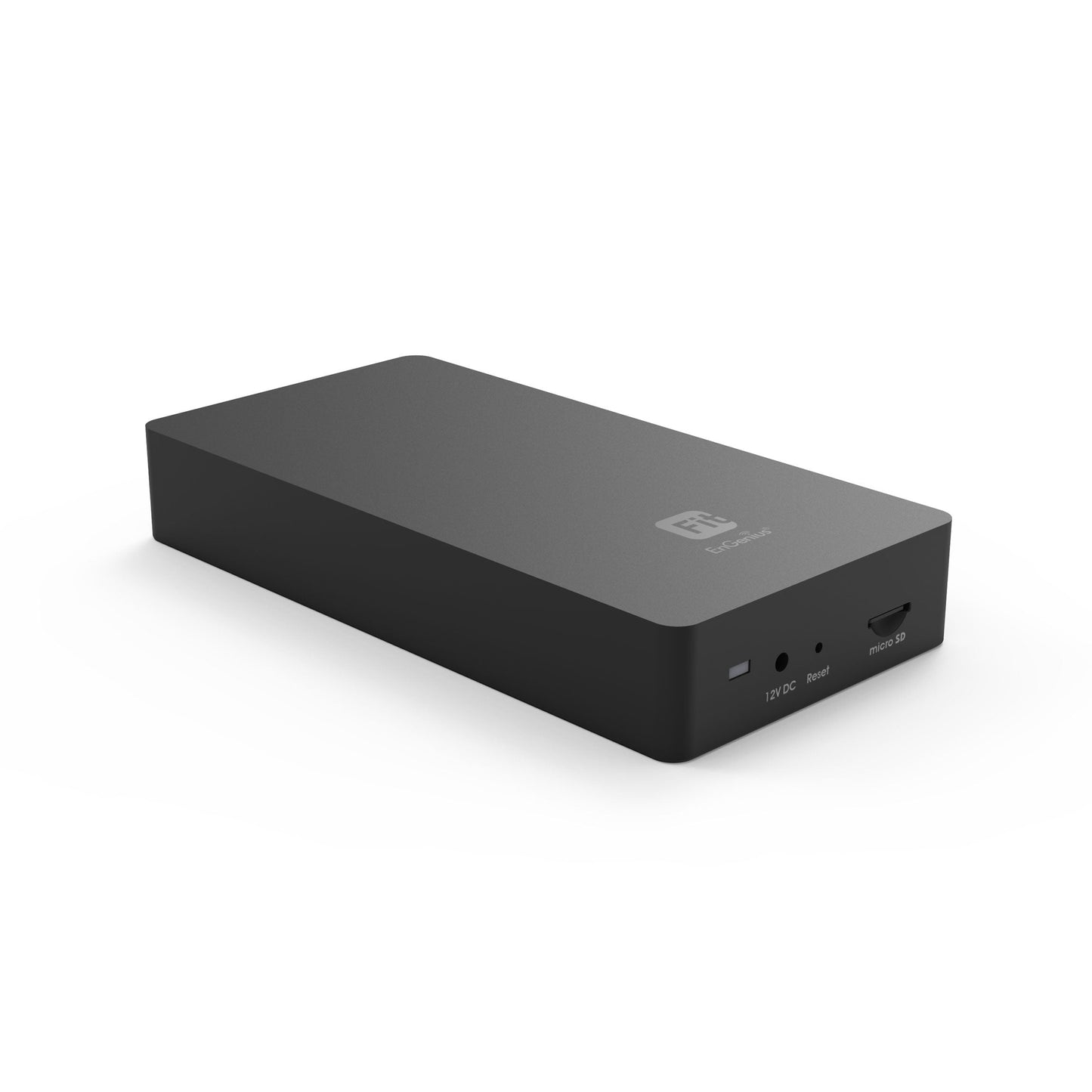

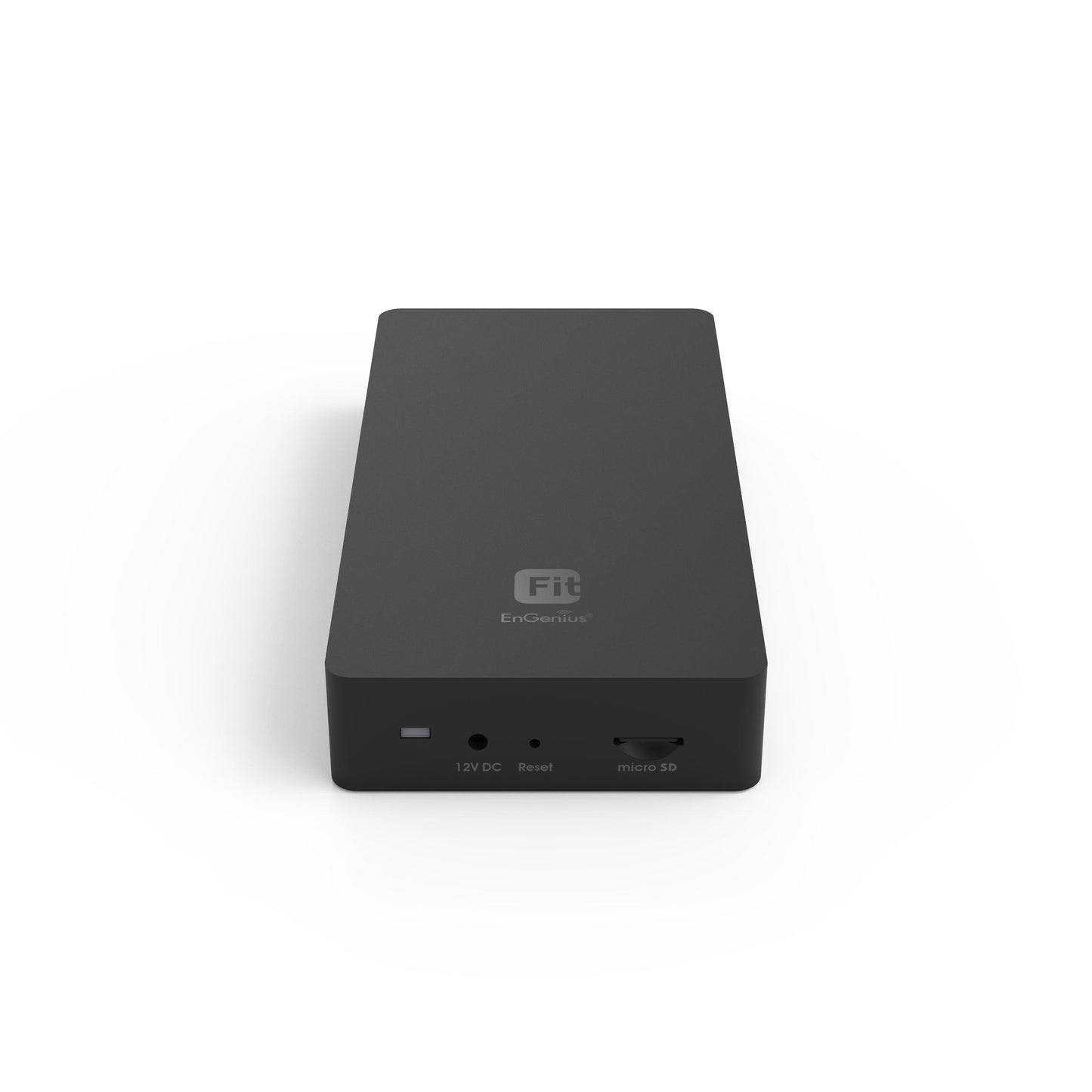

1 x DC-Input Jack
1 x Reset Button
1 x Power LED (Orange)
2 x LAN LED (Green)
LED Indicators
1 x Power
2 x LAN
Power Source
Power-over-Ethernet: 802.3af Input
12VDC /1A Power Adapter (Not Included)
Maximum Power Consumption
Under 5W
Operating
Temperature: 0°C~50°C
Humidity: 0%～90% typical
Storage
Temperature: -40°C~80°C
Humidity: 0%～90% typical
FitController Device
Weight: 0.36 lb (165g)
Length: 6.02” (153mm)
Width: 3.04” (77.4mm)
Height: 0.98” (25mm)
Packaging
Weight: 0.57 lb (260g)
Length: 6.99” (177.75mm)
Width: 3.99” (101.5mm)
Height: 1.71” (43.5mm)
Certifications
FCC
IC
Package Contents
1 – FitController
1 – Screw Position Idenifier
1 – Wall Mount Screw Kit
(Excludes Power Adapter)
Warranty
1 Year
FitCon100 Power Sources
