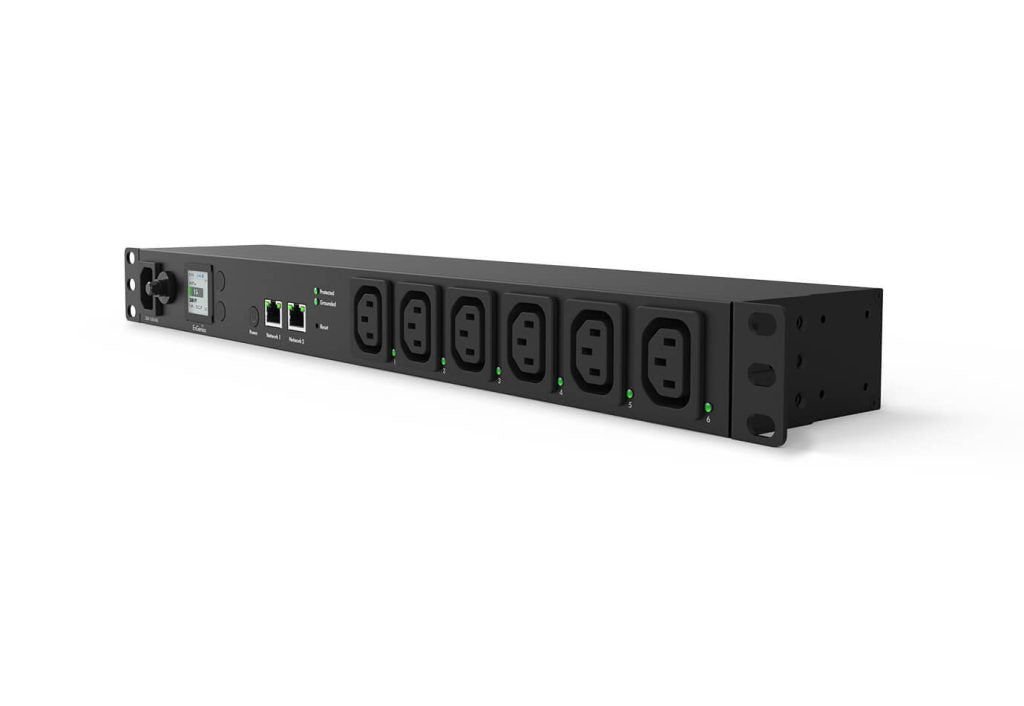

ECP106-INT: 6 Outlet Cloud Managed Switchable Smart PDU
ECP106-INT: 6 Outlet Cloud Managed Switchable Smart PDU
Power Management with Real-time Monitoring and Analysis

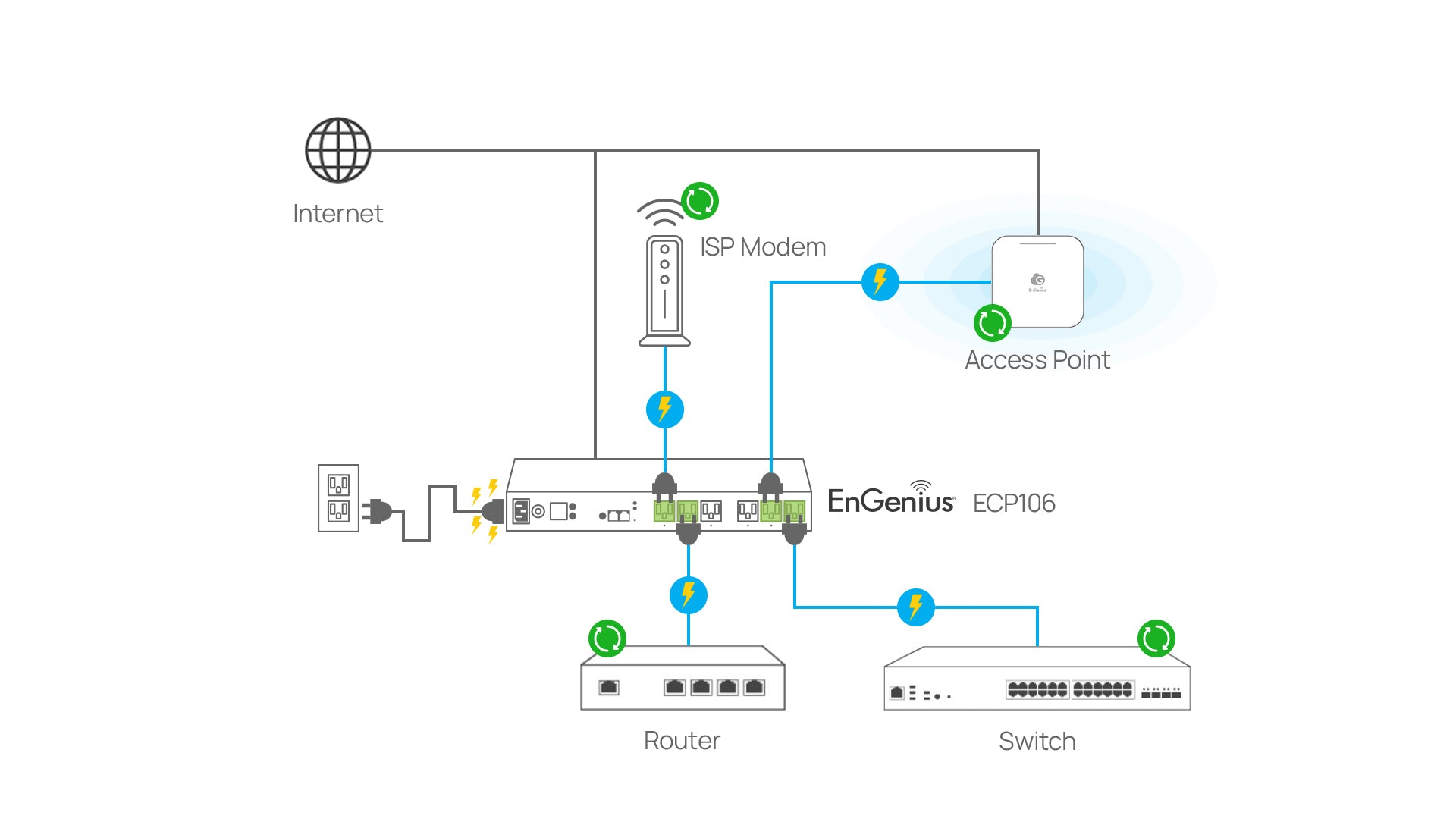

EnGenius ECP106-INT offers a cloud-based power management solution for data centers. It enables remote control via the EnGenius Cloud platform, efficiently managing energy consumption and providing advanced surge protection. This solution features the capability to power cycle multiple managed devices, streamlining maintenance and troubleshooting efforts.
- ECP106-INT Datasheet
- ECP106 Quick Start Guide
- Cloud User Manual
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
6-Outlets
6 individually switchable outlets for cloud-based power management solution
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Features
Specifications
- Built In Surge Protection and Overcurrent Protection
- 6 individually switchable outlets
- Real-Time power consumption information, alerts, and controls from anywhere with EnGenius Cloud
- 1.3-inch LCD display for in-site information and controls
- Network self-healing when devices go offline
- Attempt to automatically reconnect from internet outages

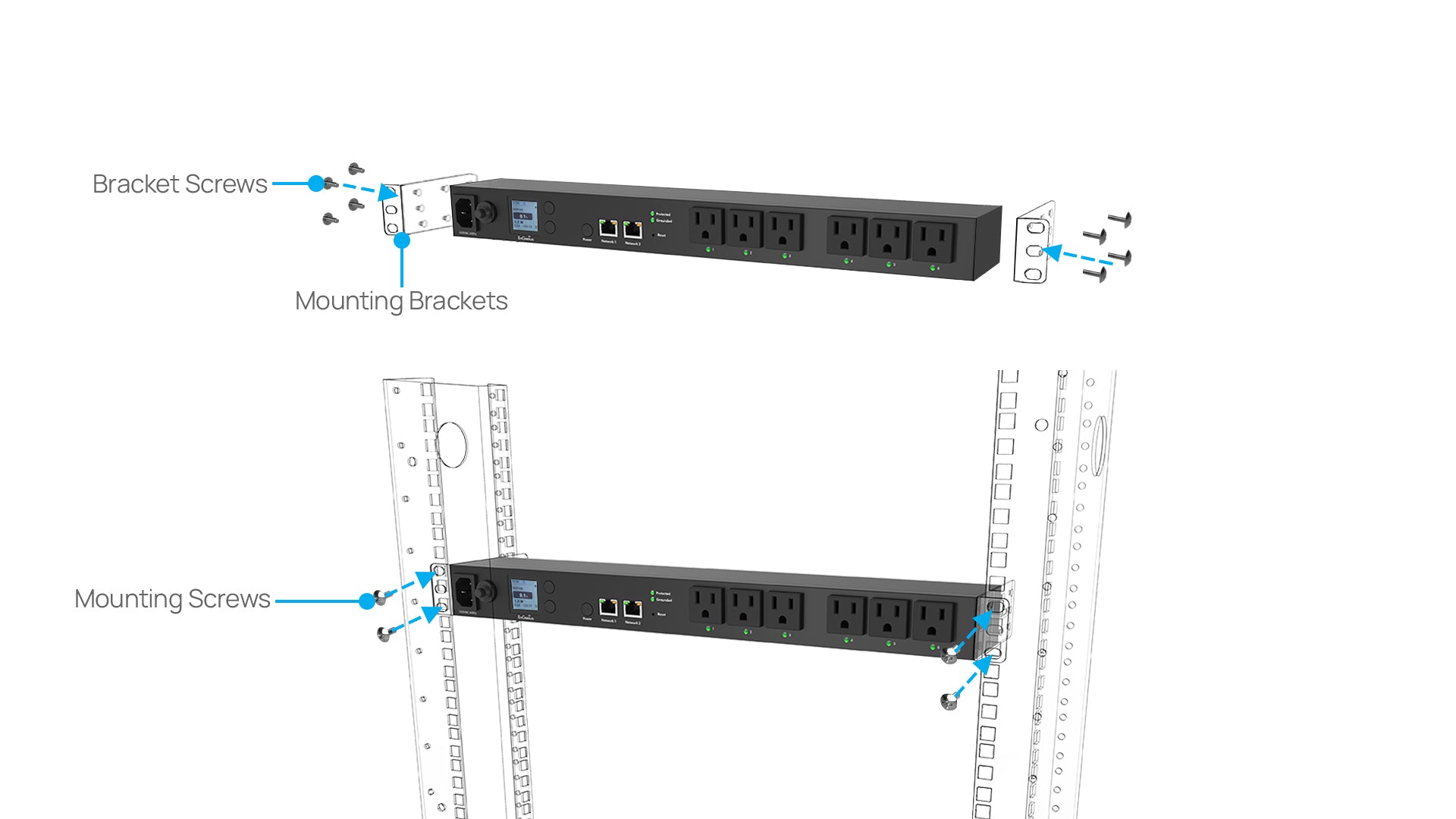

- Flexible mounting capabilities for 1U, 0U, wall or under-desk mounting
- 12A circuit breaker for overload protection
- Fireproof MOV for surge protection
- UL 62368-1, CE, RCM
- RESTFUL API and SNMP v1, 2c, and v3 support
Input
Voltage: 200-240V
Frequency: 50/60Hz
Derated Input Current: 10A
Power Input Plug: H05VV-F 3G
Power Cord Type: CEE 7-VII
Power Cord Length: 1830mm
LED Indicators
1 x Outlet Power Switch
2 x LAN
1 x Outlet Power Indicator
1 x Grounded Indicator
1 x SPD Indicator
Output
Voltage: 200-240V
Frequency: 50/60Hz
Derated Input Current: 10A
Outlet Type: IEC-C13
Number of Outlets: 6
Overload Protection: 12A
Max Power Consumption: 2400W for 240V

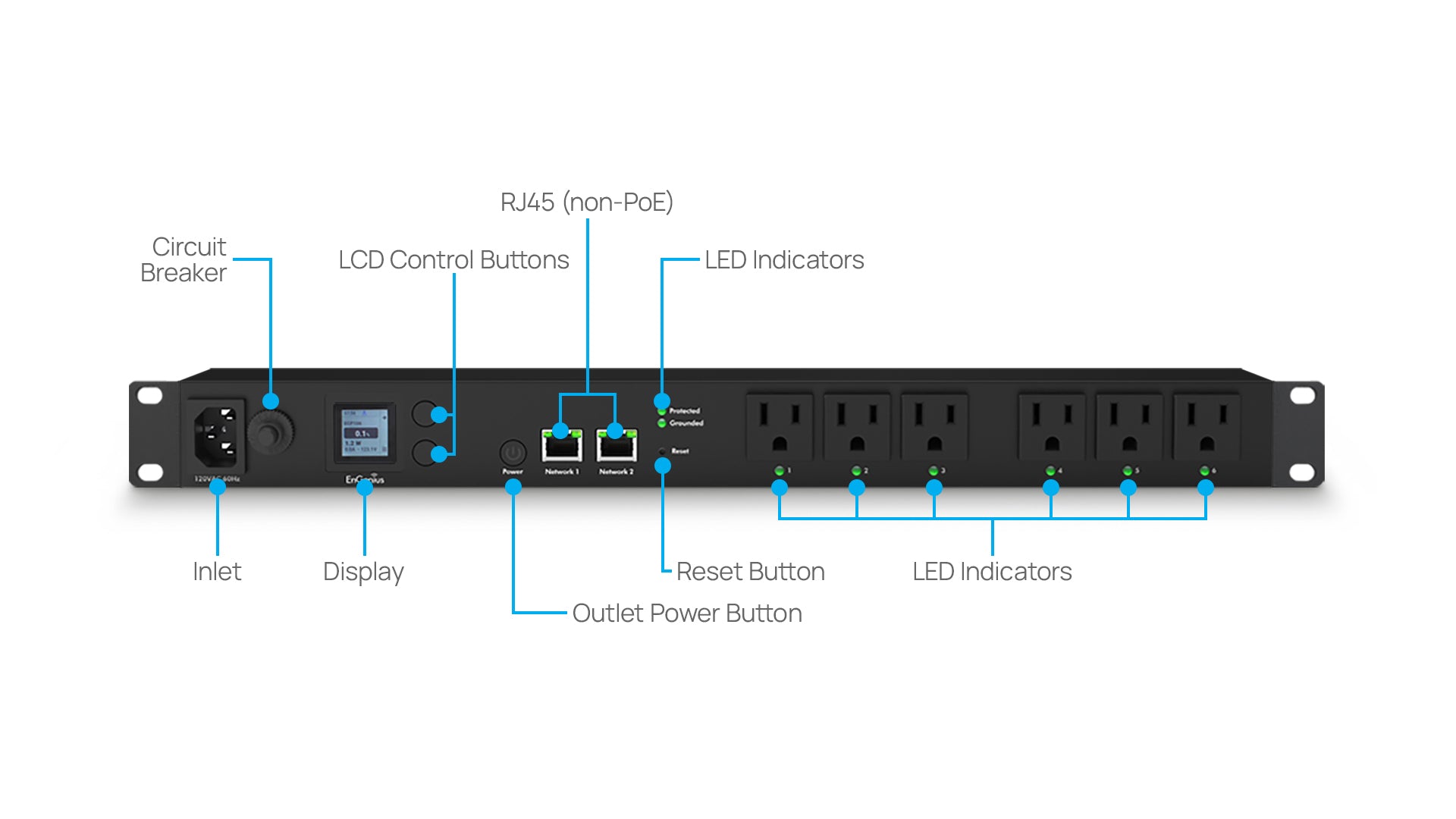

Physical Interface
2 x 10/100/1000/ BASE-T, RJ-
IEC-C13 Inlet
Reset Button
12A Circuit Breaker
Temperature Range
Operating: 0ºC~+45ºC
Storage: -30ºC~+70ºC
Humidity (non-condensing)
Humidity 5% ~ 95% RH Non-condensing
Surge Protection
Yes
ESD Protection
Yes
ECP106-INT Device
Weight: 1.12 kg
Width: 85 mm
Length: 440 mm
Height: 44 mm
Enclosure material
AL6063

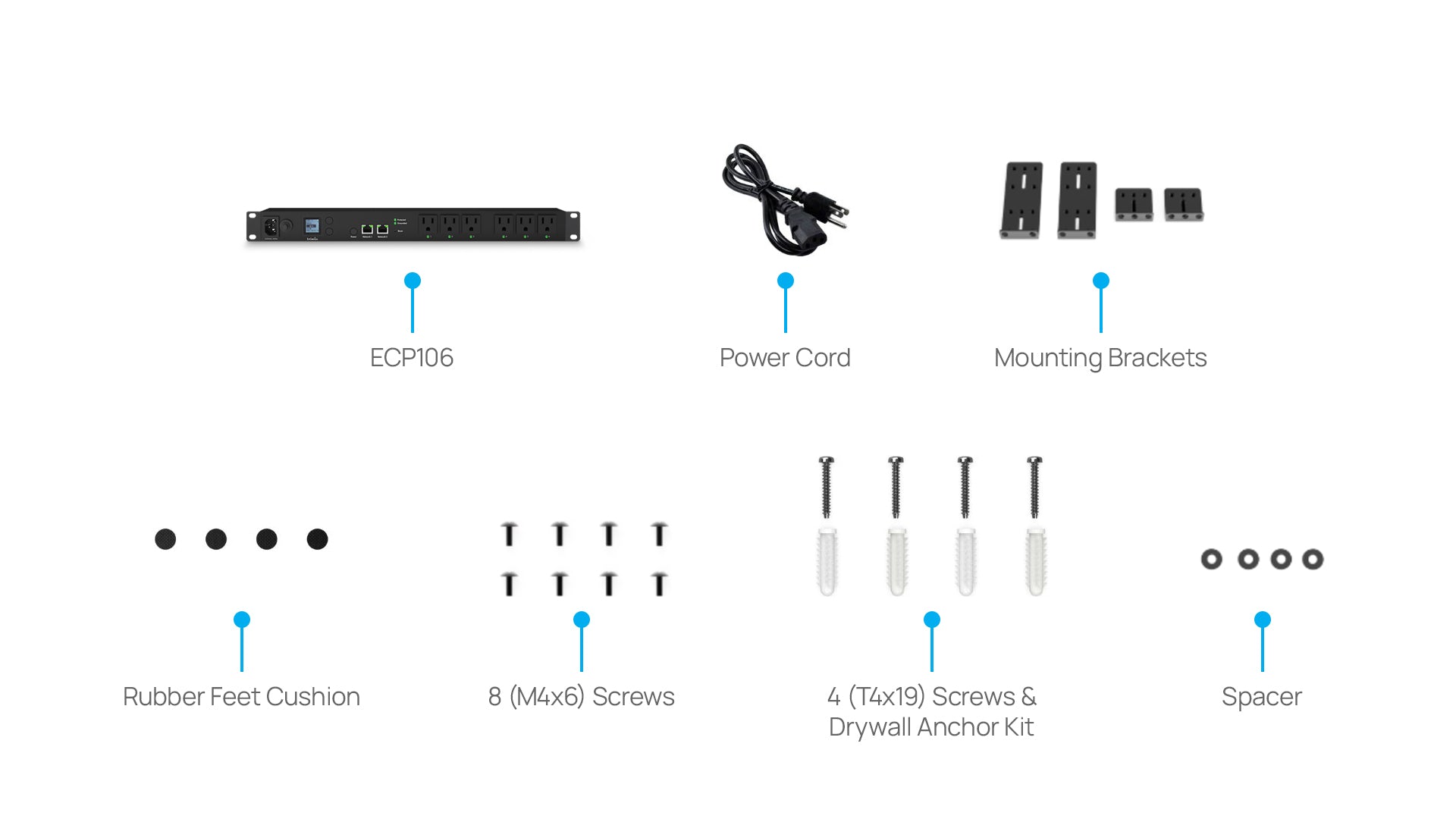

Package Contents
1 x ECP106-INT PDU
1 x Inlet Power Cord 2 x C14 to C13 Plug Adapter
1 x Mounting Brackets
4 x Rubber Feet Cushion
8 x M3x5 Screws 4 x T4x19 Screws 4 x Spacer 1 x Drywall Anchor Kit 1 x Retention Clip
Certifications
CE
WEEE
RoHS
UL62368-1
RCM
Warranty
2Years
