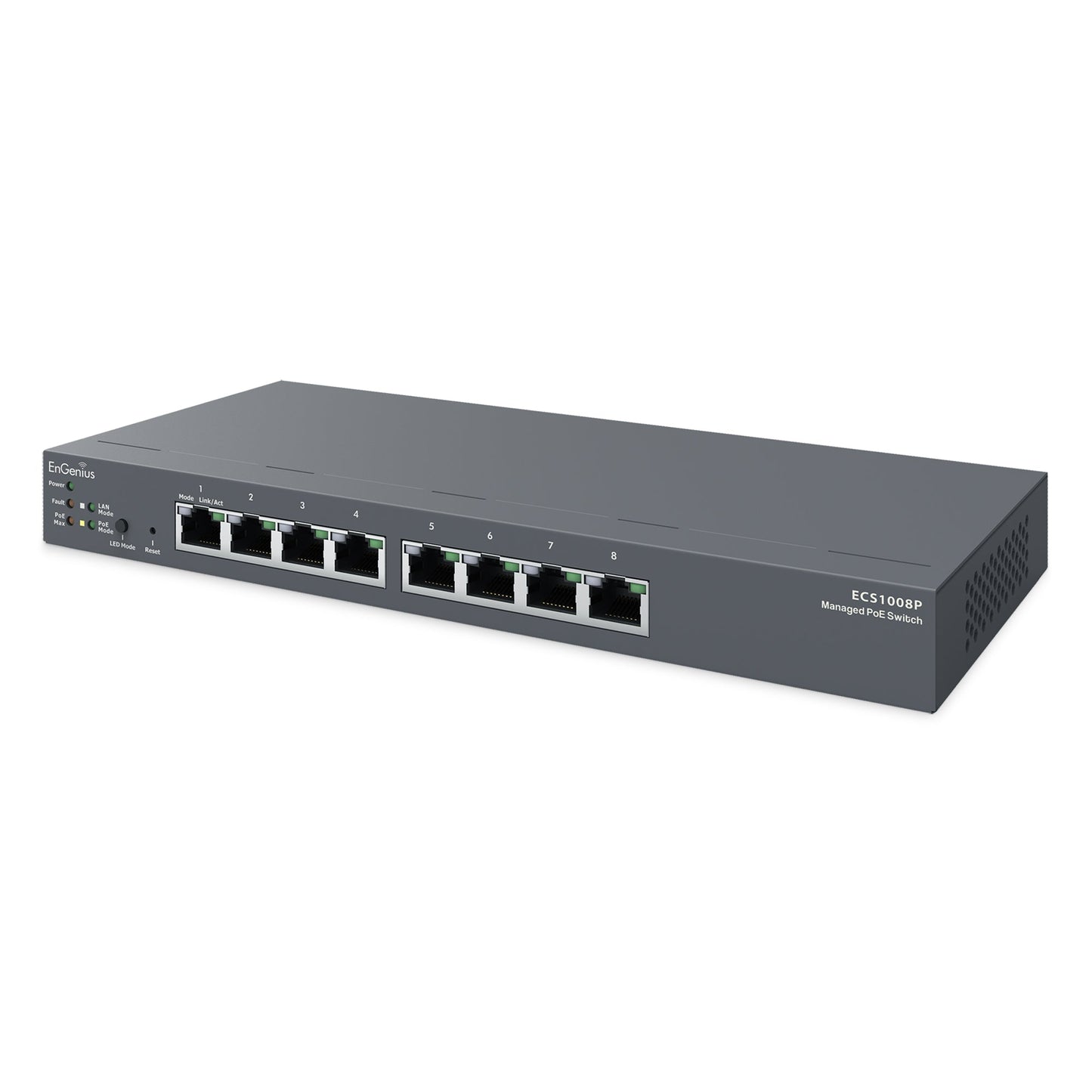

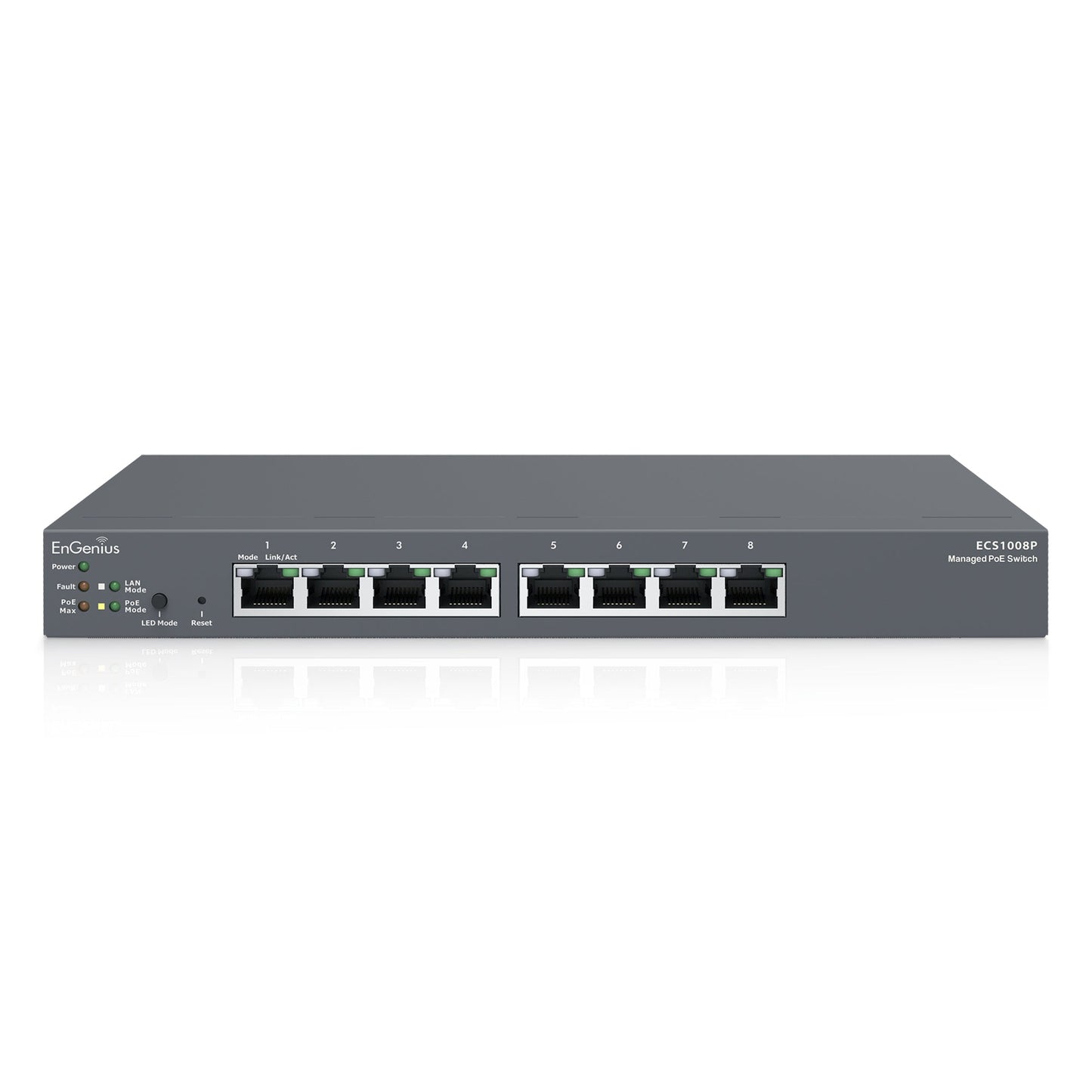

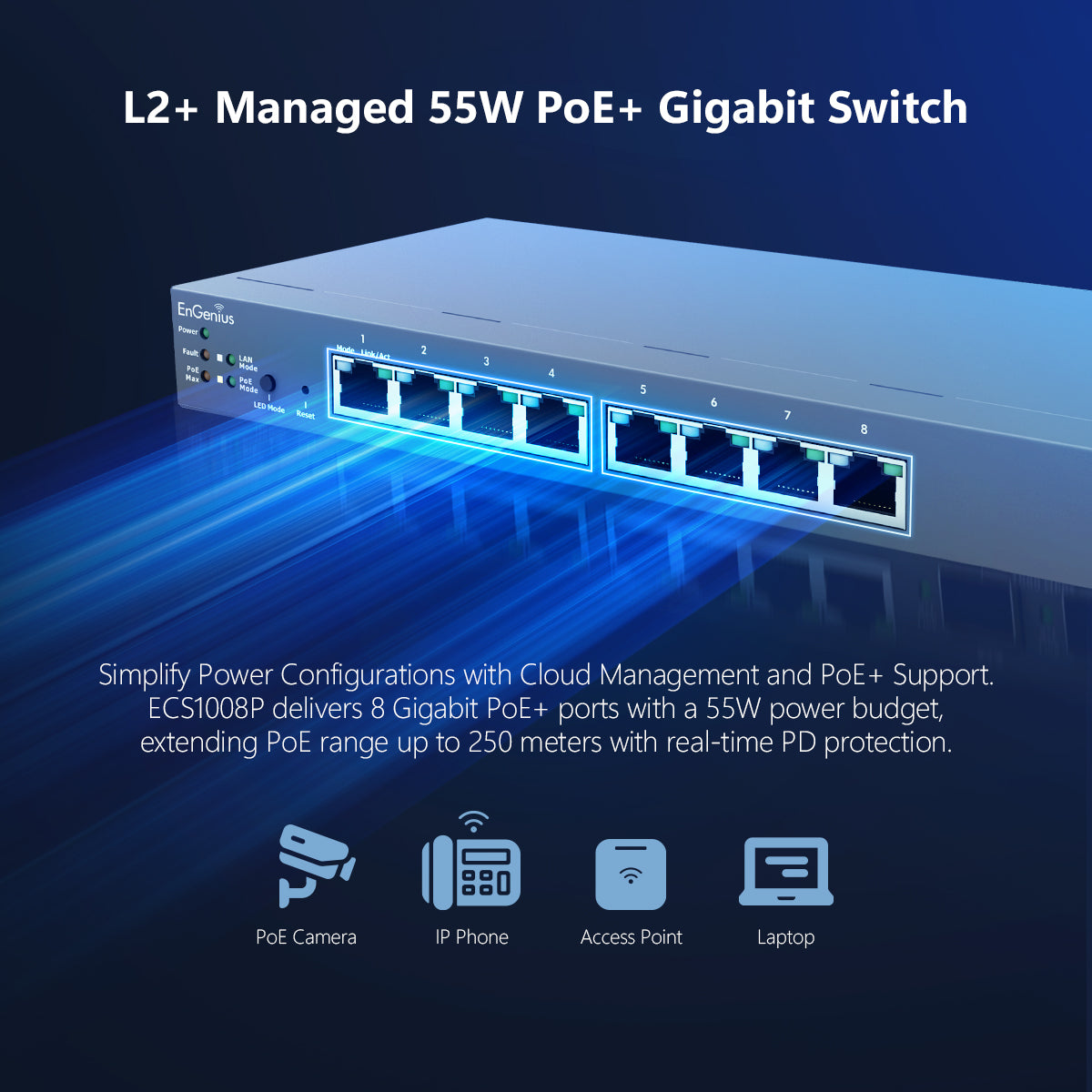

ECS1008P: Cloud Managed Gigabit 55W 8-Port PoE Switch
Layer 2 Switch with Multiple Management Options for cost-conscious SMBs
EnGenius Cloud Managed ECS1008P is an 8-Port Gigabit PoE Layer 2 Switch with 55W Budget. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance while reducing capital and operating expenses for cost-conscious SMBs.
- ECS1008P Datasheet
- ECS1008P Quick Start Guide
- Cloud Switch User Manual
- Cloud Managed Switch Datasheet
Shipping & Returns
Not satisfied? We allow returns within 30 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
8-Ports
8 x 10/100/1000 Base-T GbE Ports with Full-Featured Layer 2+ Switching
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Features
Specifications
- 8 10/100/1000 Base-T GbE Ports
- Full-Featured Layer 2+ Switching
- 802.3af PoE Ready on All Ports with 55W PoE budget
- 16 Gbps Switching capacity
- Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
8 10/100/1000 Mbps Ports
Switching Capacity
16Gbps
SDRAM
256MB
Flash Memory
32MB
PoE Capable Ports
1-8 (802.3af only)
Total PoE Budget
55W
Power Source
100 ~ 240VAC, 50-60Hz
Physical Interface

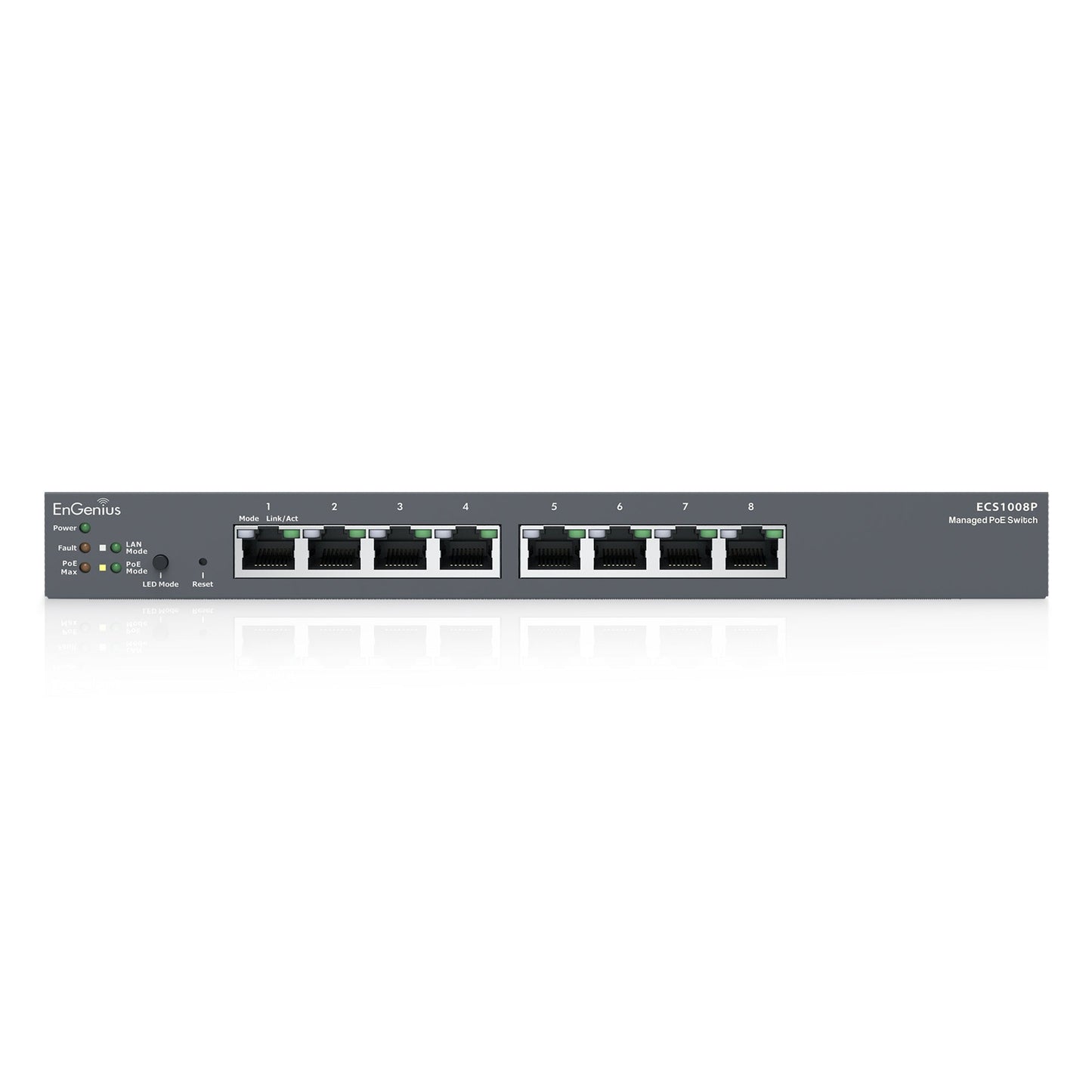

LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports
Link/Activity/Speed (per Ethernet port)
Multiple IP Interface
20 IPv6 address
ARP Table
Max. 192 ARP entries
Static ARP
Static 192 ARP entries
IPv4 Static Route
Max. 63 entries
IPv6 Static Route
Max. 21 entries
MAC Address Table
8K
Jumbo Frame
9K
Multicast Group
Max 256 groups
MLD Snooping
MLD Snooping: v1
QoS-Number of Priority Queues Supported
Queue 8
Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Scheduling Mechanism
Strict / WRR/ Strict + WRR
Bandwidth Control
Port-based bandwidth control (Ingress/Egress)
Port Security
Max. 256 Entries
Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL
Web Graphical User Interface(GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SSL Certificate
Certificate/Key Import
SNMP
SNMP v1/v2c/v3 Support
RMON
RMON 1,2,3,9
System Time
Time Setting/Daylight saving
Common L2 Features
802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)

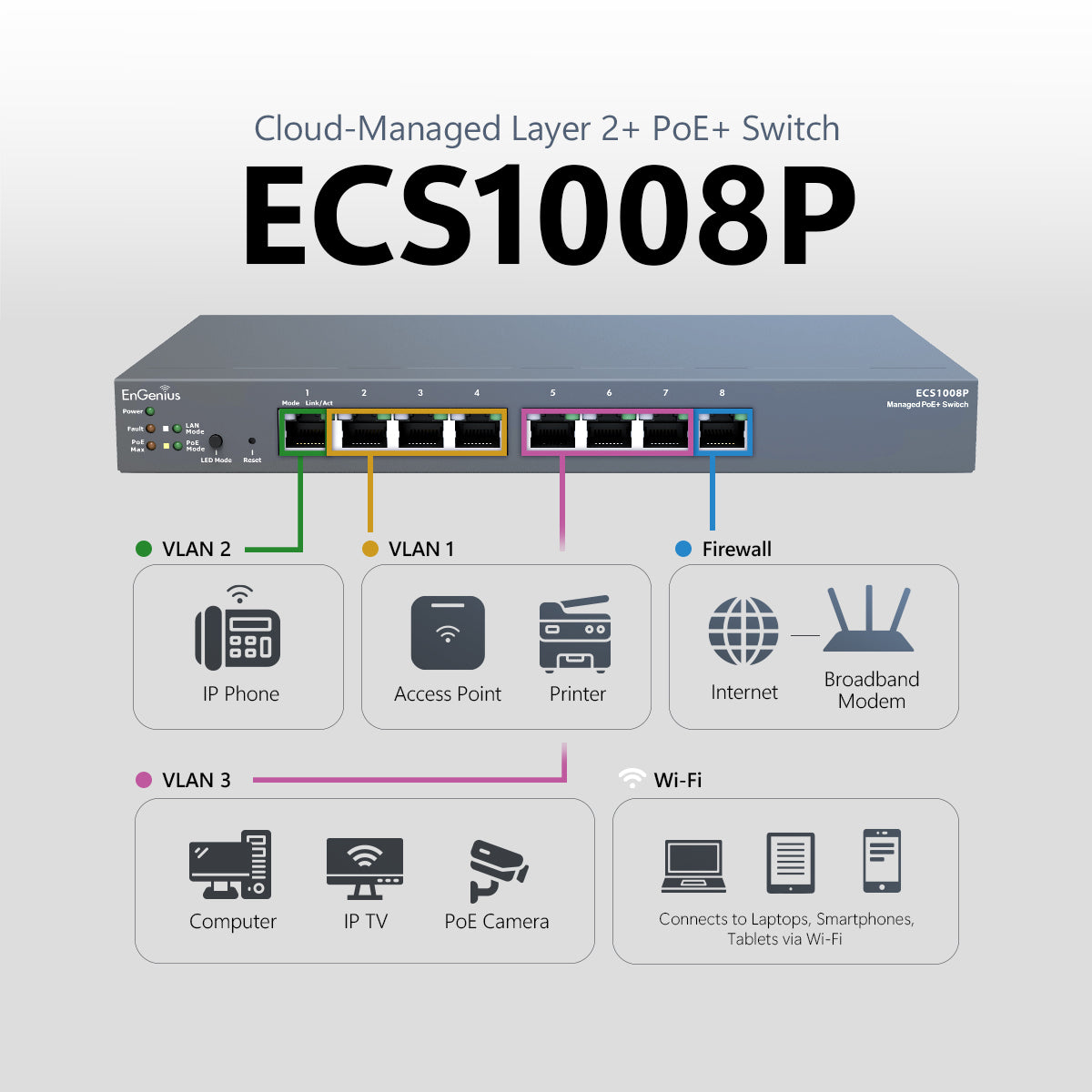

Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree
Temperature Range
Operating: 0°C to 40°C
Humidity (Non-Condensing)
Operating: 5% - 95%
Package Contents
1x Cloud Managed Gigabit Switch
1x Quick Installation Guide
1x Power Adapter
1x Power Cord
1x Wall Mount Kit
1x Ground Screw Set
ECS1008P Device
Weight: 620 g
Length: 240 mm
Width: 105 mm
Height: 27 mm
Packaging
Weight: 3.3 lbs. (1495 g)
Length: 10.67” (271 mm)
Width: 6.61” (168 mm)
Height: 3.34” (85 mm)
Warranty
2 Years
Certifications
CE
FCC
IC
