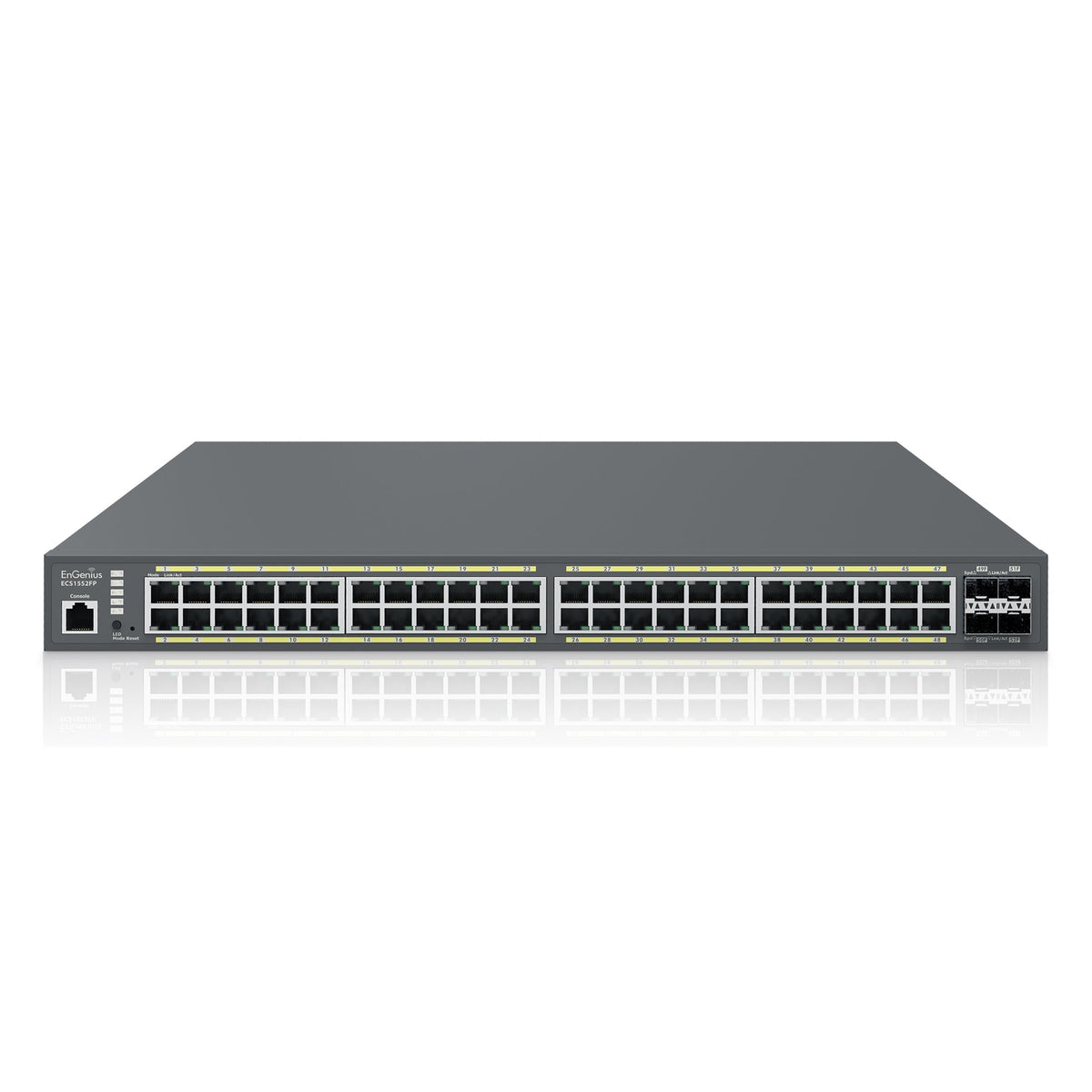

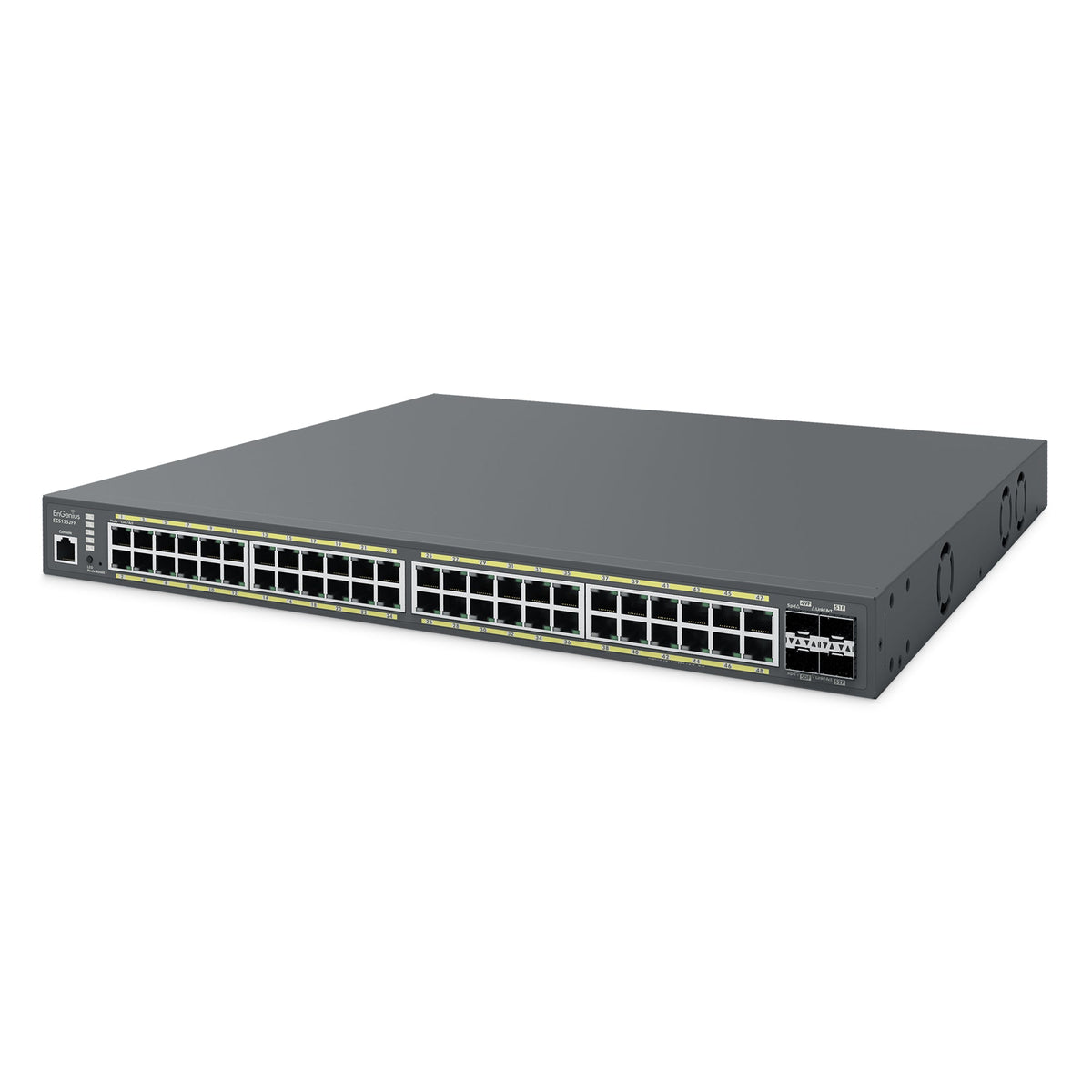

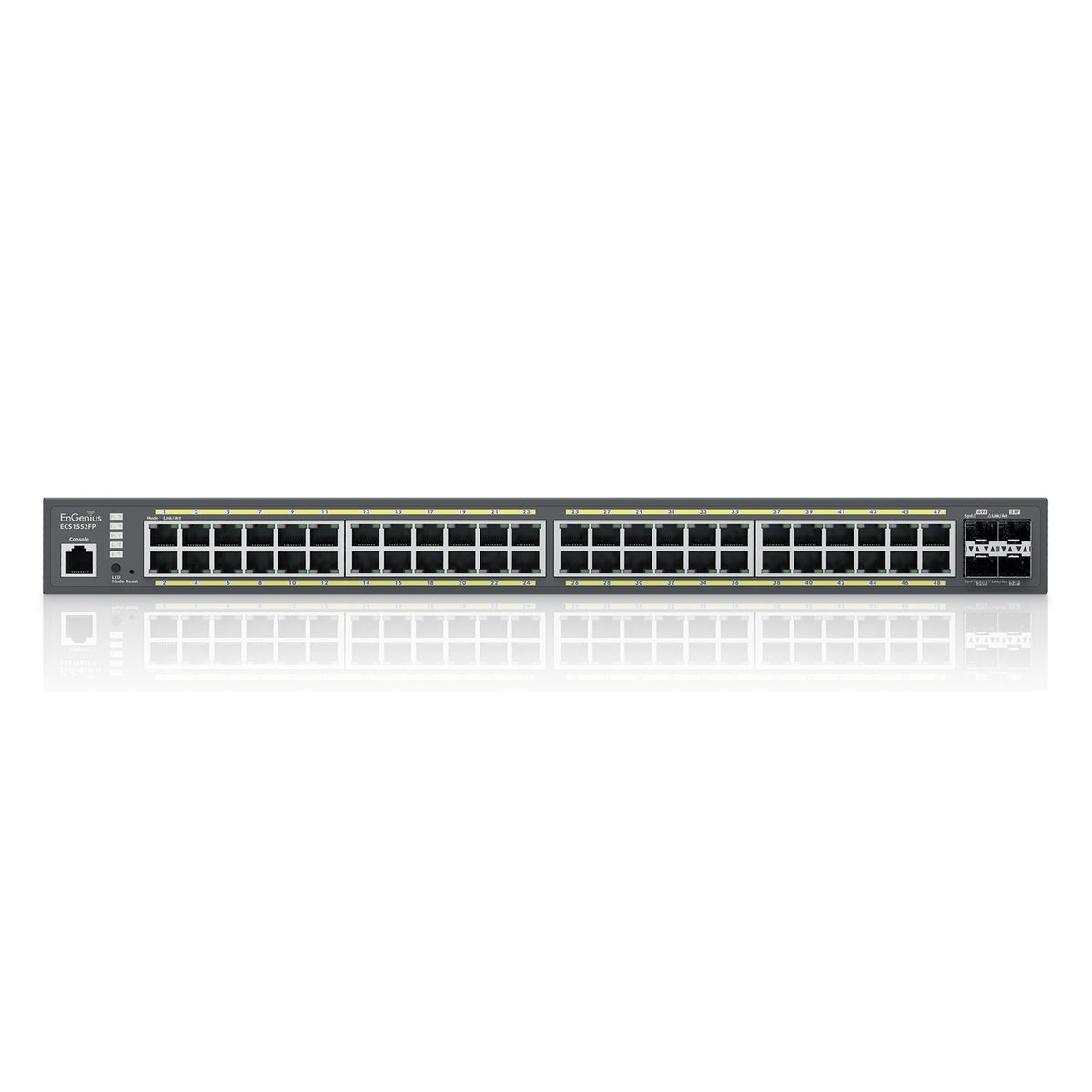

ECS1552FP: Cloud Managed 48-Port Gigabit 740W PoE+ Switch
Layer 2+ Switch with 4 SFP+ Uplink Ports and Multiple Management Options for SMBs
EnGenius Cloud Managed ECS1552FP is a 48-Port Gigabit PoE+ Layer 2+ Switch with a 740W Budget, 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
48-Ports
48 x 10/100/1000 Base-T GbE Ports with Full-Featured Layer 2+ Switching
740 Watts of PoE
This switch is 802.3 at/af PoE+ Ready on All Ports with 740W PoE budget
4 SFP Ports
4 x 10-Gigabit Dual-Speed SFP+ fiber uplink ports for maximum connection speeds
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.

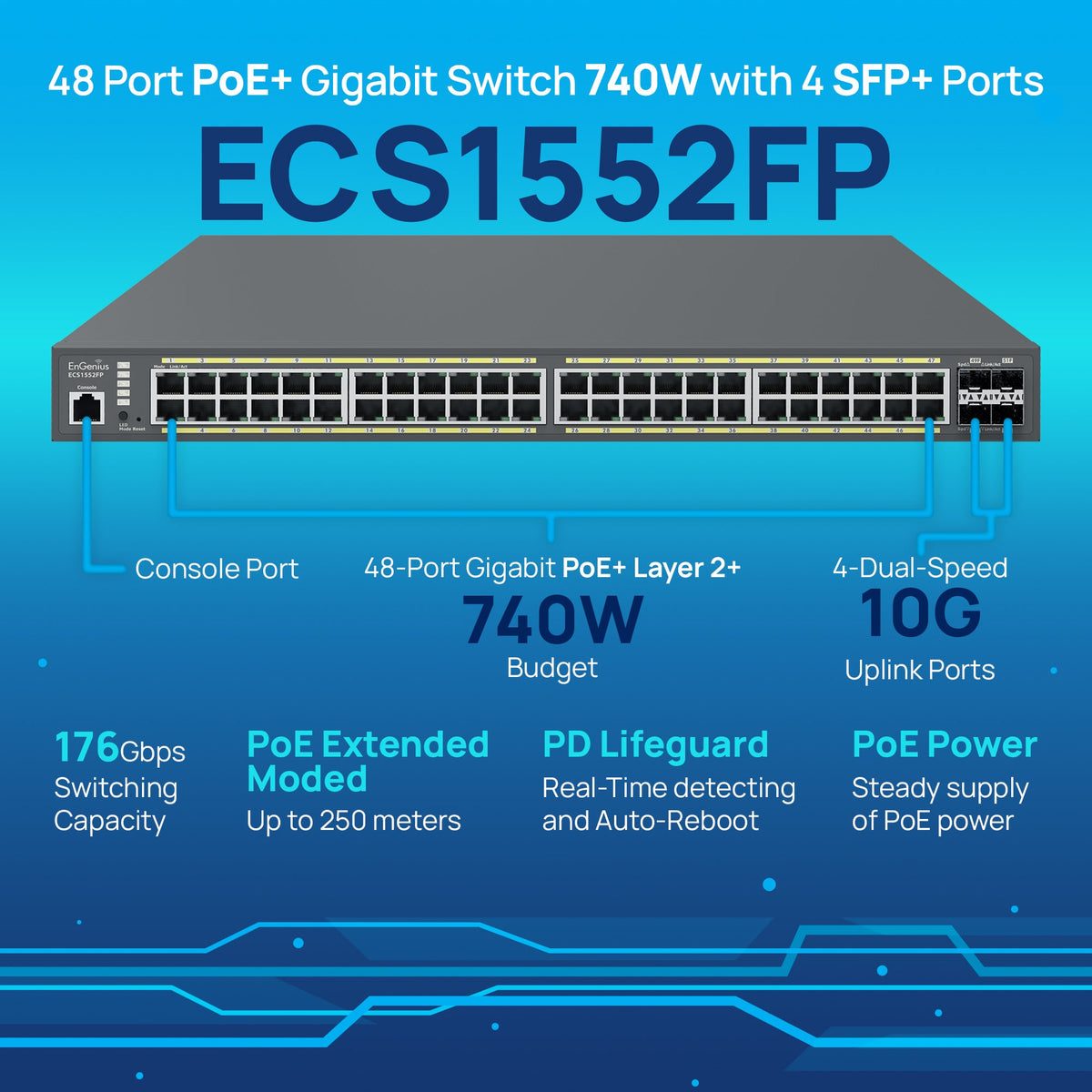

Specifications
- 48 10/100/1000 Base-T GbE Ports
- Full-Featured Layer 2+ Switching
- 802.3 at/af PoE+ Ready on All Ports with 740W PoE budget
- 176 Gbps Switching capacity
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
Available with Hardware v2 and Later
PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
48 10/100/1000 Mbps Ports + 4x SFP+ Ports
Switching Capacity
176Gbps
SDRAM
512MB
Flash Memory
128MB
PoE+ Capable Ports
1-48
Total PoE Budget
740W

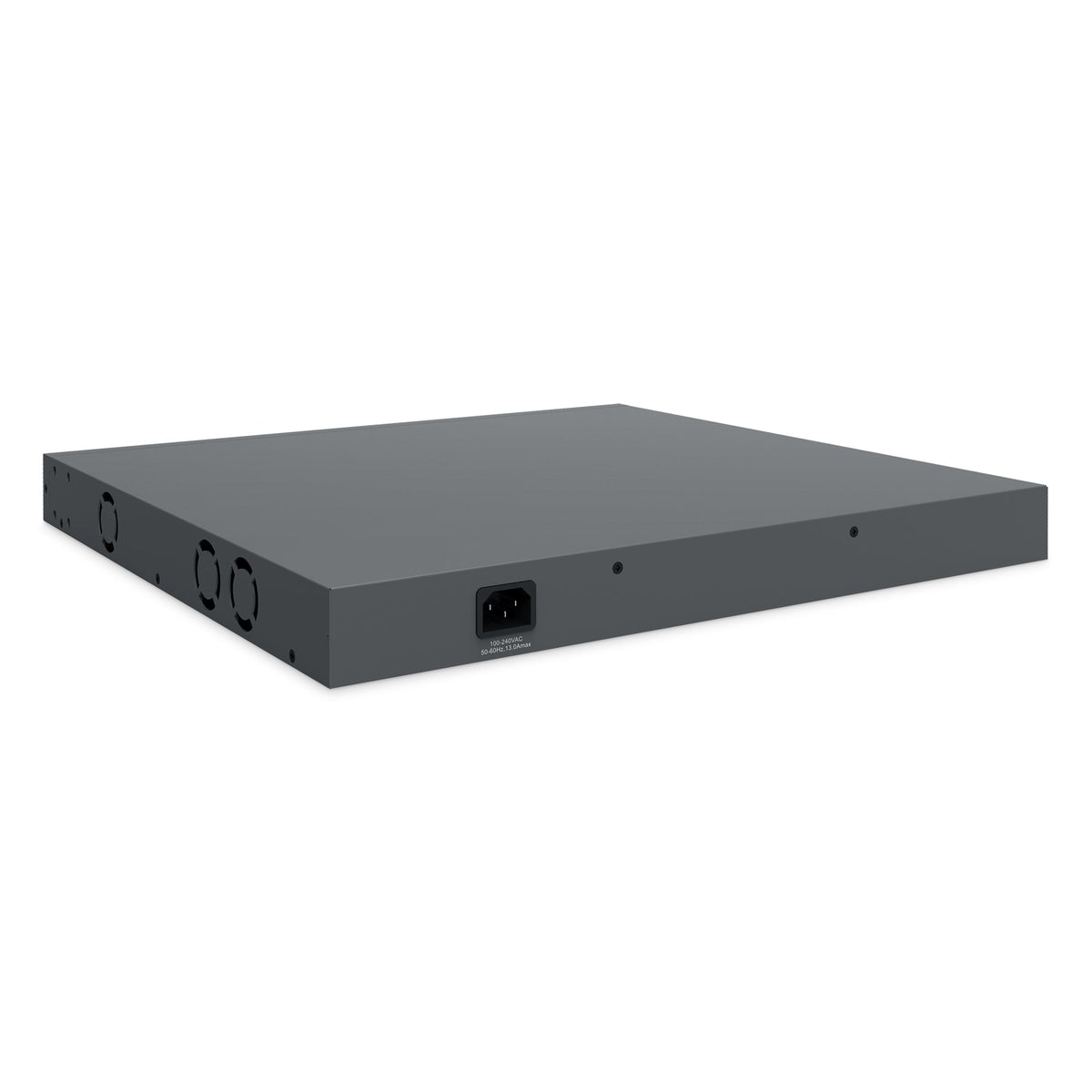

Power Source
100 ~ 240VAC, 50-60Hz
Physical Interface
LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports
Link/Activity/Speed (per Ethernet port)
Temperature Range
Operating: 0°C to 50°C
Humidity (Non-Condensing)
Operating: 5% - 95%
Package Contents
1x Cloud Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
ECS1552FP Device
Weight: 10.5 lbs. (4.76 kg)
Width: 17.32” (440 mm)
Length: 10.23” (260 mm)
Height: 1.73” (44 mm)
Packaging
Weight: 13 lbs. (5.9 kg)
Width: 21” (534 mm)
Length: 17” (432 mm)
Height: 4.13” (83 mm)
Warranty
2 Years
Certifications
CE
FCC
IC
