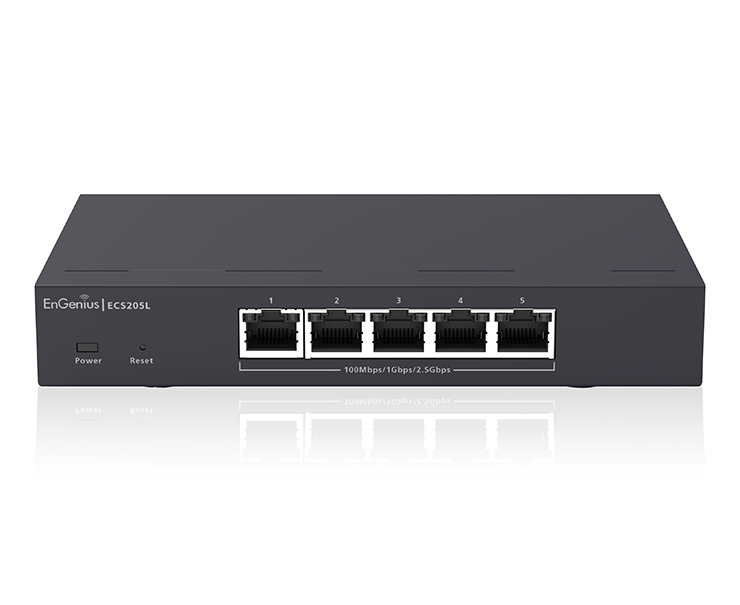

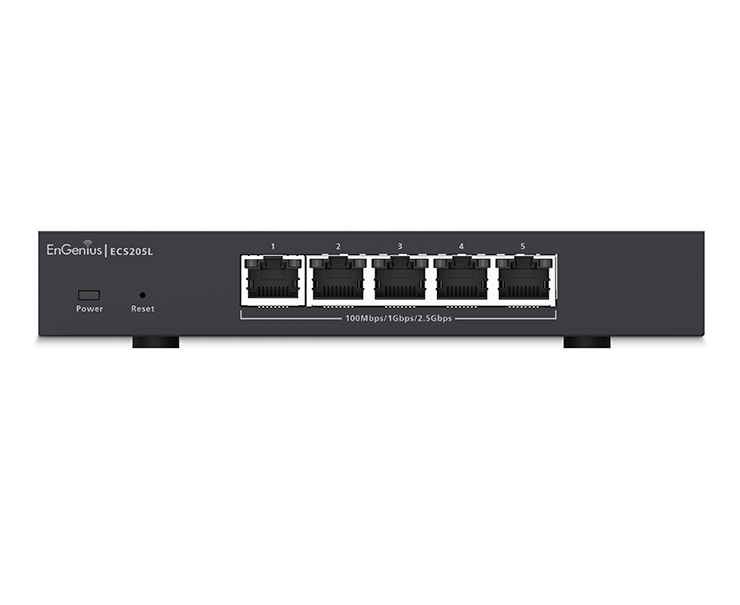

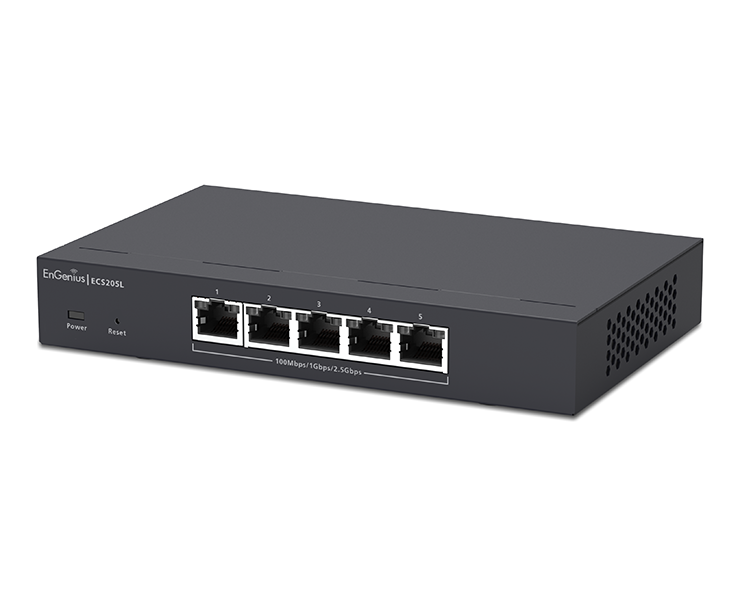

ECS205L: 5-Port Non-PoE Cloud Lite Switch
Provides exceptional 2.5GbE network performance and seamless cloud management
EnGenius Cloud Managed 5-Port 2.5G Switch ECS205L delivers multi-gigabit performance with 5 x 2.5 GbE ports and a 25 Gbps switching capacity. The compact desktop switch optimizes network traffic and expands high-speed connectivity for exceptional next-generation, business-class wired networks.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Specifications
- 2.5G Multi-Gigabit Speeds: Features 5 x 2.5 GbE ports with 25 Gbps switching capacity to deliver ultra-fast, low-latency wired performance for high-bandwidth devices.
- Smart EnGenius Cloud Management: Effortlessly deploy, monitor, and manage your network anytime, anywhere via the license-free EnGenius Cloud portal and mobile app with real-time visual insights.
- Enterprise L2 Features & Compact Design: Supports VLAN, QoS, and IGMP Snooping with a fanless, compact desktop design for quiet and reliable operation in any business environment.
Port Standards
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G/5GBase-T Ethernet
802.3x Full-Duplex Flow Control
Network Port – Multi-Gigabit Ethernet Ports
5×100/1000/2500 Mbps Ports
Switching Capacity
25Gbps
SDRAM
128MB
Flash Memory
32MB
Power Source
100 to 240 VAC, 50/60Hz
Temperature Range
Operating: 32°F to 104 °F (0°C to 40°C)
Humidity (non-condensing)
Operating: 5% – 95%
Device Dimensions & Weights
Weight: 0.8 Ibs (0.4 kg)
Length: 9.45” (170 mm)
Width: 4.13” (105 mm)
Height: 1.06” (27 mm)
Package Contents
1x Cloud Managed Switch
1x Product Card
1x Power Adapter
1x Wall Mount Kit
1x Rubber Feet Cushion
