ECS2510FP: Cloud Managed 8 Port Switch 240W PoE+ Multi-Gigabit 2.5 Gb w/ 2 SFP+ Uplink Ports
ECS2510FP: Cloud Managed 8 Port Switch 240W PoE+ Multi-Gigabit 2.5 Gb w/ 2 SFP+ Uplink Ports
Multiple management options for large businesses to easily configure, monitor, and manage

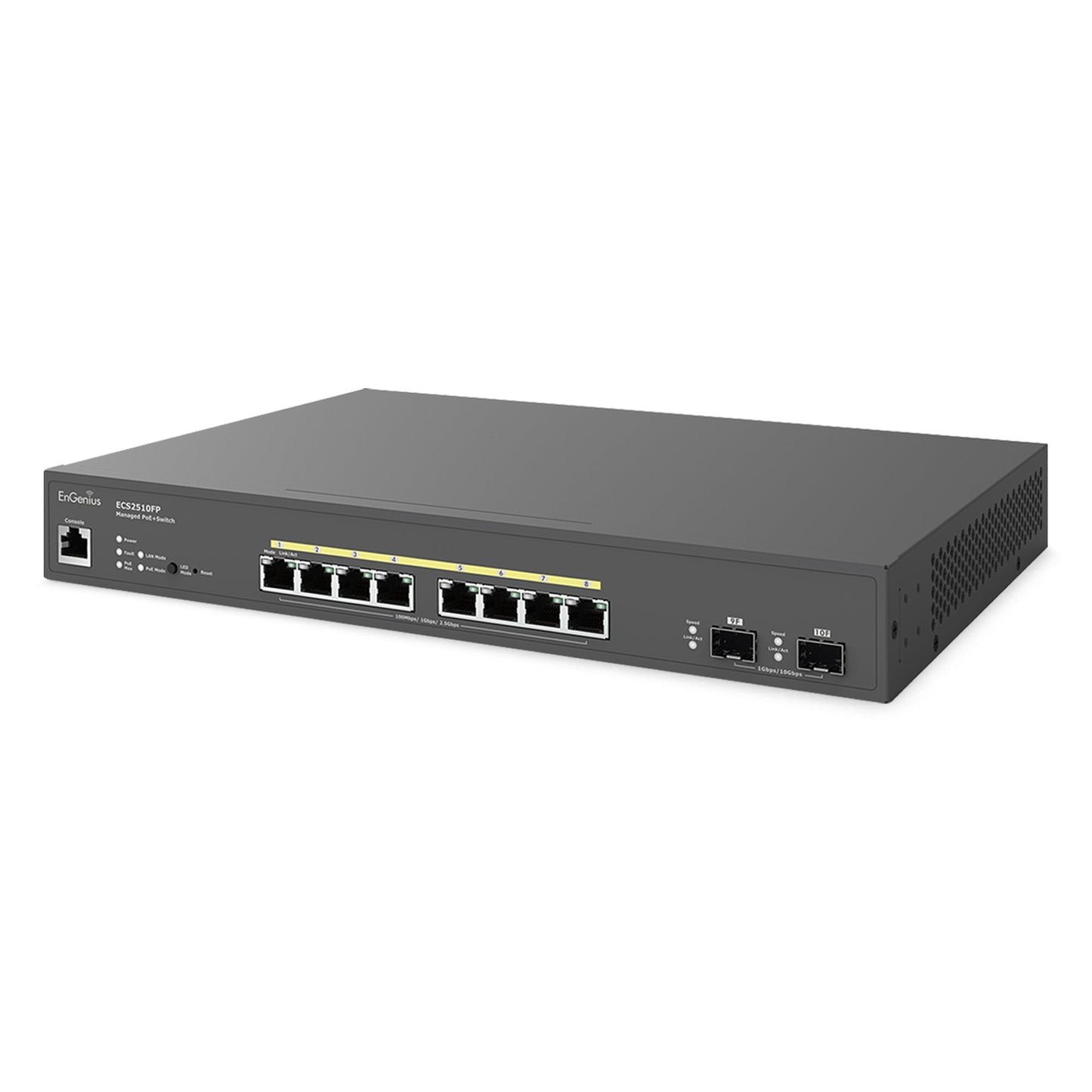

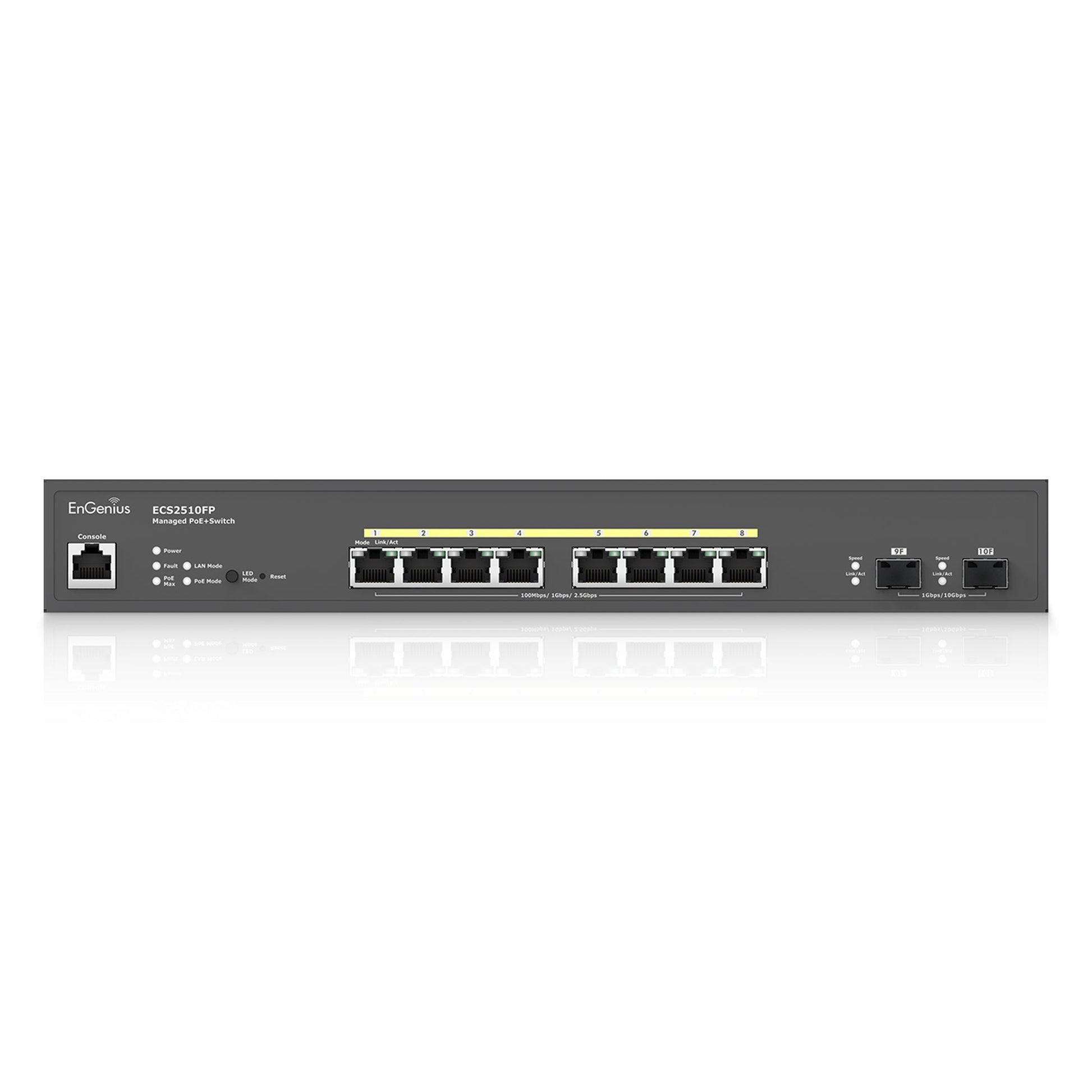

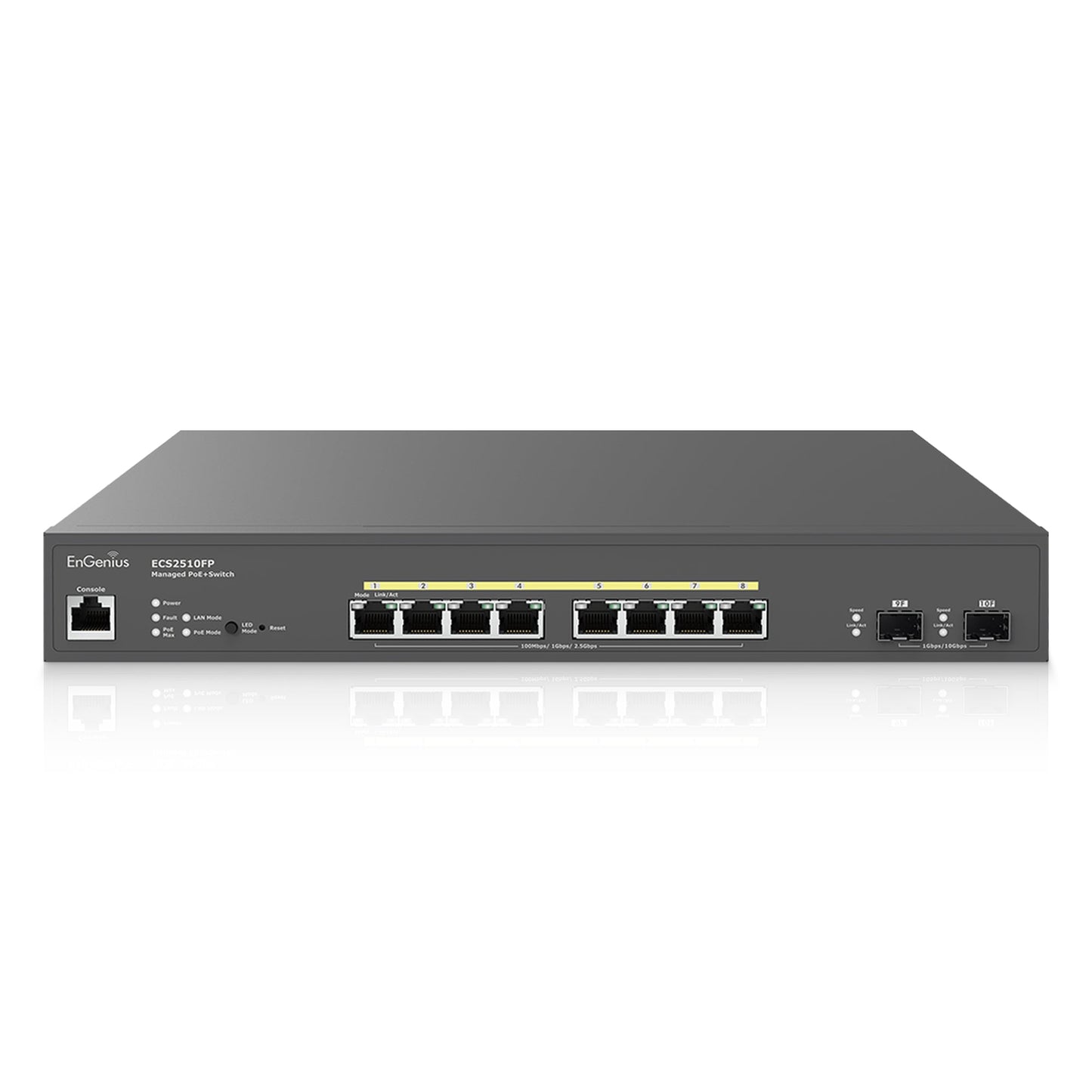

EnGenius Cloud Managed ECS2510FP 8-port multi-gigabit (2.5G) layer 2+ PoE+ (802.3at/af) switch with 240W budget and 2 SFP+ (10G) uplink ports offering multiple management options and can easily be configured, monitored, and managed. The ECS2510FP is ideal for powering IP cameras, VoIP phones, and access points in large businesses.
- ECS2510FP Datasheet
- ECS2510FP Quick Start Guide
- Cloud Switch User Manual
- Cloud Managed Switch Datasheet
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
240 Watts of PoE
This switch is 802.3 at/af PoE+ Ready on All Ports with 240W Power over Ethernet budget
Multi Gigabit
All eight ports on this switch have up to 2.5 Gigabits per second connection speed
2 SFP Ports
2 x 10-Gigabit Dual-Speed SFP+ fiber uplink ports for maximum connection speeds
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Features
Specifications
- 8 10/100/1000/2500 Base-T GbE ports
- Full-featured Layer 2+ switching
- 802.3af/at PoE+ capable on all ports with a 240W PoE budget
- 120 Gbps switching capacity
- 2 10-gigabit dual-speed SFP+ (fiber) uplink ports
- Real-Time system metrics, deep-dive analytics, and remote configurations
- Quick-scan device register, remote monitoring, and troubleshooting
- Advanced view displays network topology with devices and relationships
- Hybrid switch supports multiple management options
- Security - Access control list/port security; 802.1X & RADIUS authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
- 802.3ad link aggregation (LACP) supports traffic load balancing
- Spanning tree (STP), rapid spanning tree (RSTP) & multiple spanning tree (MSTP)
- Voice VLAN for fast, reliable deployment of VoIP services
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
8 10/100/1000/2500 Mbps Ports
2 SFP+ Ports
Switching Capacity
120Gbps
SDRAM
512MB
Flash Memory
128MB
PoE+ Capable Ports
1-8 (802.3 af/at)
Total PoE Budget
240W

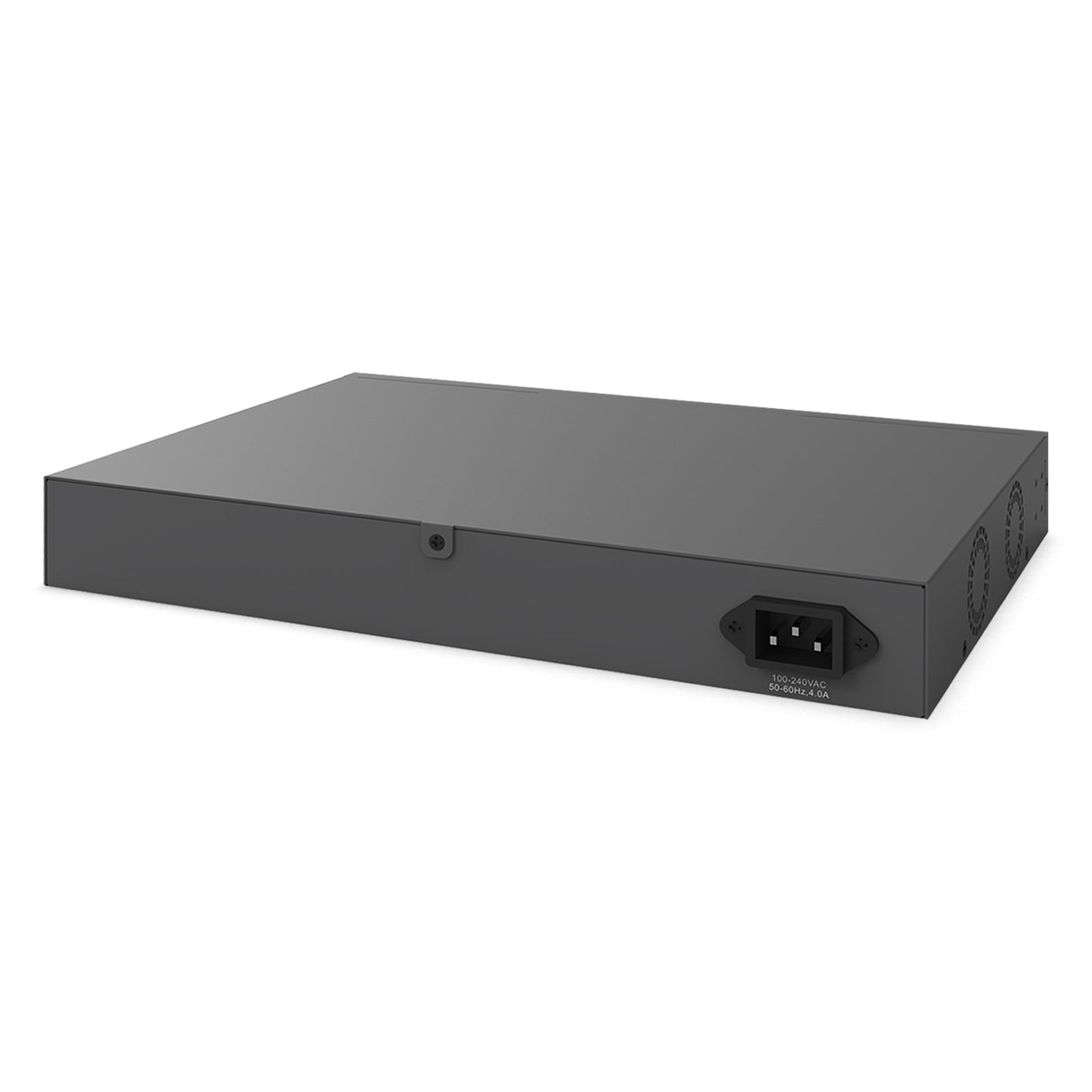

Power Source
100 ~ 240VAC, 50-60Hz
LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
Network Management
EnGenius Cloud
Local Web GUI
MAC Address Table
16K
Jumbo Frame
9K
Multicast Group
Max 256 groups
MLD Snooping
MLD Snooping: v1
QoS-Number of Priority Queues Supported
Queue 8
Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Scheduling Mechanism
Strict / WRR/ Strict + WRR
Bandwidth Control
Port-based bandwidth control (Ingress/Egress)
Port Security
Max. 256 Entries
Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL
Web Graphical User Interface (GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SSL Certificate
Certificate/Key Import
SNMP
SNMP v1/v2c/v3 Support
RMON
RMON 1,2,3,9
System Time
Time Setting/Daylight saving
Common L2 Features
802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree
Multiple IP Interfaces
20 IPv6 address
ARP Table
Max. 192 ARP entries
Static ARP
Static 192 ARP entries
IPv4 Static Route
Max. 63 entries
IPv6 Static Route
Max. 21 entries
Temperature Range
Operating: 0°C to 50°C
Humidity (Non-Condensing)
Operating: 5% - 95%
Package Contents
1x Cloud Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
ECS2510FP Device
Weight: 2.6 kg
Width: 330 mm
Length: 230 mm
Height: 44 mm
Packaging
Weight: 7.4 lbs. (3.37 kg)
Width: 15.6” (394 mm)
Length: 12.2” (309 mm)
Height: 4” (104 mm)
Warranty
2 Years
Certifications
CE
FCC
IC
