• Full-featured layer 2+ switching

• 8 100/1000/2500/5000/10000 Base-T GbE ports to serve high-bandwidth devices

• 802.3af/at/bt PoE++ capable on all ports with a 420W PoE budget for maximum power supply to devices

• 240 Gbps switching capacity for improved performance

• 4 Dual-Speed 10G SFP+ (fiber) uplink ports to connect at long distances, high speeds & high capacity

• Security - access control list/port security; 802.1X & RADIUS authentication

• IGMP & MLD snooping provides advanced multicast filtering & network efficiency

• 802.3ad link aggregation (LACP) supports traffic load balancing

• Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2500Base-T Ethernet
802.3an 10000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
8 10/100/1000/2500/5000/10000 Mbps Ports + 4x SFP+ Ports

Switching Capacity
240Gbps

SDRAM
512MB

Flash Memory
128MB

PoE++ Capable Ports
1-8 (802.3 af/at/bt)

Total PoE Budget
420W

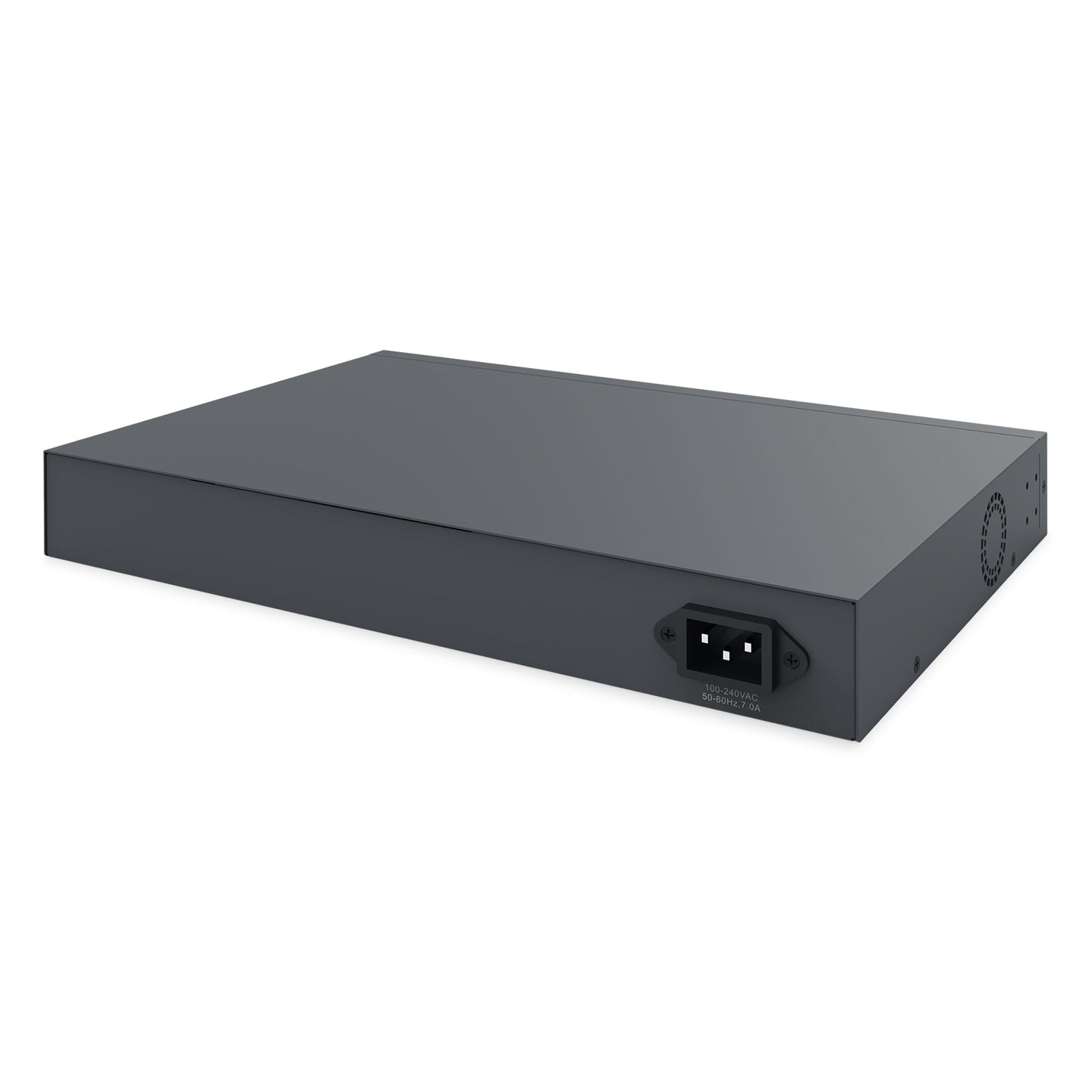

Power Source
100 ~ 240VAC, 50-60Hz

Physical Interface

LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

MAC Address Table
32K

Jumbo Frame
10K

Multicast Group
Max 256 groups

MLD Snooping
MLD Snooping: v1

QoS-Number of Priority Queues Supported
Queue 8

Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism
Strict / WRR/ Strict + WRR

Bandwidth Control
Port-based bandwidth control (Ingress/Egress)

Port Security
Max. 256 Entries

Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL

Web Graphical User Interface(GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SSL Certificate
Certificate/Key Import

SNMP
SNMP v1/v2c/v3 Support

RMON
RMON 1,2,3,9

System Time
Time Setting/Daylight saving

Common L2 Features
802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree

Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

Static ARP
Static 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route
Max. 21 entries

Temperature Range
Operating: 0°C to 50°C

Humidity (Non-Condensing)
Operating: 5% - 95%

Package Contents
1x Cloud Managed 10 Gig PoE++ Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit

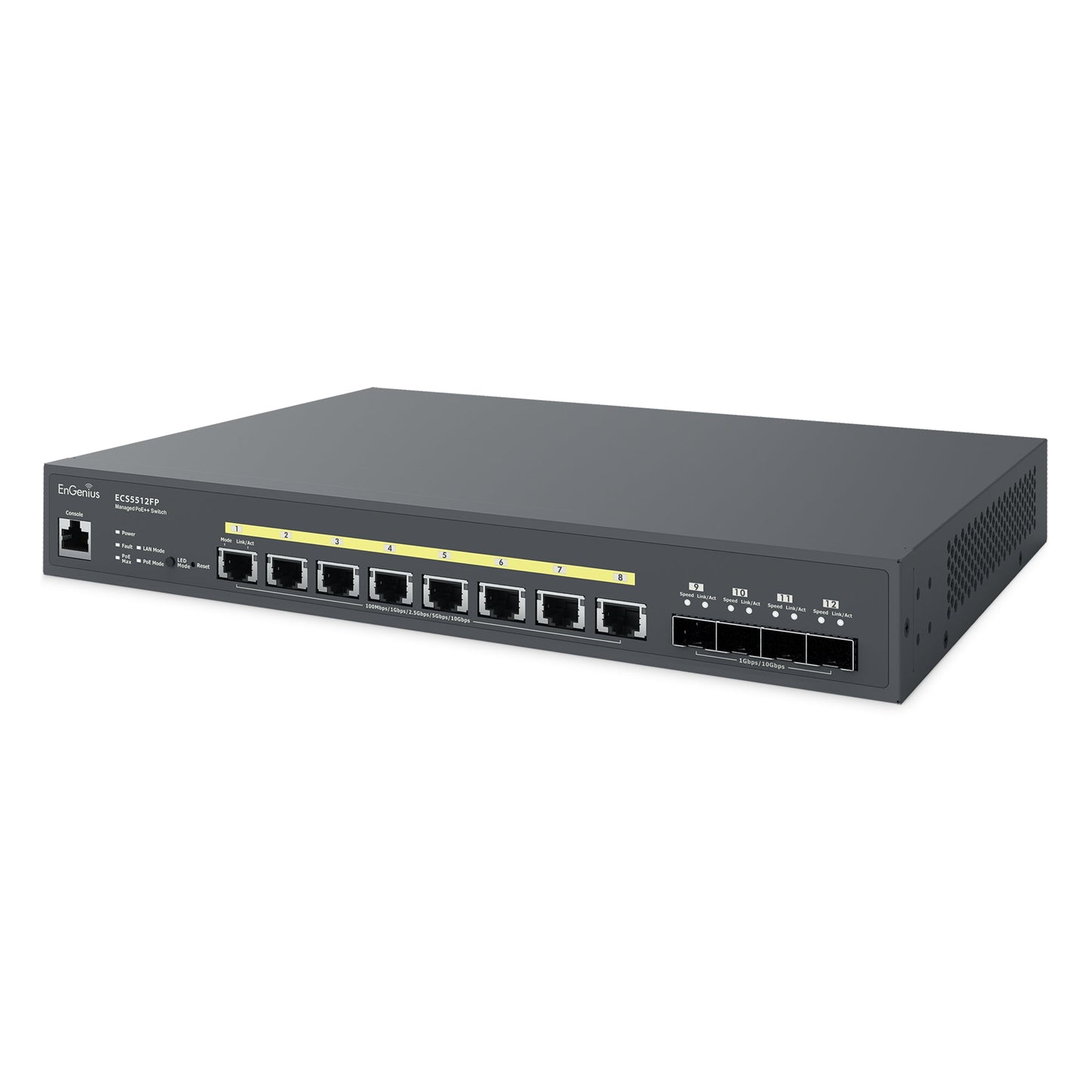

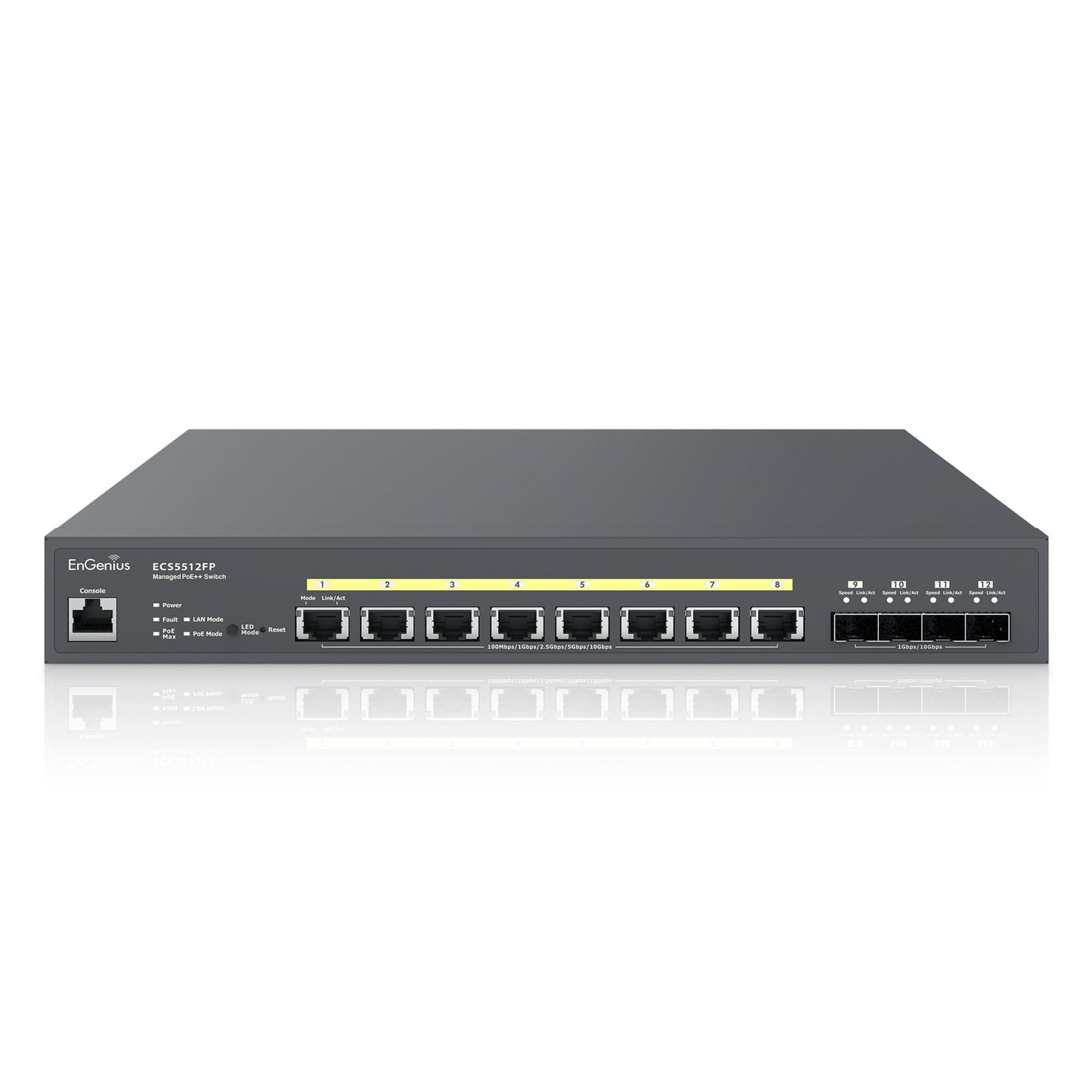

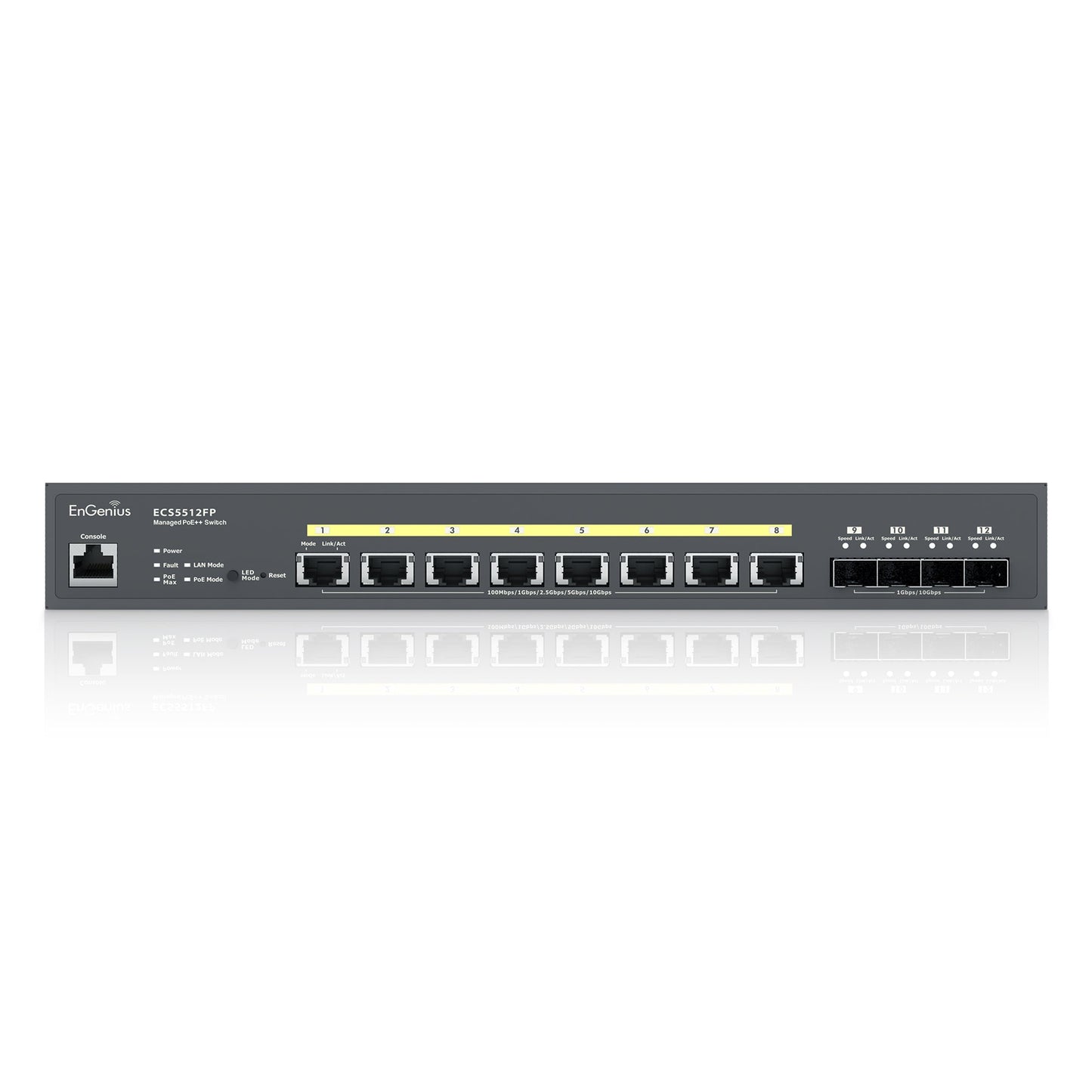

ECS5512FP Device
Weight: 3150g
Width: 230 mm
Length: 330 mm
Height: 44 mm

Packaging
Weight: 7.52 lbs (3.41 kg)
Width: 15.75” (400 mm)
Length: 12” (305 mm)
Height: 3.94” (100 mm)

Warranty
2 Years

Certifications
CE
FCC
IC
