Provides exceptional indoor wired and wireless connectivity
EnGenius Cloud Managed Wi-Fi 7 Indoor Access Point ECW510L delivers blazing-fast 7.8 Gbps tri-band speeds and higher user capacity. It supercharges performance with the ultra-fast 6 GHz band, 4x4 streams, and multi-gigabit connectivity. This tri-band AP improves connection reliability for exceptional next-generation, high-density business-class Wi-Fi.
Must be Powered over Ethernet, does not include AC Adapters.
- ECW510L Datasheet
- Cloud Managed AP Datasheet
- EnGenius Cloud User Manual
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
Multi-Gigabit Ethernet
Reliable Connectivity: Supports 802.3at (PoE+) & 48V PoE input for flexible installation over 100 meters
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Specifications
- Wi-Fi 6 AX1800 Dual-Band Speeds: Delivers high-performance 802.11ax wireless connectivity with concurrent speeds up to 574 Mbps on 2.4 GHz and 1,200 Mbps on 5 GHz for seamless HD streaming and business applications.
- Smart EnGenius Cloud Management: Effortlessly deploy, monitor, and manage your network anytime, anywhere via the license-free EnGenius Cloud portal and mobile app with real-time visual insights.
- Optimized Enterprise Features & Easy Deployment: Supports 802.3af/at PoE for flexible installation, combined with OFDMA, MU-MIMO, and WPA3 security to ensure reliable, high-density performance in modern business environments.
Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with
802.11a/b/g/n/ac
Processor
Qualcomm® Quad-Core CPU
Antenna
2 x 2.4 GHz: 3 dBi
2 x 5 GHz: 3 dBi
Integrated Omni-Directional Antenna

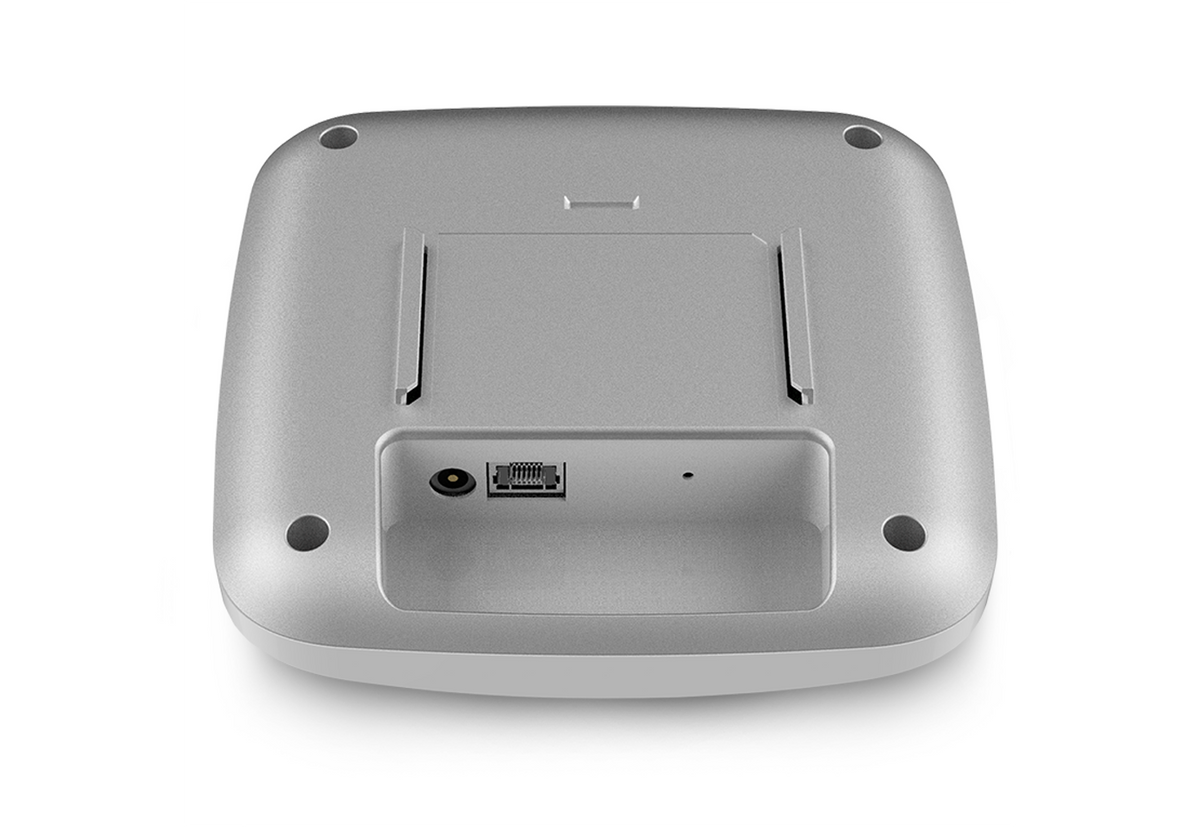

Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Gigabit Ethernet Port
1 x DC Jack
1 x Reset Button
LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power Source
Power-over-Ethernet: 802.3af/at Input
12VDC / 1.5A (or 12VDC / 1A)
Maximum Power Consumption
12.8W
Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios.
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliant with IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Wireless Security
WPA3
WPA2 Enterprise (AES)
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
Temperature Range
Operating: 0ºC~40ºC
Storage: -40ºC~80ºC
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

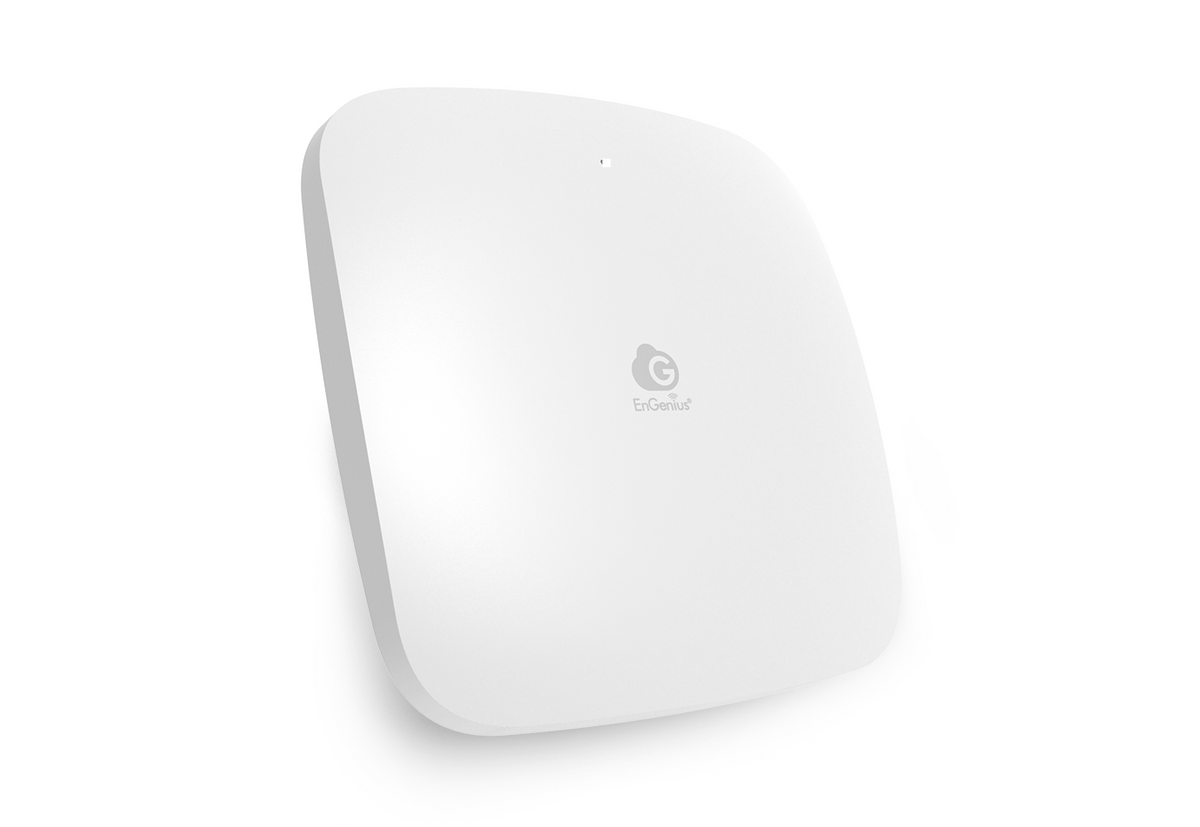

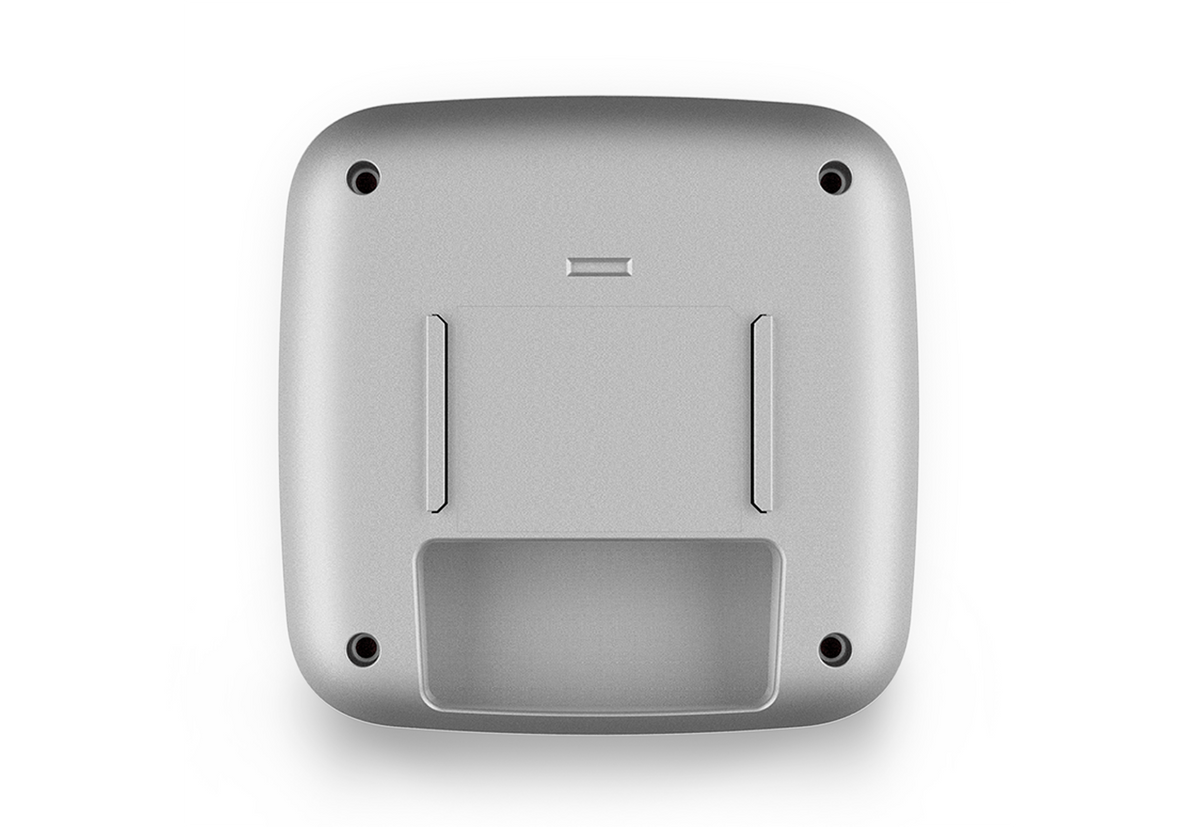

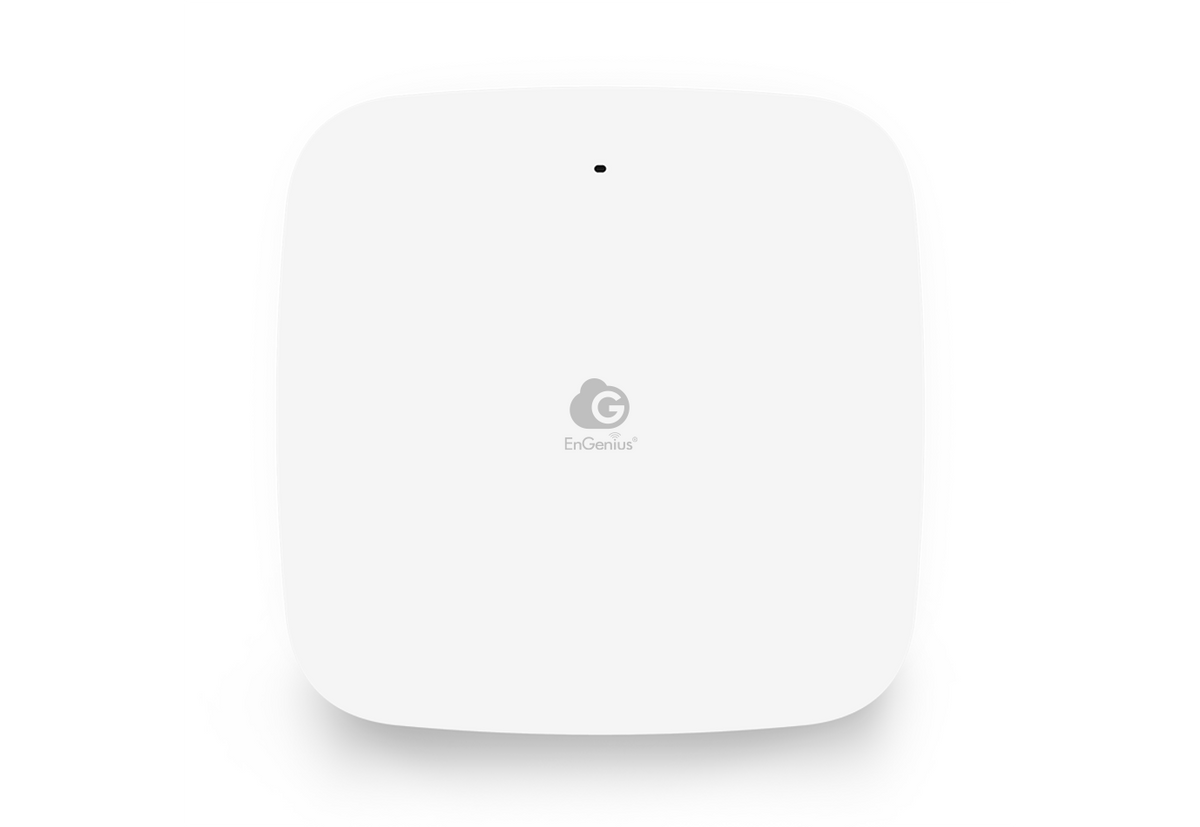

ECW210L Device
Weight: 380 g
Length: 160 mm
Width: 160 mm
Height: 33.2 mm
Packaging
Weight: 1.32 lbs. (600 g)
Length: 8.07" (205 mm)
Width: 8.07" (205 mm)
Height: 3.15" (80 mm)
Package Contents

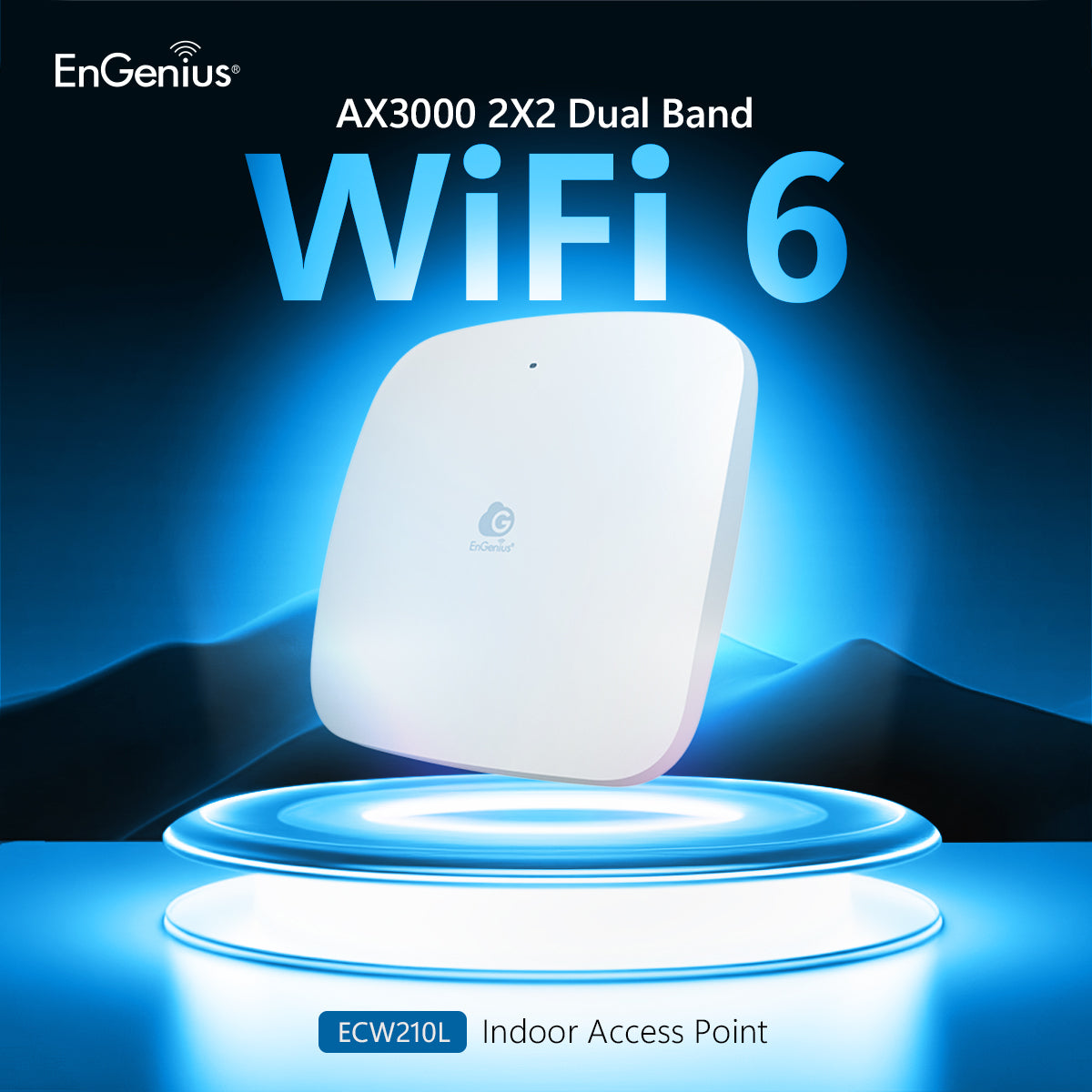

1 - ECW210L Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 - Ceiling and Wall Mount Screw Kits
1 - Quick Installation Guide
Warranty
2 Years
Certifications
CE
FCC
IC
