ECW212L: Wi-Fi 6 Dual-Band Access Point
Provides exceptional in-room Wi-Fi 6 wireless connectivity and built-in wired Gigabit Ethernet switching
EnGenius Cloud Managed Wi-Fi 6 Wall-Plate Access Point ECW212L delivers combined speeds of up to 1.77 Gbps (574 Mbps on 2.4 GHz and 1,200 Mbps on 5 GHz) with sleek in-wall deployment. Featuring an integrated Gigabit switch with PoE pass-through support, this 2x2 AP delivers exceptional in-room wired and wireless connectivity for hotels, multi-dwelling units, and modern office spaces.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Specifications
- Wi-Fi 6 AX1800 Dual-Band Speeds: Delivers high-performance 802.11ax wireless connectivity with concurrent speeds up to 574 Mbps on 2.4 GHz and 1,200 Mbps on 5 GHz for seamless in-room wireless performance.
- Smart EnGenius Cloud Management: Effortlessly deploy, monitor, and manage your network anytime, anywhere via the license-free EnGenius Cloud portal and mobile app with real-time visual insights.
- Sleek Wall-Plate Design with Wired Switch Ports: Features an elegant in-wall form factor with built-in Gigabit Ethernet ports and PoE pass-through to power local devices like IPTVs, VoIP phones, and laptops in hospitality and MDU environments.
Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac
IEEE 802.3 u/ab
Antenna
4 x 2.4 GHz: 5 dBi(Integrated Omni-Directional)
4 x 5 GHz: 5 dBi(Integrated Omni-Directional)
Scanning Radio
N/A
BLE
N/A

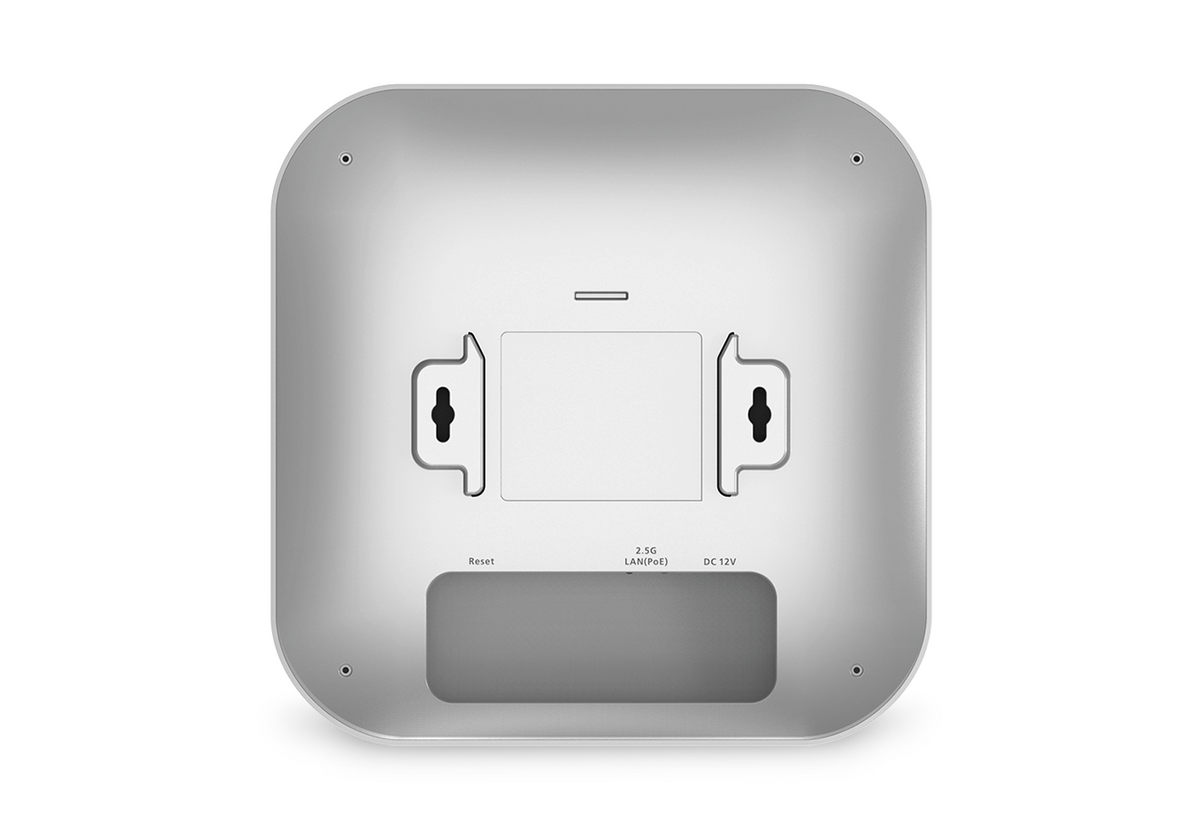

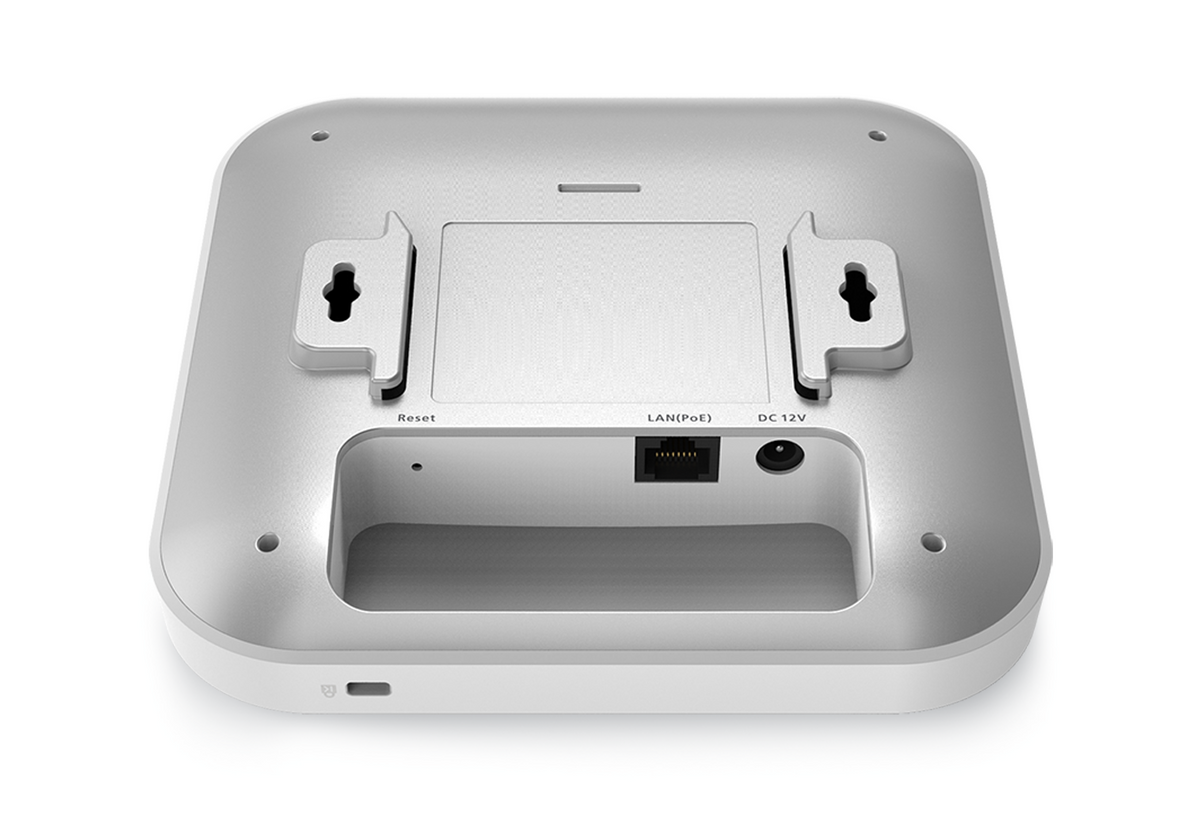

Physical Interfaces
1 x 2.5GE Port (PoE+)
1 x DC Jack
1 x Reset Button
LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter
Maximum Power Consumption
17W
Temperature Range
Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
ECW210L Device
Weight: 570 g
Width: 205mm
Length: 205mm
Height: 33mm
Package Contents
1 – ECW212L Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 – Ceiling and Wall Mount Screw Kit
1 – Product Card
Warranty
2 Years
