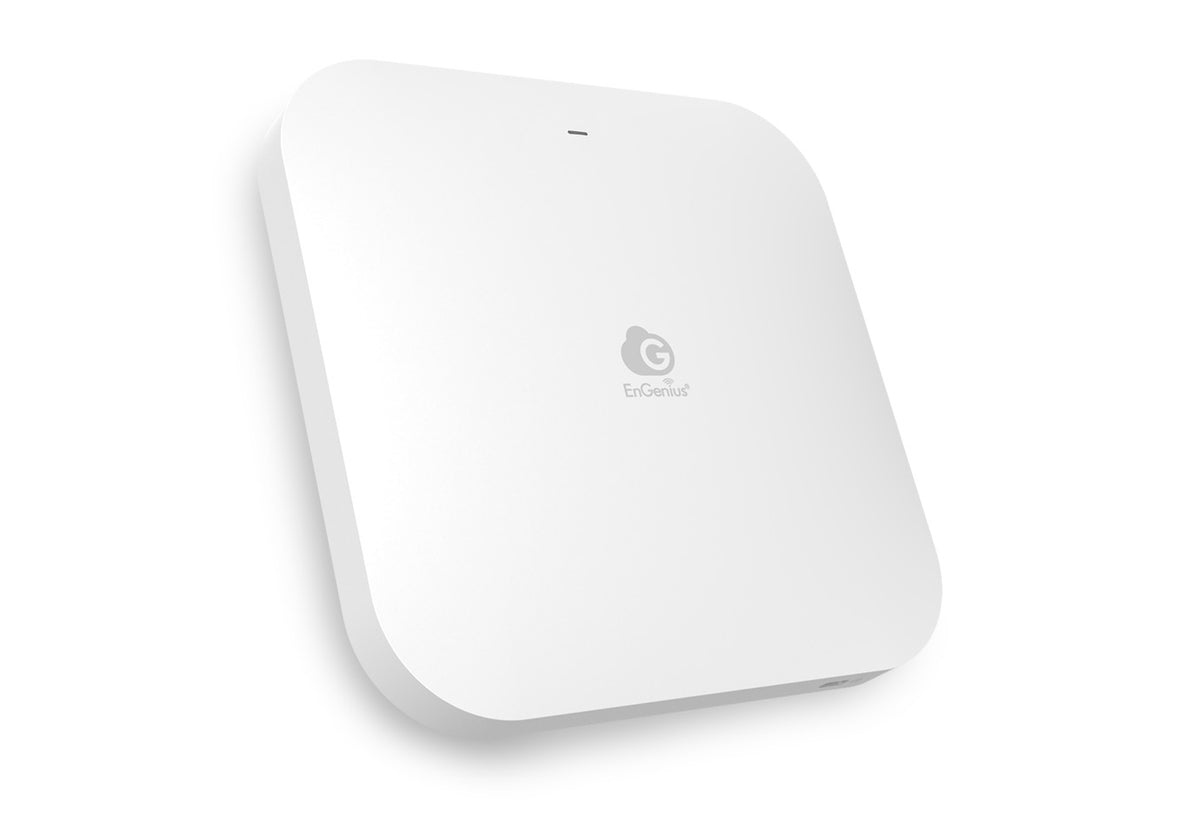

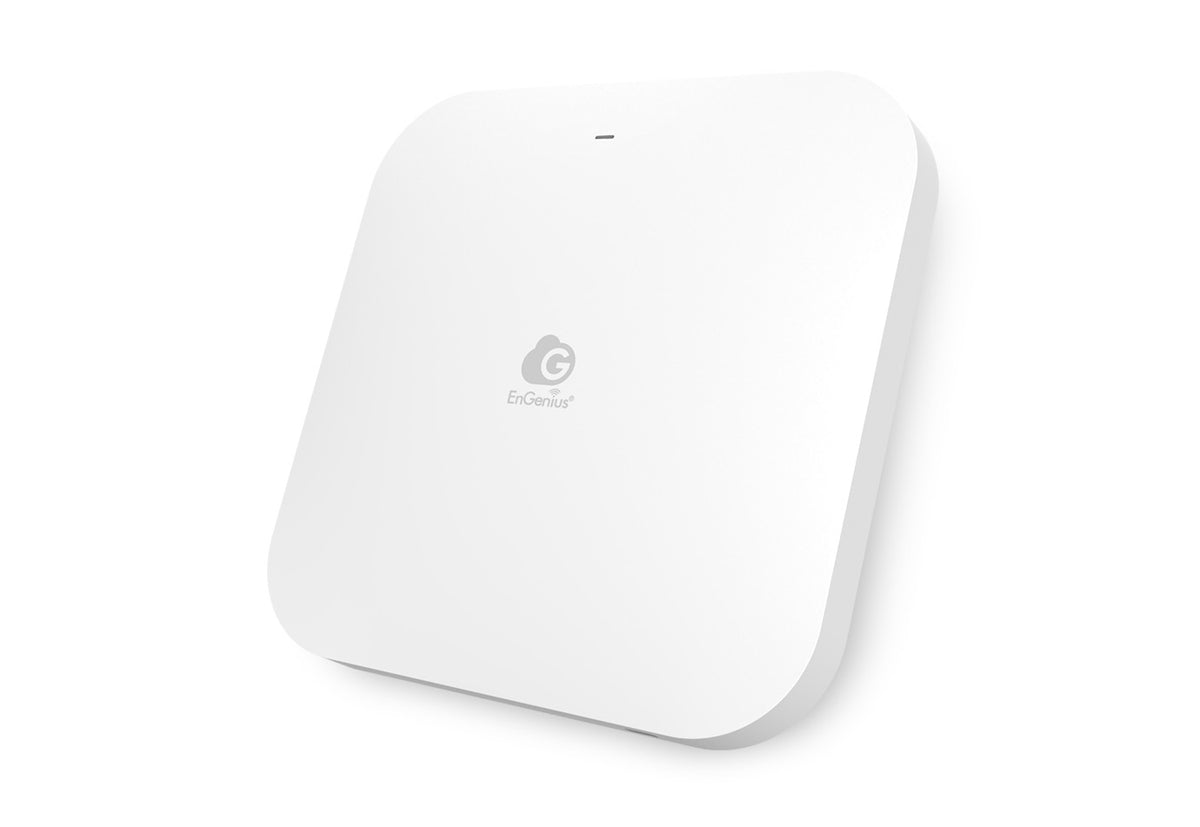

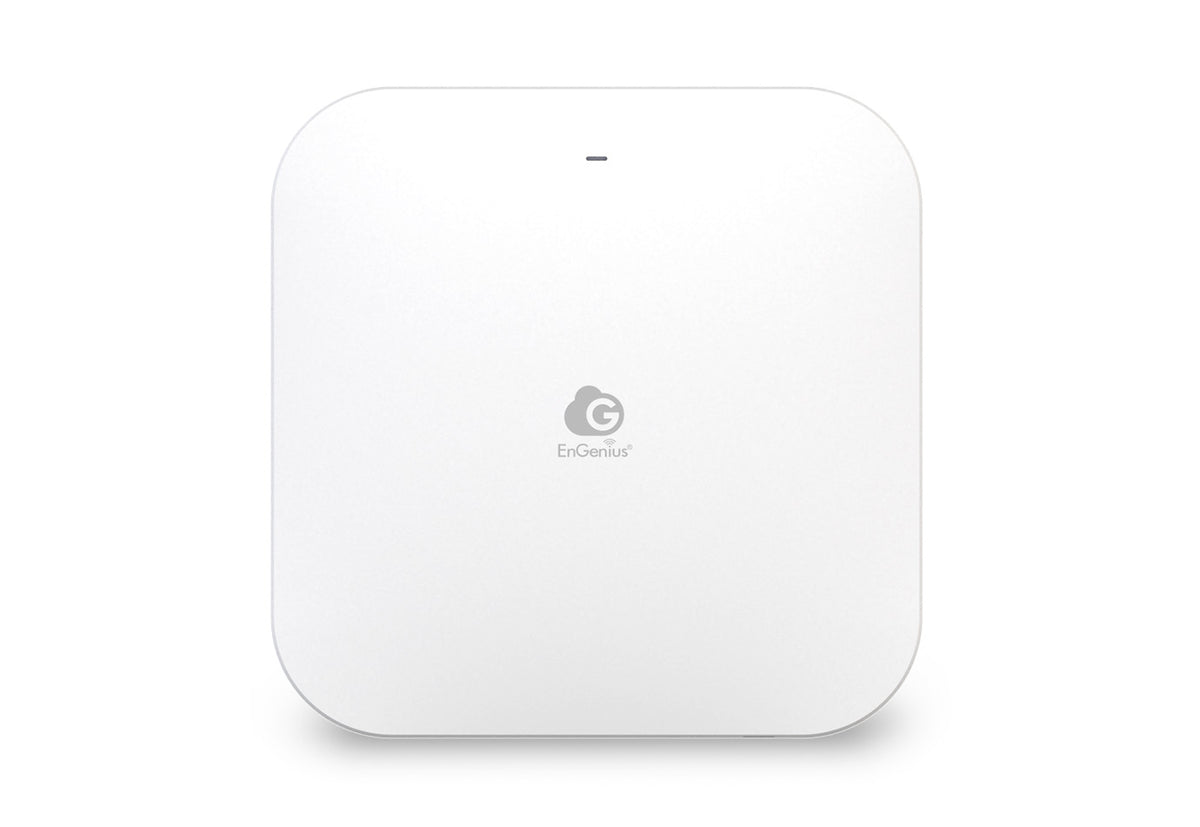

ECW510:Wi-Fi 7 Dual-Band Access Point
Provides exceptional tri-band wireless speeds with 6 GHz band support and seamless 10GbE PoE+ wired connectivity
EnGenius Cloud Managed ECW510 is a sleekly designed dual-band Wi-Fi 7 2x2 access point that supports multi-gigabit speeds using 2.4 GHz and 5 GHz bands. The ECW510 using Wi-Fi 7 standards supports 240 MHz channels, MU-MIMO, 4096-QAM, Multi-Link Operation, and Multi-RU puncturing to increase reliability and performance by combining channels, avoiding interference, and reducing latency. The ECW510 is supported with a single 2.5 GbE PoE+ Ethernet port for superior performance, easy mounting, and placement in modern enterprises.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Specifications
- Ultra-Fast Wi-Fi 7 Performance: Harnesses next-generation 802.11be Wi-Fi 7 technology to deliver multi-gigabit wireless speeds and ultra-low latency for bandwidth-intensive applications and high-density environments.
- Smart EnGenius Cloud Management: Effortlessly deploy, monitor, and manage your network anytime, anywhere via the license-free EnGenius Cloud portal and mobile app with real-time visual insights.
- High-Capacity 2.5G PoE+ Deployment: Equipped with a 2.5 GbE PoE+ port to eliminate wired bottlenecks, combined with advanced WPA3 enterprise security and MLO (Multi-Link Operation) for reliable, future-proof business networking.
Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
Backward compatible with 802.11a/b/g/n/ac/ax
IEEE 802.3 u/ab
Antenna
2 x 2.4 GHz: 3 dBi (Integrated Omni-Directional)
2 x 5 GHz: 5 dBi (Integrated Omni-Directional)

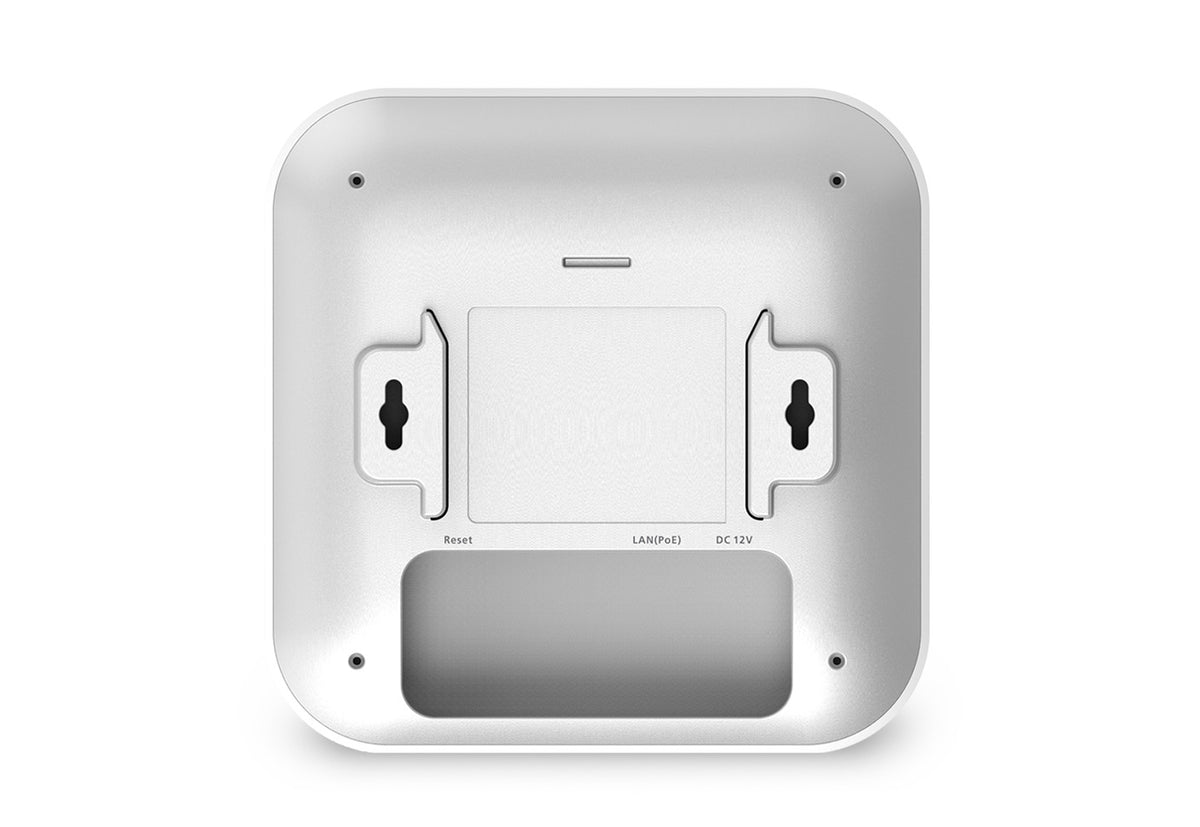

Physical Interfaces
1 x 2.5GE Port (PoE+)
1 x DC Jack
1 x Reset Button
LED Indicators
1 x Multi-color LED
Power Source
Power-over-Ethernet: 802.3at Input
12VDC / 1.5A Power Adapter
Maximum Power Consumption
15.5W
Multiple BSSID
8 SSIDs on both 2.4GHz and 5GHz bands
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliance With IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Fast Roaming
802.11k/v/r
Wireless Security
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control
Interface
IPv4
Local Web Access
Supports HTTP or HTTPS
Temperature Range
Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)
Humidity (non-condensing)
Operating: 95% or less
Storage: 95% or less
Weight
880g
Dimensions
Width: 160 mm
Length: 160 mm
Height: 32 mm
Package Contents
1 – ECW510 Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 – Ceiling and Wall Mount Screw Kit
1 – Product Card
