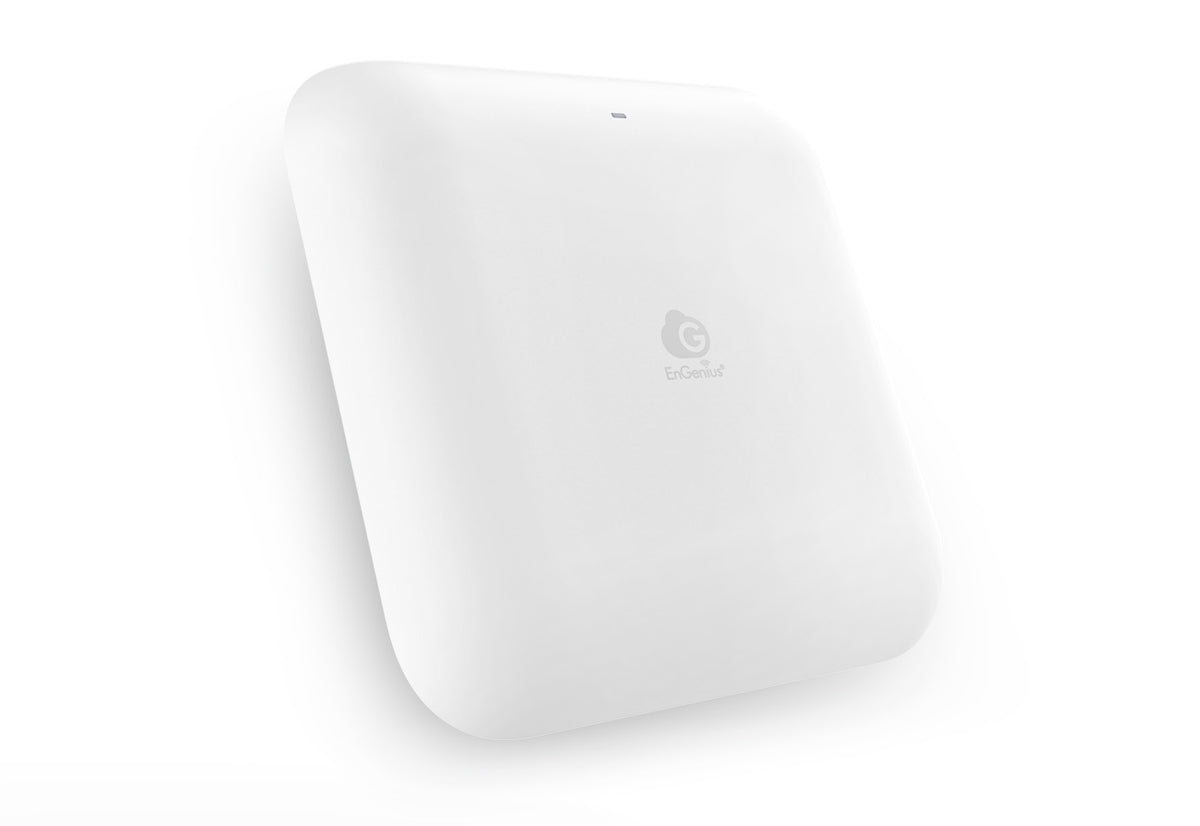

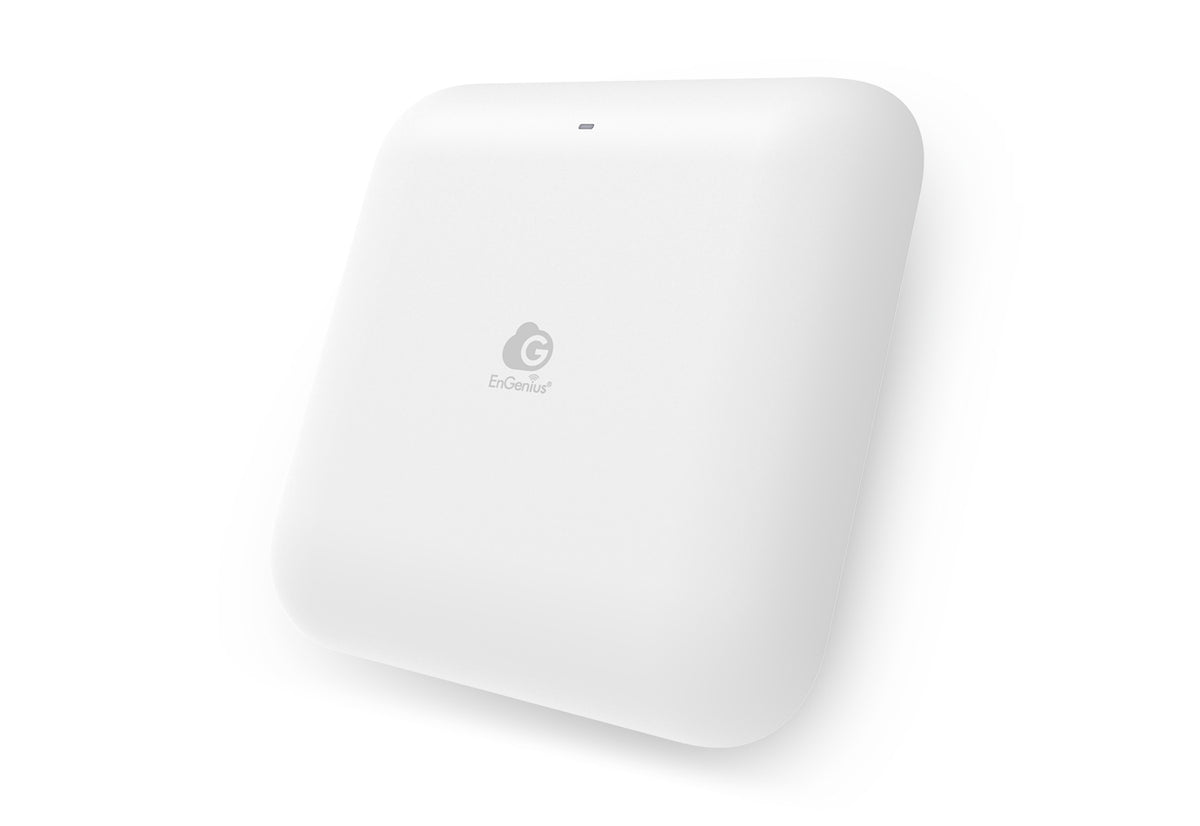

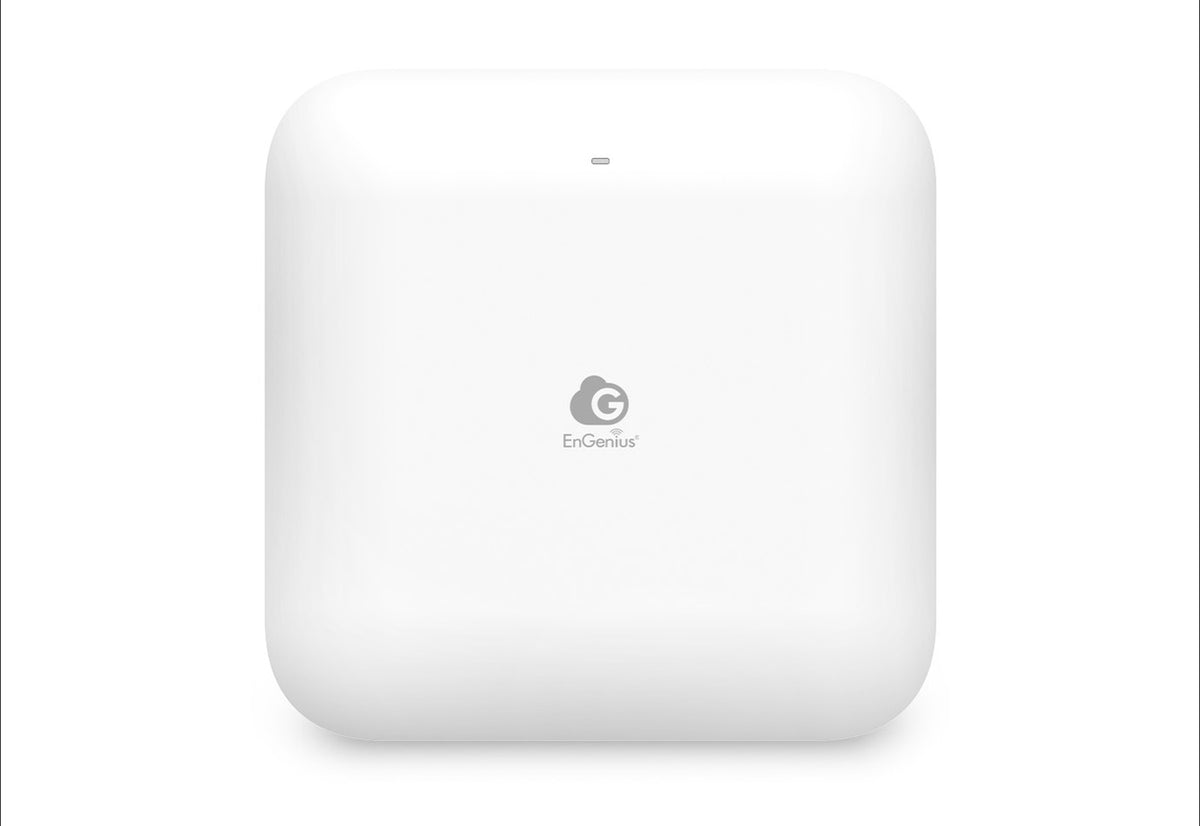

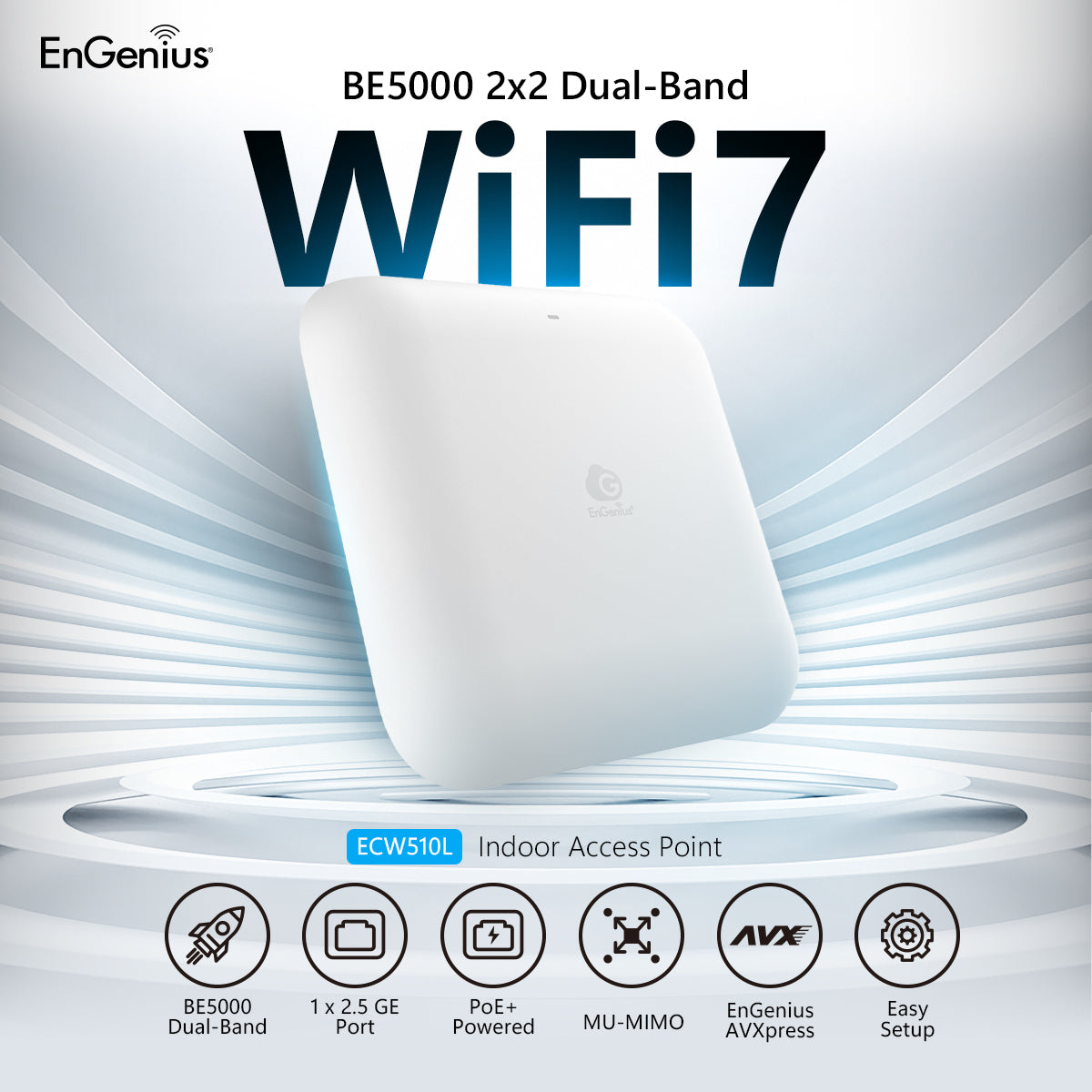

ECW510L: Wi-Fi 7 Dual-Band Access Point
Provides exceptional indoor wired and wireless connectivity
EnGenius Cloud Managed Wi-Fi 7 Indoor Access Point ECW510L delivers combined tri-band speeds of up to 7.8 Gbps (574 Mbps on 2.4 GHz, 2,400 Mbps on 5 GHz, and 4,800 Mbps on 6 GHz) and higher user capacity. The high-performance 4x4 AP improves connection reliability and expands network coverage with ultra-fast 6 GHz band integration for exceptional next-generation, high-density business-class Wi-Fi.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Specifications
- Wi-Fi 7 Tri-Band Speeds (7.8 Gbps): Concurrent speeds up to 574 Mbps (2.4 GHz), 2,400 Mbps (5 GHz), and 4,800 Mbps (6 GHz) for ultra-fast, high-density connectivity.
- Smart EnGenius Cloud Management: Deploy, monitor, and manage your network anytime, anywhere via the license-free EnGenius Cloud portal and mobile app.
- 4x4 MU-MIMO & 2.5G Multi-Gigabit Port: Equipped with a 2.5 GbE uplink port and 802.3at PoE+ support to eliminate bandwidth bottlenecks.
Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
Backward compatible with 802.11a/b/g/n/ac/ax
IEEE 802.3 u/ab
Antenna
2 x 2.4 GHz: 3 dBi (Integrated Omni-Directional)
2 x 5 GHz: 5 dBi (Integrated Omni-Directional)

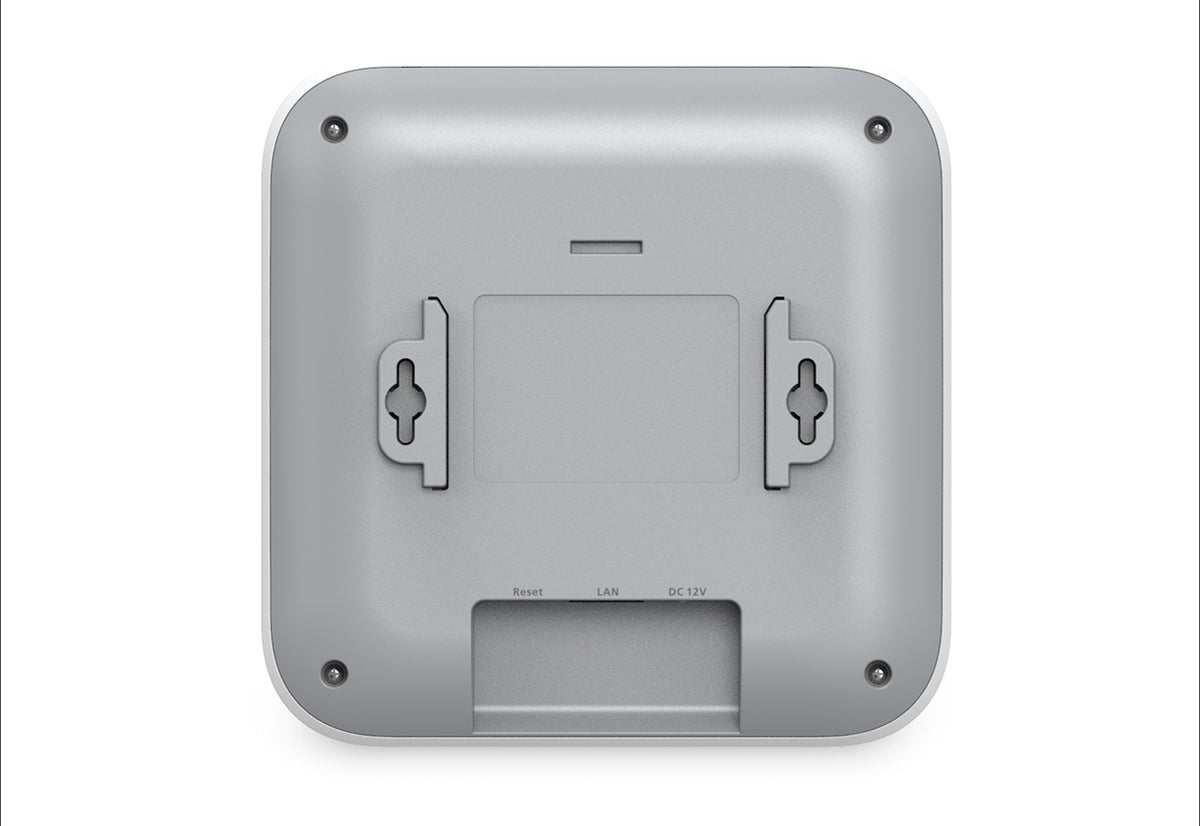

Physical Interfaces
1 x 2.5GE Port (PoE+)
1 x DC Jack
1 x Reset Button
LED Indicators
1 x Multi-color LED
Power Source
Power-over-Ethernet: 802.3at Input
12VDC / 1.5A Power Adapter
Maximum Power Consumption
15.5W
Multiple BSSID
8 SSIDs on both 2.4GHz and 5GHz bands
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliance With IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Fast Roaming
802.11k/v/r
Wireless Security
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control
Interface
IPv4
Local Web Access
Supports HTTP or HTTPS
Temperature Range
Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)
Humidity (non-condensing)
Operating: 95% or less
Storage: 95% or less
Weight
880g
Dimensions
Width: 160 mm
Length: 160 mm
Height: 32 mm
Package Contents
1 – ECW510 Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 – Ceiling and Wall Mount Screw Kit
1 – Product Card
