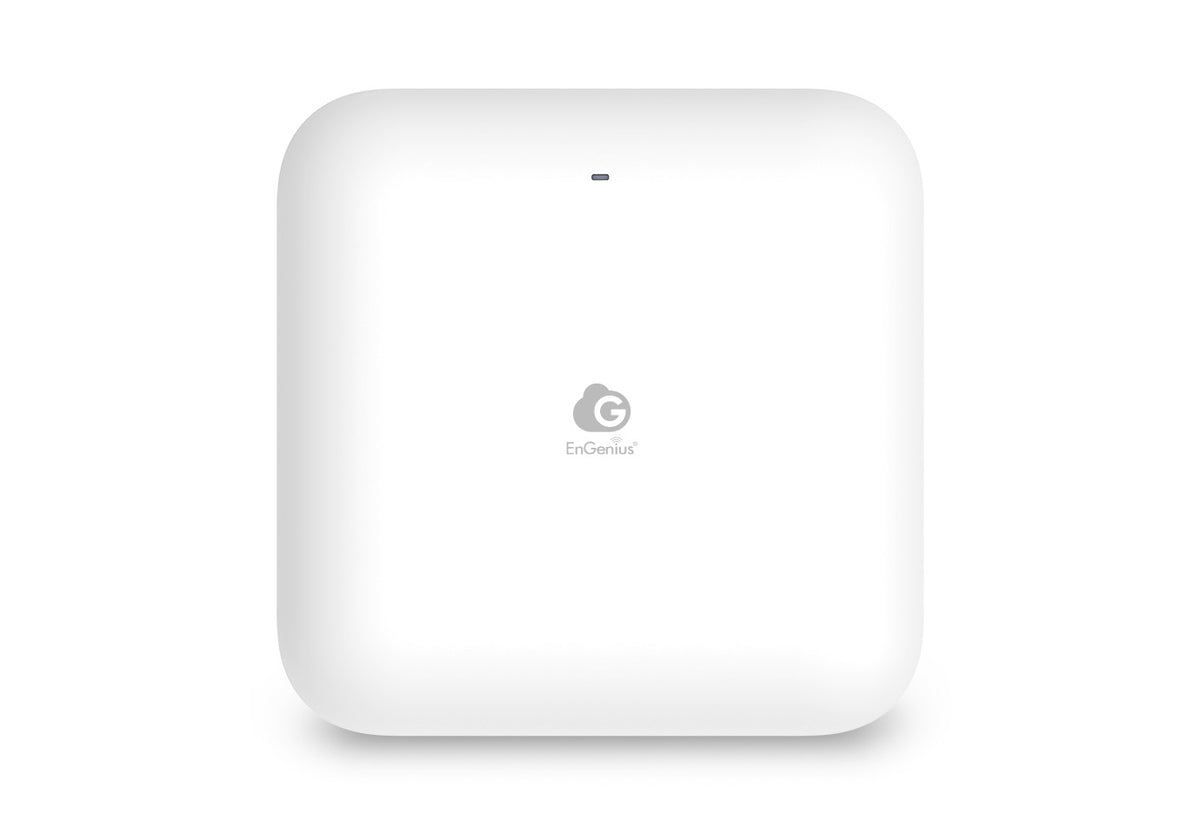

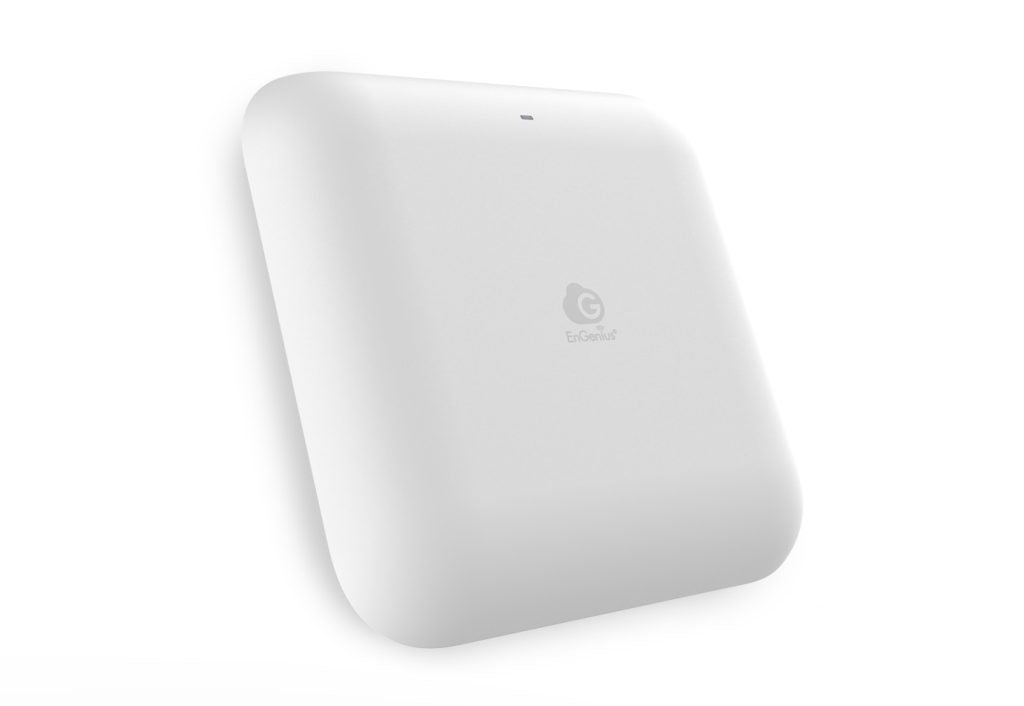

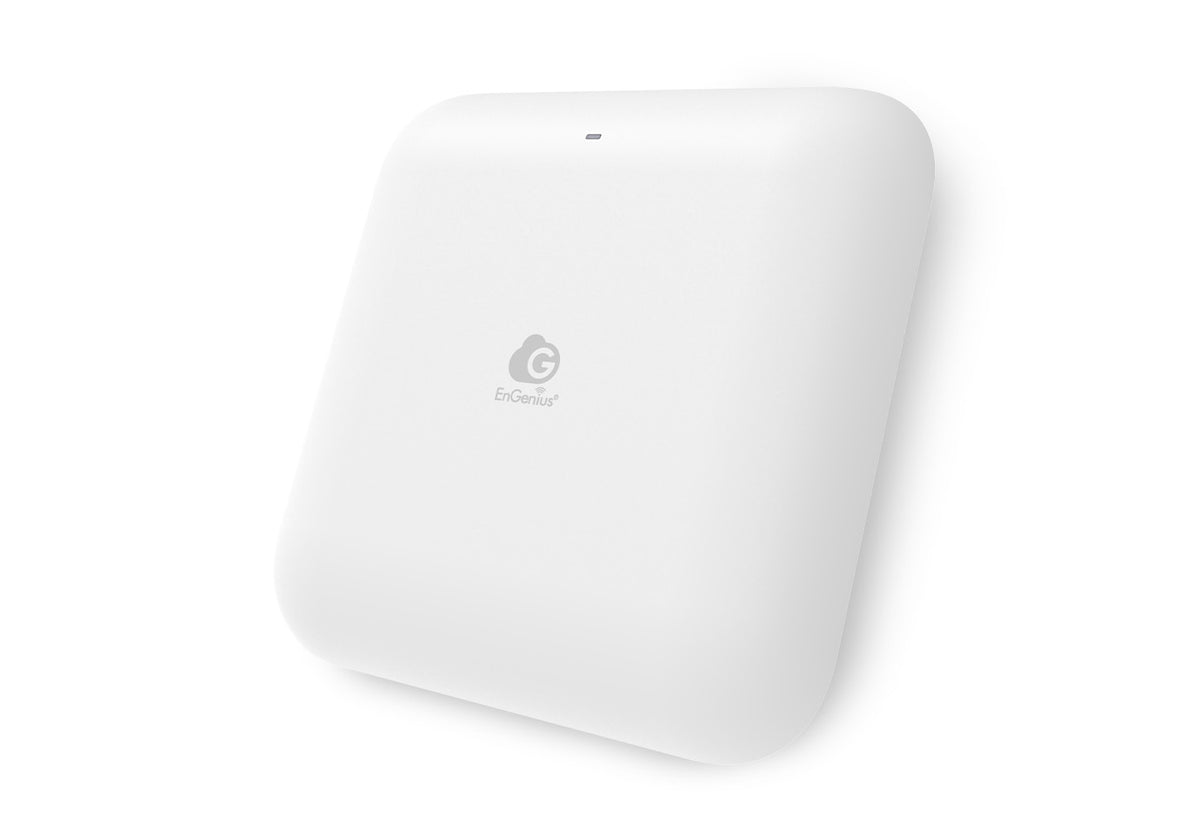

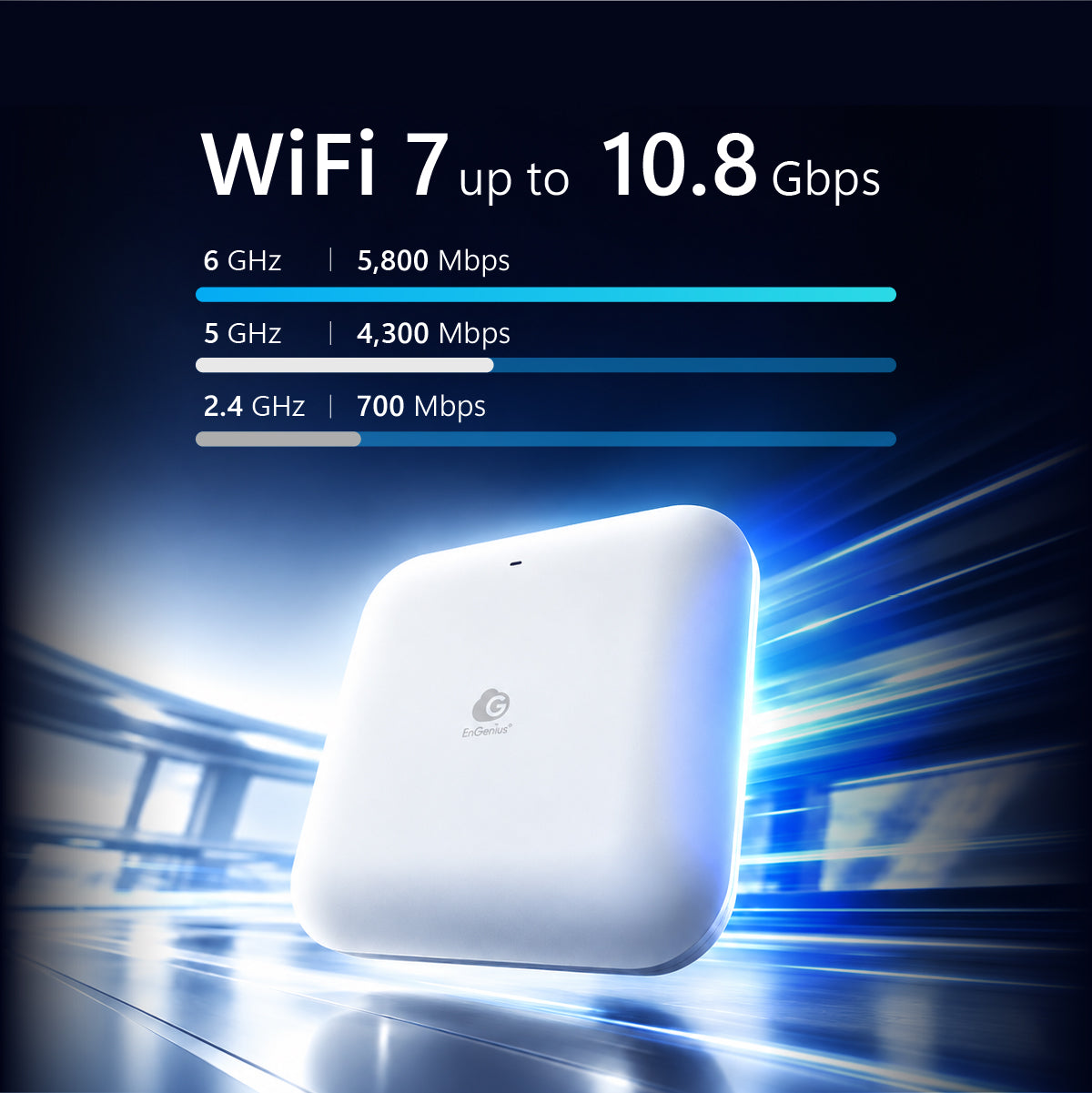

ECW520: Wi-Fi 7 Tri-Band Access Point
Enterprise-grade Wi-Fi 7 performance for ultra-high density wireless environments
EnGenius Cloud Managed Wi-Fi 7 Indoor Access Point ECW520 delivers combined speeds of up to 3.6 Gbps across 2.4 GHz and 5 GHz bands with 4096-QAM and 240 MHz channel support. Powered by next-generation Wi-Fi 7 (802.11be) technology and equipped with a 2.5 GbE PoE+ port, this low-profile 2x2 AP ensures low latency and ultra-high capacity for modern enterprise networks.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
5-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Specifications
- Wi-Fi 7 Dual-Band Speeds: Delivers next-generation 802.11be wireless connectivity with concurrent speeds up to 688 Mbps on 2.4 GHz and 2,880 Mbps on 5 GHz for ultra-fast, low-latency performance.
- Smart EnGenius Cloud Management: Effortlessly deploy, monitor, and manage your network anytime, anywhere via the license-free EnGenius Cloud portal and mobile app with real-time visual insights.
- Optimized Enterprise Performance & Multi-Gig PoE: Features a 2.5 GbE PoE+ port with 4096-QAM, MLO, and WPA3 security to ensure high-capacity and reliable connectivity in modern enterprise environments.
Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
(Backward compatible with 802.11b/g/n/ac/ax)
Processor
Qualcomm® Networking Pro 1220
Antenna
2 x 2.4 GHz: 6 dBi (Integrated Omni-Directional)
2 x 5 GHz: 6 dBi (Integrated Omni-Directional)
2 x 6 GHz: 6 dBi (Integrated Omni-Directional)
Physical Interface
1 x 2.5 GE Port (PoE+)
1 x DC Jack
1 x Reset Button
LED Indicators
1 x Multi-Color LED
Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter (Not Included)
EPA5060XBT PoE++ Injector (Not Included)
Maximum Power Consumption
25.4W
Multiple BSSID
8 SSIDs for 2.4GHz, 5GHz, & 6 GHz radios
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Complaint With IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
Client Isolation
L2 Isolation
Temperature Range
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
ECW210L Device
Weight: 1.32 lbs. (600 g)
Length: 6.22″ (158 mm)
Width: 6.22″ (158mm)
Height: 1.41″ (35.8 mm)
Packaging
Weight: 1.9 lbs. (860g)
Length: 8.15″ (207 mm)
Width: 8.15″ (207 mm)
Height: 3.43″ (87 mm)
Package Contents
1 x ECW520 Cloud Managed Indoor Access Point
1 x Ceiling Mount Base (9/16” T-Rail)
1 x Ceiling Mount Base (15/16” T-Rail)
1 x Ceiling and Wall Mount Screw Kits
1 x Product Card
Warranty
5-Year Limited Hardware Warranty
Certifications
FCC
CE
IC
UKCA
