EOC600: Broadband Outdoor 5GHz Dual Radio 2×2 Point to Point WiFi 6 Bridge
EOC600: Broadband Outdoor 5GHz Dual Radio 2×2 Point to Point WiFi 6 Bridge
Provides exceptional long-range outdoor wireless connectivity and high-speed PtP/PtMP bridging
EnGenius Outdoor Wi-Fi 6 Wireless Bridge EOC600 delivers 5 GHz speeds up to 1,200 Mbps with high-density performance for long-range connectivity. Featuring an integrated 16 dBi high-gain directional antenna and an IP55-rated weatherproof enclosure, this 2x2 Wi-Fi 6 bridge provides secure AES-256 encrypted Point-to-Point (PtP) and Point-to-Multipoint (PtMP) links across harsh outdoor environments.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is managed via SkyPoint NMS with intuitive web-based monitoring and auto-provisioning.
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Specifications
- High-Speed 5 GHz Wi-Fi 6: Delivers 802.11ax 2x2 wireless connectivity with speeds up to 1,200 Mbps on 5 GHz for high-throughput PtP and PtMP links.
- Extended Range & Rugged Build: Equipped with an integrated 16 dBi high-gain directional antenna and IP55-rated weatherproofing for long-range outdoor deployments.
- SkyPoint NMS & Secure Encryption: Features AES-256 encryption for secure communications, managed seamlessly via SkyPoint NMS with auto-provisioning for large-scale networks.
Chipset
IPQ5018+QCN6102, QCA8337
Standards
IEEE 802.11a/n/ac/ax on 5 GHz
Memory
DDR3 512MB, Flash 128MB
Antenna
2x 2.4GHz: – 2x 5GHz -: 16dBi
Physical Interfaces

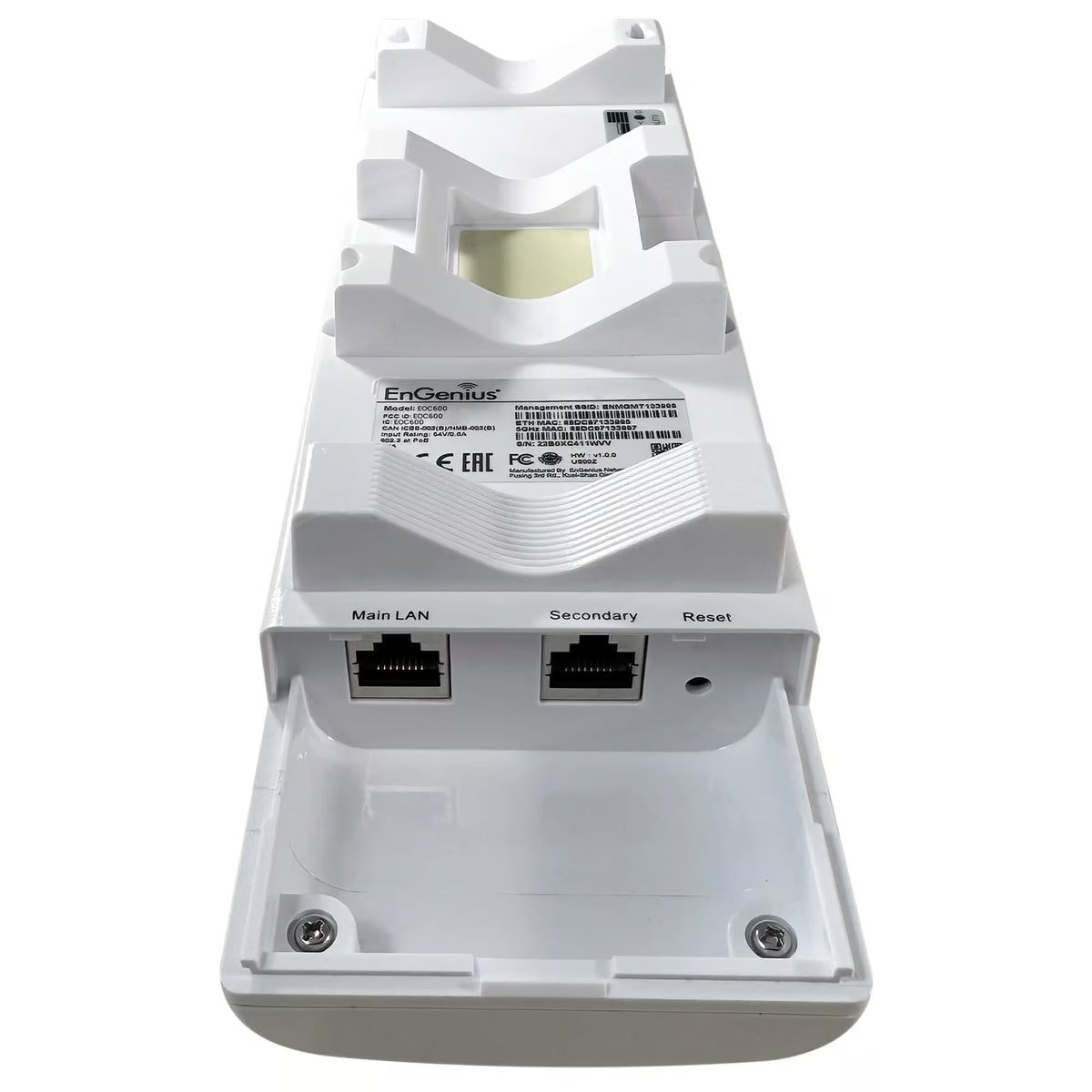

1 x 10/100/1000 BASE-T(Proprietary PoE) 1 x 10/100/1000 BASE-T Proceed reset and reboot when pushing this button
Power Source
Proprietary 54V (EPA5006GR)
SNMP
v1, v2c, v3
Authentication
Internal MAC Address Control List, Radius based Authentication
Traffic Shaping
Downlink and Uplink traffic shaping
Remote
SSH, Web, TFTP, HTTP, HTTPS, Syslog
Smart Phone
Android & IOS based Application for Radio Management
Antenna Alignment
Alignment aid provided via variable audible tone generation algorithm
Operating Mode
Bridging
IP Stack
IPv4, IPv6
VLAN Tagging
802.1Q: Transparent, Access, Trunk, Q-in-Q
Gateway Features
DHCP Server
MAC-in-MAC
To improve the multicast traffic performance, IGMP Snooping
Ethernet-OAM
Fault Link Management
Packet Filtering
MAC, IP, Protocol, Port
NTP Server
Stratum 1 NTP Server using external server – less than 1msec accuracy
Asymmetric Bandwidth Control
Asymmetric UL/DL committed and maximum information rate per Service Flow
Packet Classification Capabilities
802.1p priority, IPTOS, VLAN ID, IP addresses, ports, Ethernet addresses, IP protocol, and Ether Type. Support maximum 4 SFC’s with maximum 32 PIR’s
Scheduling
Real Time priority-based services
Temperature Range
Operation: -4º~140ºF/-20ºC~60ºC Storage: -40Fº~176ºF/-40ºC~80ºC
Humidity (non-condensing)
Storage: 90% or less
IP Rating:IP55
Wind loading: 200Kmph
ESD Protection: Contact: 4KV Air: 8KV
Weight:610g
Dimensions: 260 x 84 x 55 mm
Package Contents
1 – EOC600 Outdoor CPE
1 – EPA5006GR with AC cord
2 – Pole-Mounting Brackets
1 – Wall-Mount Screw Set
1 – Product Card
Safety Compliance: CB
WEEE: Yes
RoHS: Yes
Regulatory Compliance: FCC CE IC UKCA
MTBF:100K hours
