EOC610: Broadband Outdoor 5GHz Dual Radio 2×2 Wi-Fi 6 Bridge
Provides exceptional long-range outdoor wireless connectivity with an integrated 19 dBi antenna for seamless PtP/PtMP bridging
EnGenius Outdoor Wi-Fi 6 Wireless Bridge EOC610 delivers 5 GHz speeds up to 1,200 Mbps with high-density performance for extended long-range connectivity. Featuring an integrated 19 dBi high-gain directional antenna and an IP55-rated weatherproof enclosure, this 2x2 Wi-Fi 6 bridge provides secure AES-256 encrypted Point-to-Point (PtP) and Point-to-Multipoint (PtMP) links across demanding outdoor environments.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is managed via SkyPoint NMS with web-based monitoring and auto-provisioning.
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Specifications
- High-Speed 5 GHz Wi-Fi 6: Delivers 802.11ax 2x2 wireless connectivity with speeds up to 1,200 Mbps on 5 GHz for high-throughput PtP and PtMP links.
- Extended Range & High-Gain Antenna: Equipped with an integrated 19 dBi high-gain directional antenna and IP55-rated weatherproofing for long-range outdoor deployments.
- SkyPoint NMS & Secure Encryption: Features AES-256 encryption for secure communications, managed seamlessly via SkyPoint NMS with auto-provisioning for large-scale networks.
Chipset
IPQ5018+QCN6102,
QCA8337
Standards
IEEE
802.11a/n/ac/ax on 5 GHz
Memory
DDR3 512MB,
Flash 128MB
Antenna
2x 2.4GHz: – 2x
5GHz -: 19dBi
Physical

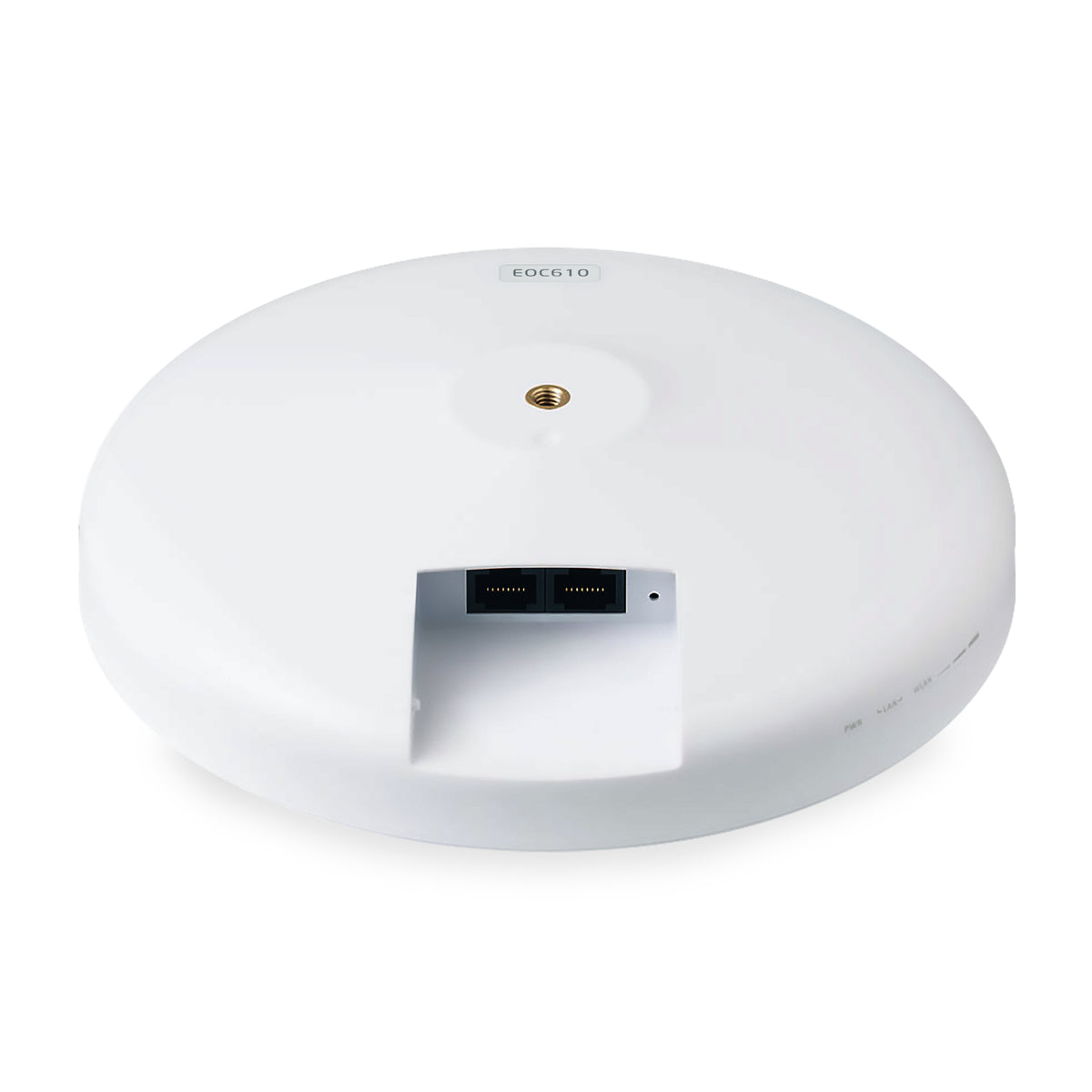

Interfaces
1 x 10/100/1000
BASE-T(Proprietary PoE) 1 x 10/100/1000 BASE-T Proceed reset and reboot when
pushing this button
Power Source
Proprietary 54V
(EPA5006GR)
SNMP
v1, v2c, v3
Authentication
Internal MAC
Address Control List, Radius based Authentication
Traffic
Shaping
Downlink and
Uplink traffic shaping
Remote
SSH, Web, TFTP,
HTTP, HTTPS, Syslog
Smart Phone
Android &
IOS based Application for Radio Management
Antenna
Alignment
Alignment aid
provided via variable audible tone generation algorithm
Operating
Mode
Bridging
IP Stack
IPv4, IPv6
VLAN Tagging
802.1Q:
Transparent, Access, Trunk, Q-in-Q
Gateway
Features
DHCP Server
MAC-in-MAC
To improve the
multicast traffic performance, IGMP Snooping
Ethernet-OAM
Fault Link
Management
Packet
Filtering
MAC, IP,
Protocol, Port
NTP Server
Stratum 1 NTP
Server using external server – less than 1msec accuracy
Asymmetric
Bandwidth Control
Asymmetric UL/DL
committed and maximum information rate per Service Flow
Packet
Classification Capabilities
802.1p priority,
IPTOS, VLAN ID, IP addresses, ports, Ethernet addresses, IP protocol, and Ether
Type. Support maximum 4 SFC’s with maximum 32 PIR’s
Scheduling
Real Time
priority-based services
Temperature Range
Operation:
-4º~140ºF/-20ºC~60ºC
Storage:
-40Fº~176ºF/-40ºC~80ºC
Humidity (Non-condensing)
Storage: 90% or
less
IP Rating
IP55
Wind loading
165 Kmph
ESD Protection
Contact: 4KV
Air: 8KV
Weight
558g
Dimensions
Φ190 x 38 mm
Package Contents
1 – EOC610 Outdoor CPE
1 – EPA5006GR with AC cord

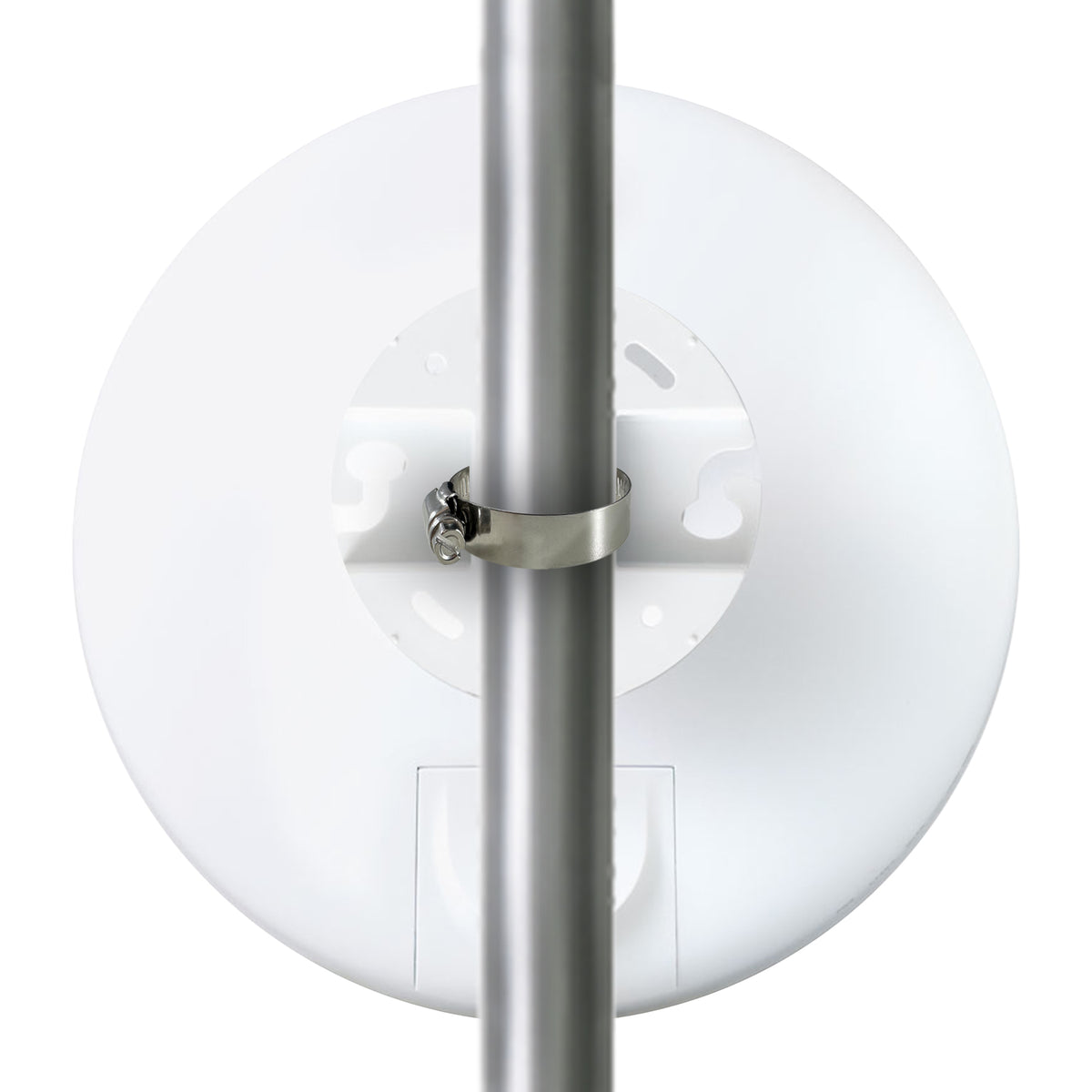

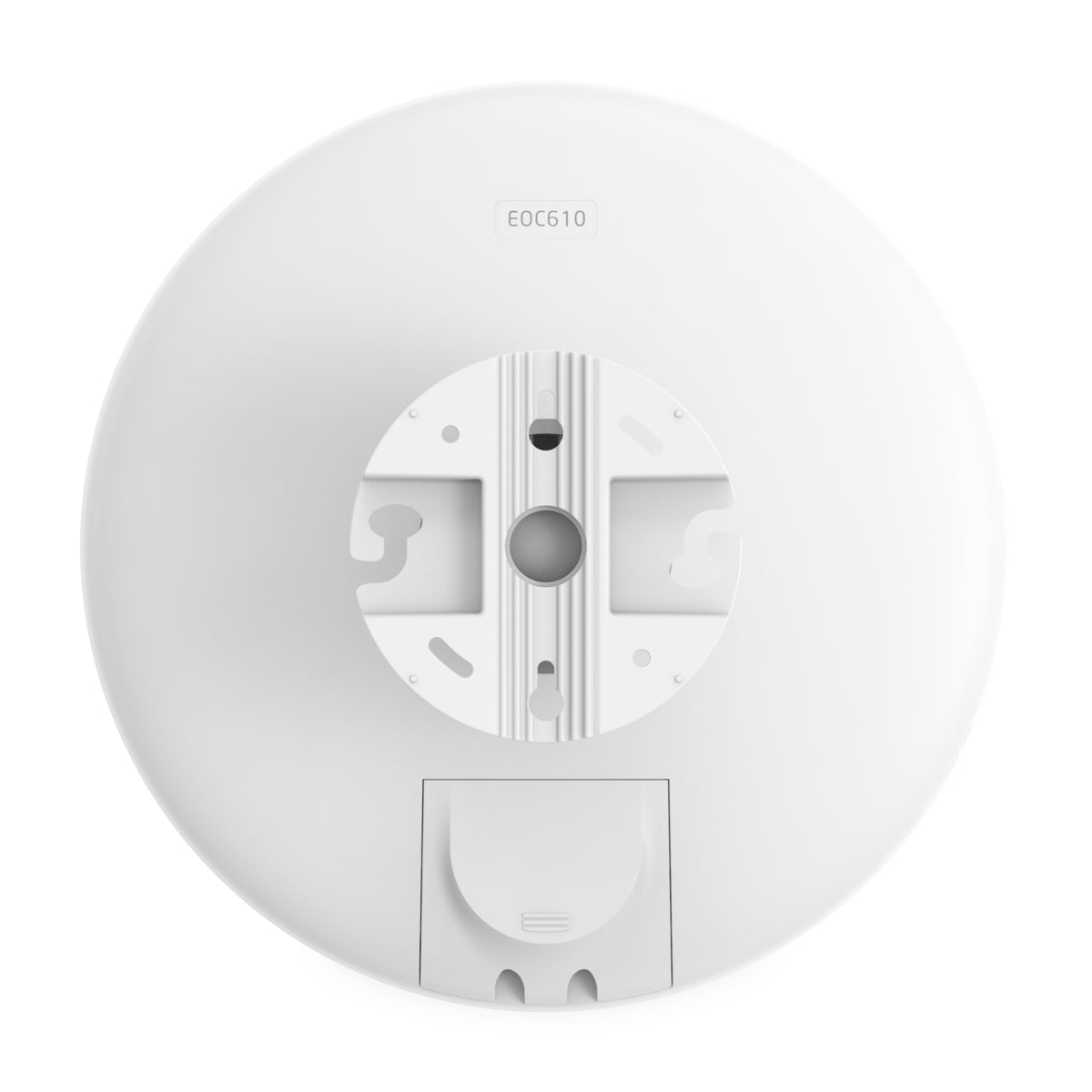

2 – Pole-Mounting Brackets
1 –Wall-Mount Screw Set
1 – Product Card
Safety Compliance
CB
WEEE
Yes
RoHS
Yes
Regulatory Compliance
FCC CE IC UKCA
MTBF
100K hours
