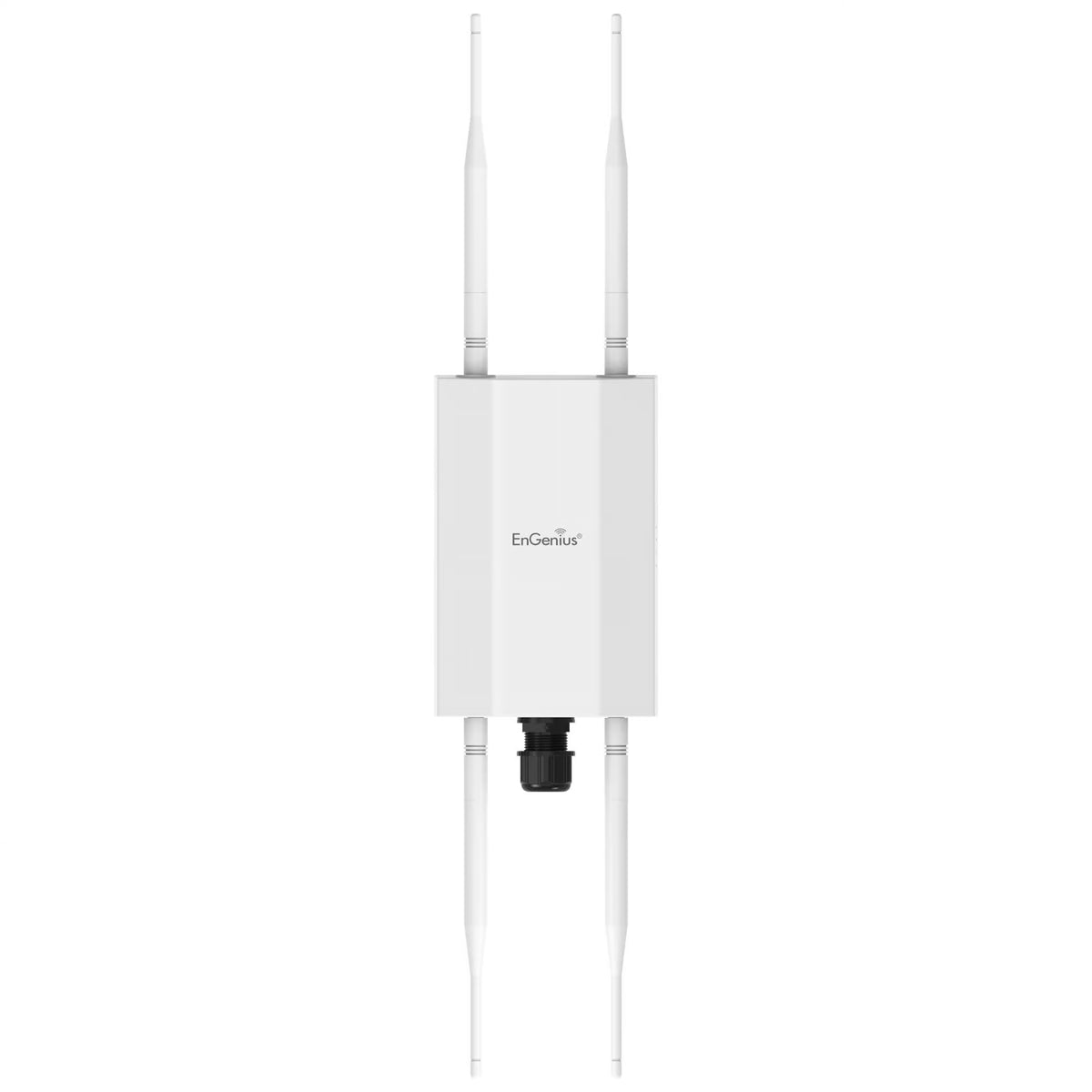

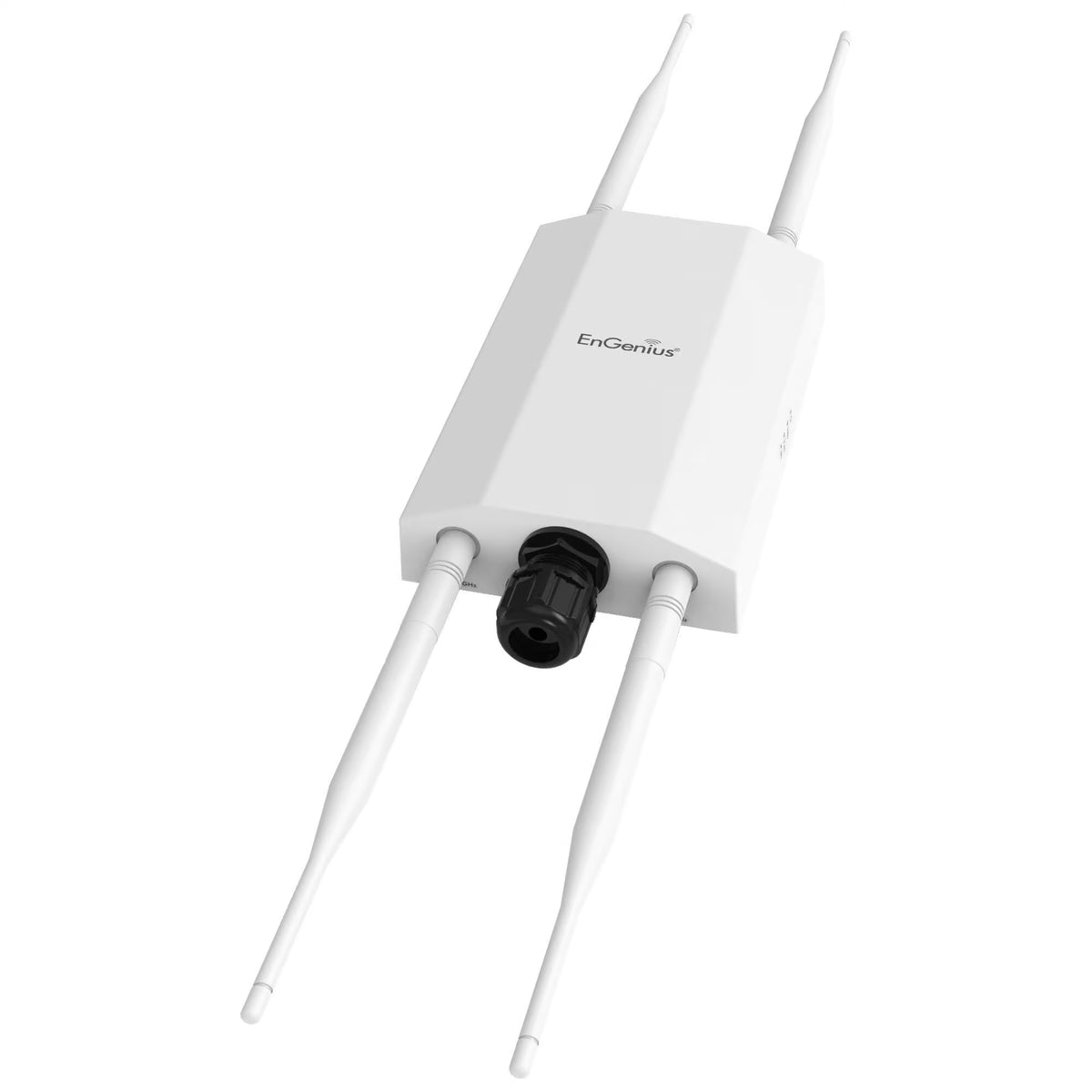

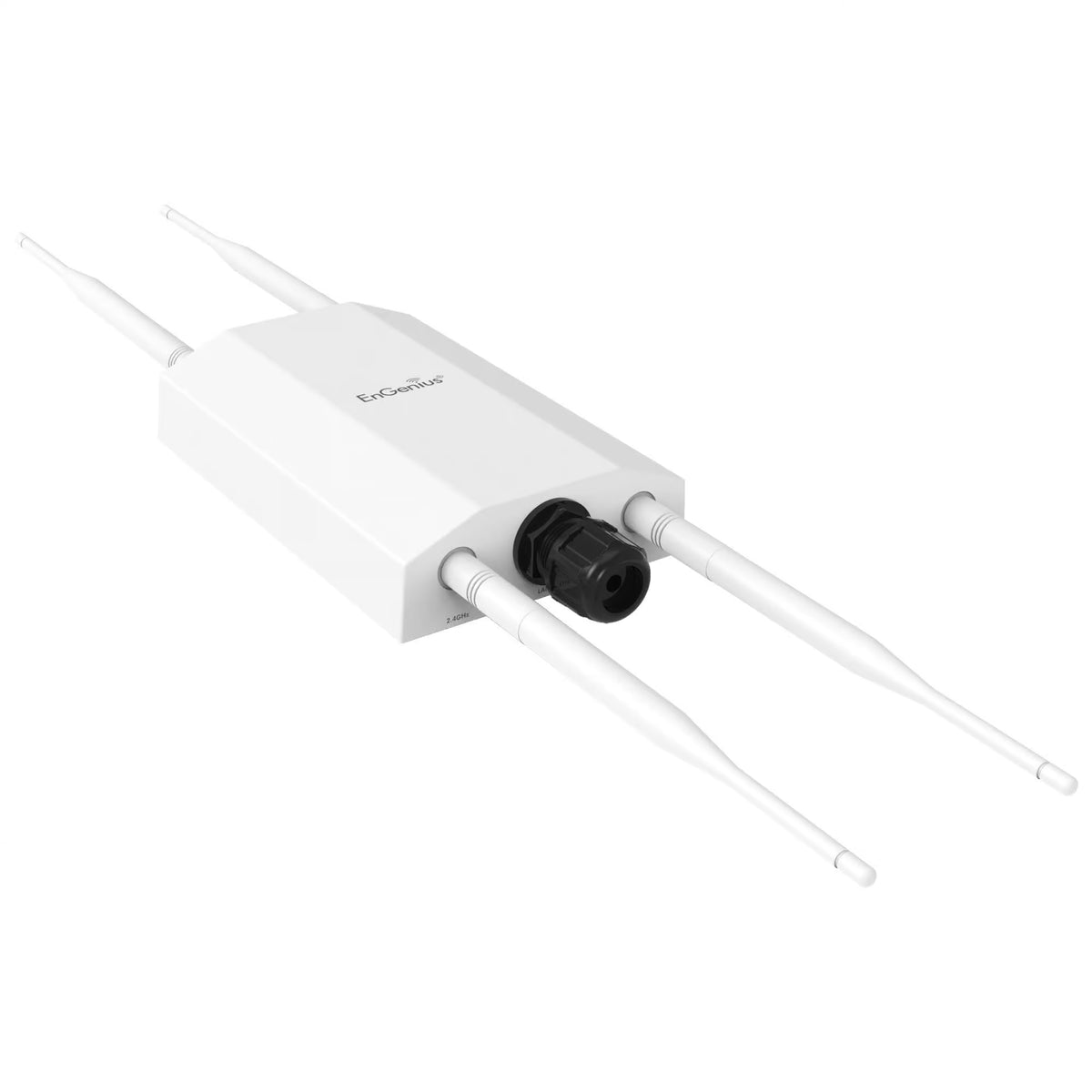

EOC620: Broadband Outdoor 5GHz 2×2 Access Point
Provides exceptional long-range mobile broadband connectivity with 26 dBm transmit power and IP67 weatherproofing
EnGenius Outdoor Wi-Fi 6 CPE EOC620 delivers reliable long-range wireless connectivity powered by EnGenius proprietary MAC and polling protocol. Featuring 26 dBm transmit power, RP-SMA connectors for external antennas, and an IP67-rated weatherproof design, this 2x2 5 GHz CPE is built for mobile broadband and transportation applications in demanding outdoor environments.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is managed via SkyPoint NMS with intuitive web-based monitoring and auto-provisioning.
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Specifications
- High-Power 5 GHz Wi-Fi 6: Powered by EnGenius proprietary MAC and polling protocol with 26 dBm transmit power for long-range, high-throughput outdoor connectivity.
- RP-SMA Connectors & IP67 Enclosure: Features RP-SMA connectors for external antennas and an IP67-rated weatherproof design for harsh outdoor and mobile broadband applications.
- SkyPoint NMS & Secure Encryption: Supports AES-256 encryption for secure communications, managed seamlessly via SkyPoint NMS with auto-provisioning for flexible deployments.
Chipset
IPQ6010+QCN5052, QCA8081
Standards
IEEE 802.11ax on 5 GHz
Memory
DDR3 512MB, Flash 128MB

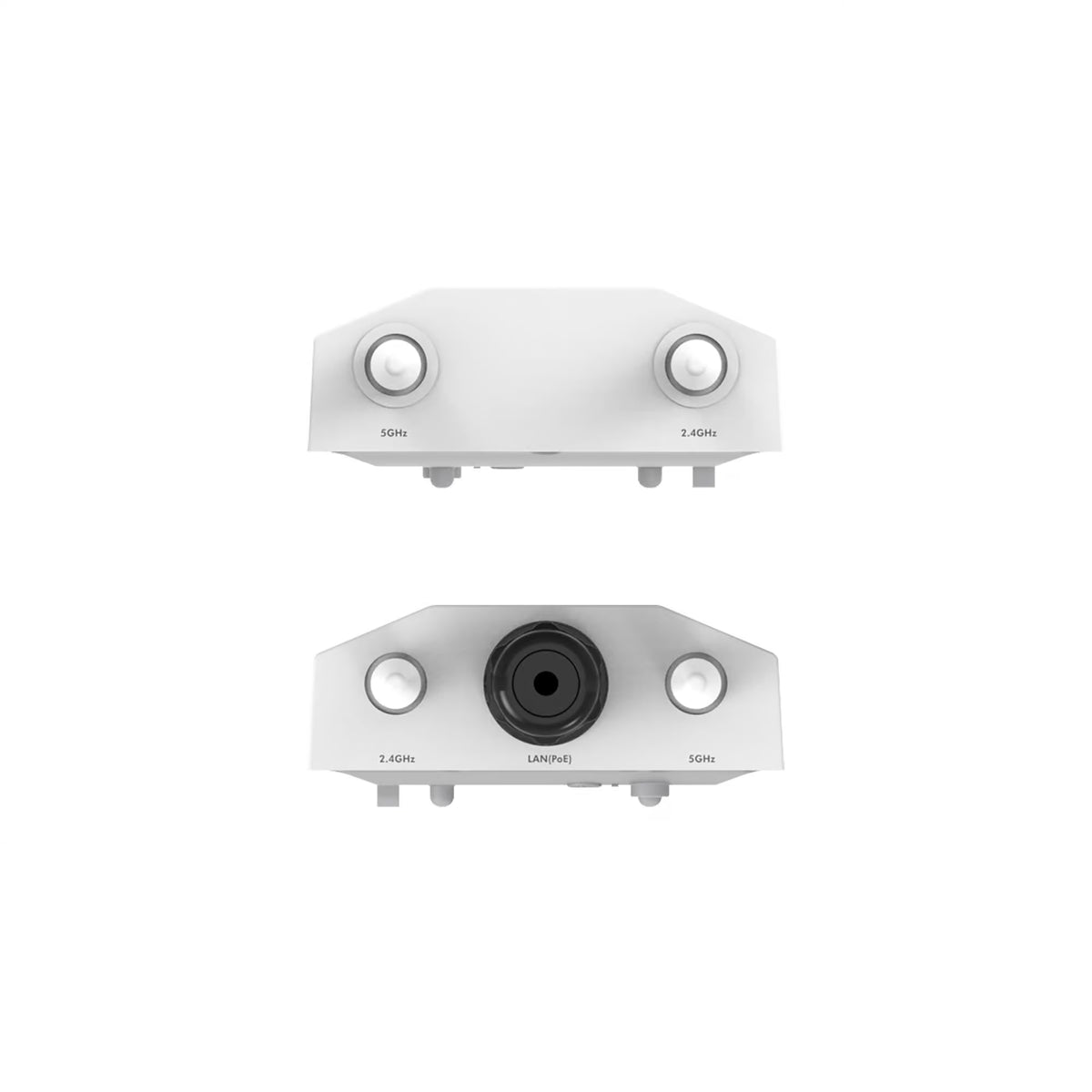

Antenna
2x 2.4GHz: 5 dBi External SMA
2x 5GHz : 5 dBi External SMA
Physical Interfaces
1 x 2.5GE Port (PoE+)
Proceed reset and reboot when pushing this button
Power Source
Proprietary 54V (EPA5006GR)
SNMP
v1, v2c, v3
Authentication
Internal MAC Address Control List
Traffic Shaping
Downlink and Uplink traffic shaping
Remote
SSH, Web, TFTP, HTTP, HTTPS, Syslog
Smart Phone
Android & IOS based Application for Radio Management
Antenna Alignment
Alignment aid provided via variable audible tone generation algorithm
Operating Mode
Bridging
IP Stack
IPv4
VLAN Tagging
802.1Q: Transparent, Access, Trunk, Q-in-Q
Gateway Features
DHCP Server
MAC-in-MAC
To improve the multicast traffic performance, IGMP Snooping
Ethernet-OAM
N/A
Packet Filtering
MAC, IP, Protocol, Port
NTP Server
Stratum 1 NTP Server using external server – less than 1msec accuracy
Asymmetric Bandwidth Control
Asymmetric UL/DL committed and maximum information rate per Service Flow
Packet Classification Capabilities
802.1p priority, IPTOS, VLAN ID, IP addresses, ports, Ethernet addresses, IP protocol, and Ether Type. Support maximum 4 SFC’s with maximum 32 PIR’s
Scheduling
Real Time priority-based services
Temperature Range
Operating: -4º~140ºF/-20ºC~60ºC
Storage: -40º~176ºF/-40ºC~80ºC
Humidity (Non-condensing)
Operating: 90% or less
Storage: 90% or less
IP Rating (Outdoor only)
IP67
Wind loading
165 Kmph
ESD Protection (Outdoor only)
Contact: 4KV Air: 8KV
Weight
720 g
Dimensions
Width: 124 mm
Length: 190 mm
Height: 52.5 mm
Package Contents
1 – EOC620
2 – Pole-Mounting Brackets
1 – Wall-Mount Screw Set
2 – 2.4GHz 5dBi SMA Antennas
2 – 5GHz 5dBi SMA Antennas
1 – Product Card
1 – EPA5006GR PoE Injector
Safety Compliance
CB
WEEE
Yes
RoHS
Yes
Regulatory Compliance
FCC
CE
IC
UKCA
VCCI
MTBF
100K hours
