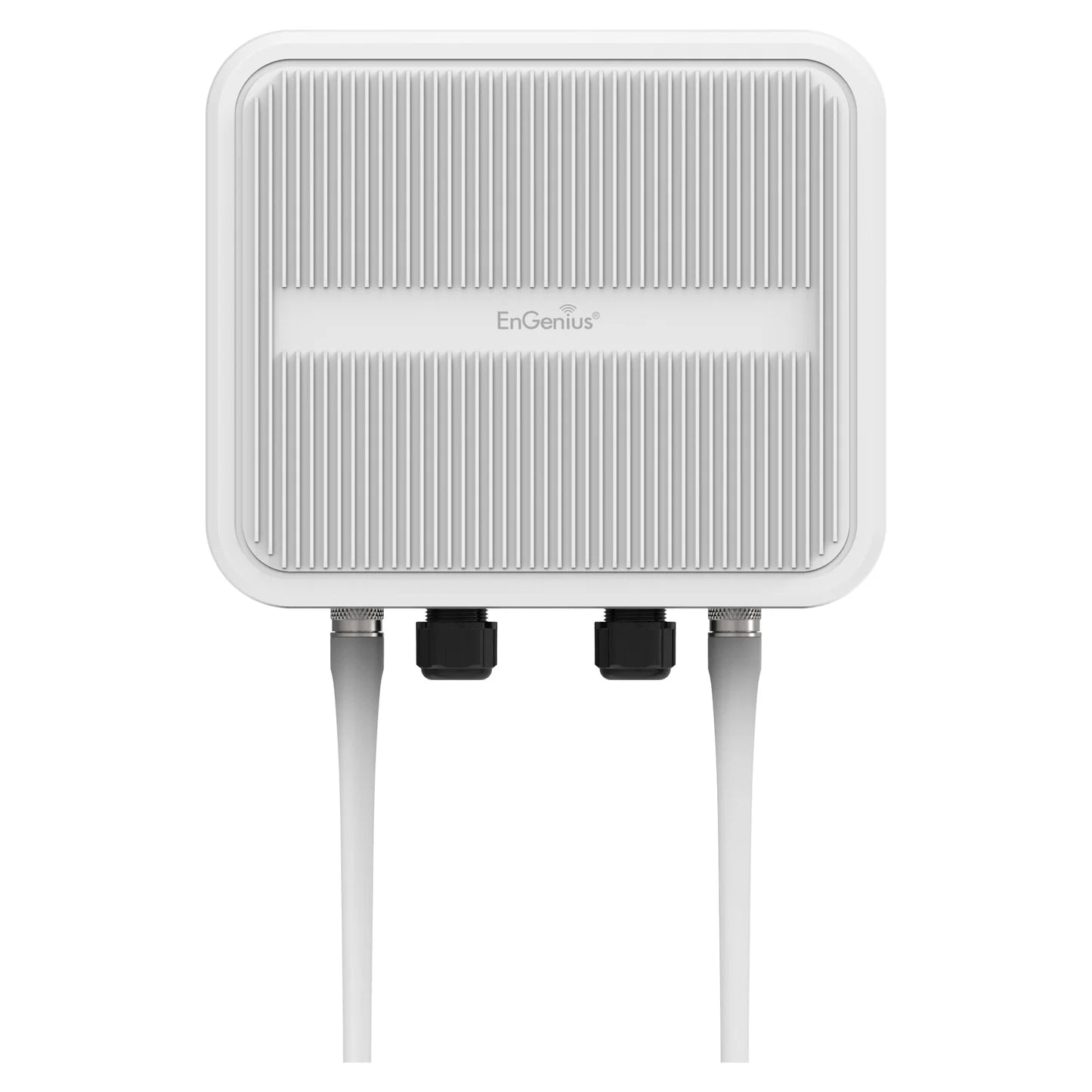

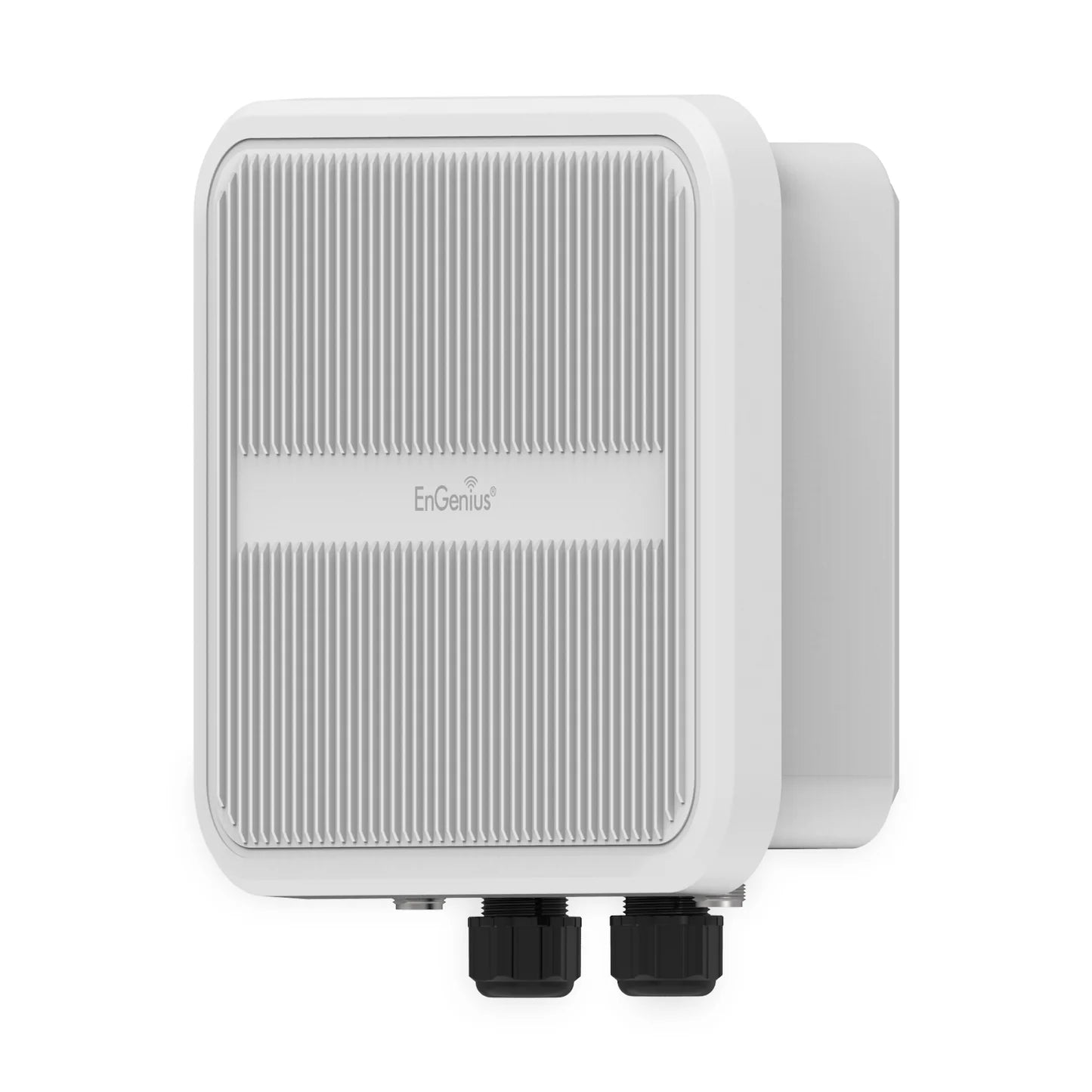

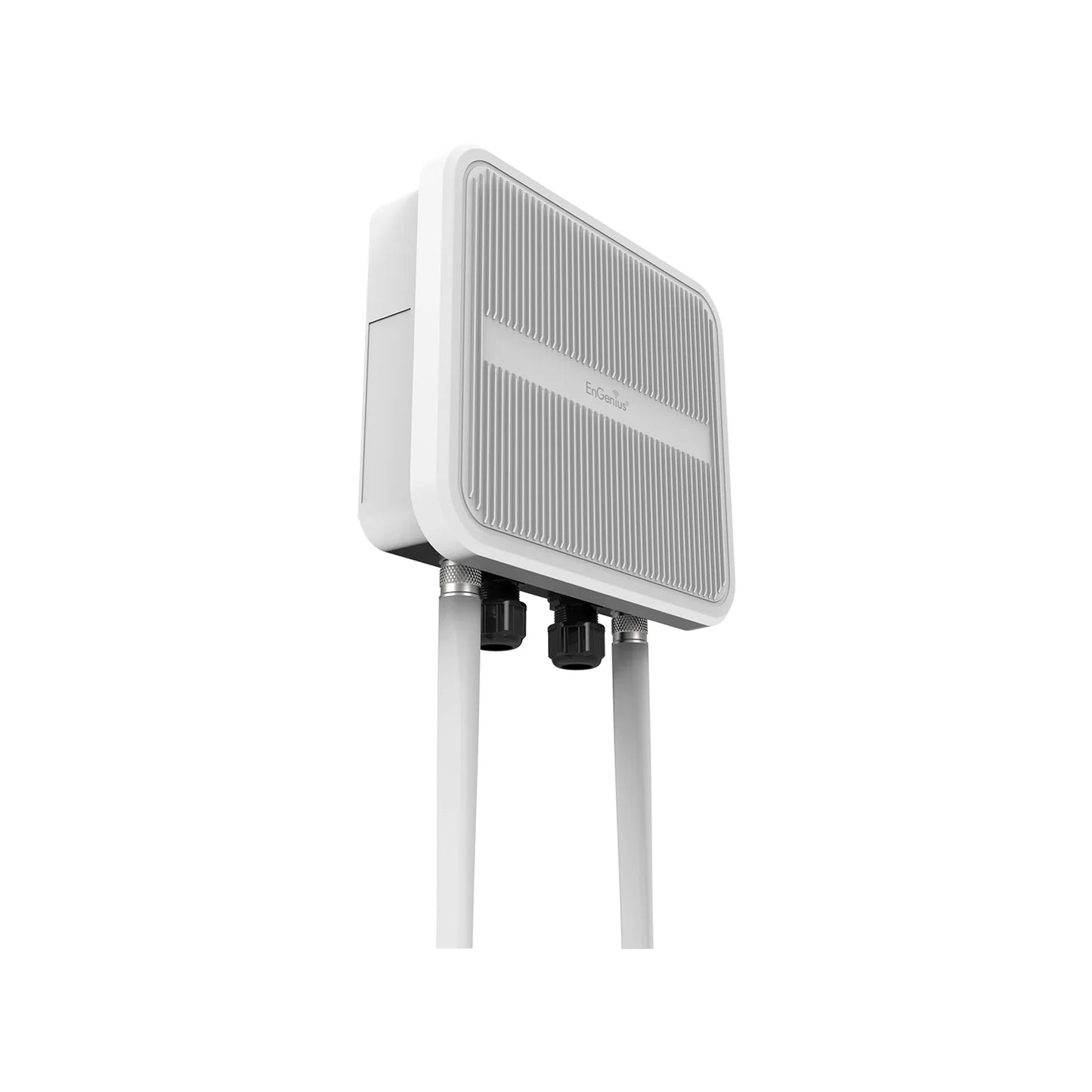

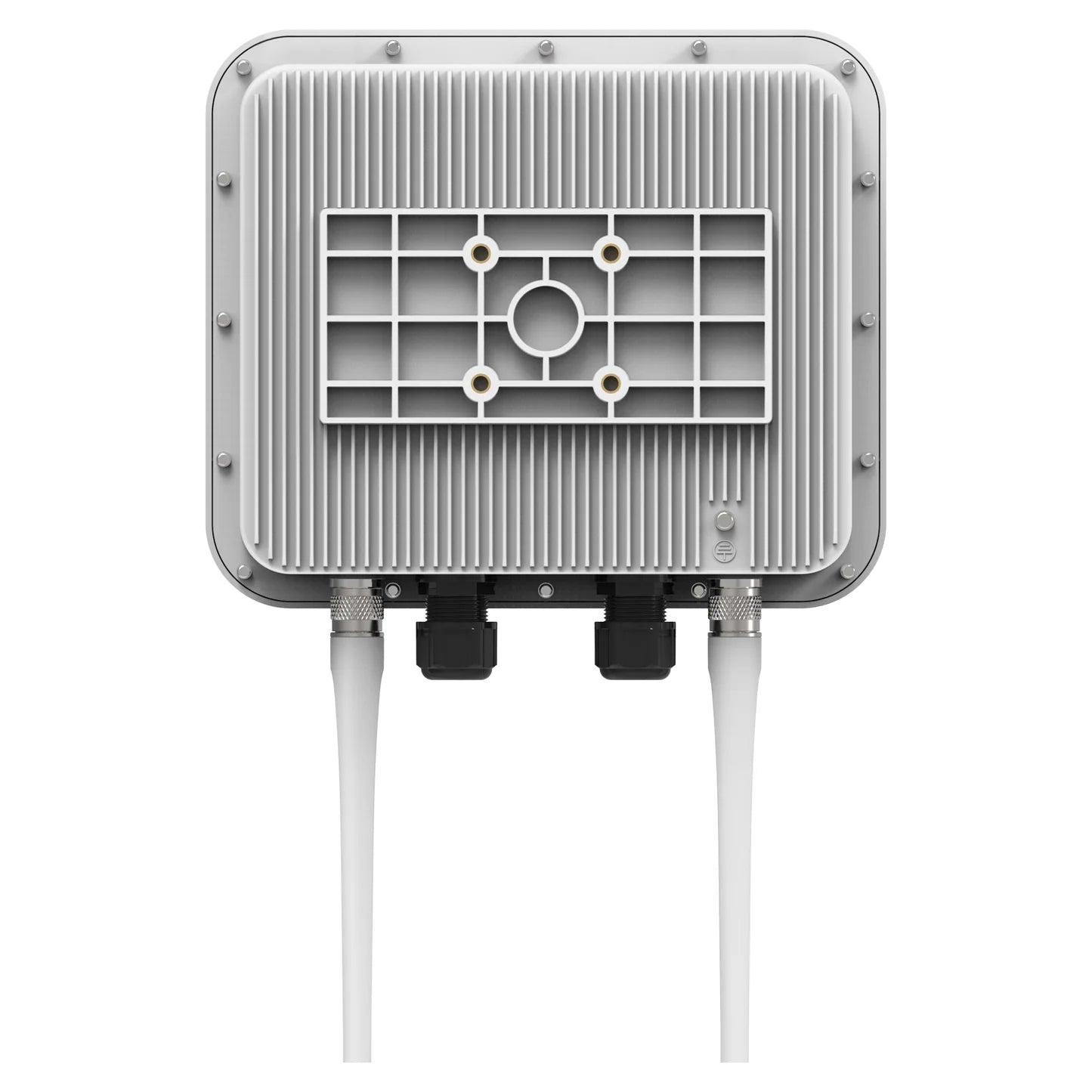

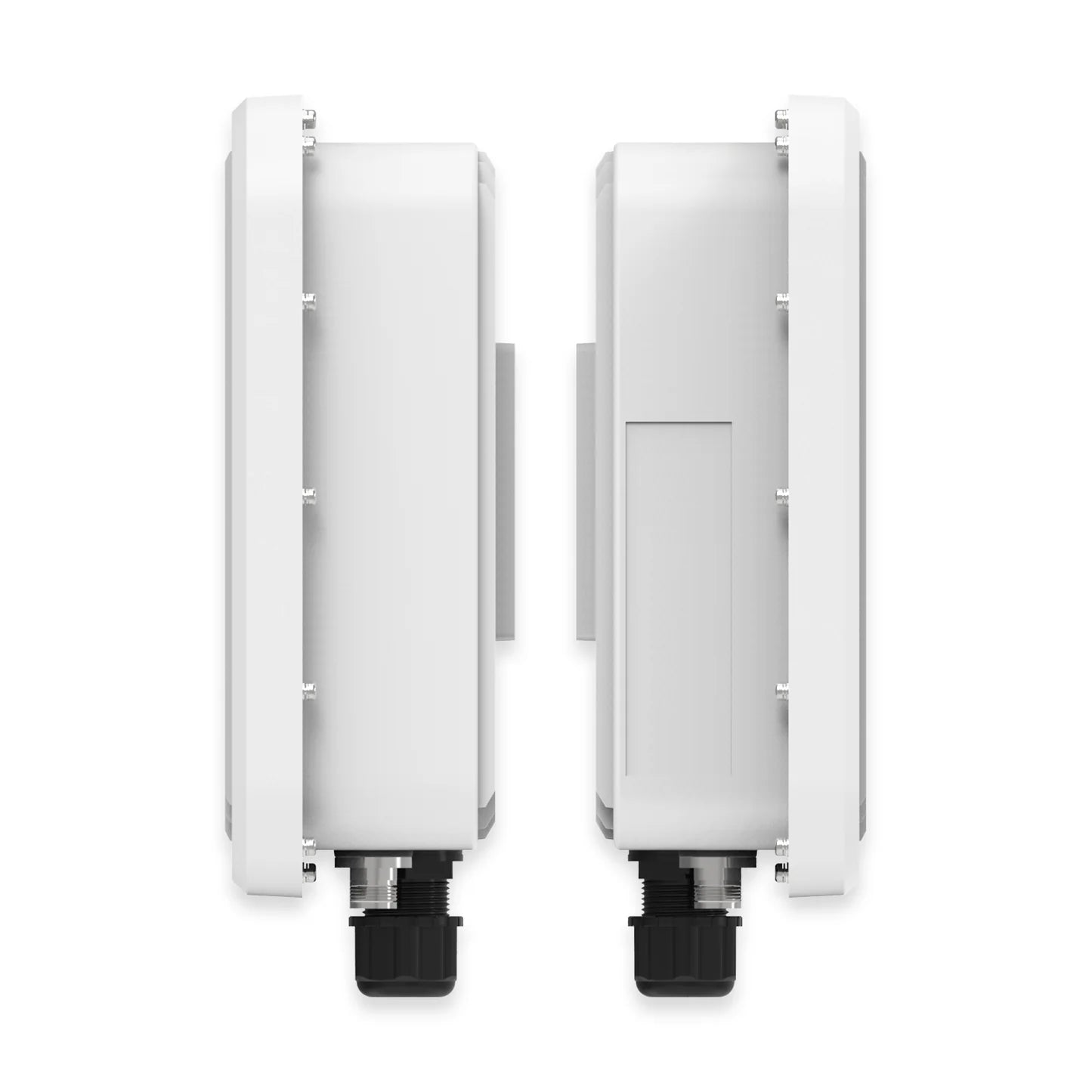

EOC655-C18: Broadband Outdoor 5GHz Dual Radio 2×2 AP with integrated 18dBi panel antenna

• Wi-Fi 6 (802.11ax) technology with OFDMA, Beamforming, and MU-MIMO for improved throughput

• 2x2 dual 5GHz radios capable of reaching speeds of up to 2 Gbps

• High 27 dBm transmit power extends Wi-Fi to the yard or building-to-building

• Auto Provisioning: Streamline large-scale network development with easy, centralized control

• Mobile App Radio Tuning: Integrates a 2.4 GHz radio with a mobile app for easy PtP or PtMP setup, efficient antenna alignment, and streamlined troubleshootin

• Quick Outage Response: Features a Dying Gasp module for prompt alerts and response to power-related issues

• Automatic RF Correction: Enhances network resilience by improving stability and reducing interruptions

• Auto & Dynamic Channel Selection: Automatically choose optimal channels to avoid interference and enhance signal quality

• Smart Network Mapping: Built-in GPS enables auto-discovery and detailed network topology insight

• Centralized Network Management Software: Offers a comprehensive web-based network performance, health, and security management platform

• IP67-Rated Casing: Ensures durability against harsh environmental conditions, prolonging device lifespan

• Uncompromised Security: Ensures top-tier data protection with AES-256 encryption and optional FIPS-140-2 compliance

• Real-time system metrics, analytics, and remote configurations

Standards
IEEE 802.11ax on 5 GHz

Processor
Qualcomm® Quad-Core ARM Cortex A53s @ 1.0GHz CPU

Memory
DDR3 1GB, Flash 32 MB, eMMC 8GB

Antenna
2.4 GHz: 3.5 dBi Integrated Omni-Directional
5 GHz (Radio 1): 18dBi Intergrated Panel Antenna
5 GHz (Radio 2): N-Type Connector

External Antenna Connector Type
N-Type Connector (Female)

IP Rating
IP67

Bluetooth
Radio Management

Compass sensor
Antenna Management

Thermal sensor
Monitoring board temperature

GPS
Onboard GPS with integrated antenna, 1PPS pulse, GPS Synchronization

Dying Gasp
40ms (Max)

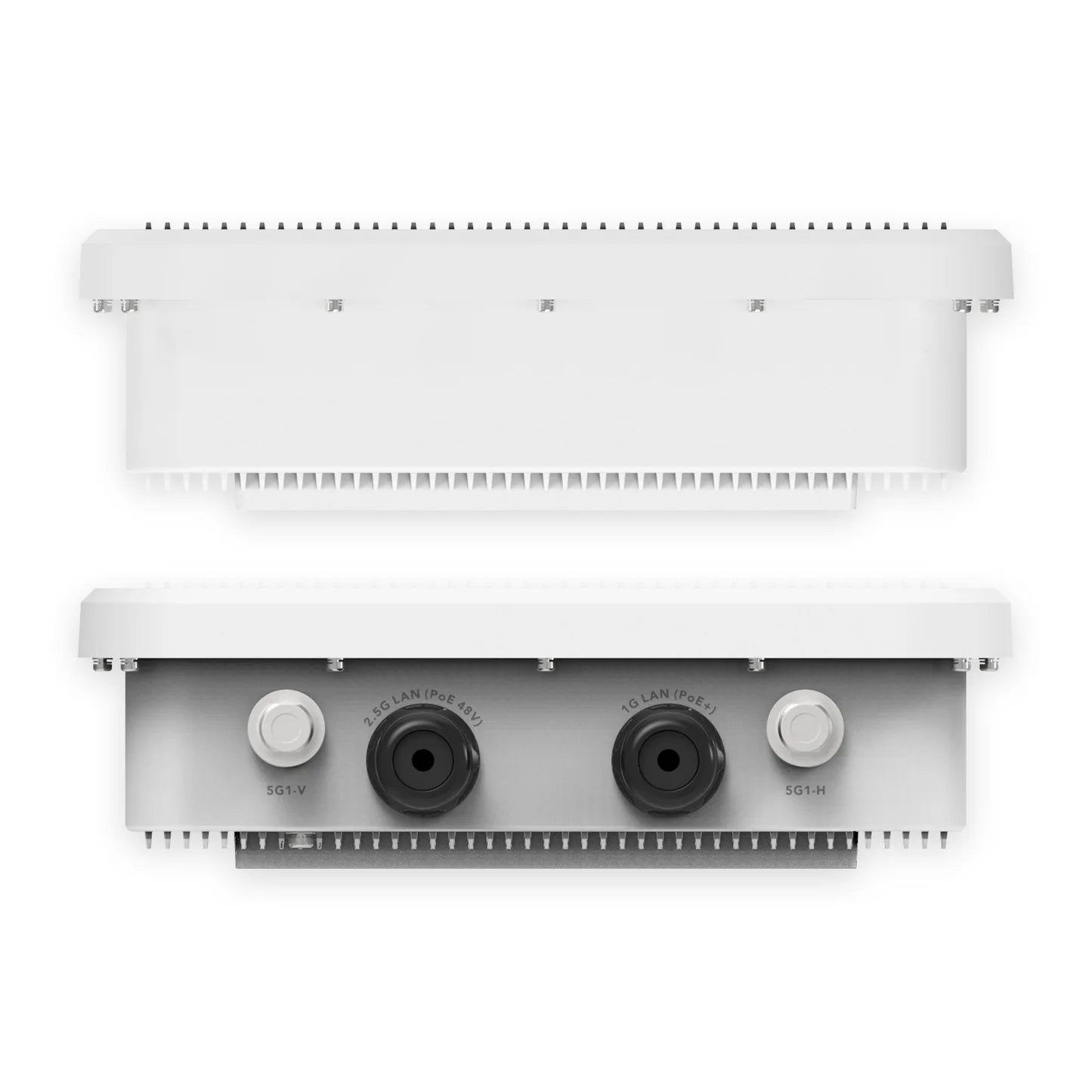

Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port (802.3at PoE)
1 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet Port (Proprietary PoE)

Power Source
IEEE802.3at or Proprietary 48V/1A or Direct DC Input up-to 56V LAN2 Port

Maximum Power Consumption
21W

Surge Protection
6KV Surge Protection on Ethernet Ports

EDS Protection
Contact: 4KV
AIR: 8KV

Operating Frequency
Dual-Radio 5 GHz

Operation Modes
Access Point, Station, Base Station (BSU), Subscriber (SU)

Max Subscribers
16 per radio

Frequency Radio
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz (Broadband Connectivity)
2.4 GHz / Bluetooth (Radio Management)

Transmit Power
Up to 27 dBm (Combined)

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.

Radio Chains/Spatial Stream
2x2:2

Jumbo Frame
9k bytes

Supported Data Rates (Mbps):
802.11ax:
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 4)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Dynamic Channel Selection (DCS)
Selects optimal channel to operate to maintain SLAs (CIR & MIR)

Dynamic Data Rate Selection (DDRS)
Automatically detect optimal data rate for given link

Auto Transmit Power Control (ATPC)
Automatically adapt the transmit power

Interference Mitigation
Auto Channel Selection (ACS), Dynamic Channel Selection (DCS), Background Scan (BG Scan) features aid to adapt to varying RF medium

Encryption
AES 256

Spectrum Analyzer
Provides RF medium statistics

VLAN Tagging
Supports 802.1Q: Transparent, Access, Trunk, Q-in-Q

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
IEEE 802.11e compliant
WMM

SNMP
v1, v2c, v3

IP Stack
IPv4, IPv6

MAC-in-MAC
To improve the multicast traffic performance, IGMP Snooping

Ethernet-QAM
Fault Link Management

Packet Filtering
MAC, IP, Protocol, Port

NTP Server
Stratum 1 NTP Server using GPS – less than 1 msec accuracy

Asymmetric Bandwidth Control
Asymmetric UL/DL committed and maximum information rate per Service Flow

Packet Classification Capabilities
802.1p p priority, IPTOS, VLAN ID, IP addresses, Ports, Ethernet Addresses, IP Protocol, and Ether Type. Supports a maximum of 4 SFC’s with a maximum 32 PIR’s

Scheduling
Real-Time priority-based services

Temperature Range
Operating:-10ºC~60ºC
Storage: -30ºC~80ºC

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

EOC655-C18 Device  
Weight: 1910 g
Length:  267 mm
Width:  227 mm
Height:  82 mm

EOC655 Packaging
Weight: 8.79 lbs. (3.99 kg)
Length: 12.36" (314 mm)
Width:  6.25" (159 mm)
Height:  17.71" (450 mm)

Package Contents          
1 – EOC655-C18 Outdoor Wireless
1 – PoE Injector
1 – Power Cord
1 – Ethernet Cable Cat5e 1.5 mts
1 – Grounding Cable 1.8 mts

Certifications
FCC, CB, RoHS, WEEE

MTBF
100K hours

Warranty
2 Years
