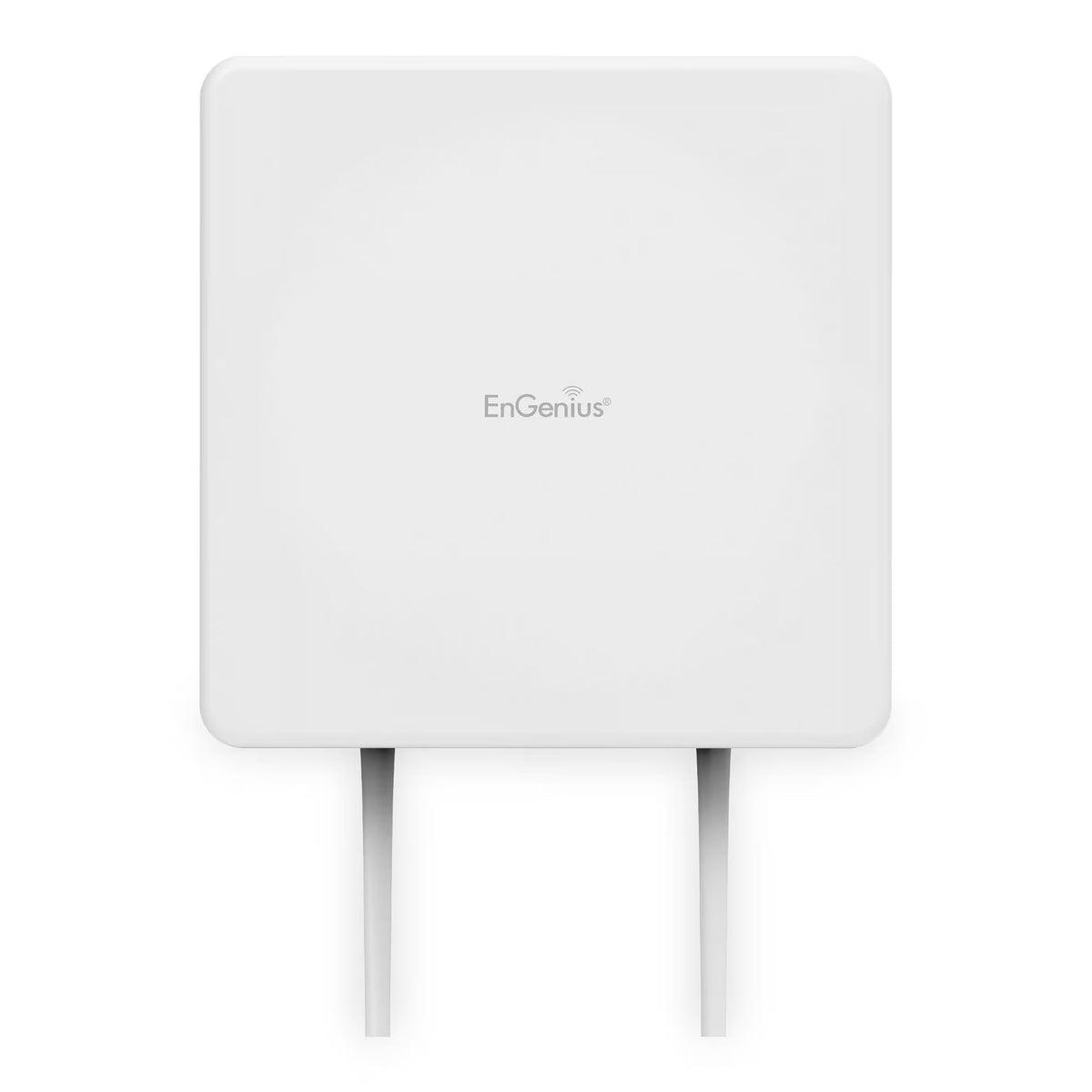

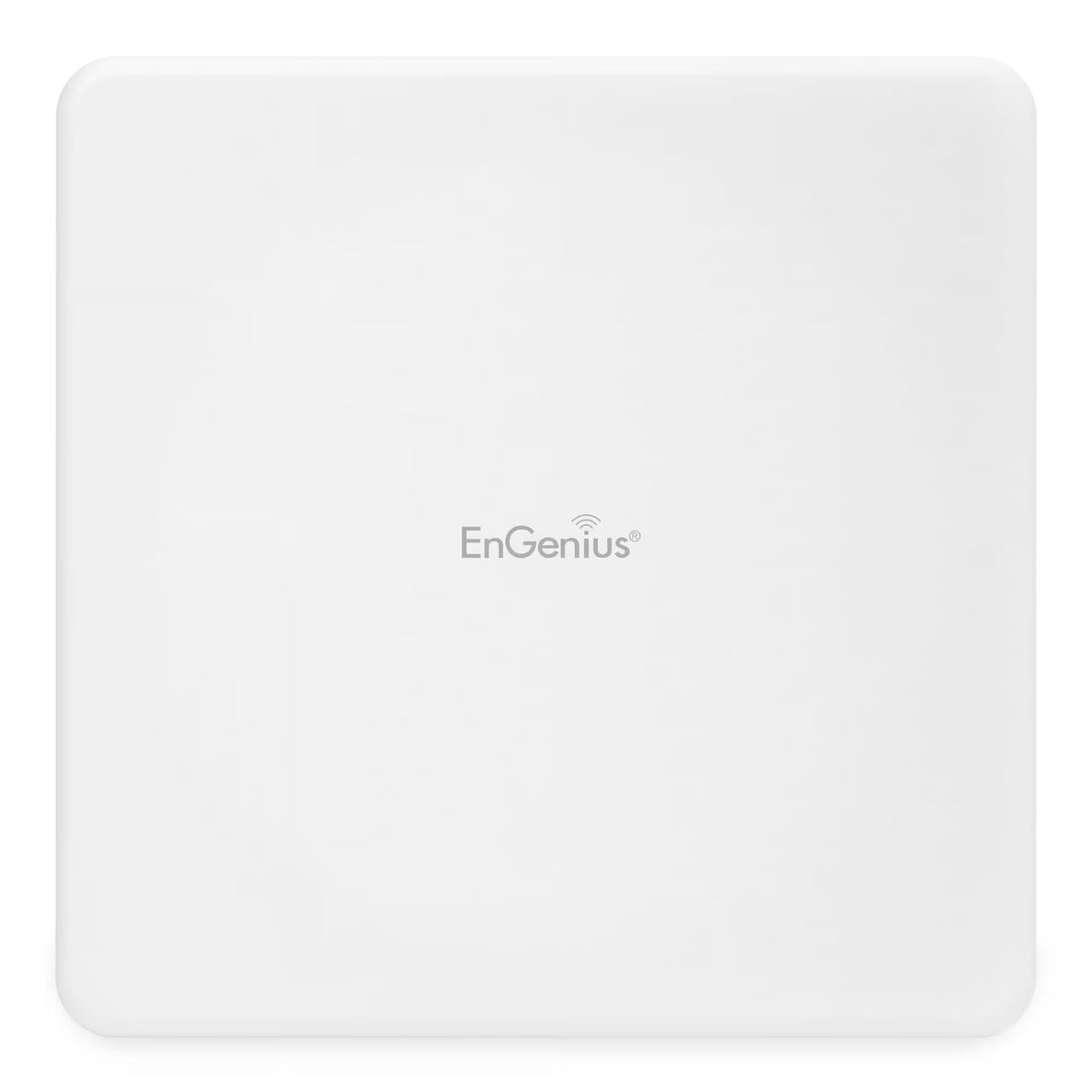

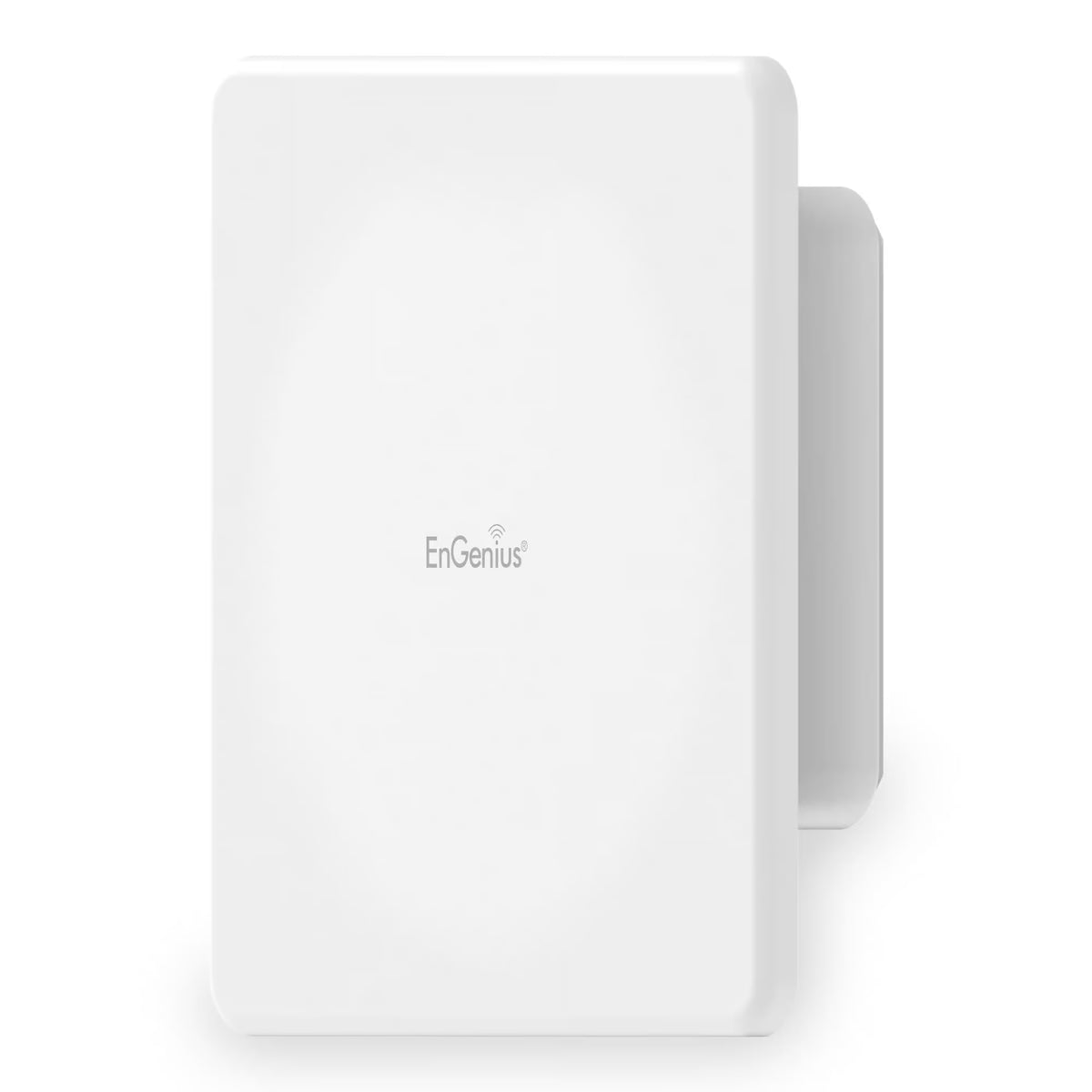

EOC655-C23: Broadband Outdoor 5GHz Dual Radio 2×2 Wi-Fi 6 Bridge

• 23 dBi High-Gain Kit & 2 Gbps Speeds: Bundled with a high-gain 23 dBi directional antenna, features dual 2x2 5GHz radios delivering up to 2 Gbps with 27 dBm transmit power and IP67 weatherproofing for ultra-long-range PtP/PtMP backhaul.

• 2.4GHz Management Radio & App Alignment: Equipped with a dedicated 2.4GHz management radio and mobile app for fast antenna alignment, real-time RF auto-correction, and central web management via SkyPoint NMS with auto-provisioning.

• Embedded GPS & Dying Gasp Outage Alerts: Built-in GPS enables precise automated network topology mapping, paired with a Dying Gasp module for instant power failure alerts and AES-256 encryption to guarantee maximum uptime and security.



Chipset
Qualcomm Chipset – Dual Core CPU, ARM A53, 1.0 GHz

Standards
IEEE 802.11ax on 5 GHz

Memory
DDR3 1GB, Flash 32 MB, eMMC 8GB

GPS
v
On board GPS with integrated Antenna, 1PPS pulse, GPS Synchronization

Dying Gasp
40ms (Max)

Thermal Sensor
To monitor board temperature

Compass senor (magnetometer)
Antenna Alignment

Bluetooth*
For Radio Management

Antenna
2x 2.4GHz: 3.5dBi (Integrated Omni-Directional)
2x 5GHz (Radio1): 23dBi Intergrated Panel Antenna
2x 5GHz (Radio2): N-Type Connector

External Antenna Connector Type
N-Type Female

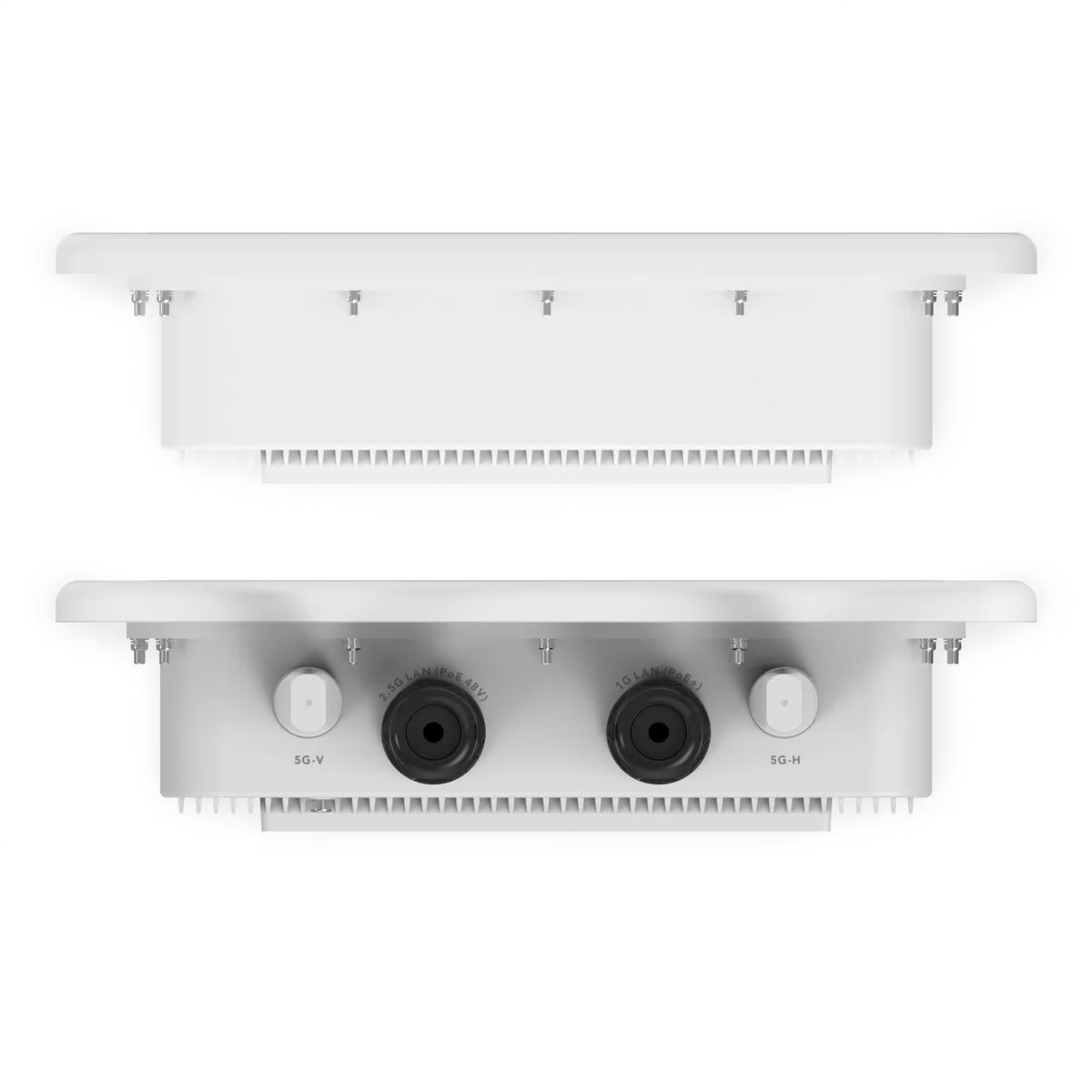

Physical Interfaces
1x 1G LAN-1 port (802.3at PoE)
1x 2.5G LAN-2 port (Proprietary PoE)

Power Sourc
IEEE802.3at or Proprietary 48V/1A or Direct DC Input up-to 56V LAN2 Port

SNMP
v1, v2c, v3

Authentication
Internal MAC Address Control List, Radius based Authentication

Traffic Shaping
Downlink and Uplink traffic shaping

Remote
SSH, Web, TFTP, HTTP, HTTPS, Syslog

Smart Phone
Android & IOS based Application for Radio Management

Antenna Alignment
Alignment aid provided via variable audible tone generation algorithm

Operating Mode
Bridging

IP Stack
IPv4, IPv6

VLAN Tagging
802.1Q: Transparent, Access, Trunk, Q-in-Q

Gateway Features
DHCP Server

MAC-in-MAC
To improve the multicast traffic performance, IGMP Snooping

Ethernet-OAM
Fault Link Management

Packet Filtering
MAC, IP, Protocol, Port

NTP Server
Stratum 1 NTP Server using GPS – less than 1msec accuracy

Asymmetric Bandwidth Control
Asymmetric UL/DL committed and maximum information rate per Service Flow

Packet Classification Capabilities
802.1p priority, IPTOS, VLAN ID, IP addresses, ports, Ethernet addresses, IP protocol, and Ether Type. Support maximum 4 SFC’s with maximum 32 PIR’s

Scheduling
Real Time priority-based services

Temperature Range
Operation:
-10ºC to +60ºC / -14°F to +140°F
Storage:
-30ºC to +80ºC / -22°F to +176°F

Humidity (Non-condensing)
Operating: 90% or less
Storage: 90% or less

IP Rating
IP67

Wind loading
200Kmph

ESD Protection
Contact: 4KV Air: 8KV

Weight
1.91 kgs / 4.21 lbs

Dimensions
305x305x82mm
305*305*82mm (w/n-type & cable gland)

Package Contents
1 – Outdoor Access Point

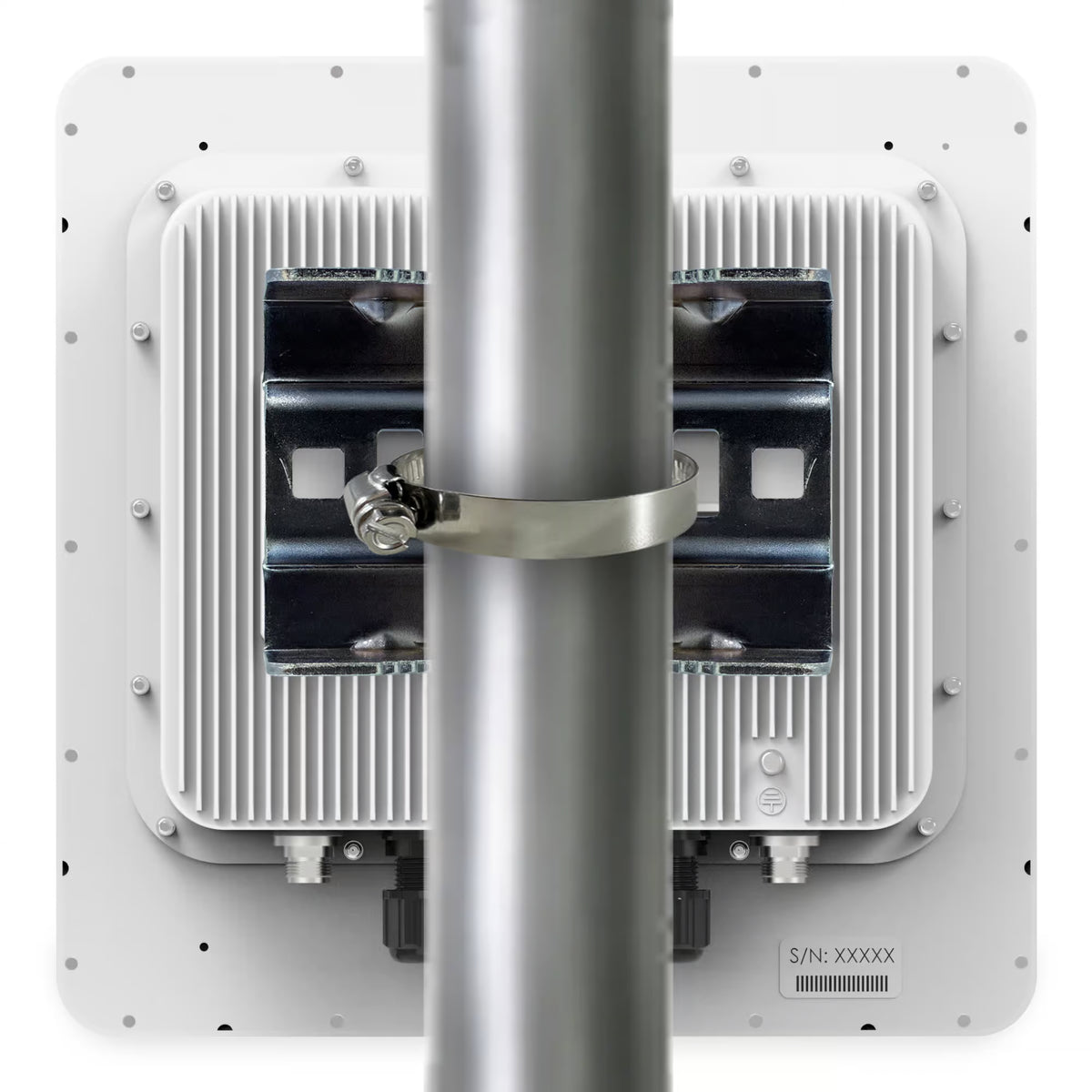

1 – Pole-Mounting Brackets
1 – PoE Injector with AC Power Cable
1 – Ethernet Cable Cat5e 1.5 mts
1 – Grounding Cable 1.8 mts

Safety Compliance
CB

WEEE
Yes

RoHS
Yes

Regulatory Compliance
FCC
CE
IC
UKCA

MTBF
100K hours
