EPA5006GR: Gigabit 32-watt Proprietary PoE Adapter with Reset Button
EPA5006GR: Gigabit 32-watt Proprietary PoE Adapter with Reset Button

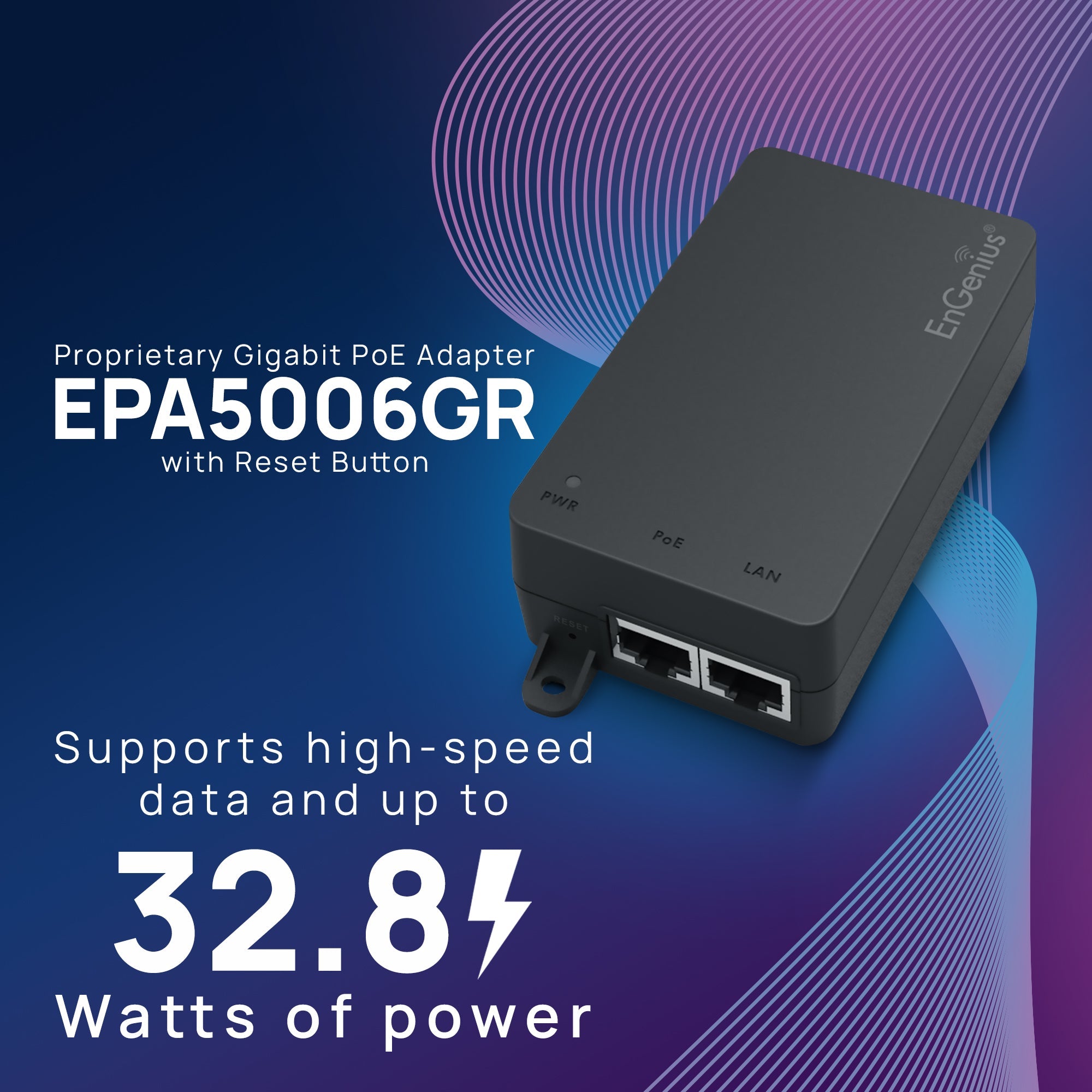

Supports high-speed data and up to 32.8 watts of power to compatible network devices up to 328 feet away
The EnGenius EPA5006GR gigabit proprietary Power-over-Ethernet adapter supports high-speed data and up to 32.8 watts of power. Compact port design provides easy installation, and built-in power surge
protection preserves valuable equipment. A PoE injector, placed closer to ground level, has a reset button that allows administrators to reset devices conveniently without having to take them down.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase

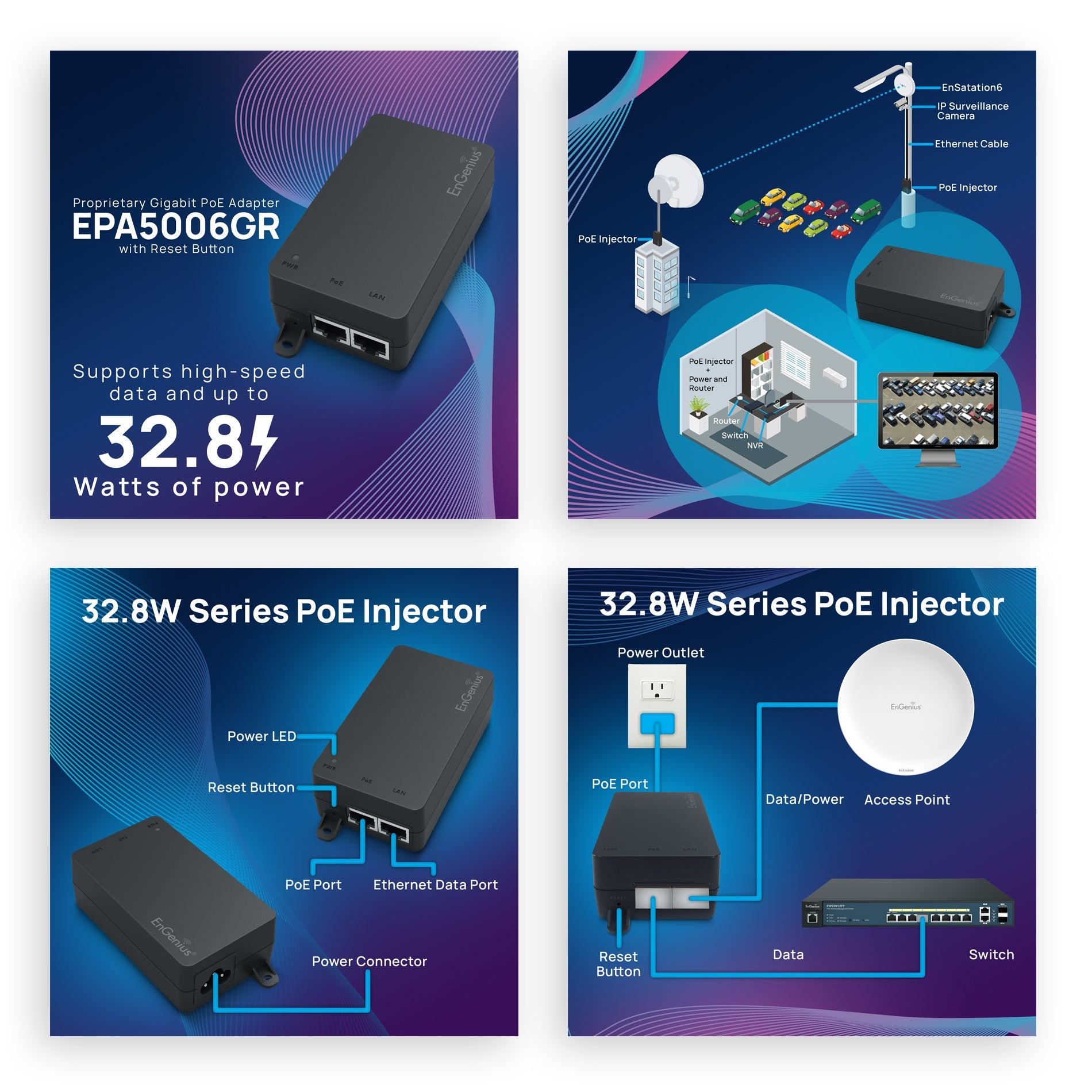

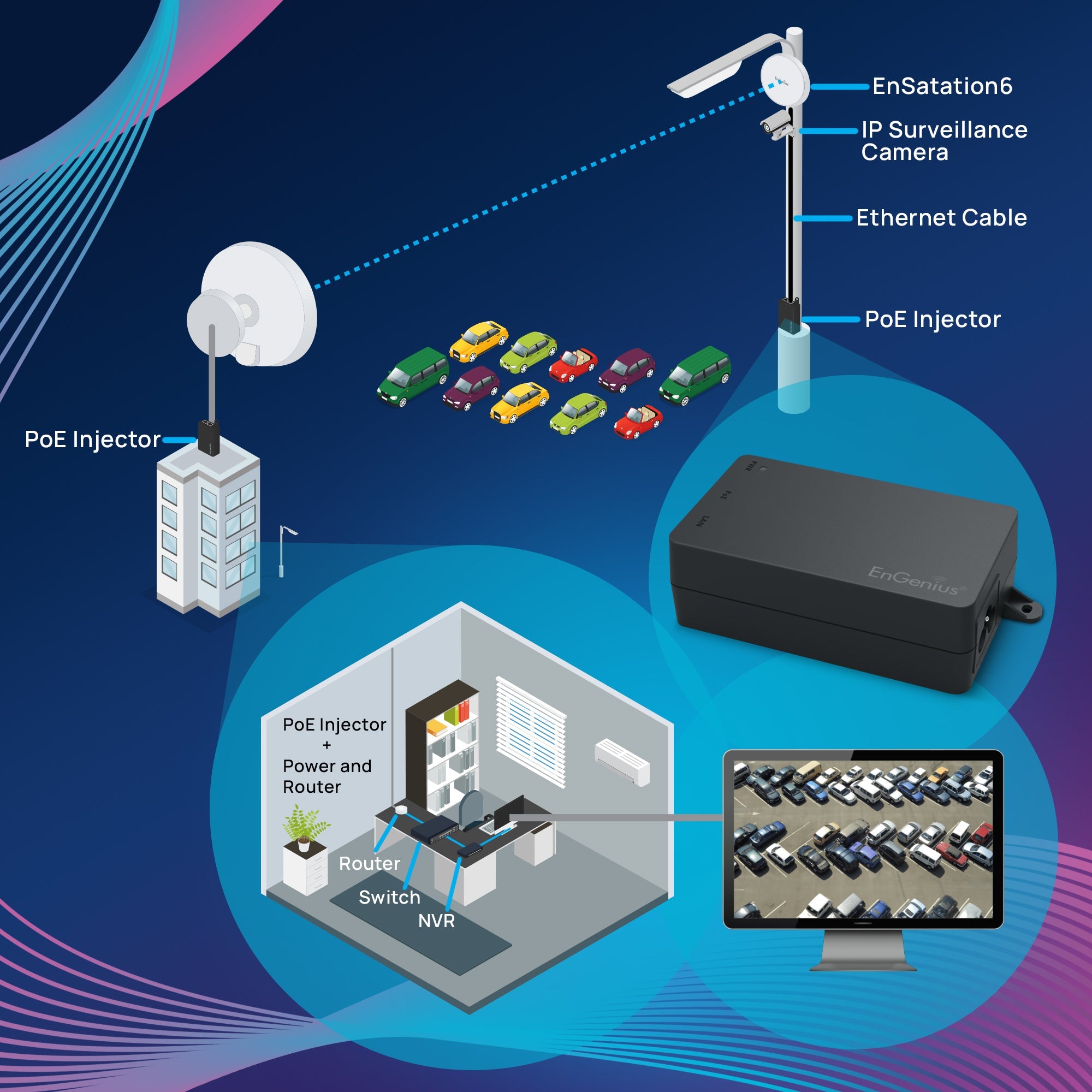

Great for Outdoor WiFi

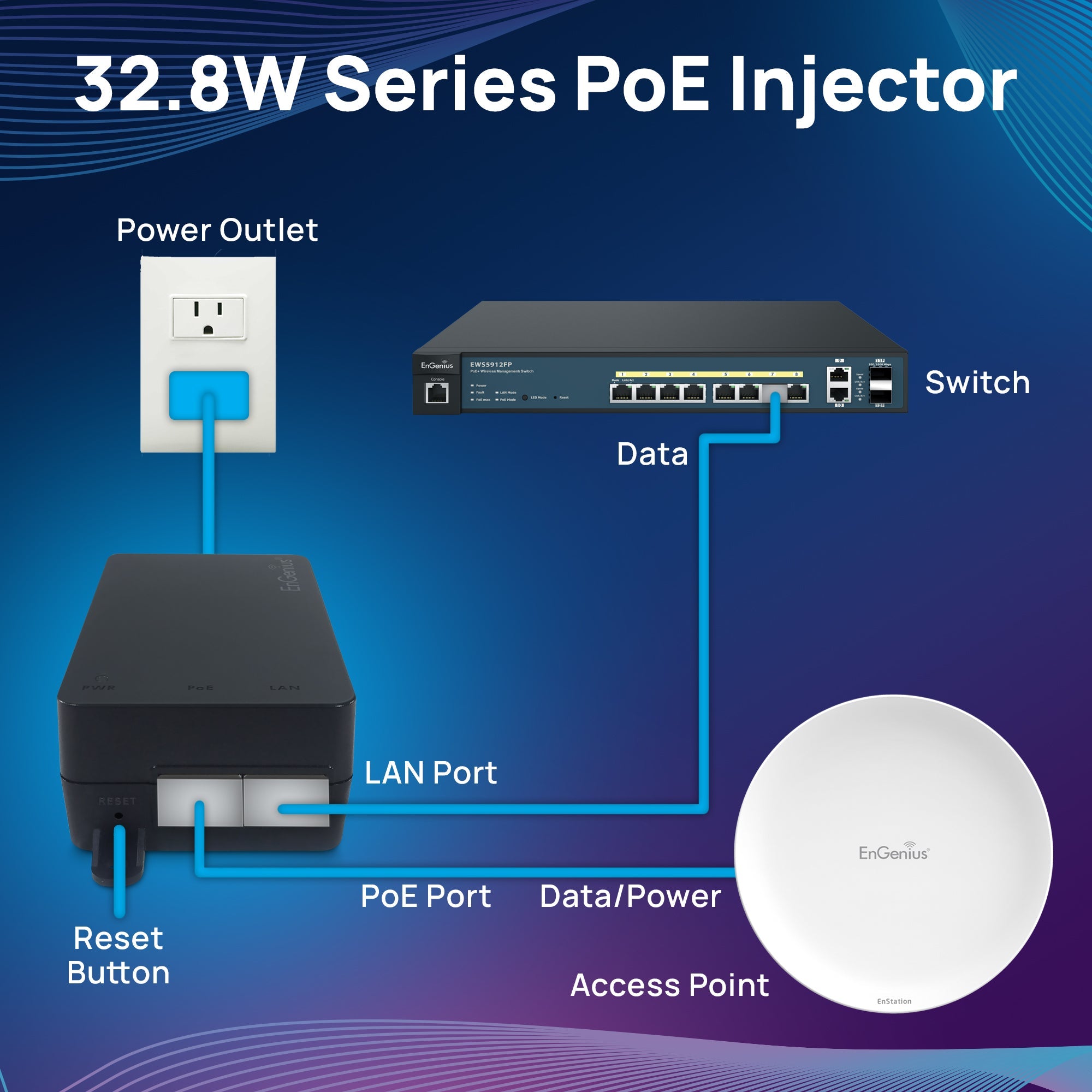

Delivers both data and power to EnGenius outdoor access points
Flexible Deployment
Extends power to unwired areas up to 328-ft./100m away
Features
Specifications
- Delivers both data and power to PoE-compatible devices
- PoE injector reset button positioned conveniently near ground level
- Optimal port design for easy mounting/positioning

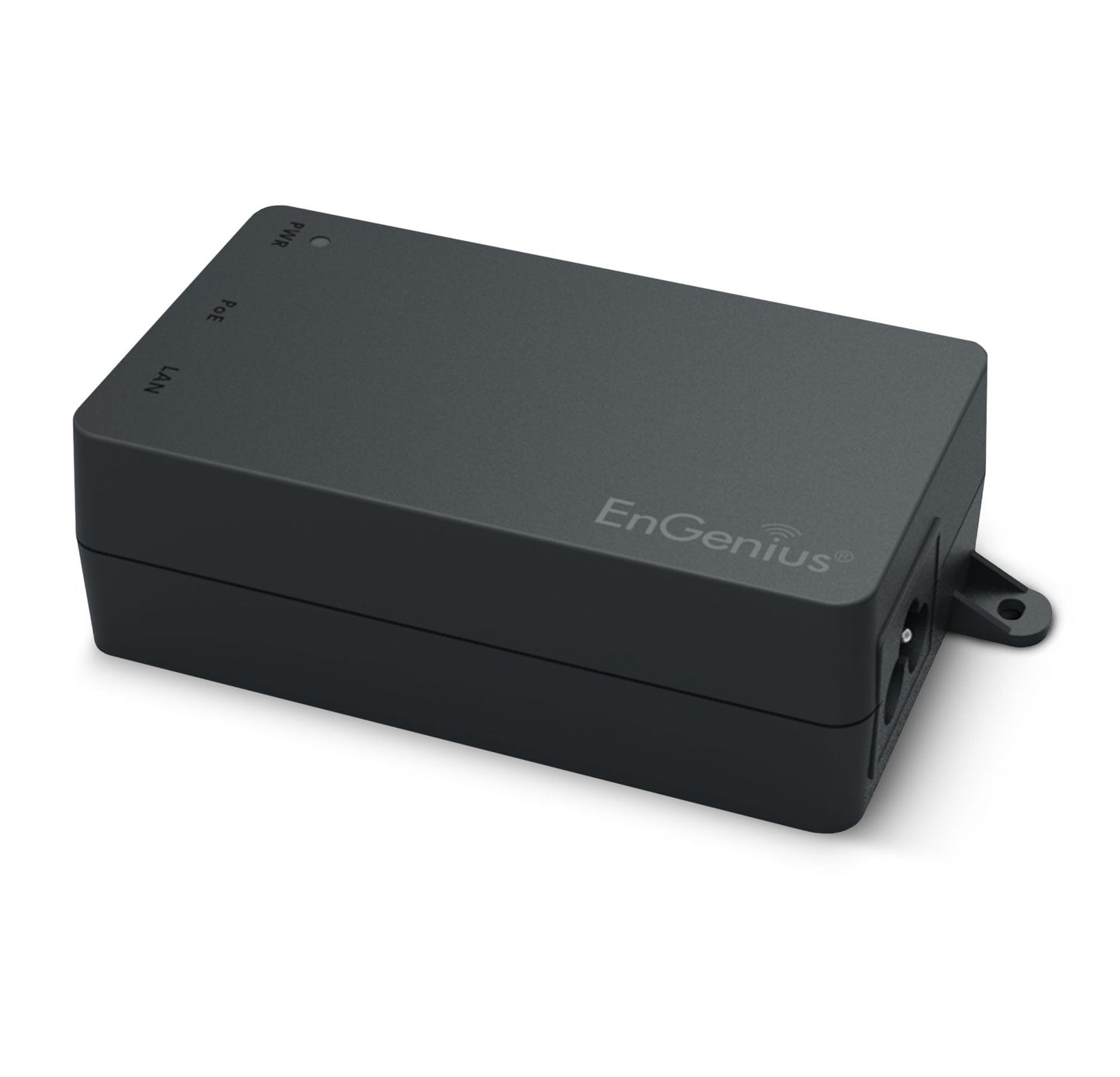

- Compact design
- Extends power to unwired areas up to 328-ft./100m
- Gigabit Ethernet in & out ports allow connection of high-speed devices
- Disconnect, short-circuit & surge protection assures secure, reliable connections
- Sends up to 32.8W of output power for connecting APs, IP cameras, VoIP phones & more
- Mounts to walls or ceilings with included hardware
Standards
802.3 10BaseT
802.3u 100BaseT
802.3ab Gigabit Ethernet
Proprietary PoE
Compliance
IEC 60950-1:2005+A1
UL60950-1
ENS55022:2010
EN55024:2010
FCC Part 15 Class B
FCC, CE

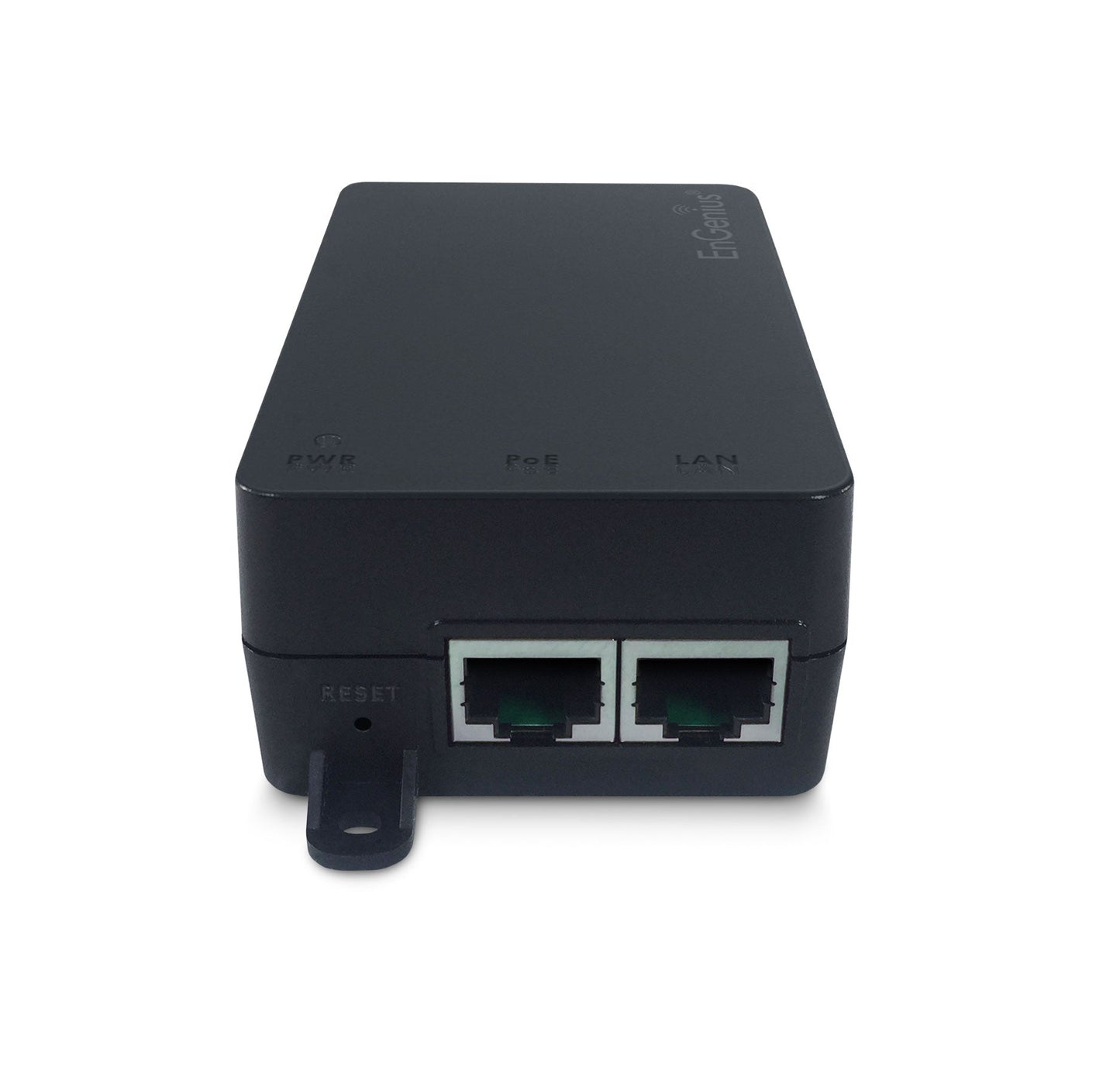

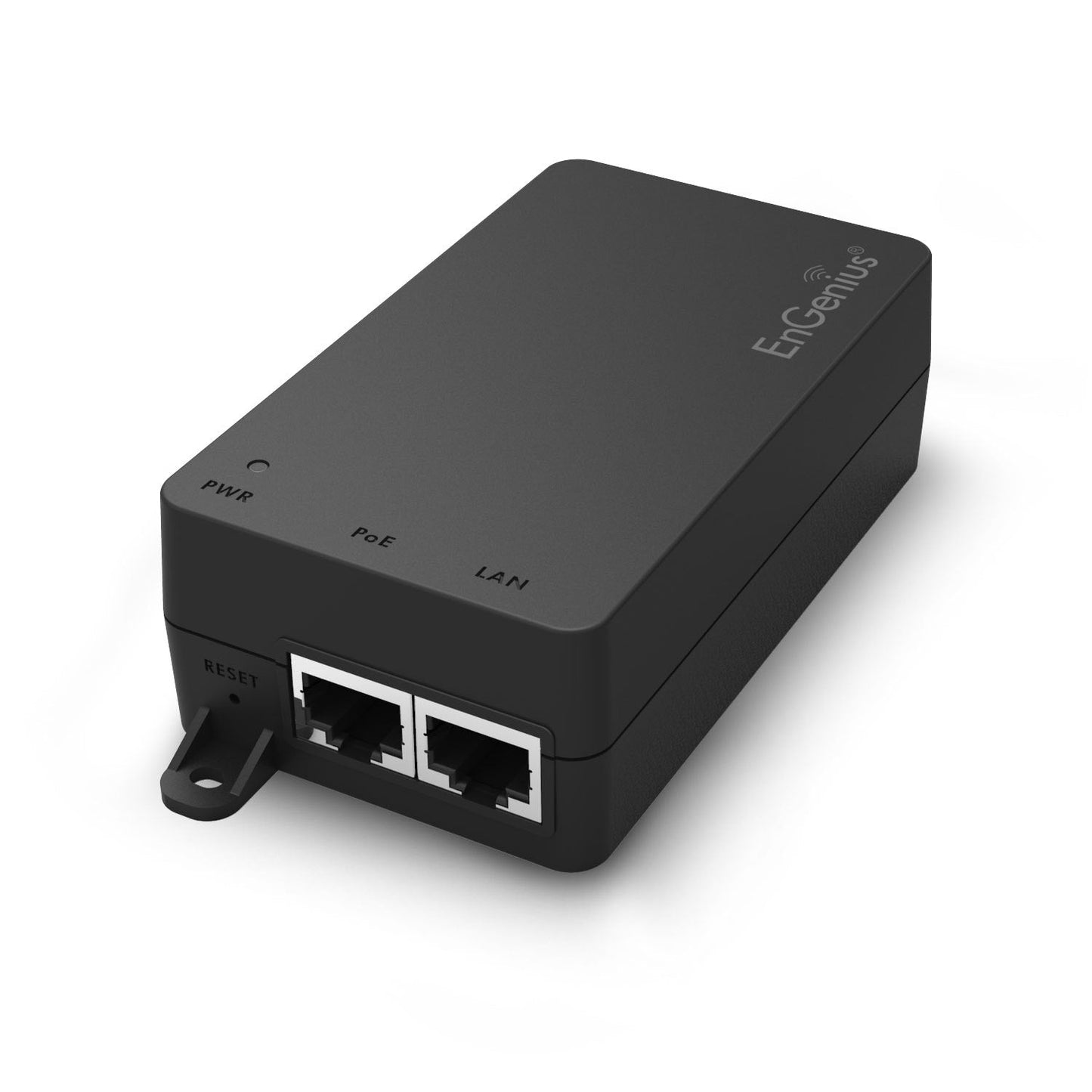

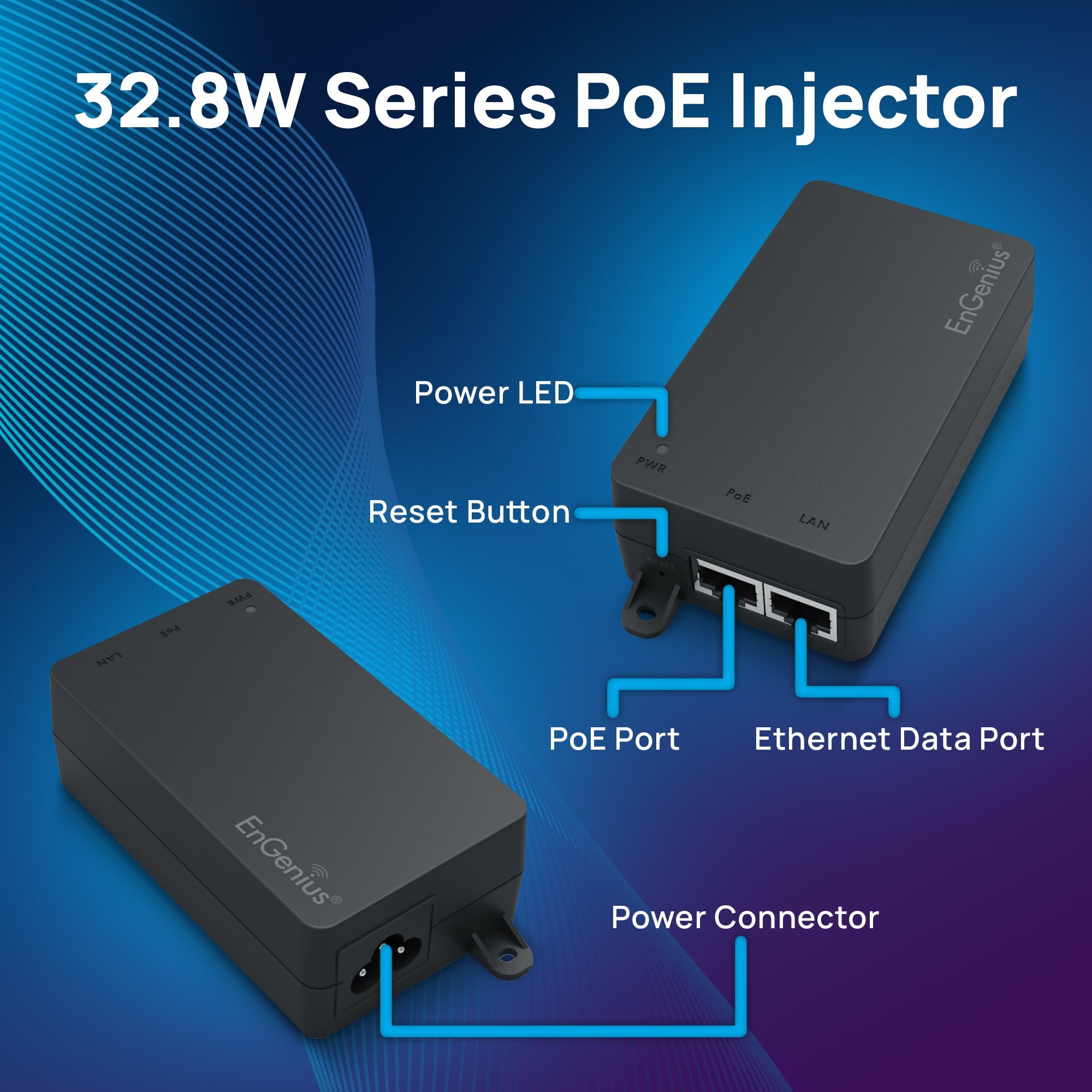

Physical Interface
(1) Gigabit Data Port
(1) Gigabit Data & Power Output Port

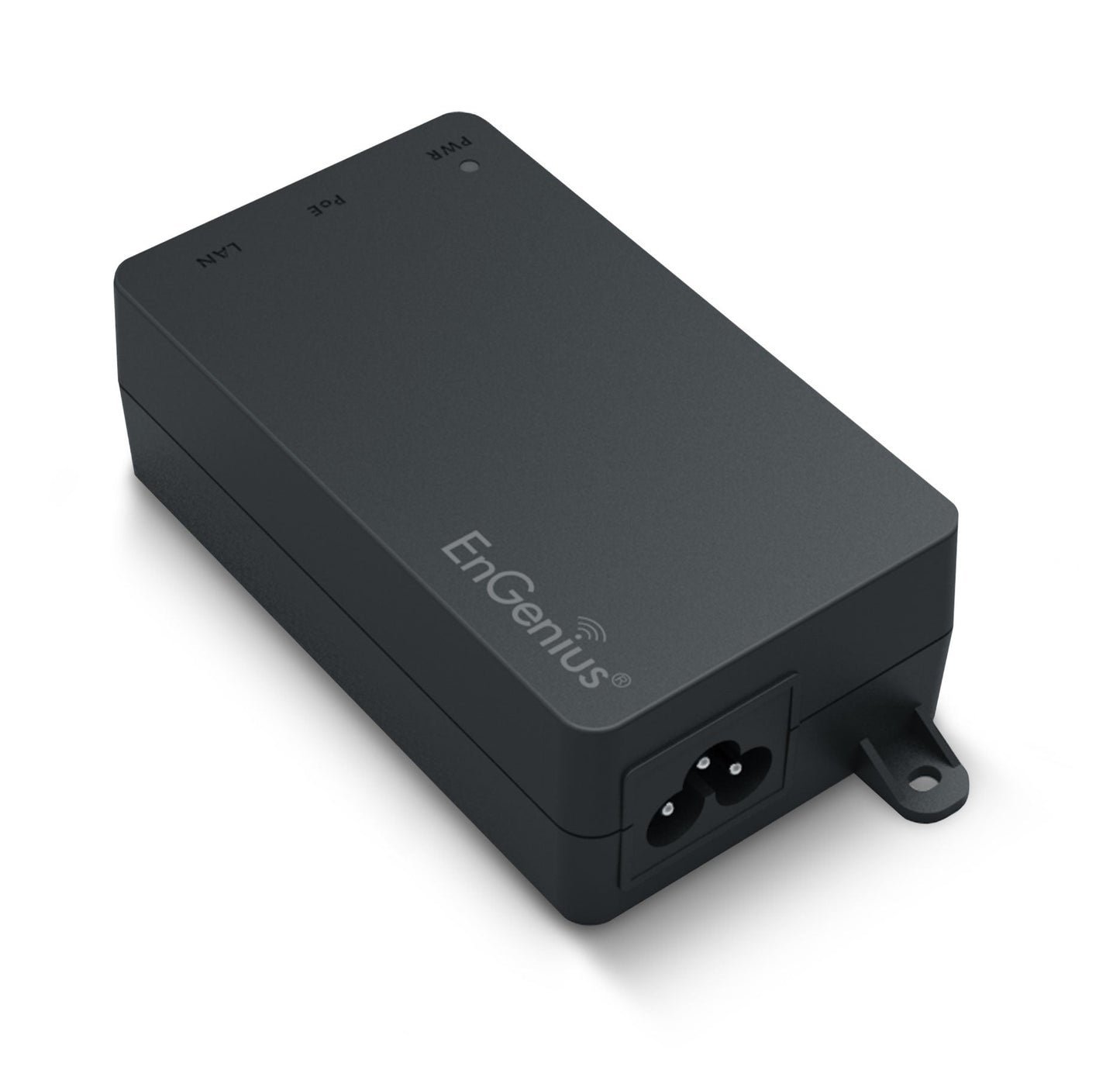

(1) IEC-320 C6 AC Connector
(1) Reset button.
LED Indicator
1 x Power on Green
Mounting
Wall (anchors & screws included)
Input Voltage
100 to 240VAC
Input Current
0.8A Max for 100VAC
AC Input Frequency
47-63Hz
Maximum Output Power
32.8W
Power Lines
Pin4, 5:54V, Pin7, 8:Return
Added Protection Features
Short-Circuit
Surge (over current/over voltage)
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -22°F to 176°F (-30°C to 80°C)
Humidity (non-condensing)
Operating: 5 to 90% or less
Storage: 5 to 90% or less
EPA5006GR Device (Without Mounting Kit)
Weight: .33 lbs. (154 g)
Length: 3.9” (99 mm)
Width: 2.27” (68.5 mm)
Height: 1.3” (33 mm)
Packaging
Weight: .57 lbs. (262 g)
Length: 5.4” (139 mm)
Width: 4.8” (122.5 mm)
Height: 2” (52 mm)
Package Contents
EPA5006GR
Power Cord
Warranty
1 Year
