EPA5060HBT: 60W 802.3af/at/bt 2.5GbE Power over Ethernet Injector
EPA5060HBT: 60W 802.3af/at/bt 2.5GbE Power over Ethernet Injector
Delivers 60-watts of power and 2.5G data communication to compatible network devices up to 328 feet (100m) over CAT5e cable

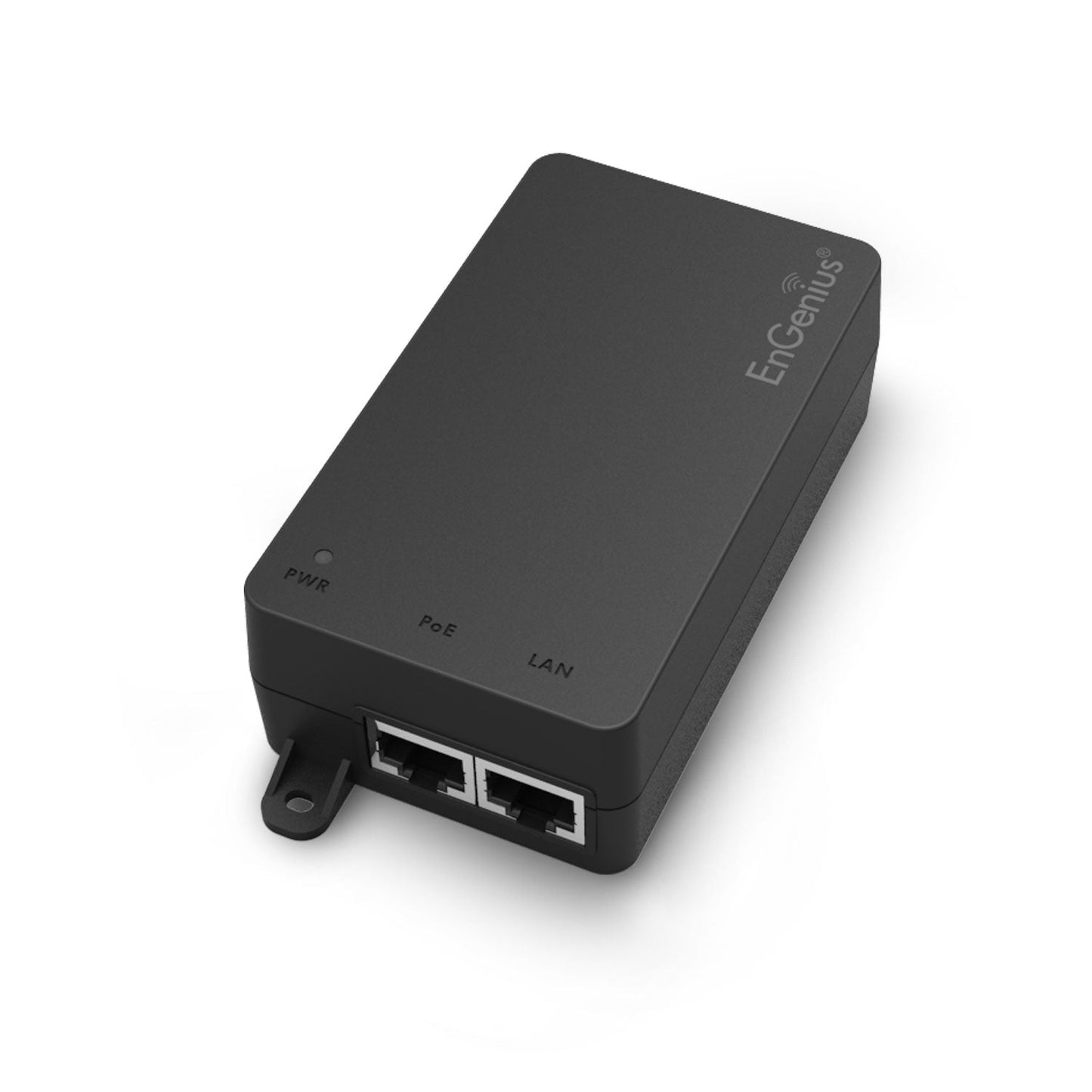

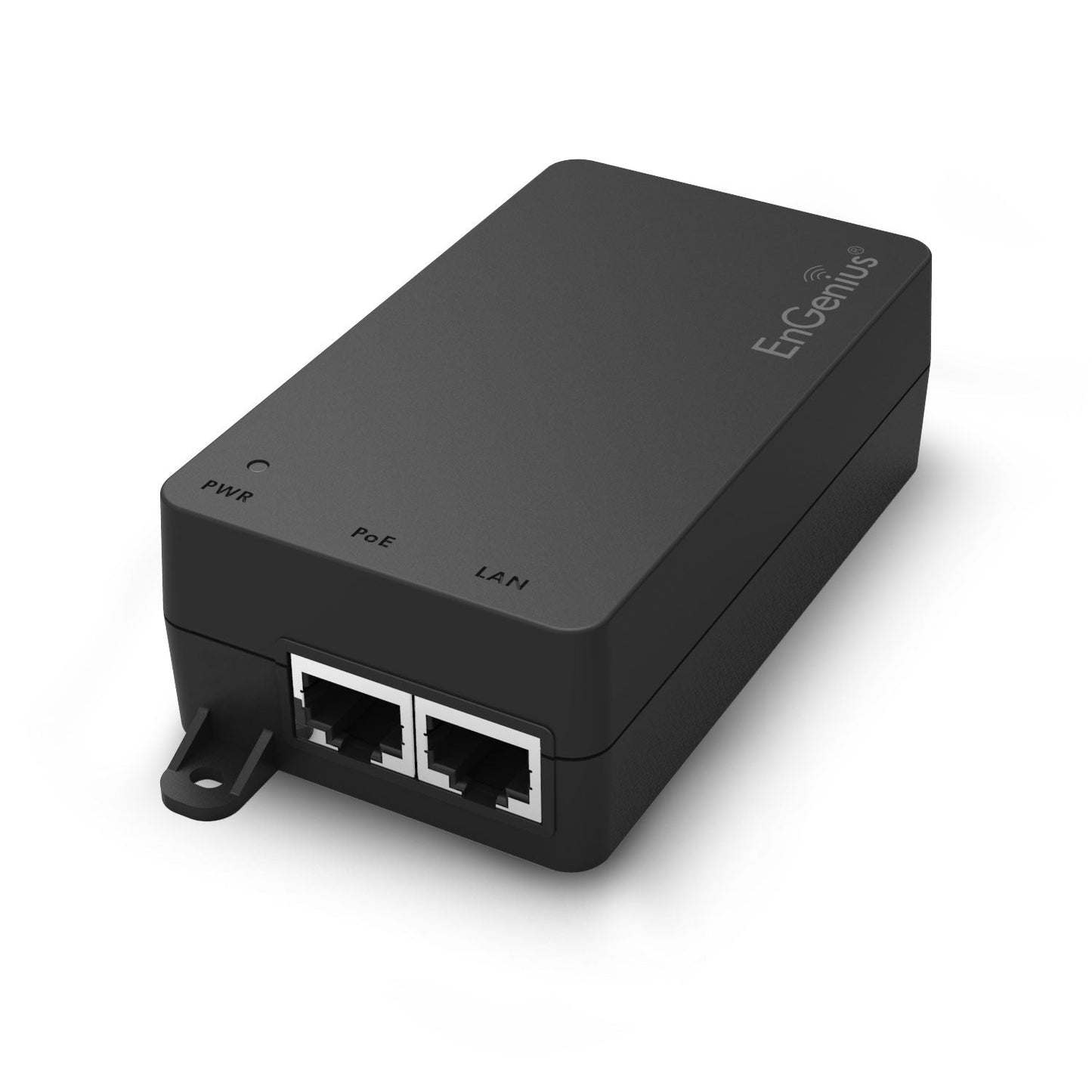

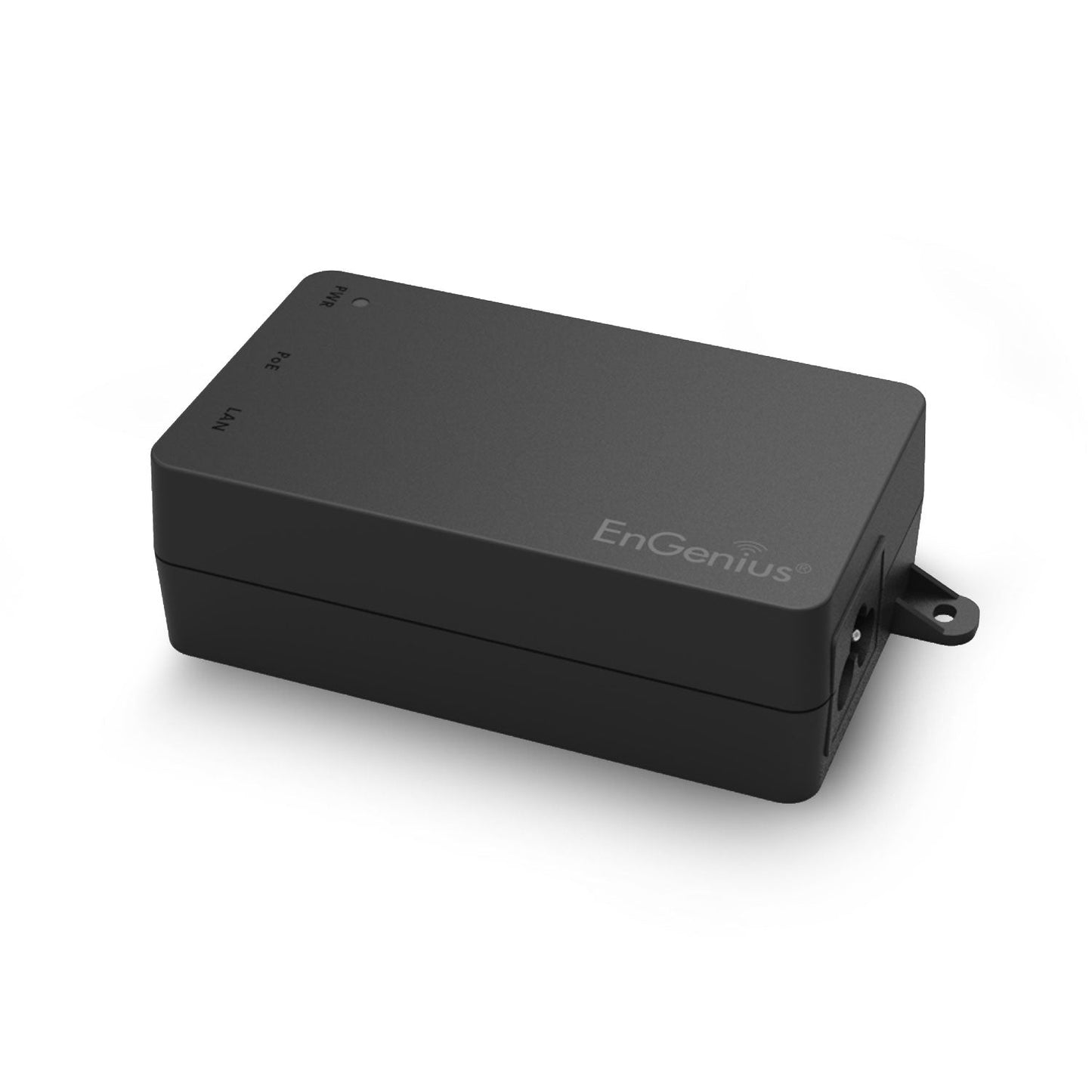

The EnGenius EPA5060HBT PoE Injector delivers 60-watts of power and 2.5Gb data communication to compatible network devices up to 328 feet (100m) over CAT5e cable. Compact design with IEEE802.3bt compliance offers easy installation while providing built-in power protection to preserve valuable equipment.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
60 Watts of Power
Energy efficient PoE up to 60W with full power capabilities
2.5 GB Ethernet
1 x 10/100/1000Mb, 2.5Gb Data & Power Output; RJ-45
Features
Specifications
- IEEE 802.3bt Type 3 compliant
- IEEE 802.3af/at backward compatible
- Backward compatible for legacy PoE -Supports 10/100/1000 Mbps Up to 2.5Gb applications
- Output power up to 60W over four pairs with auto-detection on power requirement
- Leverage energy efficient PoE up to 60W with full power capabilities
- Single-port PoE Midspan Injector flexible design allows for either desktop or surface-mount use
- Fan-less design ideal for silent operation
- Simple plug-and-play installation
Input Voltage
100 ~ 240VAC
Input Current
1.12A @ 120V AC
0.75A @ 240V AC
Input Frequency
50-60Hz
Maximum Output Power
60W
Powerline
Pin 4 (Vdc+) & Pin 5 (Vdc+)
Pin 7 (Vdc-) & Pin 8 (Vdc-)
Ethernet Port Standards
IEEE 802.3af/at/bt Compatible
Data Lines
Pin 1 (Rx+) & Pin 2 (Rx-)
Pin 3 (Tx+) & Pin 6 (Tx-)
Surge Protection
L-L: 2KV
L-G: 4KV
ESD
Contact 4KV; Air: 8KV
Other Protection
Over-voltage and Over-current protection
Short-circuit protection

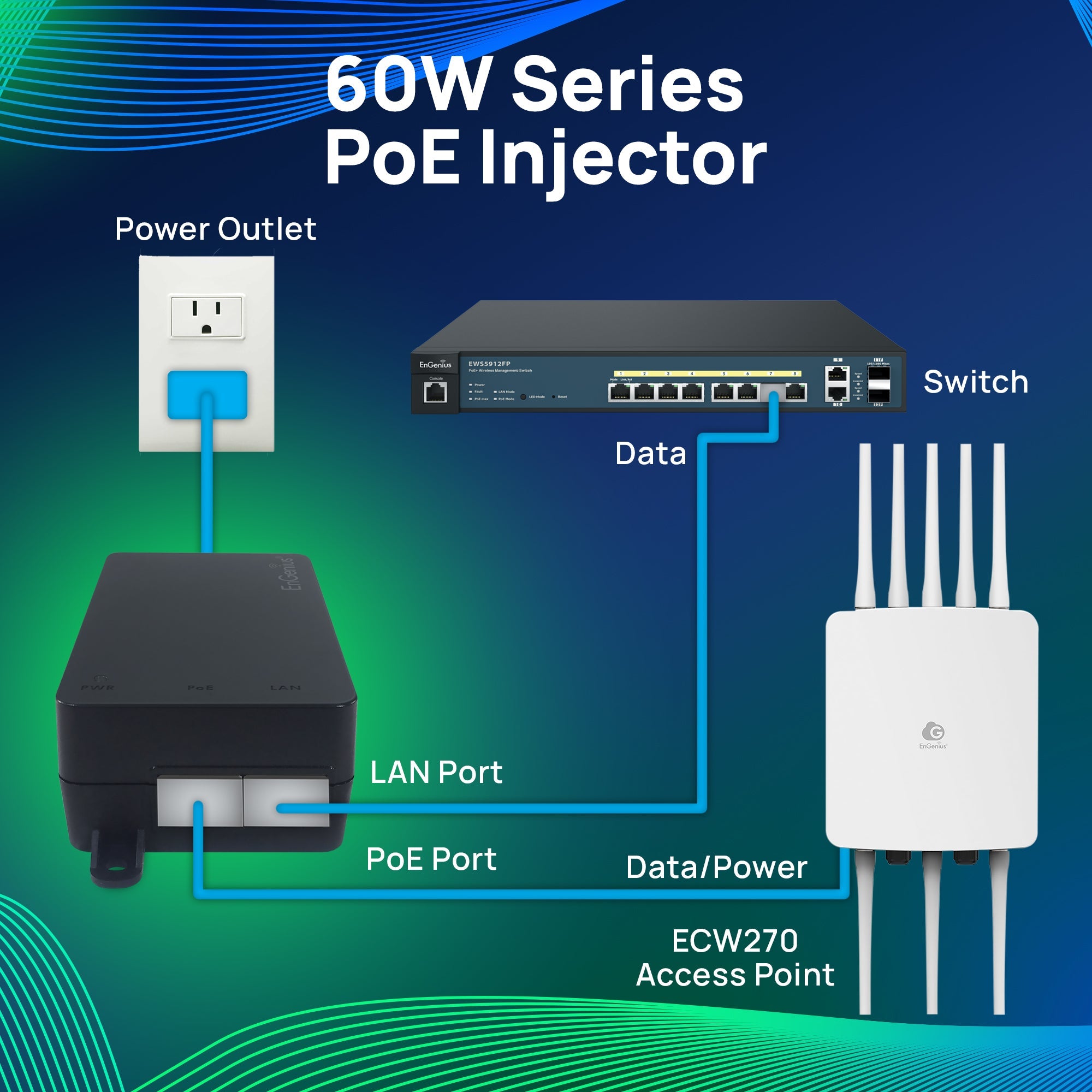

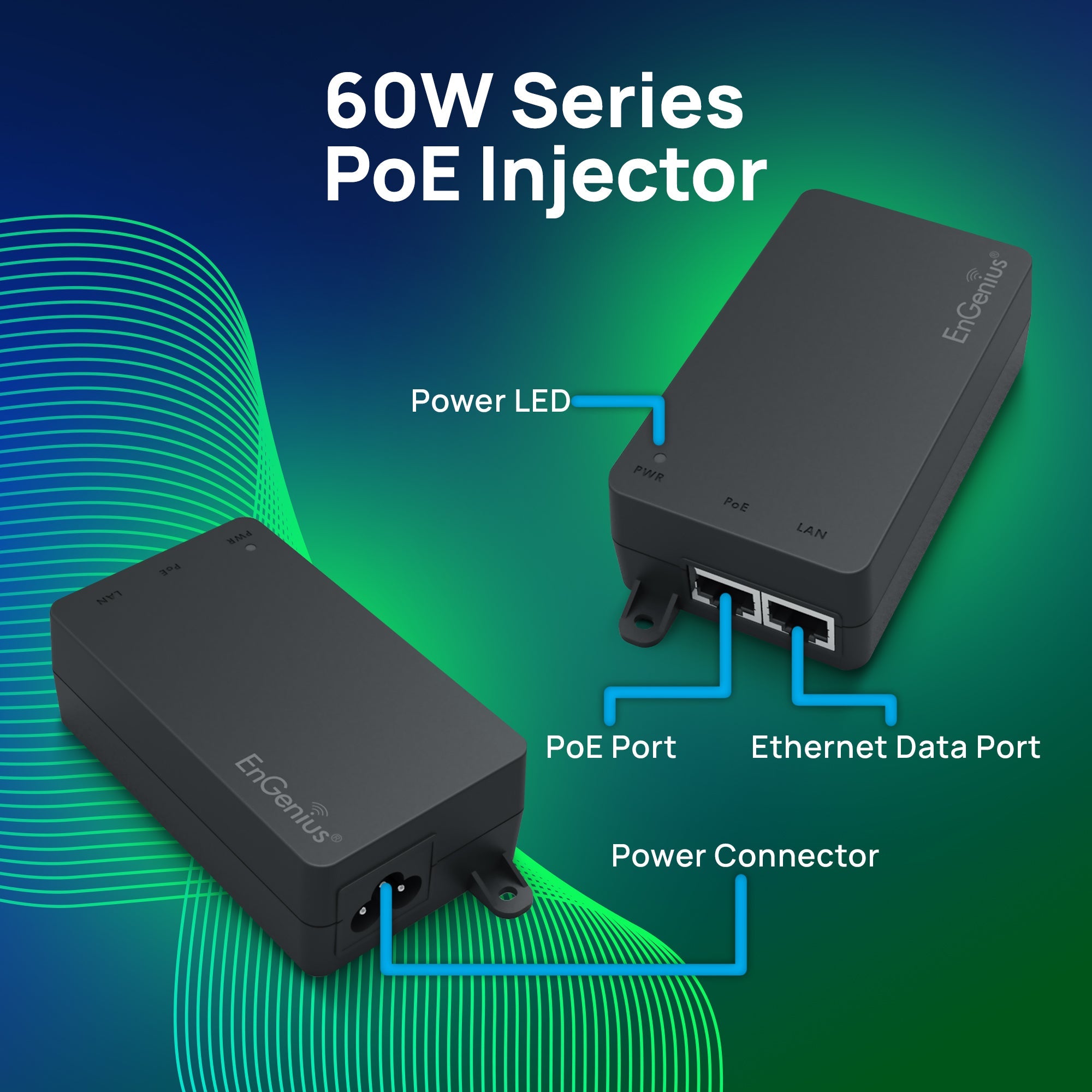

Network Ethernet Ports
1 x 10/100/1000Mb, 2.5Gb Data Input; RJ-45
1 x 10/100/1000Mb, 2.5Gb Data & Power Output; RJ-45
Power Source
AC Connector
1x IEC-320 C6 AC Connector
LED Indicators
Power On: Green
PoE On: Green
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 158°F (-20°C to 70°C)
Package Contents
1 x PoE Adapter
1 x Quick Installation Guide (Printed on side of Box)
1 x Power Cord – 16 inches (40.64cm)
EPA5060HBT Device (Without Mounting Kit)
Weight: 7oz (198g)
Length: 3.9” (99mm)
Width: 2.27” (57mm)
Height: 1.3” (33mm)
EPA5060HBT Packaging
Weight: 11oz (315g)
Length: 6” (152mm)
Width: 4.8” (122.5mm)
Height: 2” (52 mm)
Certifications
IEC 62328-1: 2014
UL 62328-1
FCC Subpart 15 Class B
EN 55032: 2012 / AC: 2013
EN 55024: 2010
Warranty
1 year
