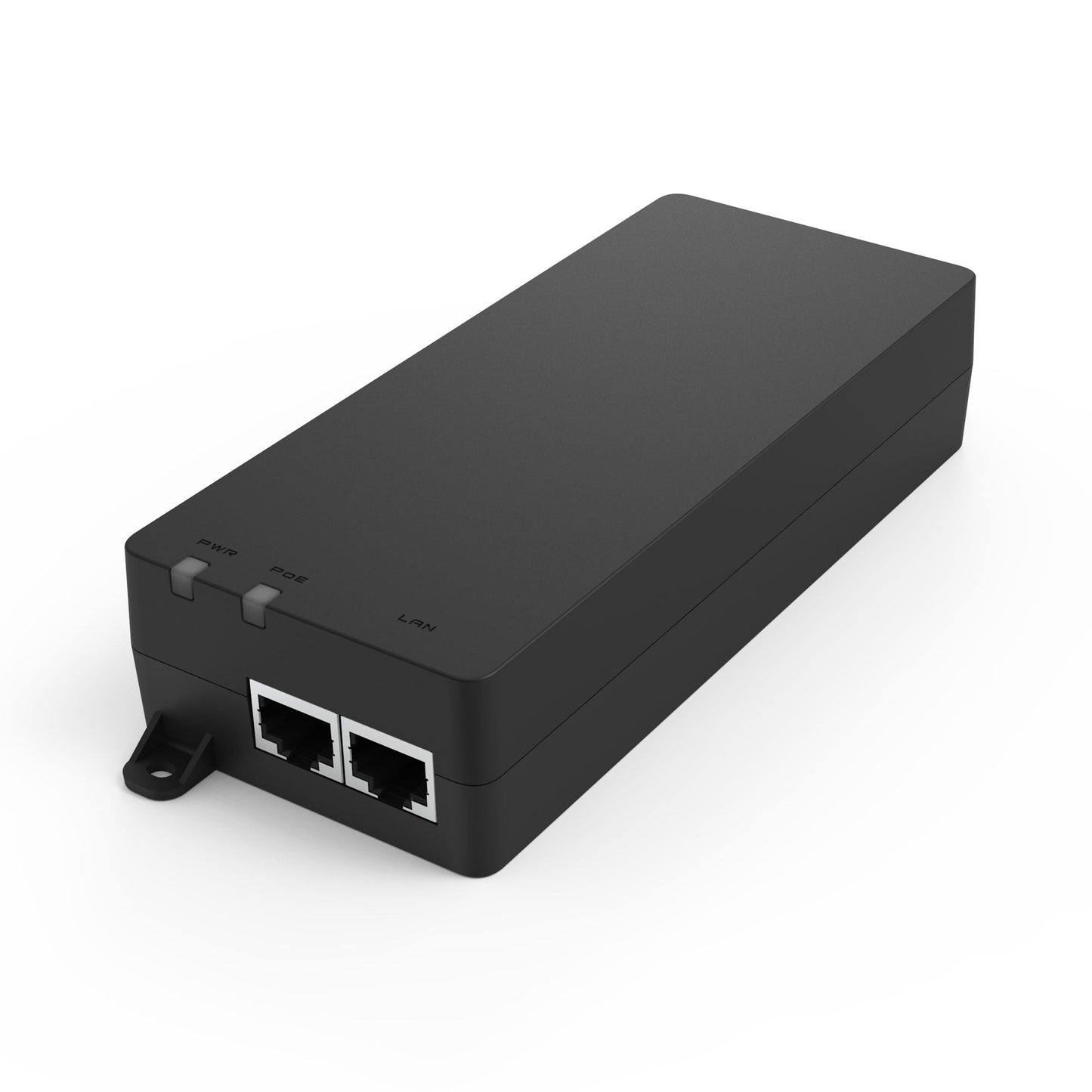

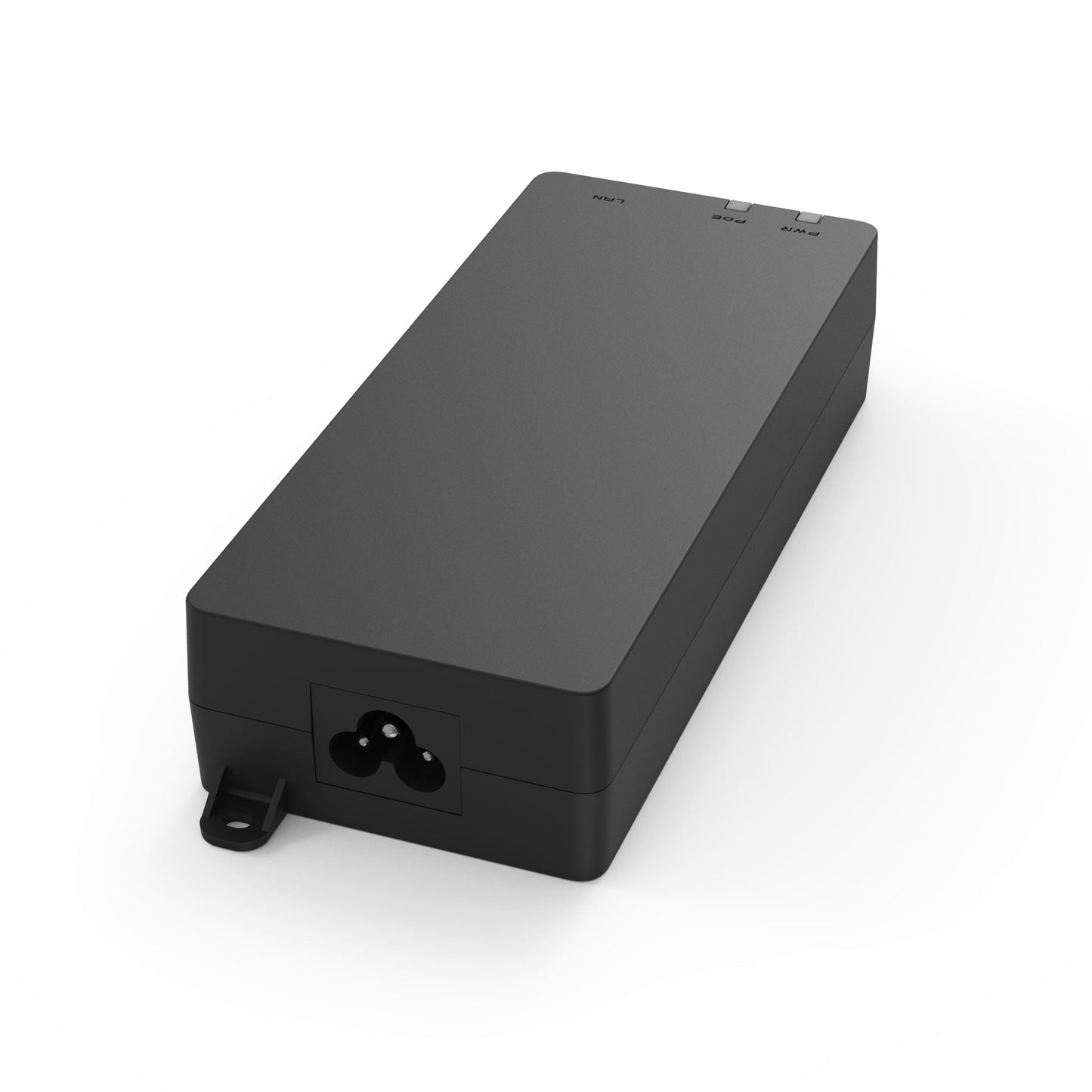

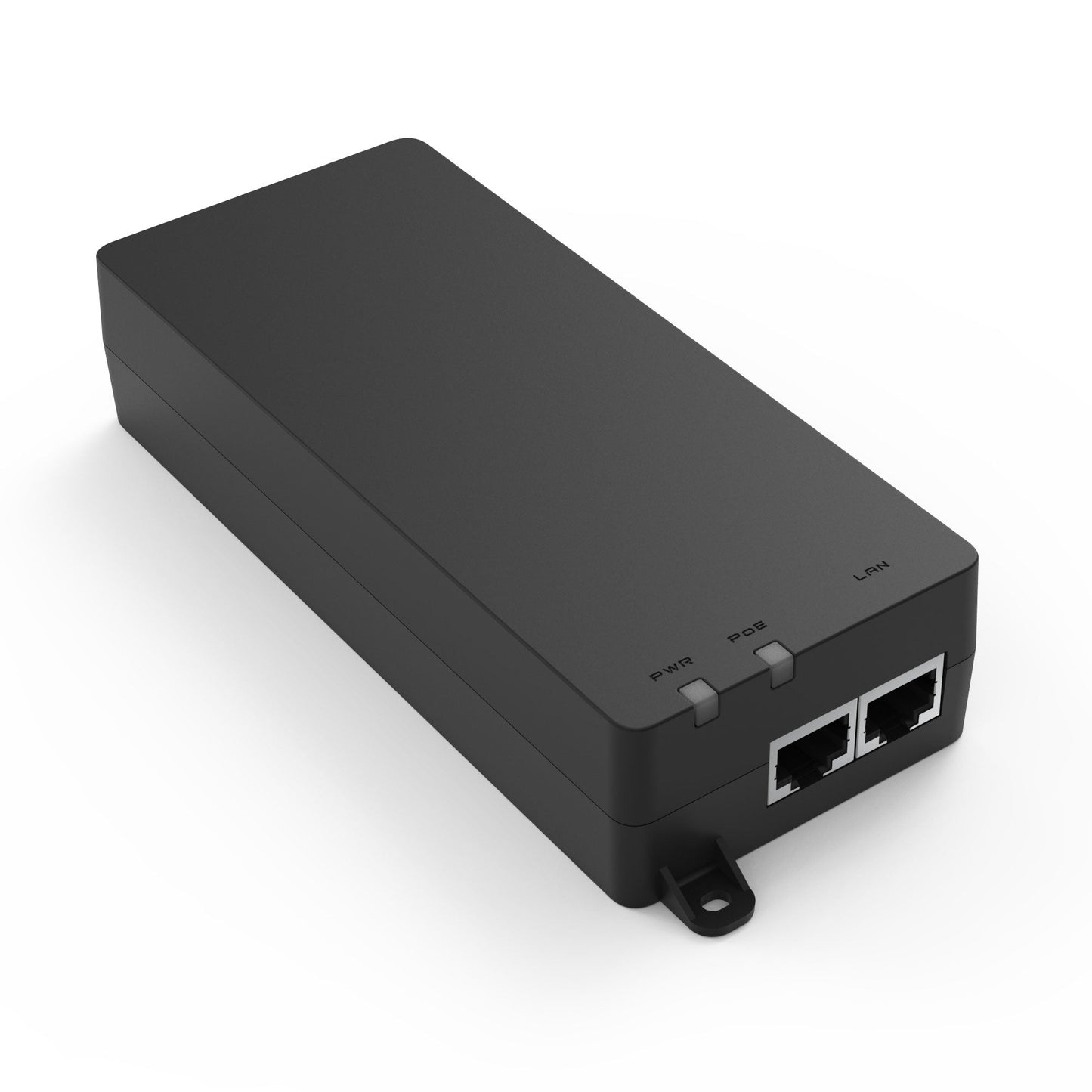

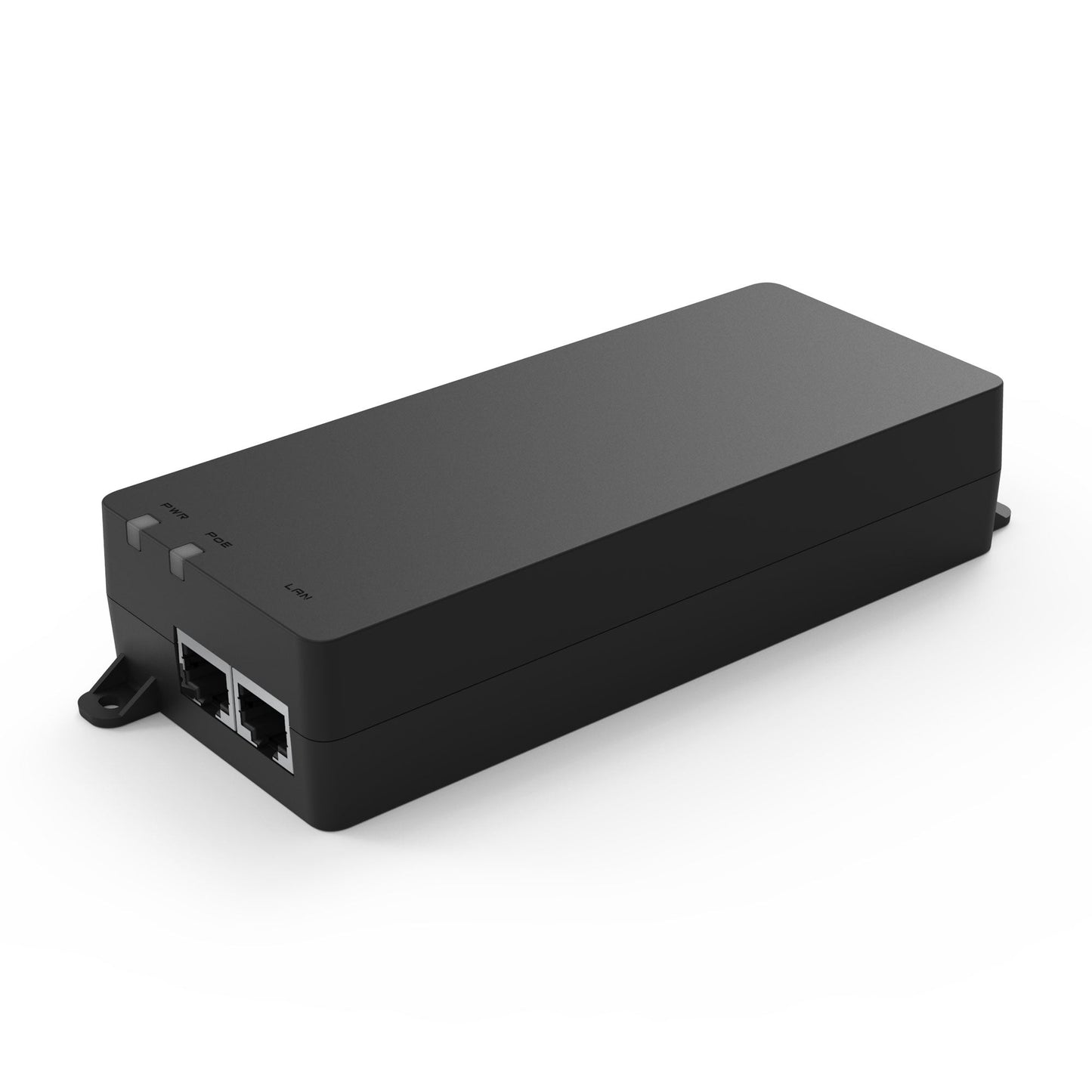

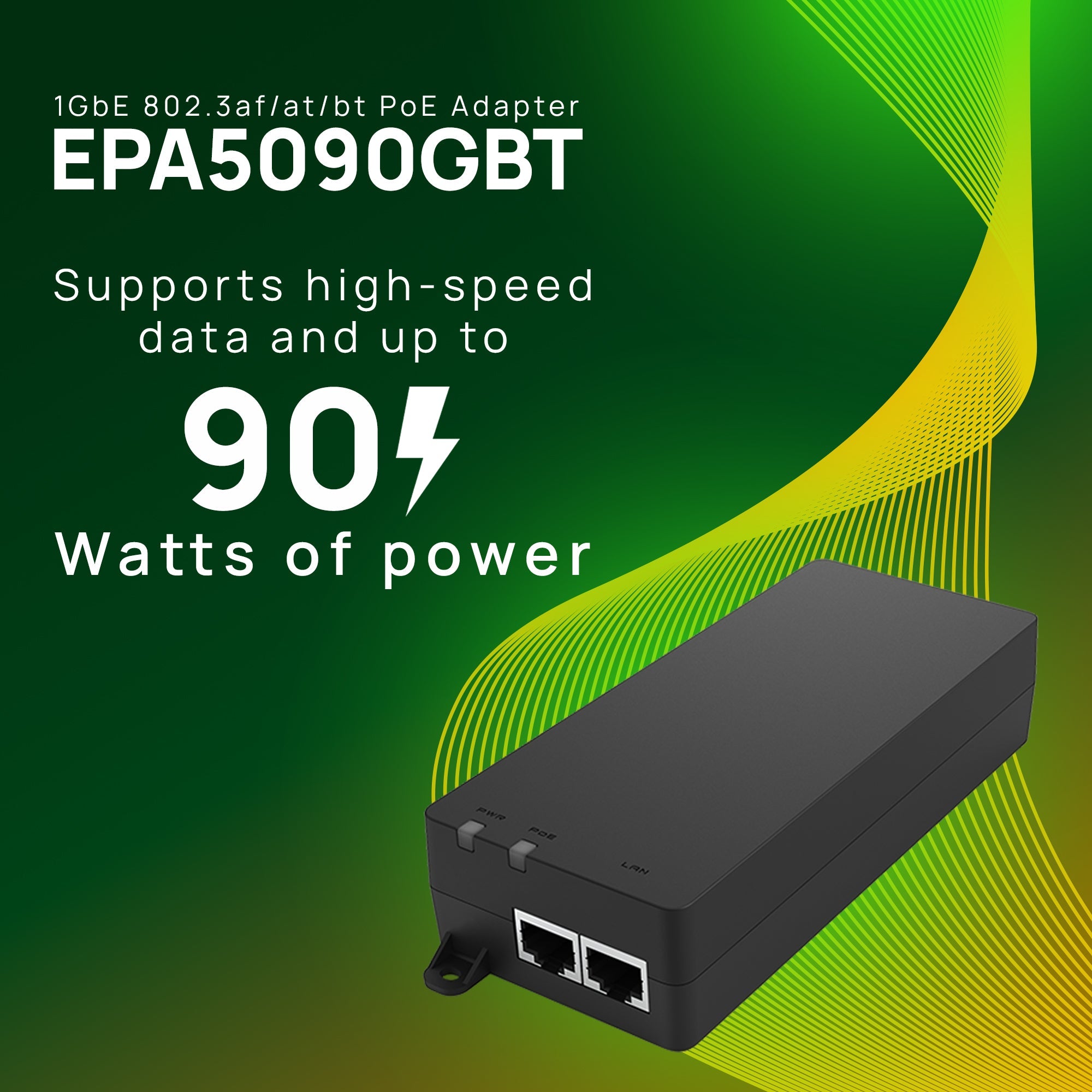

EPA5090GBT: 802.3af/at/bt 1GbE 90W PoE Injector
Delivers 90-watts of power and 1Gb data communication to compatible network devices up to 328 feet

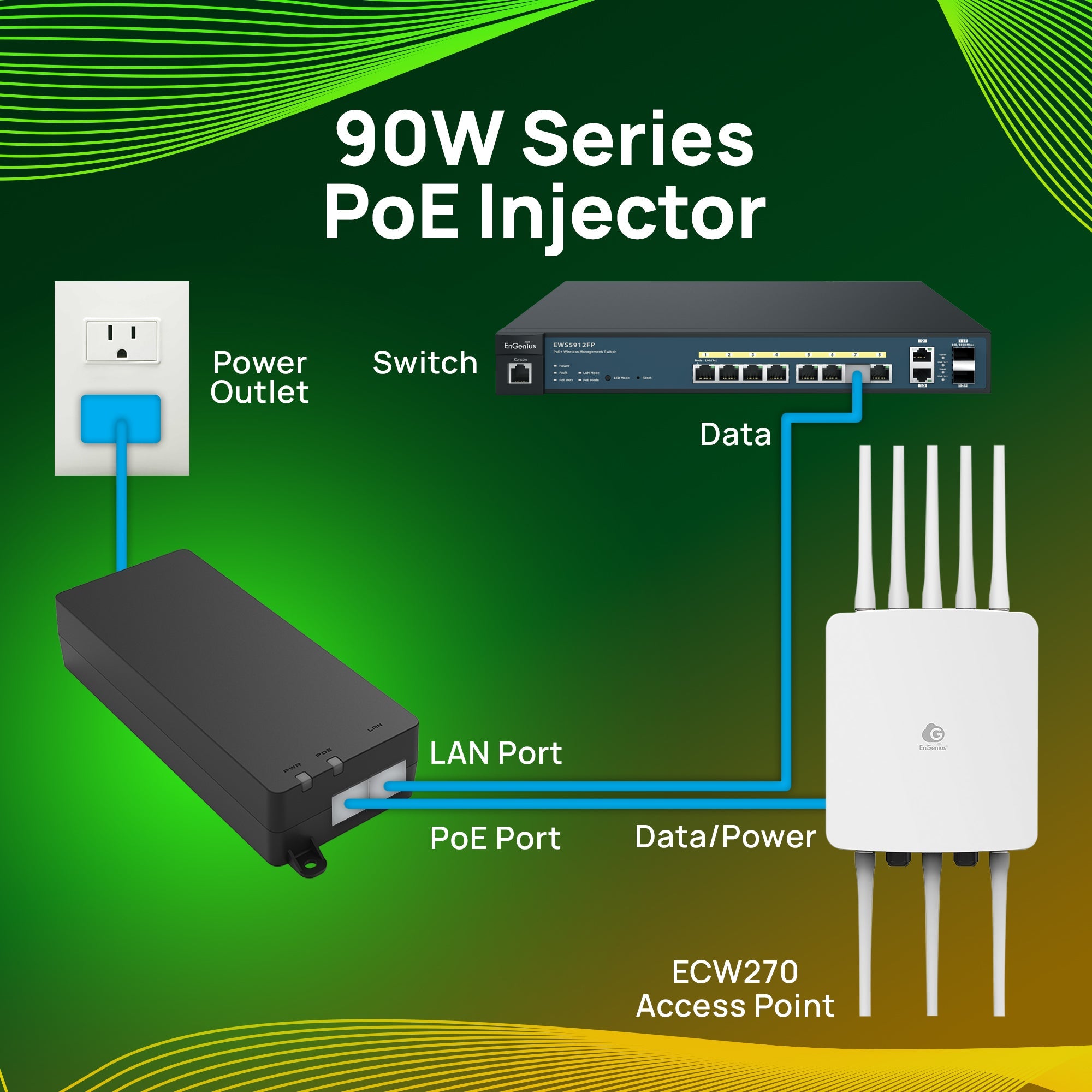

The EnGenius EPA5090GBT PoE Injector delivers 90-watts of power and 1Gb data communication to compatible network devices up to 328 feet (100m) over Cat5e cable. Compact design with IEEE802.3bt compliance offers easy installation while providing built-in power protection to preserve valuable equipment.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
90 Watts of Power
Energy efficient PoE up to 90W with full power capabilities
1 GB Ethernet

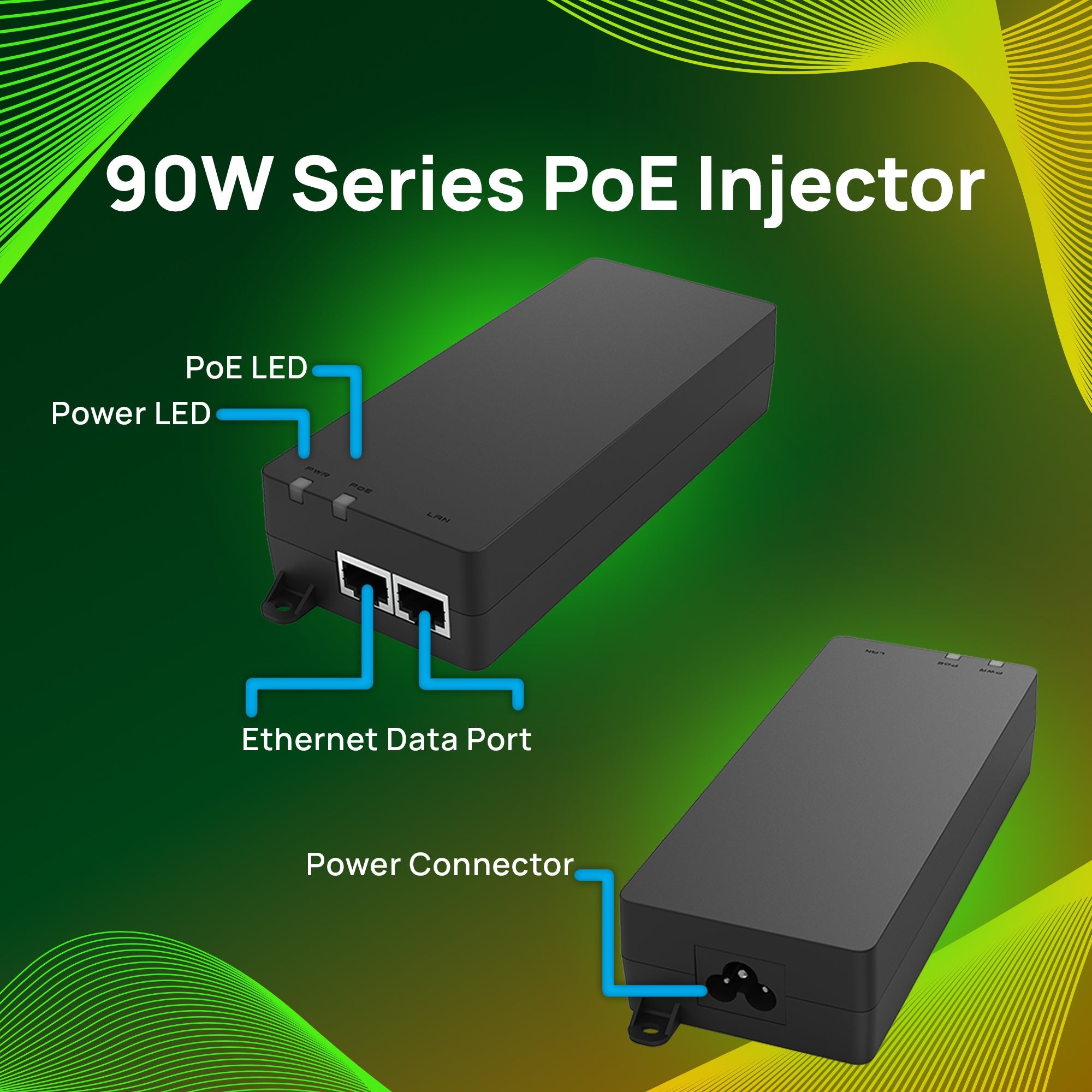

1 x 10/100/1000Mb Data & Power Output; RJ-45
Specifications
Input Voltage
100 ~ 240VAC
Input Current
0.95A @ 120V AC
0.5A @ 240V AC
Input Frequency
50-60Hz
Maximum Output Power
90W
Powerline
Pin4 (Vdc+) & Pin5 (Vdc+)
Pin7 (Vdc-) & Pin8 (Vdc-)
Ethernet Port Standards
IEEE 802.3af/at/bt Compatible
Data Lines
Pin 1 (Rx+) & Pin 2 (Rx-)
Pin 3 (Tx+) & Pin 6 (Tx-)
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 158°F (-20°C to 70°C)
Package Contents
1 x PoE Adapter
1 x Quick Installation Guide (Printed on side of Box)
1 x Power Cord – 16 inches (40.64cm)
EPA5090GBT Device (Without Mounting Kit)
Weight: 12.5oz (354g)
Length: 5.9” (150mm)
Width: 2.56” (65mm)
Height: 1.34” (34mm)
EPA5090GBT Packaging
Weight: 16.6oz (470g)
Length: 7” (178mm)
Width: 3.54” (90mm)
Height: 2.8” (72mm)
Certifications
IEC 62328-1: 2014
UL 62328-1
FCC Subpart 15 Class B
EN 55032: 2012 / AC: 2013
EN 55024: 201
Warranty
1 year
