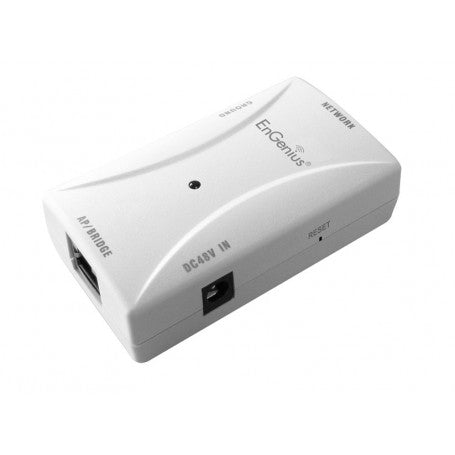

EPE-48GR-PoE injector
Delivers Data & Power to PoE-Compliant Devices
The EnGenius EPE-48R is a small and compact standalone product. With the Power over Ethernet function, it can easily extend the wired connection distance through the Ethernet cable which avoids the long power line and supports up to gigabit connection speed. EPE-48GR offers 48V/0.8A power supply with standard pin definition of Ethernet cable. The EPE-48GR PoE generates safe power over category 5 cabling. By sending 48V, Ethernet terminals such as wireless LAN access point, IP phone, and web camera can be powered remotely. It is specially designed for outdoor networking facility with low port density installations.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Great for Both Indoor & Outdoor
Ideal Solution for Surge Protection
High Resistance
6KV Resistance at Line-to-Ground connection
Specifications
- Superior lightning and surge protection
- Compatible with Power-over-Ethernet (PoE)
- Supports normal and reverse polarity PoE
Ethernet Cable Support
10/100 Base-T CAT5 protection
Lightning Protection
RJ-45; Surge absorber ES75XPA*10
PCBA Components
PCB: 2-layer FR-4 , 50x40x1.6mm
EARTH PARTS INCLUDE SCREW
Temperature Range
Operating: 20°C to 60°C
Storage: -40°C to 85°C
Humidity (non-condensing)
Operating: 5 to 95% or less
Device
Length: 130 mm
Width: 78 mm
Height: 50 mm
