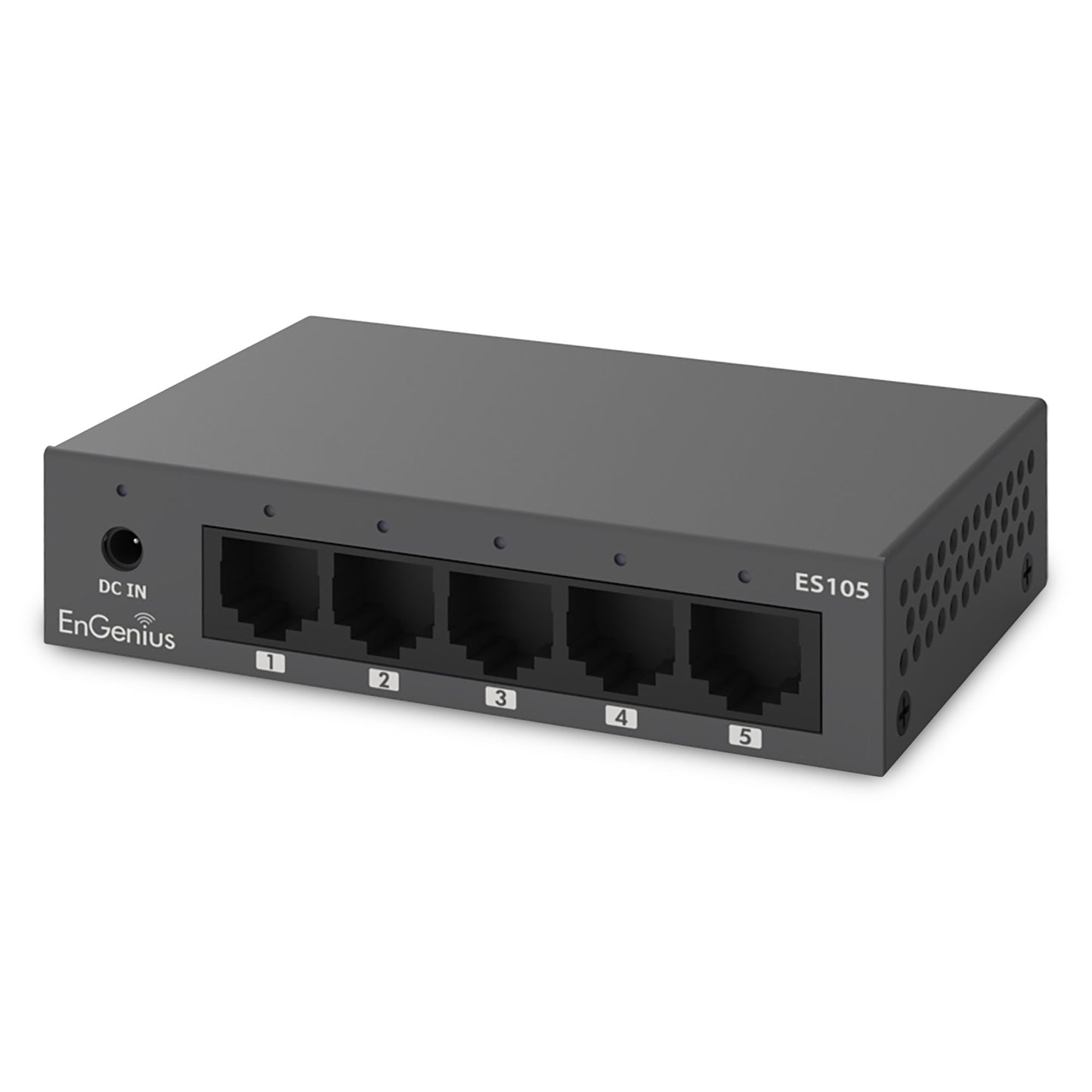

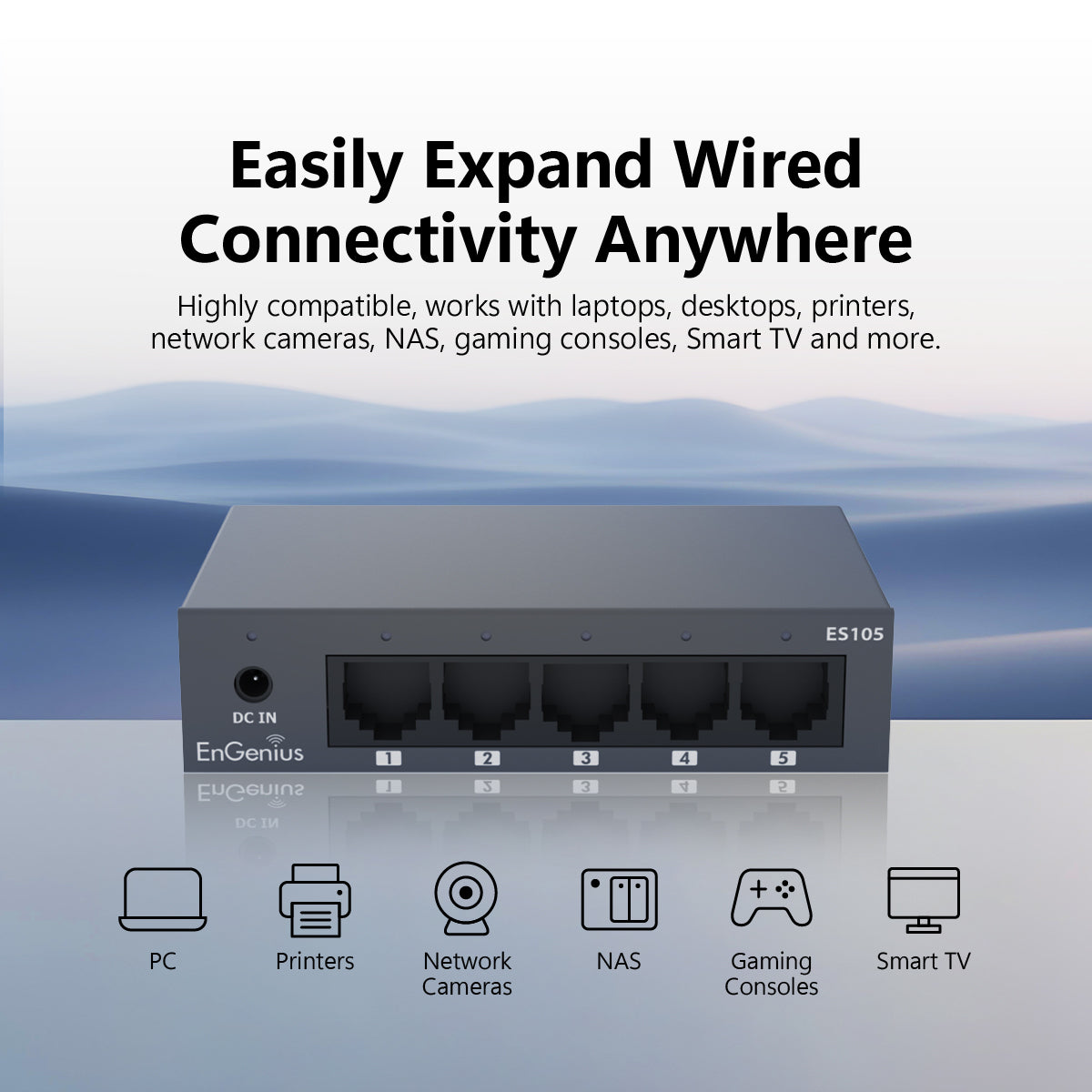

ES105: 5-Port Gigabit Unmanaged Switch
Perfect for SMBs seeking to expand port density
The EnGenius ES105 is a 5-port Gigabit Switch that offers plug-and-play simplicity, requiring no configuration for easy installation. This switch features a rugged, fanless design for silent operation and Energy Efficient Ethernet (IEEE 802.3az) to dynamically adjust power based on network traffic, ensuring efficient and seamless performance.
Feature
Specifications

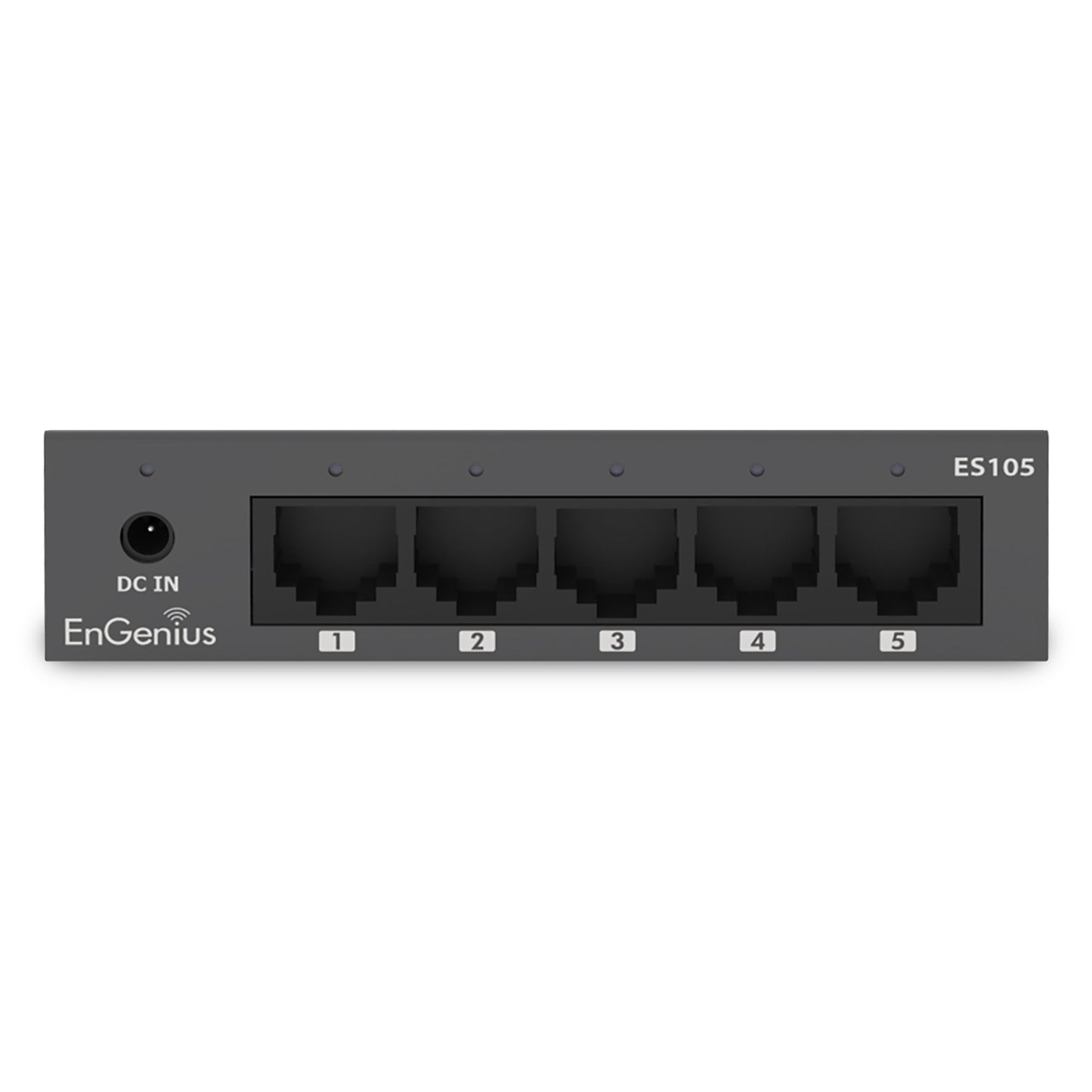

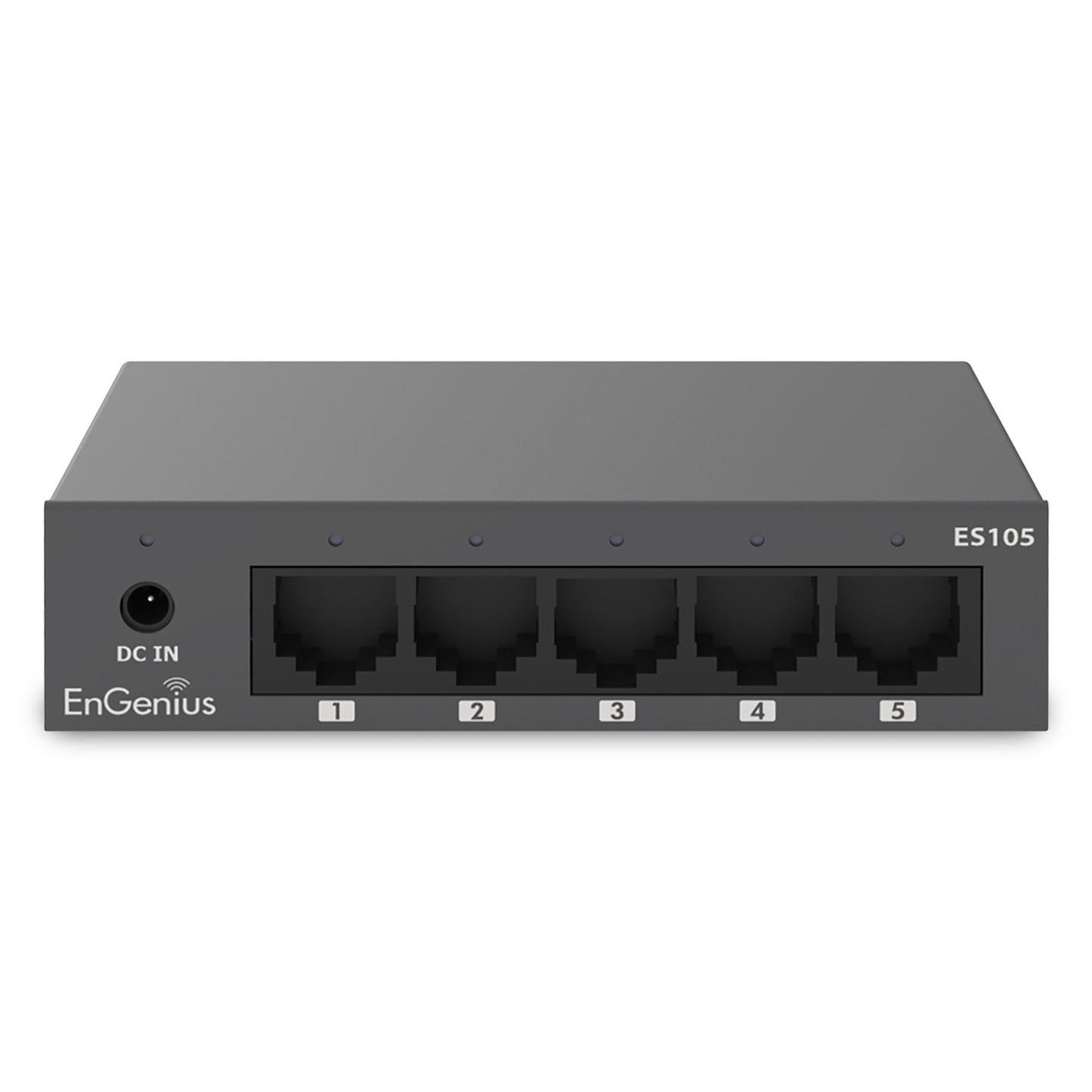

• 5x GE ports for high-speed connections
• Plug and play and zero maintenance

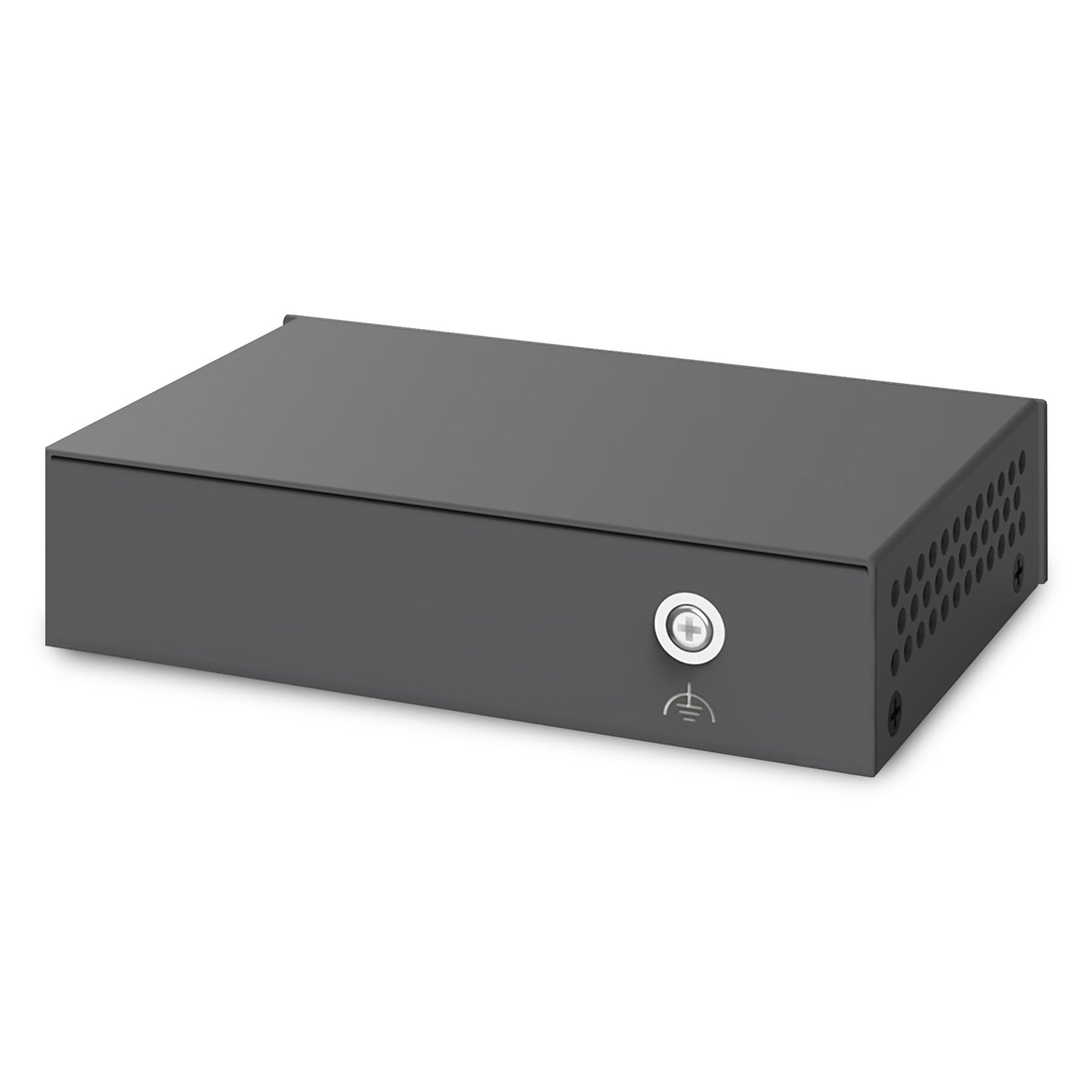

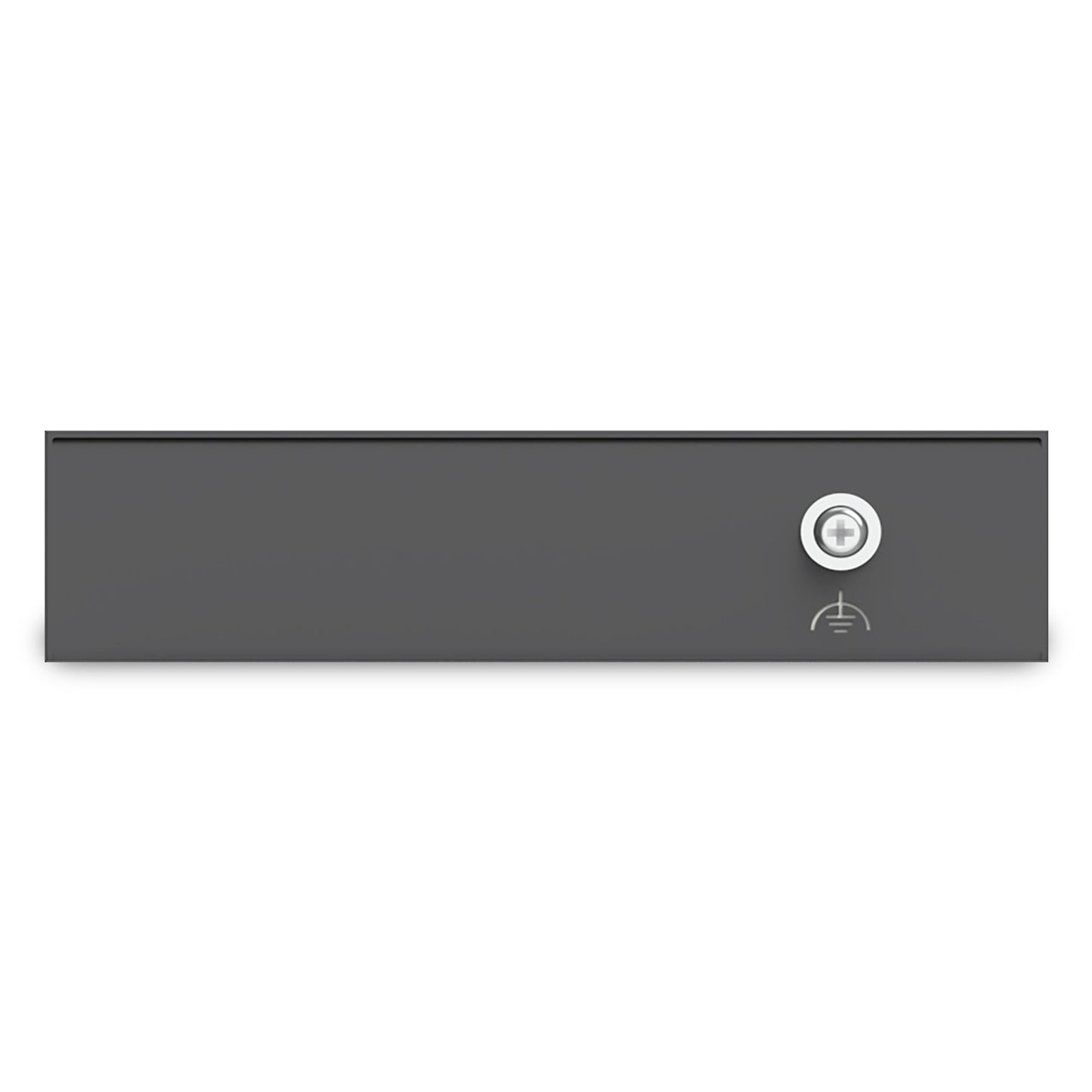

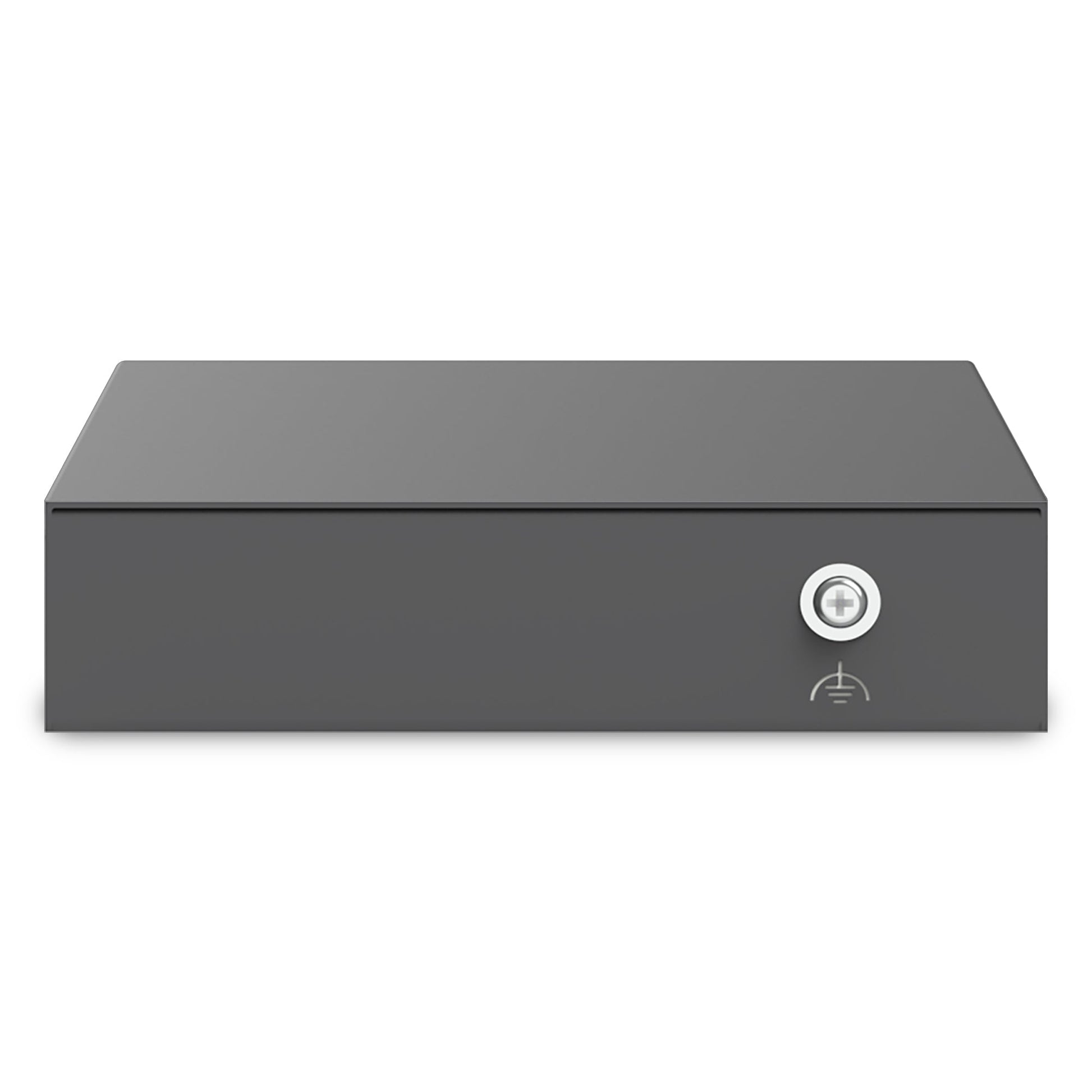

• Ruggedized with metal housing design
• Fanless design with slient operation
• Energy Efficient Ethernet (IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically
• Non-blocking switching architecture
Port Standards
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
Network Port - Gigabit Ethernet Ports
5x10/100/1000 Mbps Ports
Switching Capacity
10Gbps
Power Source
100 to 240 VAC, 50/60Hz
Port Indicators
Link/Activity (per Ethernet port)
Temperature Range
Operating: 0°C to 40°C
Humidity (non-condensing)
Operating: 5% - 90%
ES105 Device
Weight: 144 g
Width: 64 mm
Length: 100 mm
Height: 24 mm
Package Contents
1x ES Switch
1x Power Adapter
1x Wall mount screw
1x Quick installation guide
