1.25 Gbps Multi-Mode SFP Transceiver (850nm, up to 500m)
The EnGenius SFP2185-05A is a high-performance, cost-effective multi-mode SFP transceiver. Designed for Gigabit Ethernet applications, it provides up to 1.25 Gbps serial optical data transfer rates over duplex fiber. It supports transmission distances of up to 500 meters when used with 50-micron multi-mode fiber cables.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
0.5 Kilometers
Allows network connections of up to 0.5 kilometer distance
1.25 Gbps
1.25G SFP Multi Mode Fiber at 850nm VCSEL Wavelength
SFP2185-05A
Specifications

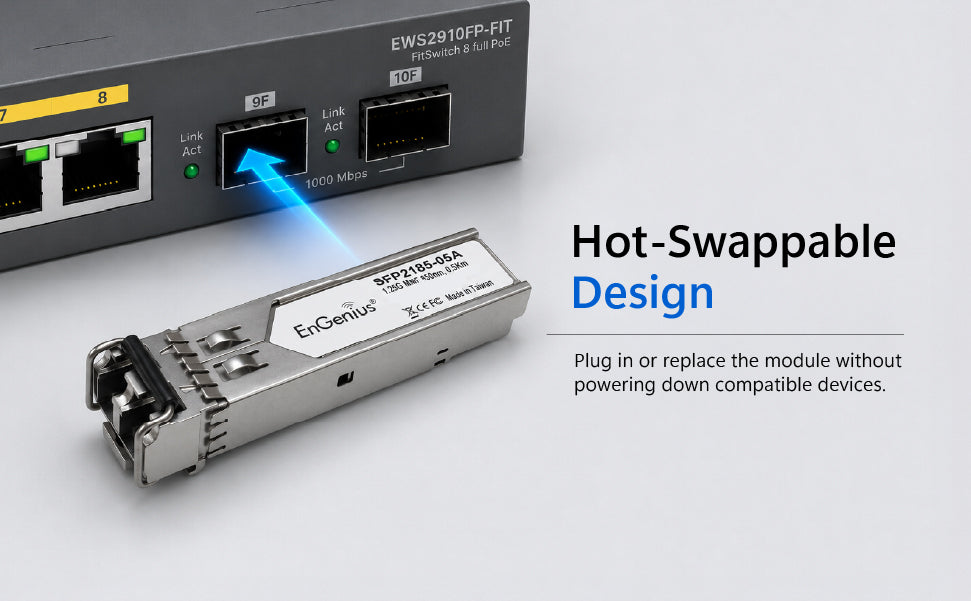

- Connector & Form Factor: Hot-swappable LC Duplex connector, Small Form Factor Pluggable (SFP) MSA compliant
- Optical Specification: 850nm VCSEL wavelength, multi-mode fiber (MMF) transmission
- Data Rate: 1.25 Gbps
- Standards & Safety: Class 1 Laser (IEC 825), IEEE 802.3az, RoHS compliant
- Standard Compliance: IEEE 802.3z
- Data Rate: 1.25 Gbps (Gigabit)
- Media / Cable Type: Multi-Mode Fiber (MMF)
- Max Transmission Distance: Up to 500 m (0.5 km)
- Connector Type: Duplex LC Connector
- Wavelength: 850 nm
- Optical TX Power: -10 ~ -3 dBm
- Receiver Sensitivity: -18 dBm
- Max Receiver Power: -3 dBm
- Supply Voltage: 3.15V ~ 3.45V
- Max Voltage / Current: 3.45V / 160mA
Environmental & Physical Specs
- Operating Temperature: 0°C to 70°C (32°F to 158°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Humidity: 5% to 95% (Non-condensing)
- Dimensions (L x W x H): 2.2" x 0.58" x 0.49" (55.9 mm x 14.69 mm x 12.39 mm)
- Weight: 0.06 lbs. (25 g)
- Certifications: Class 1 Laser Safety Standard (EN 60825-1 Compliant)
