10 Gbps Single-Mode SFP+ Transceiver (1310nm, up to 10km)
The EnGenius SFP3213-10A is a high-performance, cost-effective 10G single-mode SFP+ transceiver. Designed for high-speed 10 Gigabit Ethernet applications, it provides up to 10 Gbps serial optical data transfer rates over duplex fiber. Utilizing a 1310nm wavelength, it supports long-reach optical link distances of up to 10 km (10,000 meters), making it ideally suited for enterprise backbones, data centers, and campus networks.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
10 Kilometers
Allows network connections of up to 10 kilometer distance
10 Gbps
10G SFP+ Single Mode Fiber at 1,310nm Wavelength
SFP3213-10A
Specifications
- High-Speed Performance: High-quality 10GBASE SFP+ transceiver delivering 10 Gbps serial optical data rates

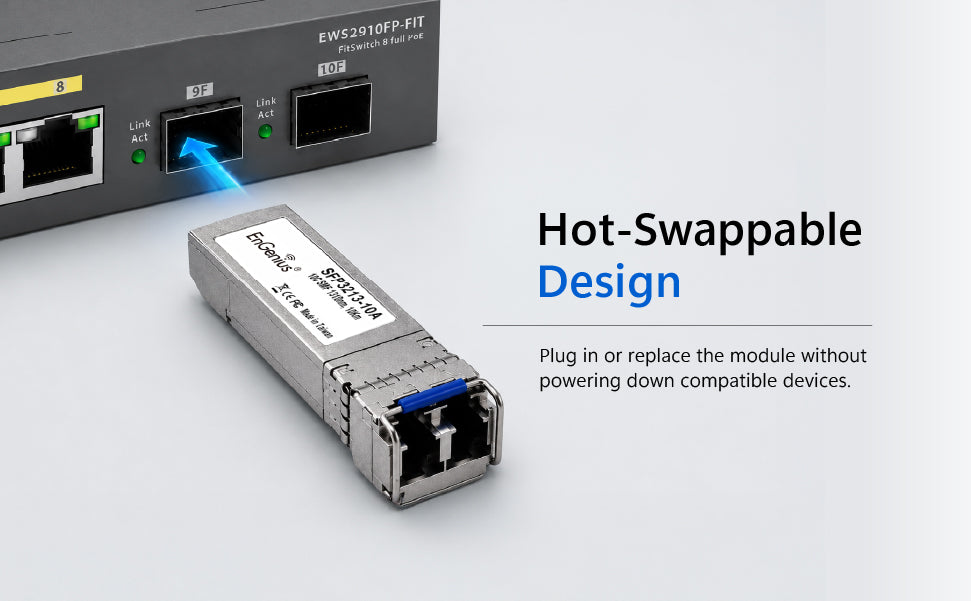

- Connector & Efficiency: Hot-swappable LC Duplex connector with low power dissipation design
- Standards & Compliance: IEEE 802.3az, Class 1 Laser International Safety Standard (IEC 825), and RoHS compliant
- Standard Compliance: IEEE 802.3ae 10GBASE-LR
- Data Rate: 10.3125 Gbps
- Media / Cable Type: Single-Mode Fiber (SMF)
- Max Transmission Distance: Up to 10 km
- Connector Type: Duplex LC Connector
- Direction: Single Direction
- Wavelength: 1310 nm
- Optical TX Power: -8.2 ~ -0.5 dBm
- Receiver Sensitivity: -12.6 dBm
- Max Receiver Power: 1.5 dBm
- Supply Voltage: 3.13V ~ 3.46V
- Max Voltage / Current: 3.46V / 300mA
- Operating Temperature: 0°C to 70°C (32°F to 158°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Humidity: 5% to 95% (Non-condensing)
- Dimensions (L x W x H): 2.3" x 0.54" x 0.49" (58.4 mm x 13.9 mm x 12.6 mm)
- Weight: 0.06 lbs. (25 g)
- Certifications: Class 1 Laser Safety Standard (EN 60825-1 Compliant)
