ECW215: Wi-Fi 6 Cloud-Managed Wall Plate Access Point

• Cloud-managed with optional Mesh mode

• 802.11ac Wave 2 (Wi-Fi 5) technology

• Throughput speed of 400 Mbps (2.4 GHz) and 867 Mbps (5 GHz)

• Gigabit Ethernet PoE-in port and 12/48V DC input for flexible power options

• 2 GE-port support 802.3af/at PoE-in

• Connect & power VoIP phones or other PoE devices with PoE out

• Quick-scan device register & configuration and remote monitoring & troubleshooting

• Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud To-Go App

• Mesh Wireless Support simplifies setup, optimizes signals & self-heals

Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
IEEE 802.3 u/ab

Antenna
2 x 2.4 GHz: 4 dBi
2 x 5 GHz: 5 dBi

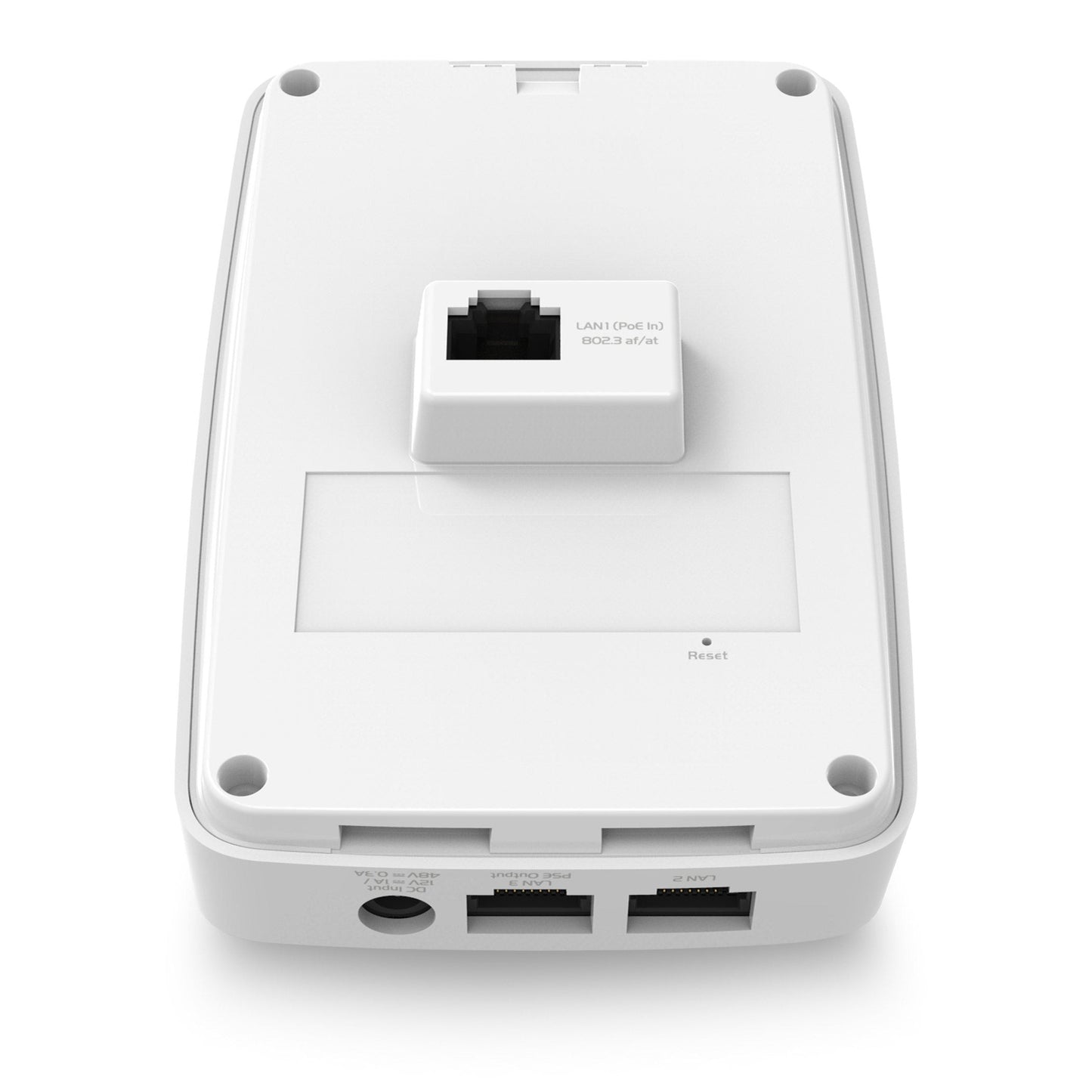

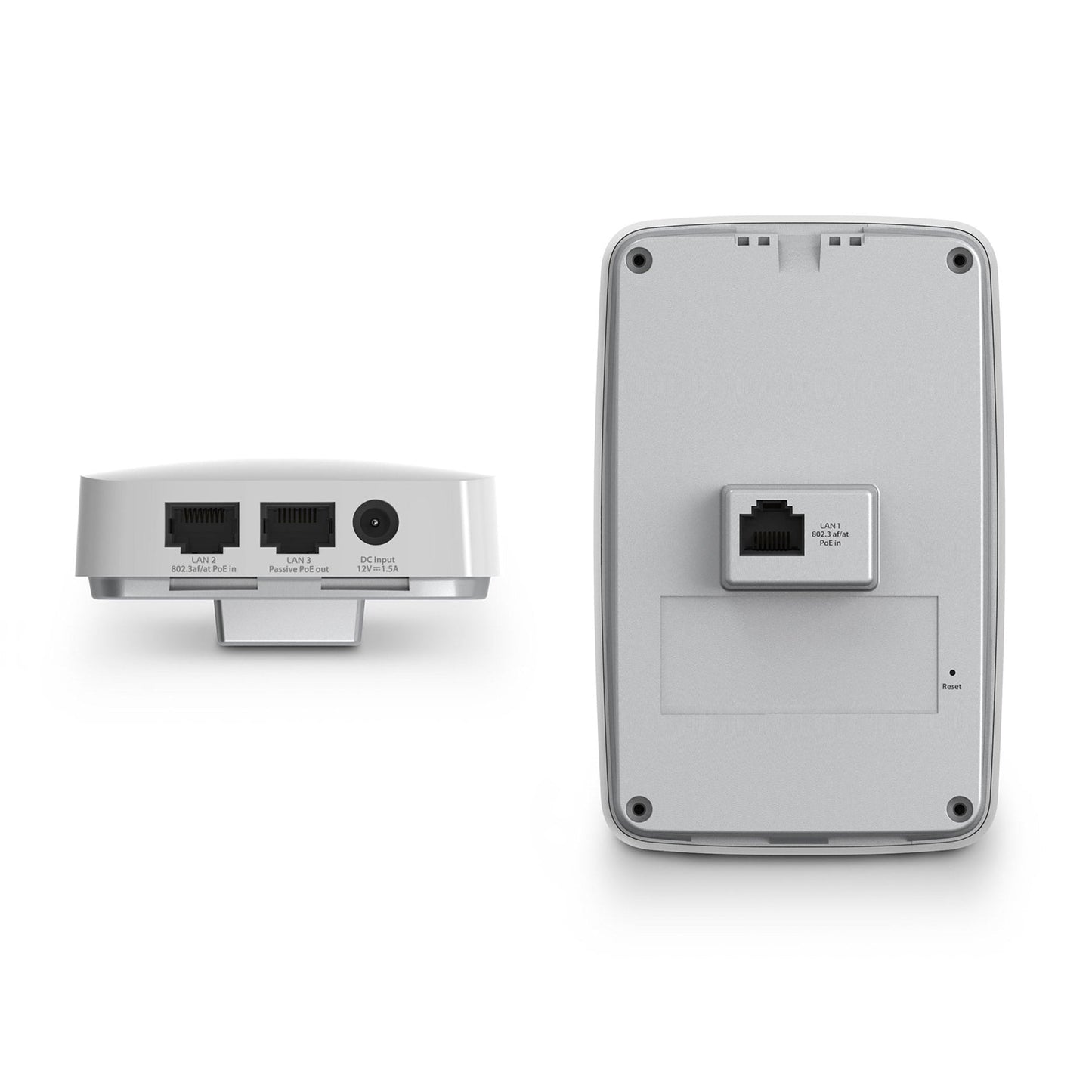

Physical Interface
2 x GE Port (PoE+)
1 x GE Port (PSE Out ; requires 802.3at power source)
1 x DC Jack
1 x Reset Button

LED Indicators
1 x Multi-color LED

Power Source
Power-over-Ethernet: 802.3af/at Input
12VDC /1A Power Adapter

Maximum Power Consumption
11.9W

Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes
AP, AP Mesh, Mesh

Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power
Up to 17 dBm on 2.4 GHz
Up to 17 dBm on 5 GHz

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream
2x2:2

SU-MIMO
Two(2) spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two(2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5GHz radio.

MU-MIMO
Two (2) Spatial Stream MU-MIMO up to 867 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO capable wireless devices under 5GHz simultaneously.

Supported Data Rates (Mbps)
2.4 GHz: Max 400 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: Max 867 (MCS0 to MCS11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM uner HT40)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11n/ac: 2×2 MIMO with 2 Streams

Channelization
802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11n Supports High Throughput (HT) Under the 2.4 GHz Radio—HT 40 MHz(256-QAM)
802.11n/ac Packet Aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Complaint with IEEE 802.11e Standard
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control

Temperature Range
Operating: 0 ºC~40 ºC
Storage: -40 ºC~80 ºC

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

ECW215 Device
Weight: 225g
Length: 140 mm
Width: 90 mm
Height: 40 mm

Packaging
Weight: .86 lbs. (.390 Kg)
Length: 7.375” (187.3 mm)
Width: 5.375” (136.5 mm)
Height: 2.75” (69.9 mm)

Package Contents
1 – ECW115 Cloud Managed Indoor Access Point
1 – Junction Plate (short)
1 – Junction Plate (tall)
1 – Mounting Screw Kit
1 – Product Card

Certifications
FCC
CE
IC

Warranty
2 Years
