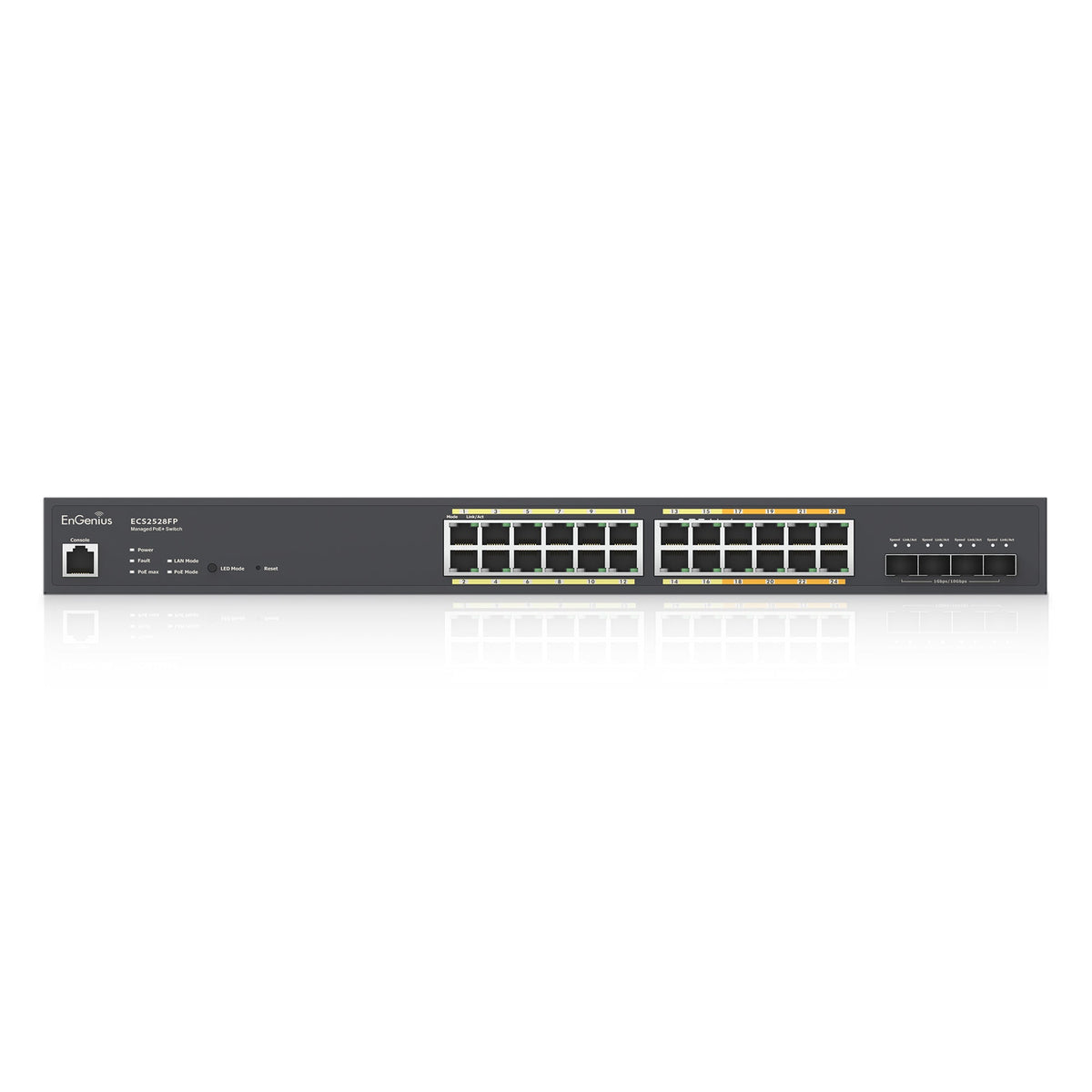

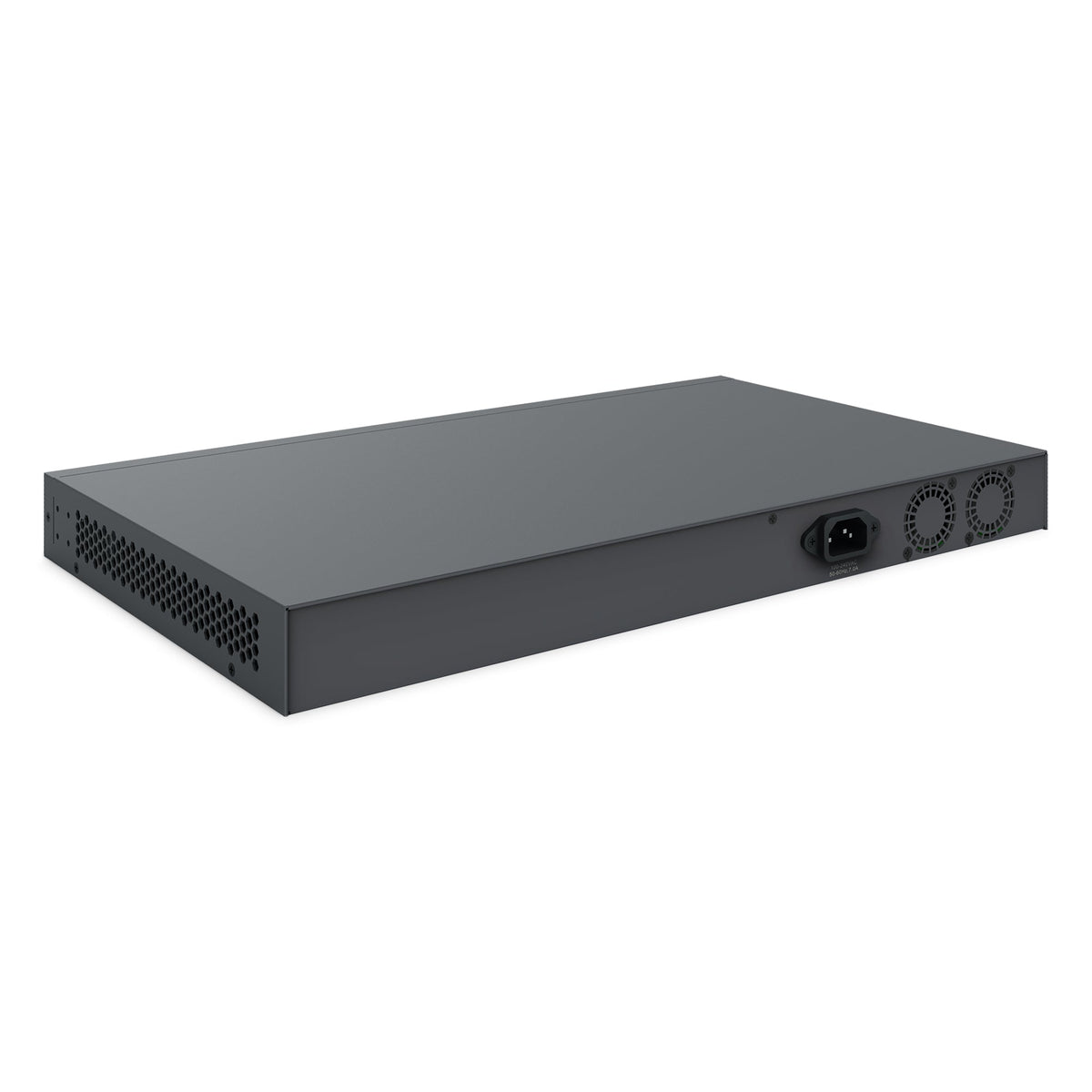

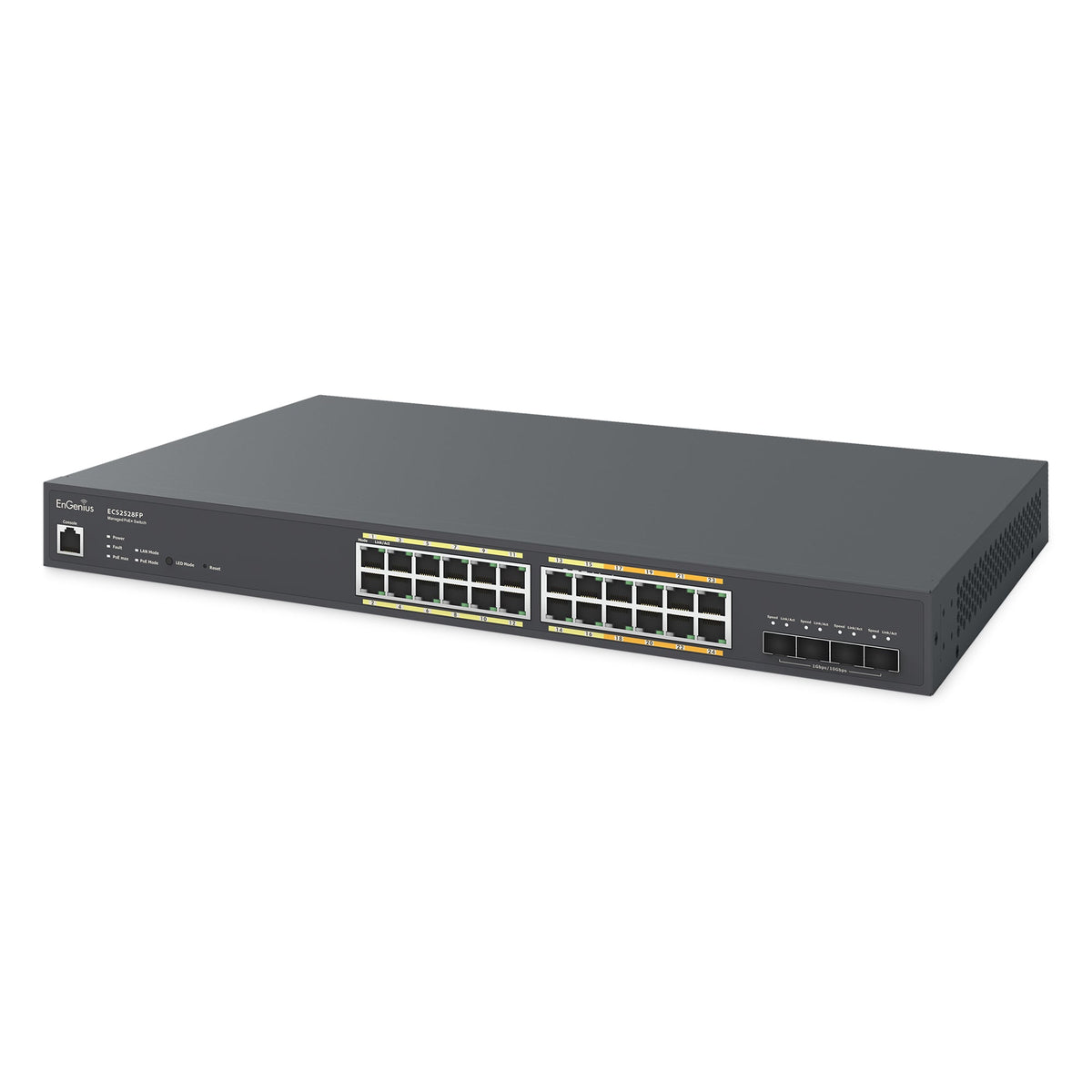

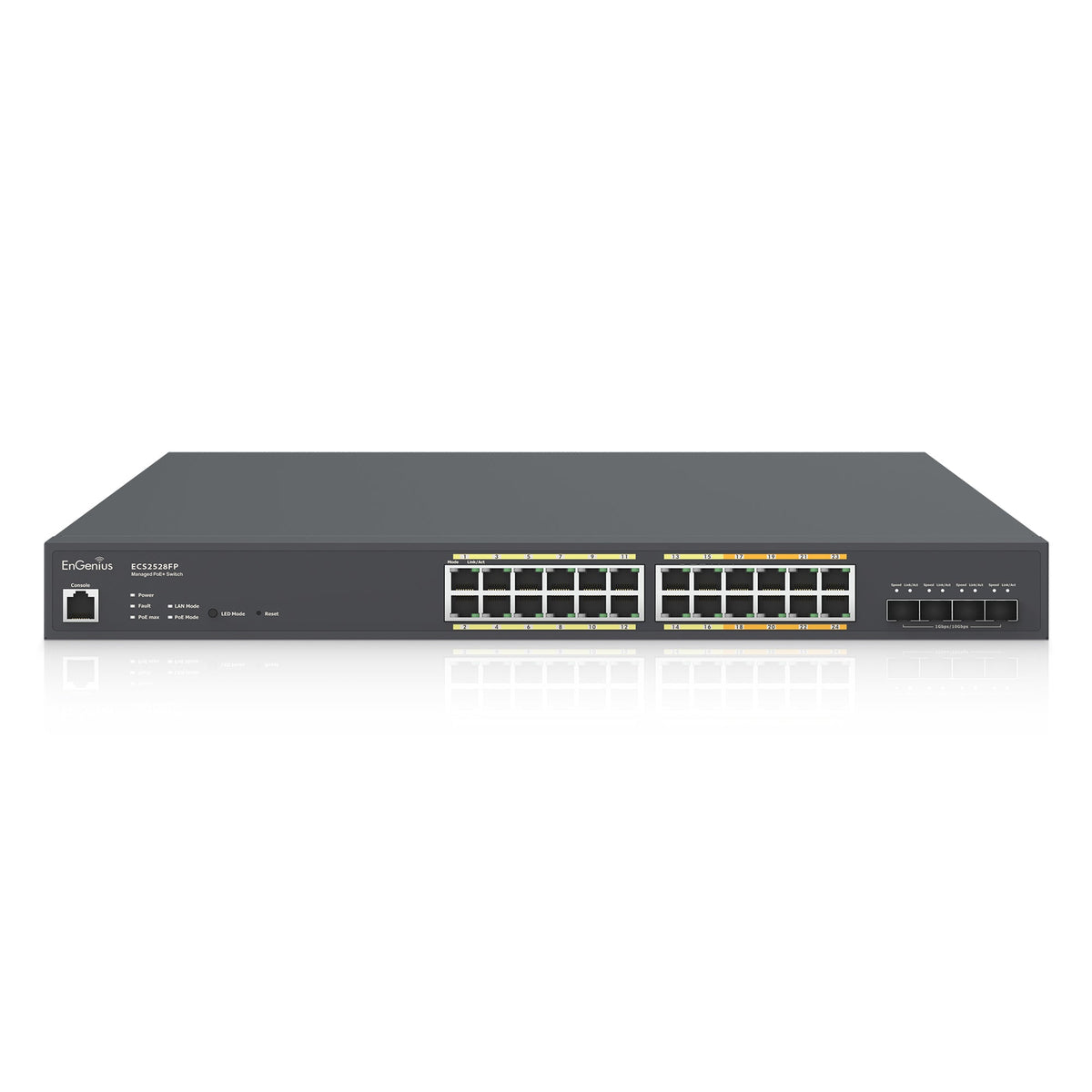

ECS2528FP: Cloud Managed Multi-Gigabit 410W PoE+ 24 Port Switch with 4 SFP+ Ports
ECS2528FP: Cloud Managed Multi-Gigabit 410W PoE+ 24 Port Switch with 4 SFP+ Ports
410 Watt power budget with effortless cloud management easily powers high-density IP cameras, VoIP phones, and Wi-Fi 6/7 access points
EnGenius Cloud Managed Multi-Gigabit ECS2528FP cloud-managed 410 Watt 24-port PoE+ multi-gigabit switch with simple network configuration, monitoring, and management powers IP cameras, VoIP phones, and access points. The ECS2528FP offers features like extended PoE mode, PD lifeguard, and continuous PoE power, to extend the reach and to maximize uptime for surveillance cameras.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
8-Ports
8 x 10/100/1000/2500 Base-T GbE Ports with Full-Featured Layer 2+ Switching
Multi Gigabit
All eight ports on this switch have up to 2.5 Gigabits per second connection speed
4 SFP Ports
4 x 10-Gigabit Dual-Speed SFP+ fiber uplink ports for maximum connection speeds
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Specifications
- 8 x 10/100/1000/2500 Base-T GbE Ports
- 16 x 10/100/1000 Base-T GbE Ports
- Full-Featured Layer 2+ Ethernet Switch
- 802.3 at/af PoE+ Ready on All Ports with 410W PoE budget
- 152 Gbps Switching capacity
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
- Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
- Quick-Scan Device Register, Remote Monitoring and Troubleshooting
- PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
- PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
- Continuous PoE Power – Steady supply of PoE power for camera during switch upgrades
- Advanced View Displays Network Topology with Devices and Relationships
- Hybrid Switch Supports Multiple Management Options
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
16 10/100/1000 Mbps Ports
8 100/1000/2500 Mbps Ports
4 SFP+ Ports
Switching Capacity
152Gbps
SDRAM
512MB
Flash Memory
128MB
PoE+ Capable Ports
1-24 (802.3af/at)
Total PoE Budget
410W
Power Source
100 ~ 240VAC, 50-60Hz
LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
Temperature Range
Operating: 0°C to 50°C
Humidity (Non-Condensing)
Operating: 5% - 95%
Package Contents
1x Cloud Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
ECS2528FP Device
Weight: 8.99 Ibs. (4.08 kg)
Width: 10.24” (260 mm)
Length: 17.32” (440 mm)
Height: 1.73” (44 mm)
Packaging
Weight: 10.58 lbs. (4.8 kg)
Width: 13.74” (349 mm)
Length: 21.06” (535 mm)
Height: 4.09” (104 mm)
Warranty
2 Years
Certifications
CE
FCC
IC
