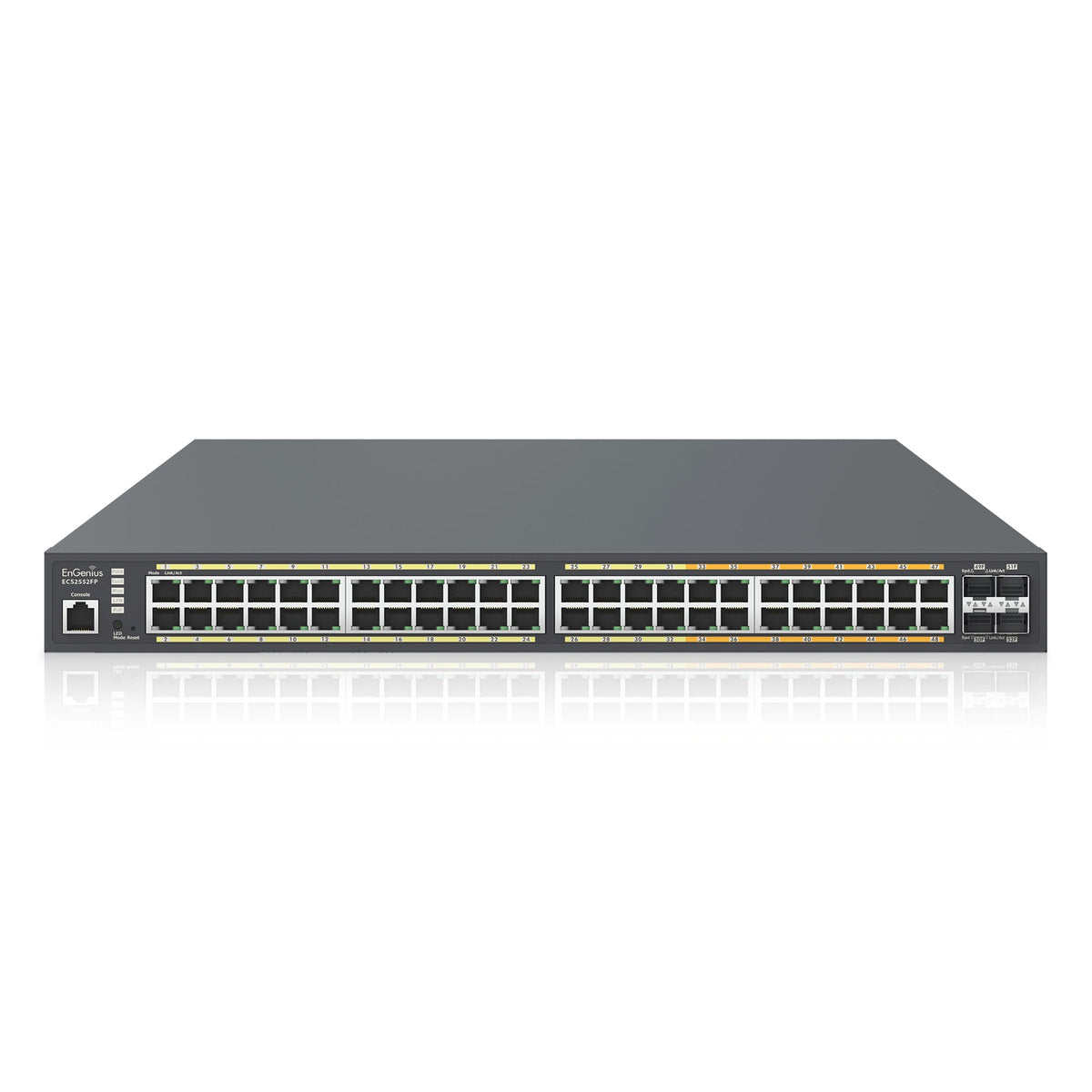

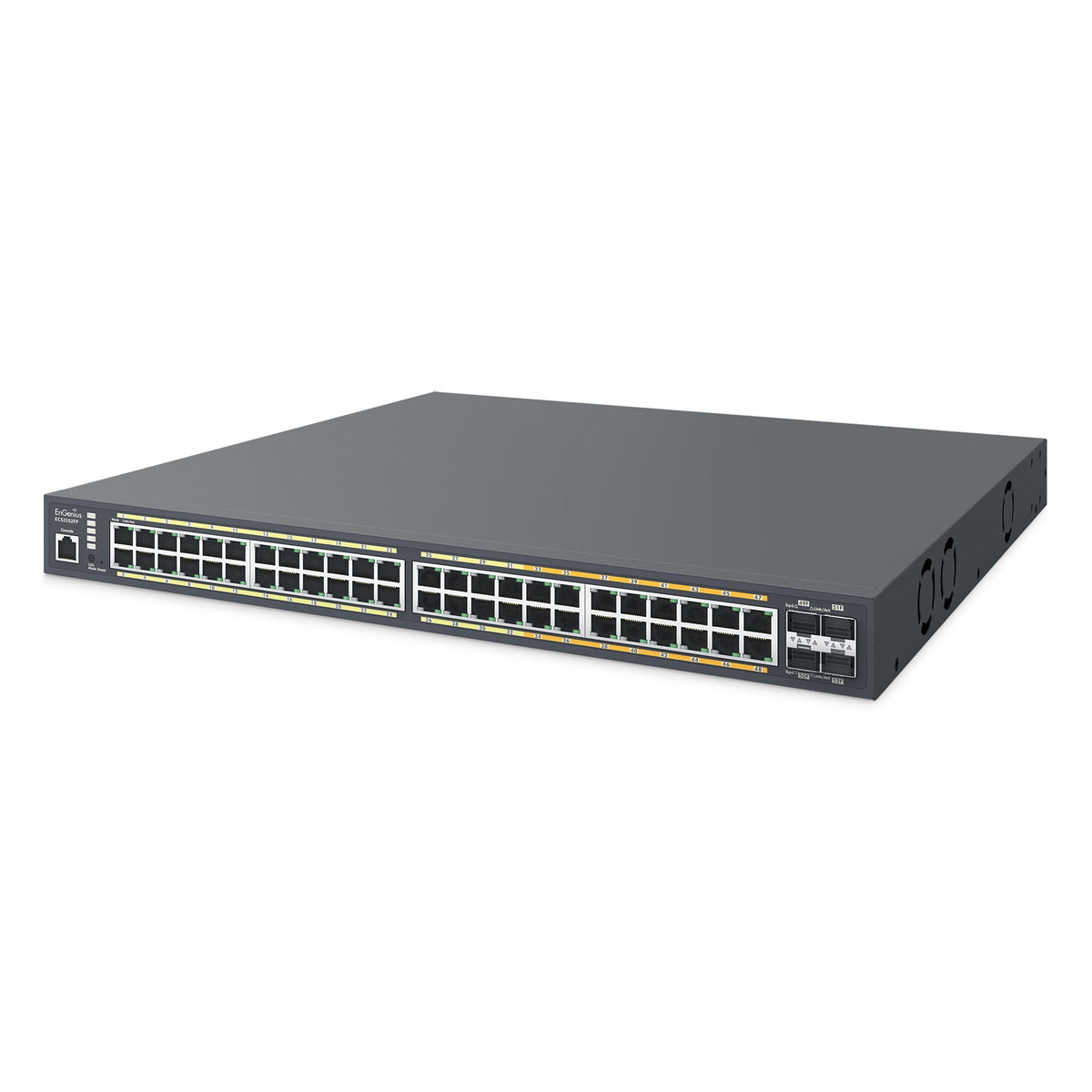

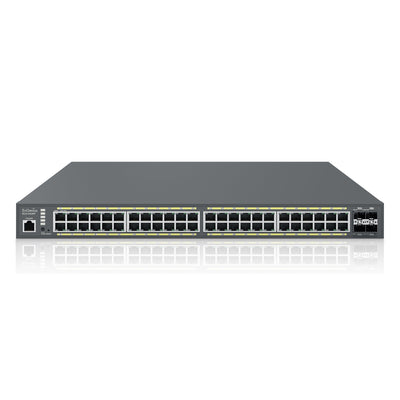

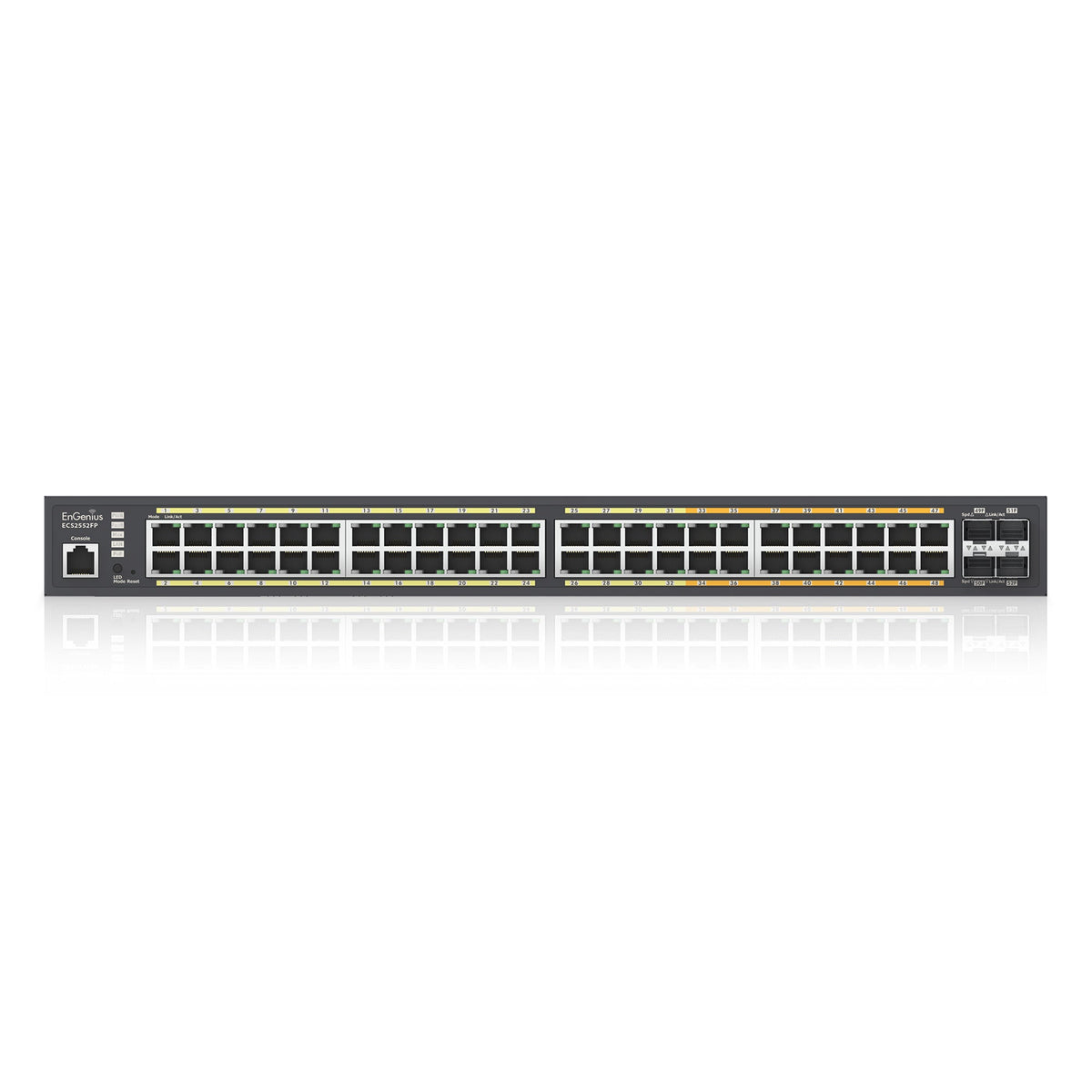

ECS2552FP: Cloud Managed 48-Port Multi-Gig PoE+ Network Switch with 4 SFP+ Ports
ECS2552FP: Cloud Managed 48-Port Multi-Gig PoE+ Network Switch with 4 SFP+ Ports

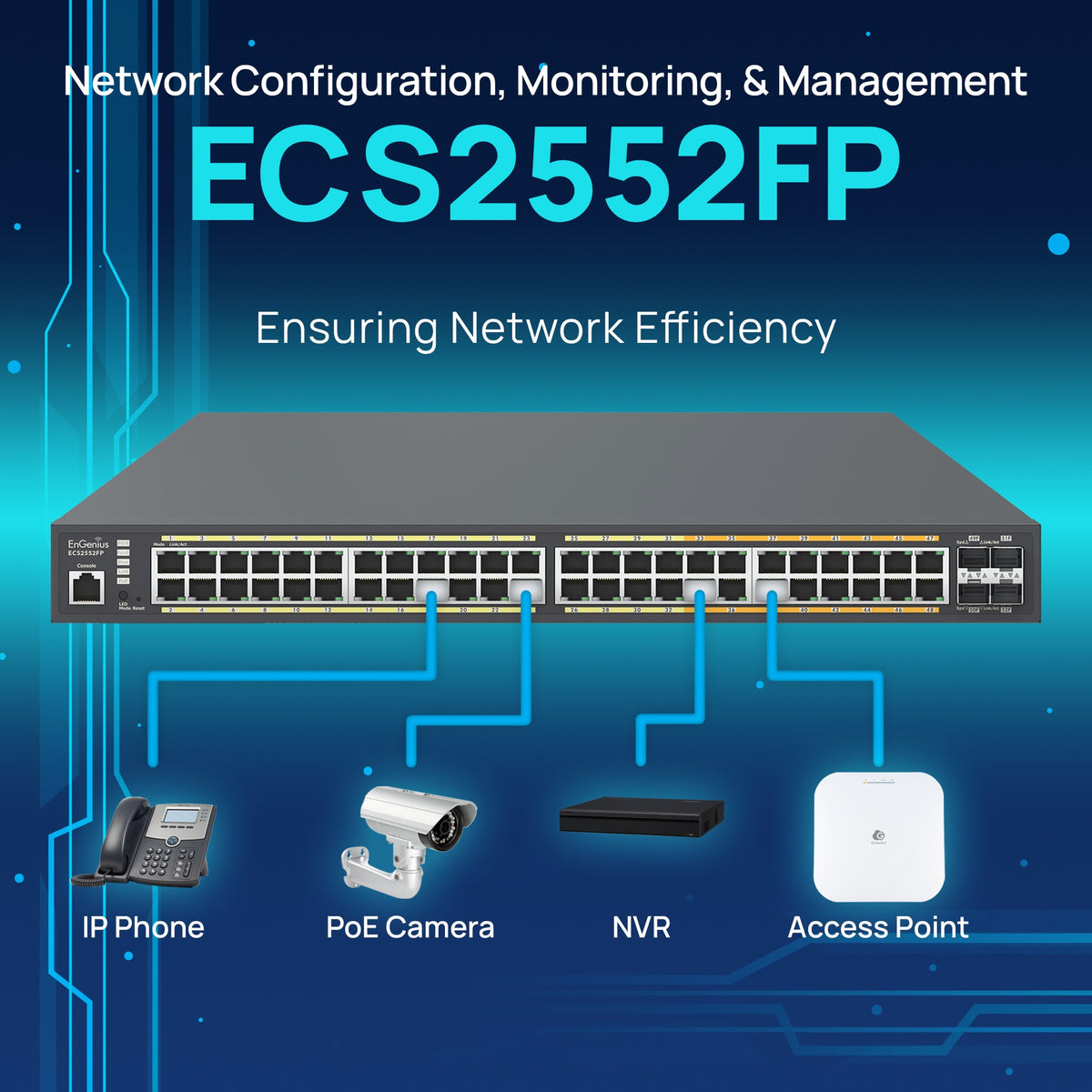

740 Watt with simple network configuration, monitoring, and management powers IP cameras, VoIP phones, and access points
The EnGenius ECS2552FP cloud-managed 48-port PoE+ multi-gigabit network switch with 740-Watt budget, simple network configuration, monitoring, and management powers IP cameras, VoIP phones, and access points. The ECS2552FP offers features like extended PoE mode, PD lifeguard, and continuous PoE power, to extend the reach and to maximize uptime for surveillance cameras.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
48 Ports
16 x 10/100/1000/2500 Base-T GbE Ports (32 x 10/100/1000 Base-T GbE Ports)
Multi Gigabit
Sixteen ports on this switch have up to 2.5 Gigabits per second connection speed
4 SFP Ports
4 x 10-Gigabit Dual-Speed SFP+ fiber uplink ports for maximum connection speeds
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Specifications
- 16 x 10/100/1000/2500 Base-T GbE Ports
- 32 x 10/100/1000 Base-T GbE Ports
- Full-Featured Layer 2+ Ethernet Network Switch
- 802.3 at/af PoE+ Ready on All Ports with 740W PoE budget
- 224 Gbps Switching capacity
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
- Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
- Quick-Scan Device Register, Remote Monitoring and Troubleshooting
- PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
- PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
- Continuous PoE Power – Steady supply of PoE power for camera during switch upgrades
- Advanced View Displays Network Topology with Devices and Relationships
- Hybrid Switch Supports Multiple Management Options
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
32 10/100/1000 Mbps Ports
16 100/1000/2500 Mbps Ports
4 SFP+ Ports
Switching Capacity
224Gbps
SDRAM
512MB
Flash Memory
128MB
PoE+ Capable Ports
1-48 (802.3af/at)
Total PoE Budget
740W

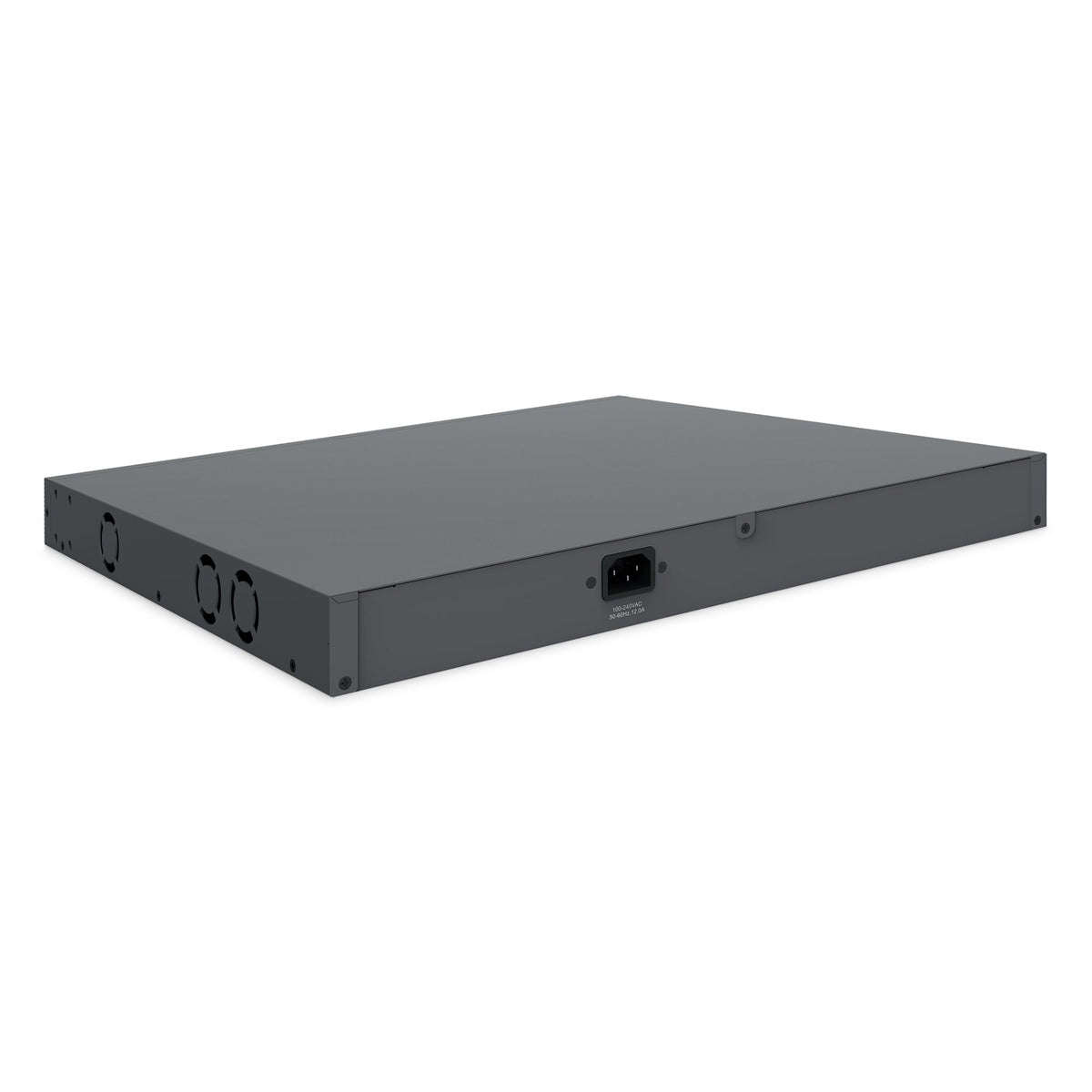

Power Source
100 ~ 240VAC, 50-60Hz
Temperature Range
Operating: 0°C to 50°C
Humidity (Non-Condensing)
Operating: 5% - 95%
Package Contents
1x Cloud Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
ECS2552FP Device
Weight: 5900g
Width: 310mm
Length: 440 mm
Height: 44 mm
Packaging
Weight: 6980g)
Width: 16.89” (429 mm)
Length: 21.57” (548 mm)
Height: 4.13” (105 mm)
Warranty
2 Years
Certifications
CE
FCC
IC
