ECW536: Cloud Managed 4x4x4 Indoor WiFi 7 Access Point
ECW536: Cloud Managed 4x4x4 Indoor WiFi 7 Access Point
Tri-band wireless access point reaching speeds of 11,529 Mbps on 6GHz, 5,764 Mbps on 5GHz, and 1,376 Mbps on 2.4GHz
EnGenius Cloud Managed ECW536 is a sleekly designed Wi-Fi 7 tri-band 4x4x4 access point that supports up to 11,529 Mbps on 6GHz, 5,764 Mbps on 5GHz, and 1,376 Mbps on 2.4GHz. The new Wi-Fi 7 standard supports ultra-wide 320 MHz channels and Multi-Link Operation (MLO) that deliver extreme throughput, greater network capacity, and more reliability. This enterprise-level AP also takes advantage of 4-MU-MIMO, 4096-QAM, and Multi-RU puncturing to increase performance, avoid interference, and reduce latency. The ECW536 has two 10 GbE ports, primary port supporting PoE++ for easy AP placement and 2nd port providing gigabit speed to another device.
Must be Powered over Ethernet, does not include AC Adapters.
- ECW536 Datasheet
- Cloud Managed AP Datasheet
- EnGenius Cloud User Manual
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
Wi-Fi 7
Super-wide 6GHz band increases performance, network capacity and wireless efficiency
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Features
Specifications
- Wi-Fi 7 Tri-band, 2.4GHz, 5 GHz, and 6 GHz supports 18.7 Gbps aggregate speeds
- Ultra-wide 320 MHz channels in 6 GHz to deliver extreme throughput gains
- 4x4x4 integrated omni-directional antenna design for greater coverage area
- 4 MU-MIMO spatial streams to ensure premium performance in high density environments
- 4096-QAM advanced modulation packs more data for throughput and capacity
- Multi-Link Operation (MLO) increases throughput and reliability utilizing multiple bands
- Multi-RU puncturing avoids interference, increases throughput, and reduces latency

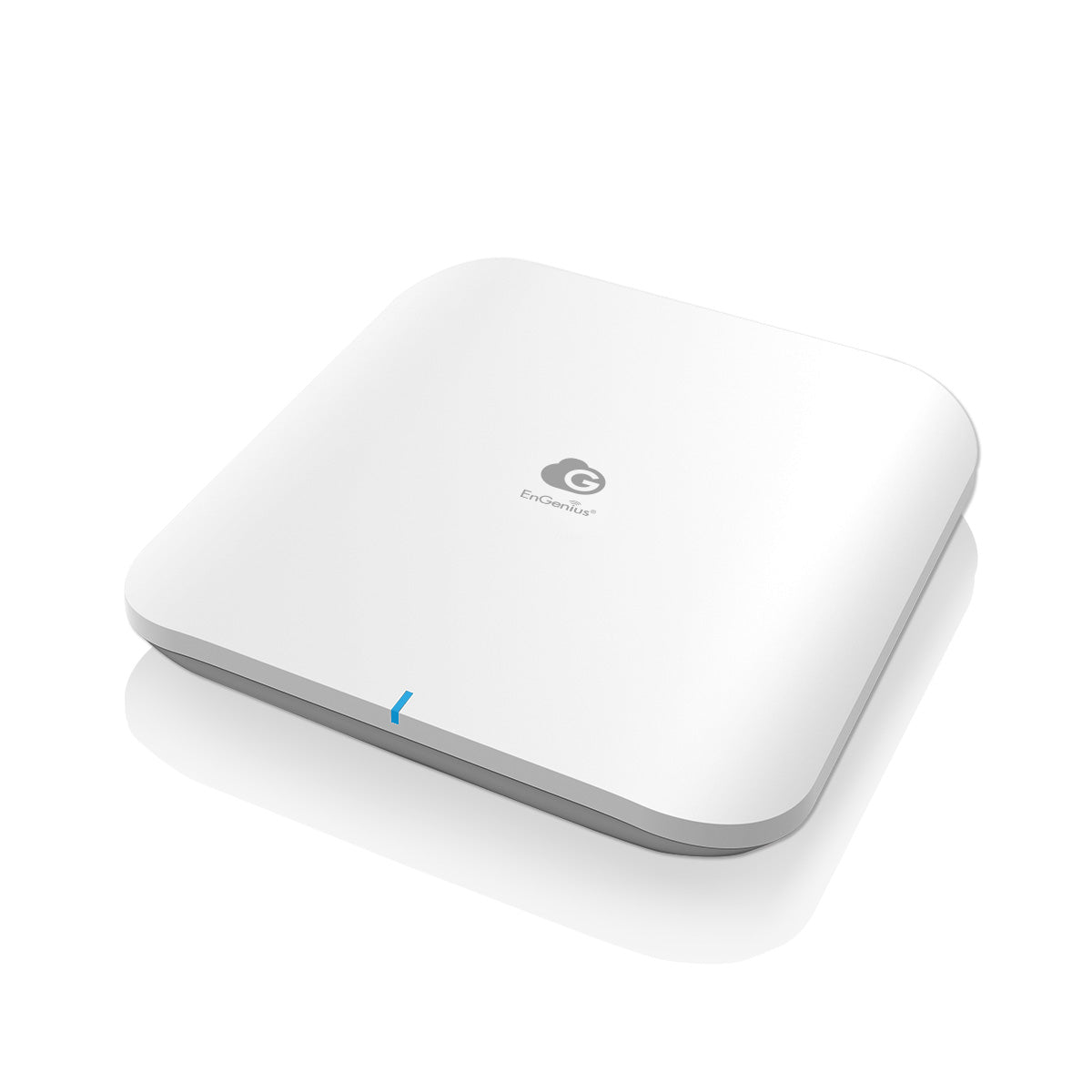

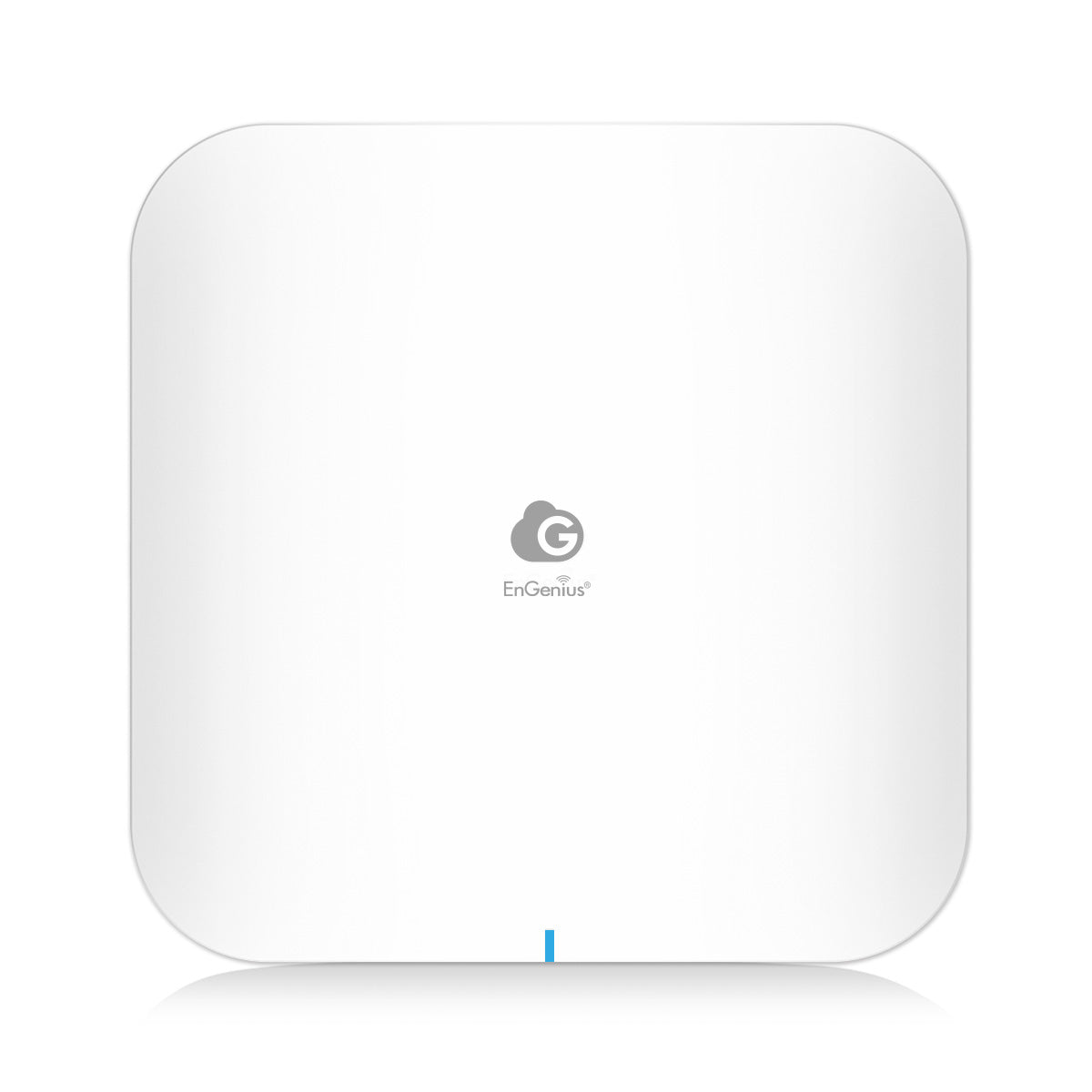

- Sleek ceiling-mount with a modern multi-color LED for low-profile design

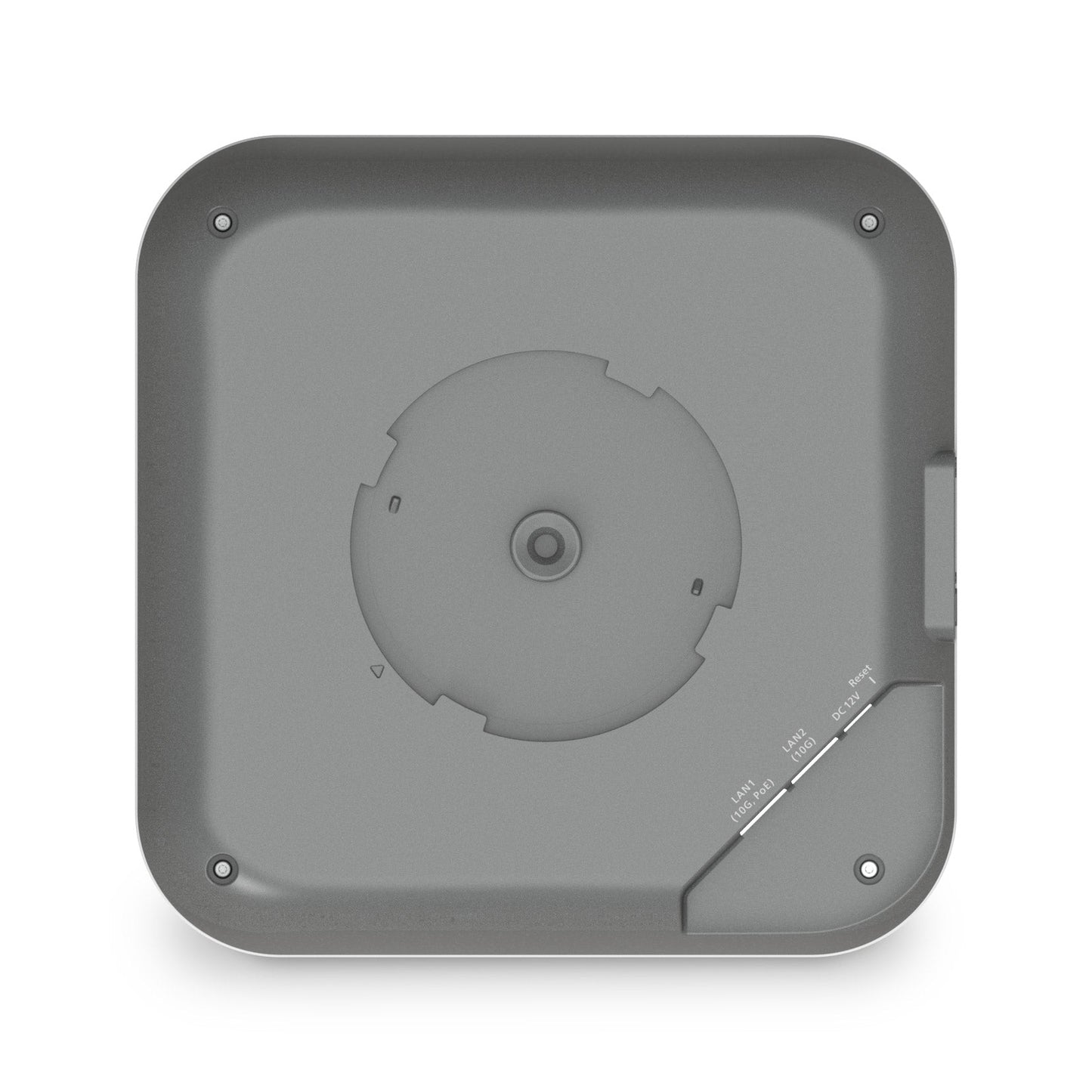

- Simple click-n-twist mounting and Kingston lock for easy and secure installation
- 10 GbE PoE++ port to maximize multi-gigabit connection speeds and AP placement
- Secondary 10 GbE port to conveniently connect to another high-performance device
- Cutting-edge cloud management for centralized management and mass scalability
- Advanced enterprise security with radius and isolated guest access for more secure networks
- Access point diagnostic tools for real-time remote monitoring and troubleshooting
Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
(Backward compatible with 802.11b/g/n/ac/ax)
Processor
Qualcomm® Networking Pro 1220
Antenna
4 x 2.4 GHz: 5 dBi
4 x 5 GHz: 6 dBi
4 x 6 GHz: 5 dBi

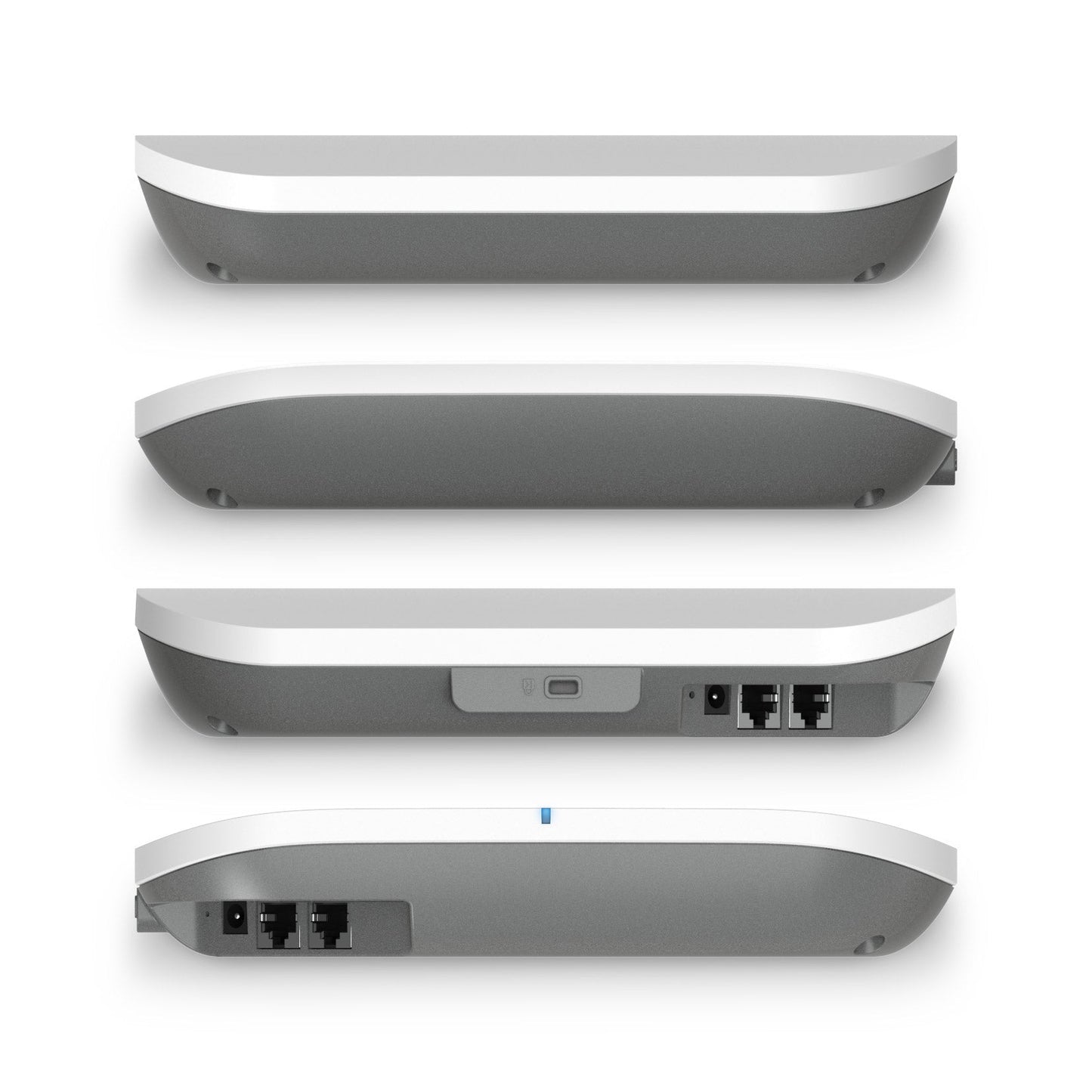

Physical Interface
2 x 10/100/1000/2500/5000/10000 BASE-T, RJ-45 Ethernet Port
1 x DC Jack
1 x Reset Button
LED Indicators
1 x Multi-color LED
Power Source
Power-over-Ethernet: 802.3bt Input
12VDC/3A Power Adapter (Not Included)
Maximum Power Consumption
35W
Operating Frequency
Tri-Radio Concurrent 2.4 GHz, 5 GHz, & 6 GHz
Operation Modes
AP, AP Mesh, Mesh
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 GHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6 GHz: 5.925GHz~6.425GHz, 6.425GHz~6.525GHz, 6.525GHz~6.875GHz, .6875GHz~7.125GHz
Transmit Power
Up to 25 dBm on 2.4 GHz
Up to 24 dBm on 5 GHz
Up to 24 dBm on 6 GHz
(Maximum power is limited by regulatory domain)
Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance
Radio Chains/Spatial Stream
4x4x4:4
SU-MIMO
Four (4) spatial stream Single User (SU) MIMO for up to 1,376 Mbps wireless data rate with VHT40 bandwidth to a 4x4 wireless device under the 2.4GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 5,764 Mbps wireless data rate with HE160 bandwidth to a 4x4 wireless device under the 5GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 11,529 Mbps wireless data rate with HE320 bandwidth to a 4x4 wireless device under the 6GHz radio.
MU-MIMO
Four (4) spatial stream Multi-User (MU)-MIMO for up to 1,376Mbps wireless data rate with VHT40 bandwidth to a 4x4 wireless device under the 2.4GHz radio simultaneously.
Four (4) spatial stream Multi-User (MU)-MIMO for up to 5,764 Mbps wireless data rate with HE160 bandwidth to a 4x4 wireless device under the 5GHz radio simultaneously.
Four (4) spatial stream Multi-User (MU)-MIMO for up to 11,529 Mbps wireless data rate with HE320 bandwidth to a 4x4 wireless device under the 6GHz radio simultaneously.
Supported Data Rates (Mbps)
802.11be:
6 GHZ: Max 11,600 (MCS0 to MCS13, NSS = 1 to 4)
5 GHz: Max 5,800 (MCS0 to MCS11, NSS = 1 to 4)
2.4 GHz: Max 1,440 (MCS0 to MCS11, NSS = 1 to 4)
802.11ax:
6 GHZ: 18 to 4,800 (MCS0 to MCS13, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MCS11, NSS = 1 to 4)
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11
Multiple BSSID
8 SSIDs for 2.4GHz, 5GHz, & 6 GHz radios
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
IEEE 802.11e compliant
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
L2 Isolation
Temperature Range
Operating: 0ºC~40ºC
Storage: -40ºC~80ºC
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
ECW536 Device
Weight: 1270g
Length: 230 mm
Width: 230 mm
Height: 39.5 mm
Package Contents
1 x ECW536 Cloud Managed Indoor Access Point
1 x Mount Base
1 x Ceiling and Wall Mount Screw Kits
1 x Quick Installation Guide
Certifications
FCC
CE
IC
Warranty
2 Years
