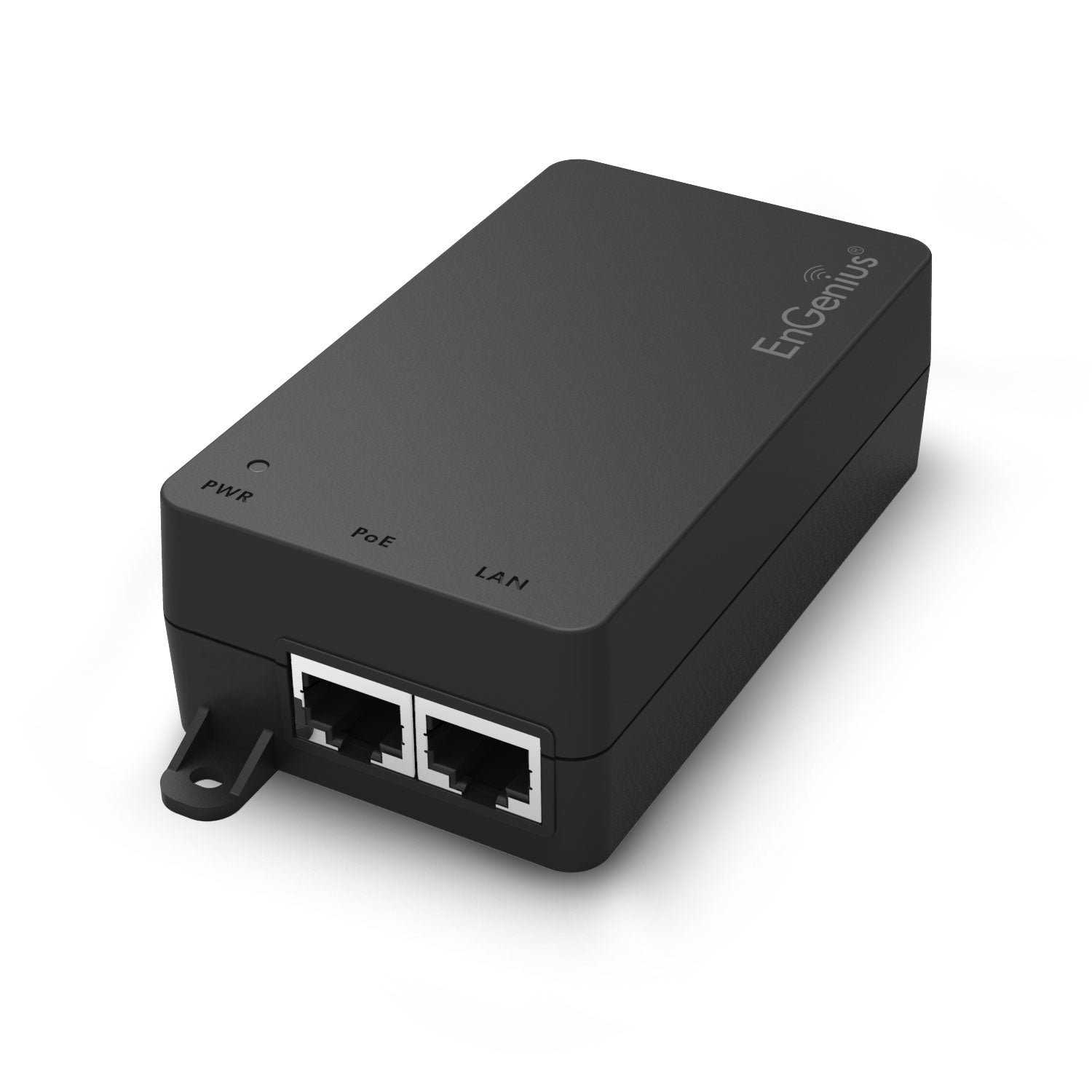

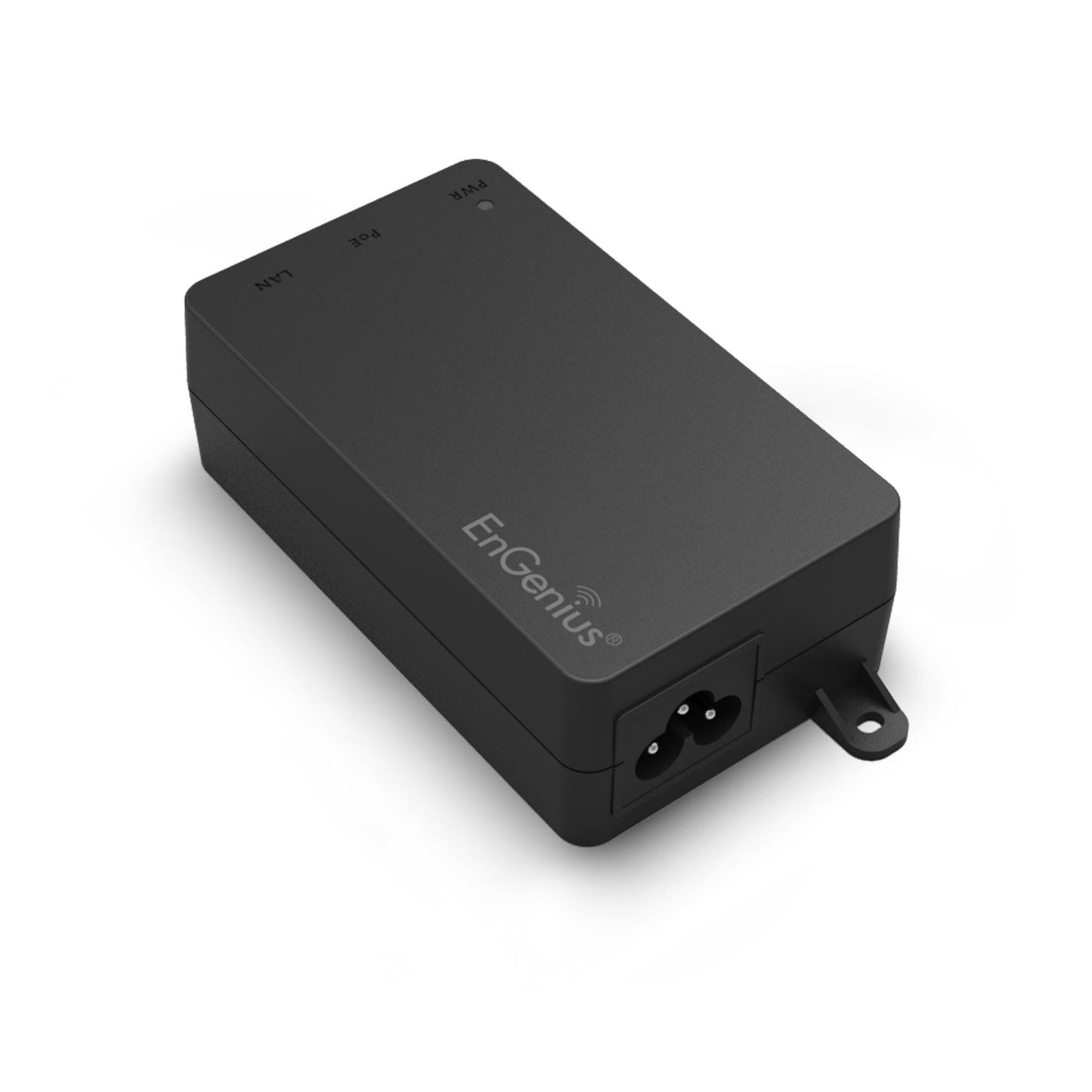

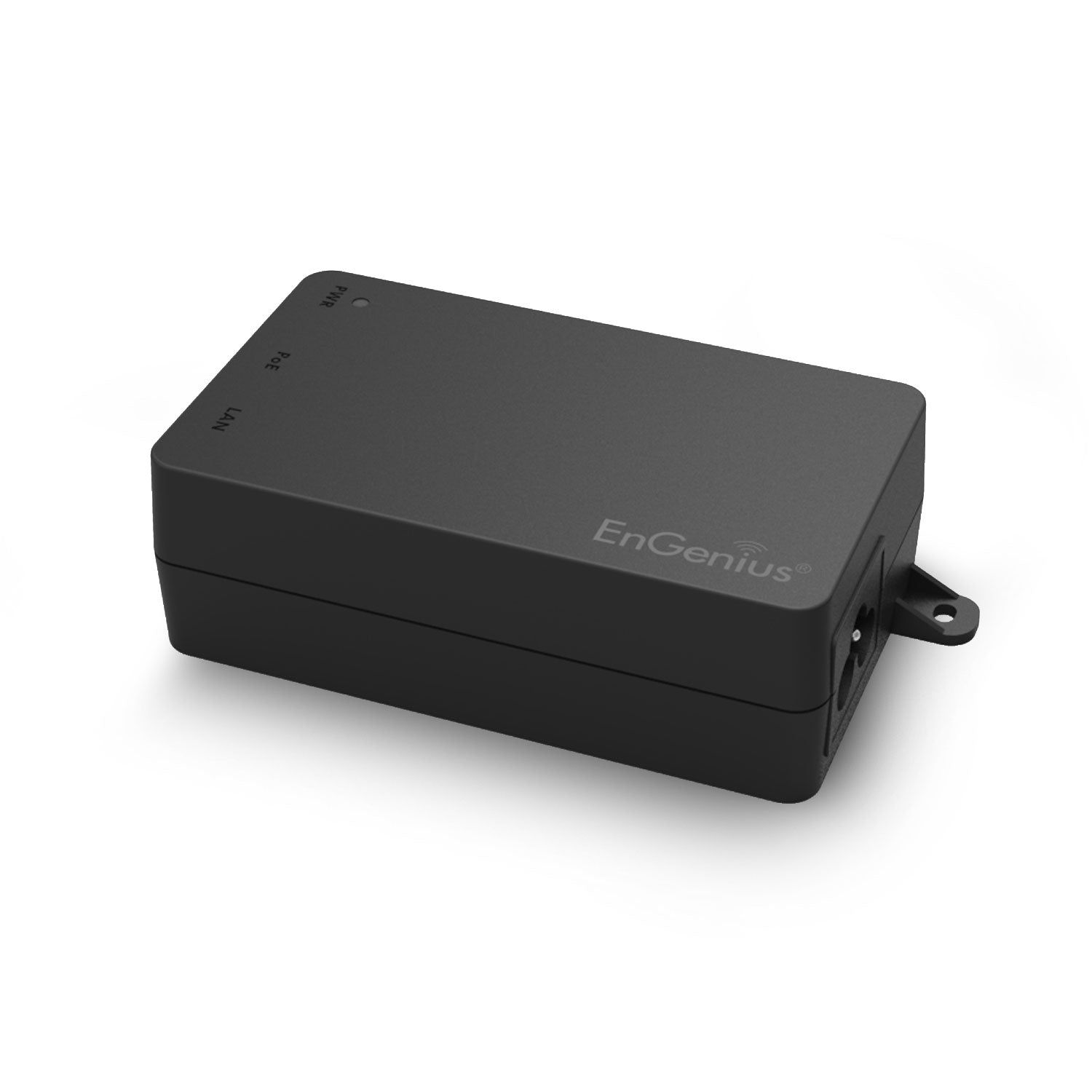

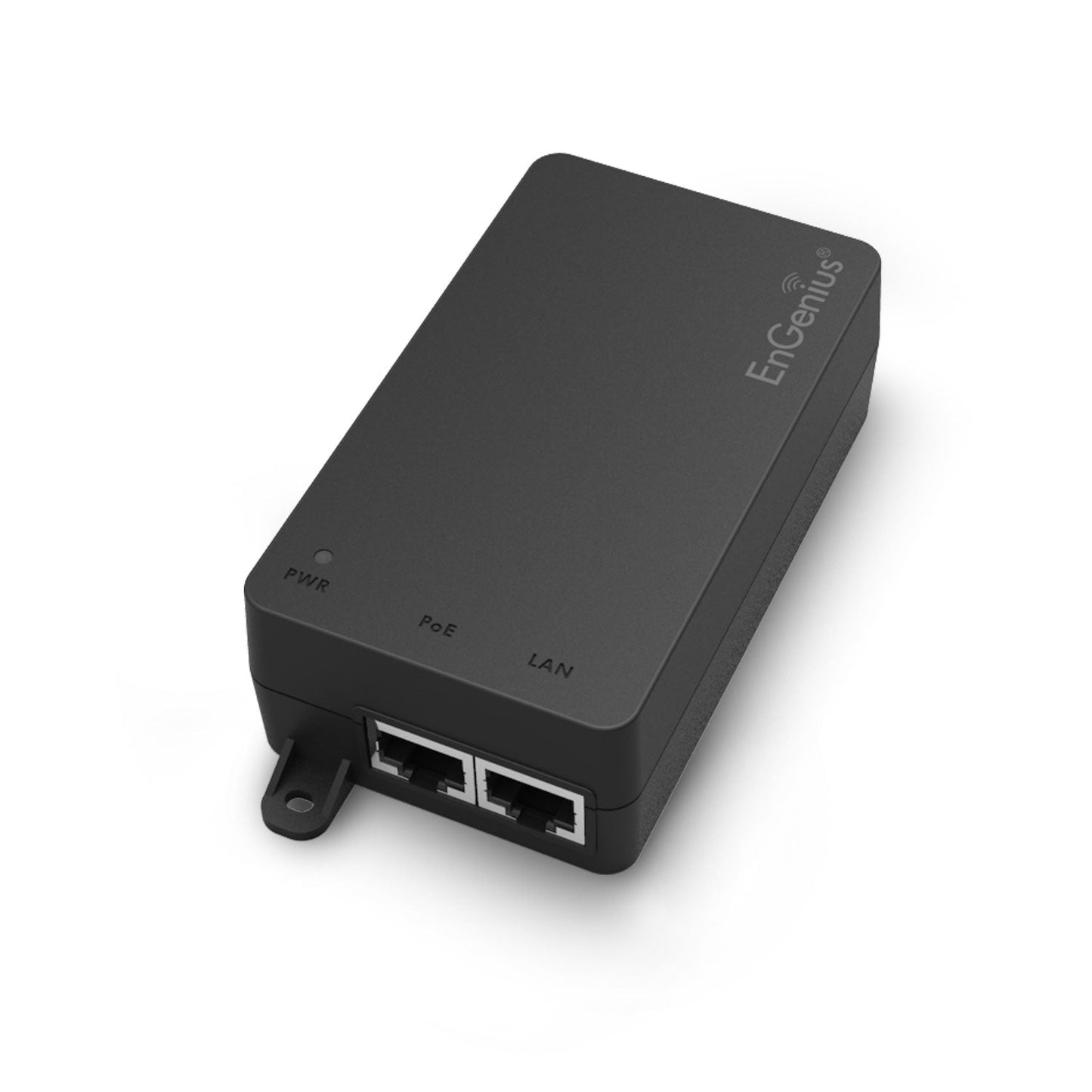

EPA5006HAT: 2.5 Gigabit 802.3at PoE Adapter
802.3at PoE Adapter Supports high-speed data and up to 30 watts of power to compatible network devices
The EnGenius EPA5006HAT 2.5 Gigabit standard Power-over-Ethernet adapter supports high-speed data and up to 30 watts of power. Compact port design provides easy installation, and built-in power surge protection preserves valuable equipment.
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Great for Outdoor WiFi
Delivers both data and power to EnGenius outdoor access points
Flexible Deployment
Extends power to unwired areas up to 328-ft./100m away
Features
This section allows you to highlight the image with a half-height background color. You may adjust the height of the color part at section settings. Best works for the image with transparent background.
Specifications
- 2.5 Gigabit Ethernet in & out ports allow connection of high-speed devices
- Delivers both data and power to PoE-compatible devices
- Optimal port design for easy mounting/positioning
- Compact design
- Extends power to unwired areas up to 328-ft./100m
- Disconnect, short-circuit & surge protection assures secure, reliable connections
- Sends up to 30W of output power for connecting APs, IP cameras, VoIP phones & more
- Mounts to walls or ceilings with included hardware
Standards
802.3 10BaseT
802.3u 100BaseT
802.3ab 1000Base-T Ethernet
802.3bz 2500Base-T Ethernet
Standard PoE
Compliance
IEC 60950-1:2005+A1
UL60950-1
ENS55022:2010
EN55024:2010
FCC Part 15 Class B
FCC, CE
Physical Interface
(1) 2.5 Gigabit Data Port
(1) Gigabit Data & Power Output Port
(1) IEC-320 C6 AC Connector
LED Indicator
1 x Power on Green
Mounting
Wall (anchors & screws included)
Input Voltage
100 to 240VAC
Input Current
0.8A @ 120V AC
0.4A @ 240V AC
AC Input Frequency
50-60Hz
Maximum Output Power
30 W
Power Lines
Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-)&Pin8(Vdc-)
Data Lines
Pin1(Rx+)&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-)
Surge Protection
L-L: 2KV; L-G: 4KV
ESD
Contact 4KV; Air: 8KV
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 158°F (-20°C to 70°C)
Humidity (non-condensing)
Operating: 5 to 90% or less
Storage: 5 to 90% or less
EPA5006HAT Device (Without Mounting Kit)
Weight: .33 lbs. (154 g)
Length: 3.9” (99 mm)
Width: 2.27” (68.5 mm)
Height: 1.3” (33 mm)
Packaging
Weight: .57 lbs. (262 g)
Length: 5.4” (139 mm)
Width: 4.8” (122.5 mm)
Height: 2” (52 mm)
Package Contents
EPA5006HAT
power cord
Warranty
1 Year
