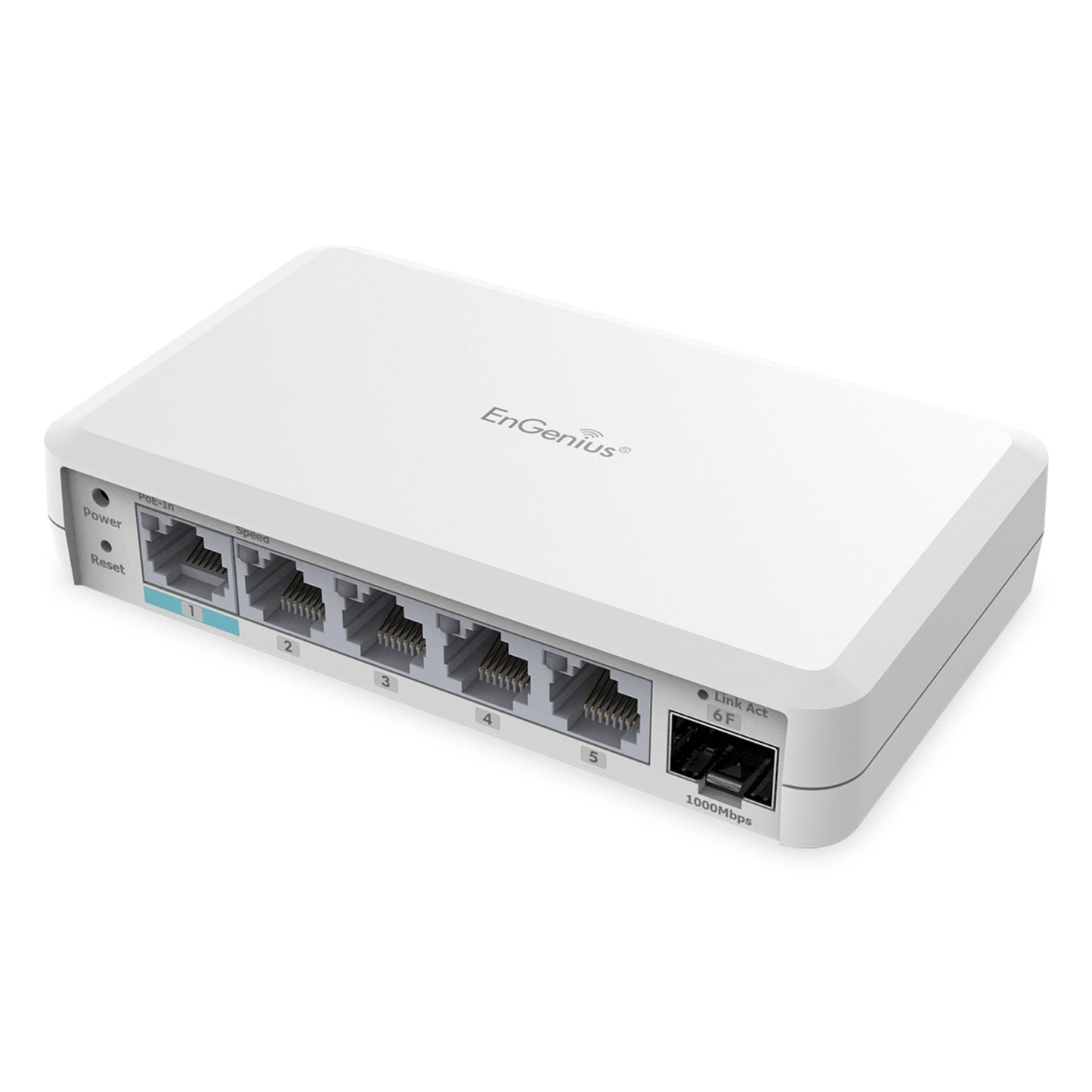

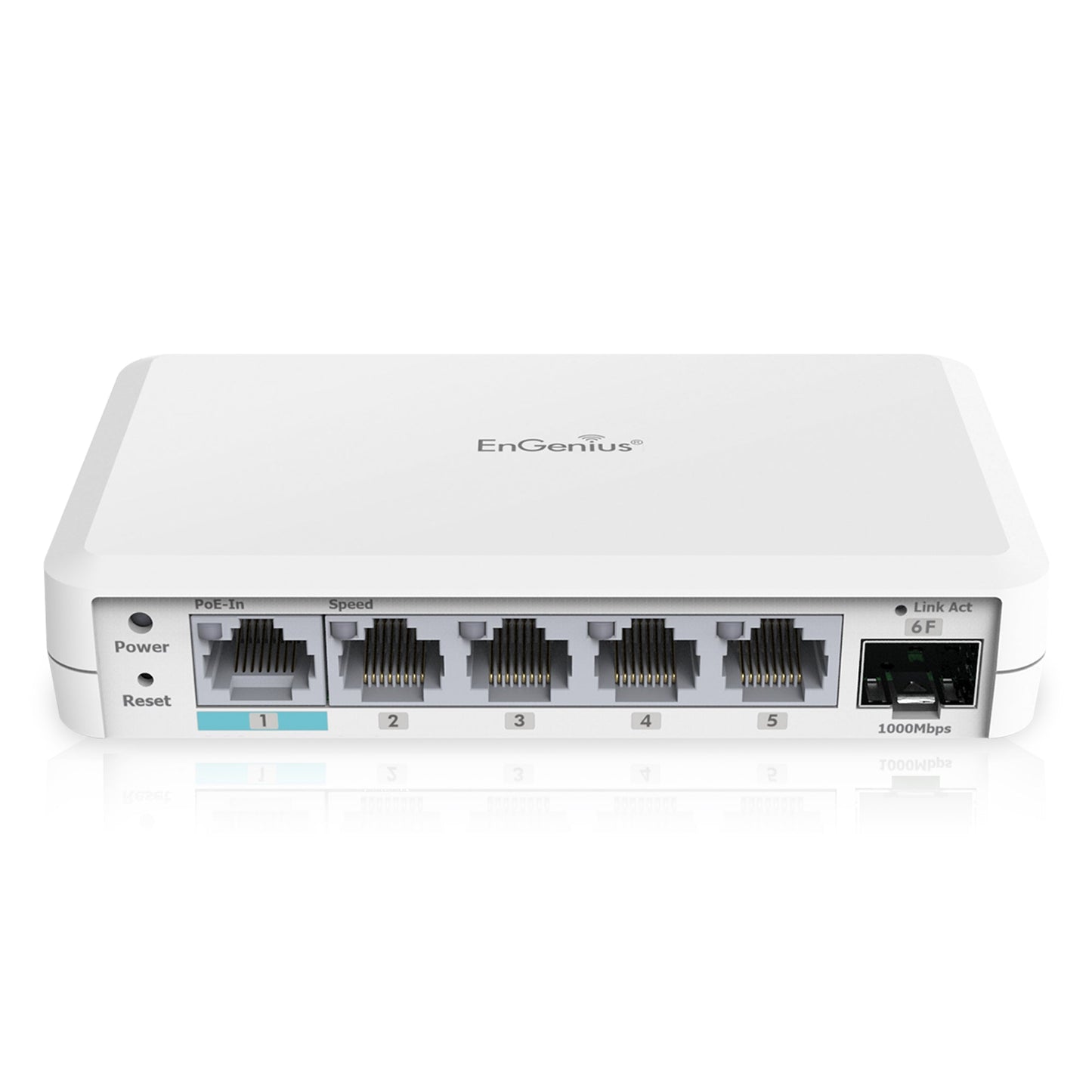

EXT1106: Cloud Managed EXT1106 5-Port Gigabit Switch Extender and 1 SFP slot
EXT1106: Cloud Managed EXT1106 5-Port Gigabit Switch Extender and 1 SFP slot
Provides an efficient solution for network deployments while addressing cable-related limitations
The EnGenius cloud-managed EXT1106 Switch Extender is a streamlined network expansion and connectivity enhancement solution designed to tackle power and connectivity challenges across diverse industries. With PoE technology and multiple PSE output ports, it eliminates network cabling and power wiring complexities and costs, offering a cost-effective, hassle-free way to extend your network reach and empower critical business applications.
To manage the switch extender on the EnGenius Cloud it will require a Pro License.
- EXT1106 Datasheet
- Cloud Switch User Manual
- Cloud Managed Switch Datasheet
Shipping & Returns
Not satisfied? We allow returns within 14 days of product purchase
Management
This product is compatible with the EnGenius Cloud line of products
5-Ports
5 x 10/100/1000 Base-T GbE Ports with 10 Gbps switching capacity
2-Year Warranty
Leave the worrying to us. We've got you covered on your hardware purchase.
Features
Specifications
- Physical Distance - Achieving extensive coverage demands flexible, simplified, and long-distance deployment solutions.
- Cost Constraints - Network expansion can be cost-prohibitive; Businesses and institutions require economical alternatives to safeguard their financial well-being. EnGenius Switch Extender solution minimizes expenses.
- Power Availability - Many remote locations lack readily available power sources for network devices. Deploying in locations with power constraints or a lack of power outlet can indeed pose challenges. EnGenius Switch Extender effectively addresses power constraints and lack of power outlets.
- Deployment Complexity - Deploying network infrastructure in remote or diverse locations demands high technical expertise. Complex installation processes, specialized equipment, and skilled technicians are often prerequisites, leading to delays and increased deployment costs. Simplify complex technical details with user-friendly design, efficient cloud management, and easy deployment.
- VLAN Trunking - Extending network segmentation to encompass every room, ensuring that each resident has VLAN-based networks within their apartments or dorms.
- 5 10/100/1000 Base-T GbE ports
- 1 10/100/1000 SFP Port
- 12 Gbps switching capacity
- Quick-scan device registration, remote monitoring, and troubleshooting
- Real-time system metrics, analytics, and remote configurations
- IGMP snooping provides advanced multicast filtering & network efficiency
- Voice VLAN for fast, reliable deployment of VoIP services / Voice VLAN facilitates the quick and reliable deployment of VoIP (Voice over Internet Protocol) services
Port Standards
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet

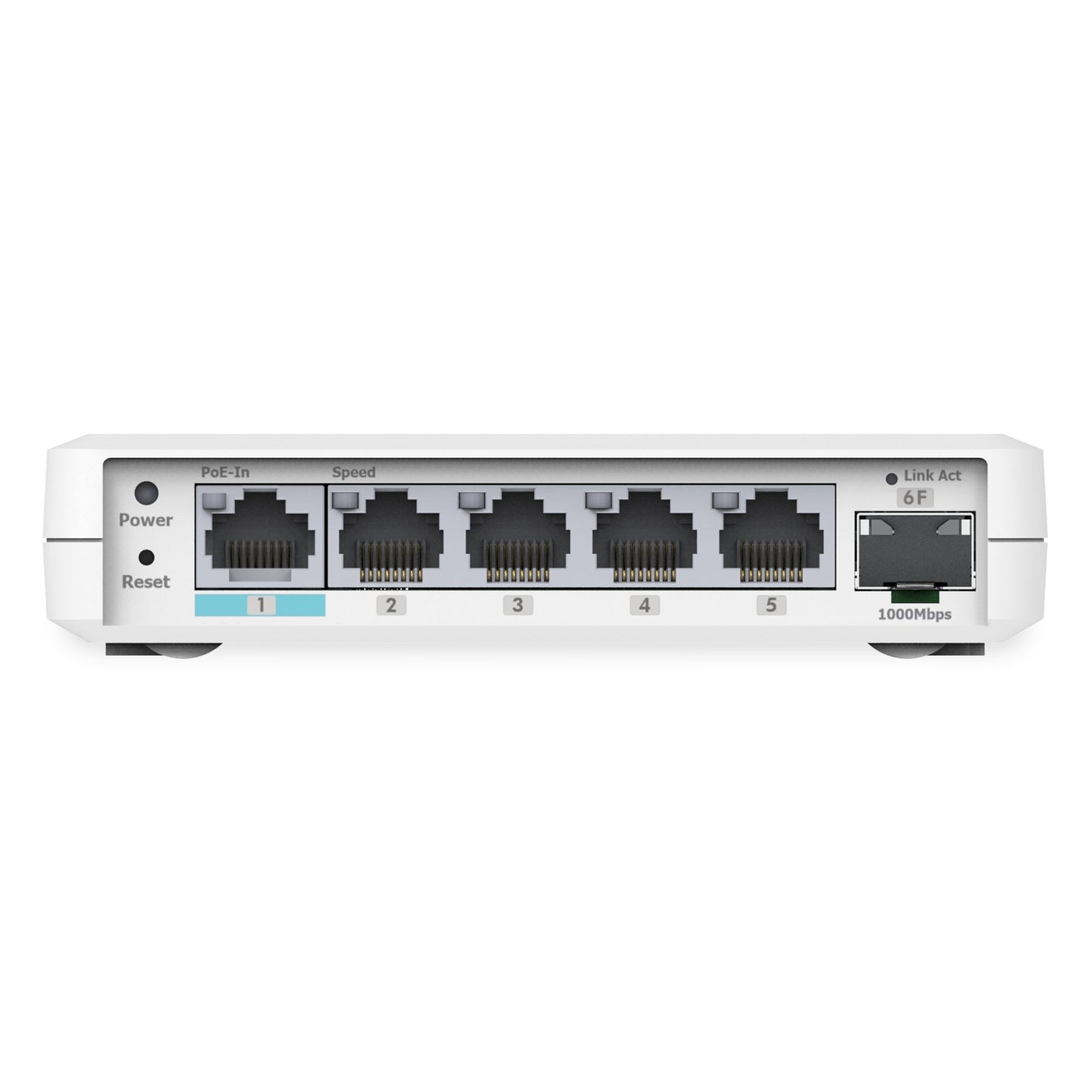

Network Ports
5 10/100/1000 Mbps Ports
1 10/100/1000 Mbps SFP Port
Power Source
PoE Power Delivery / PoE In (Port 1) supports 802.3af/at/bt

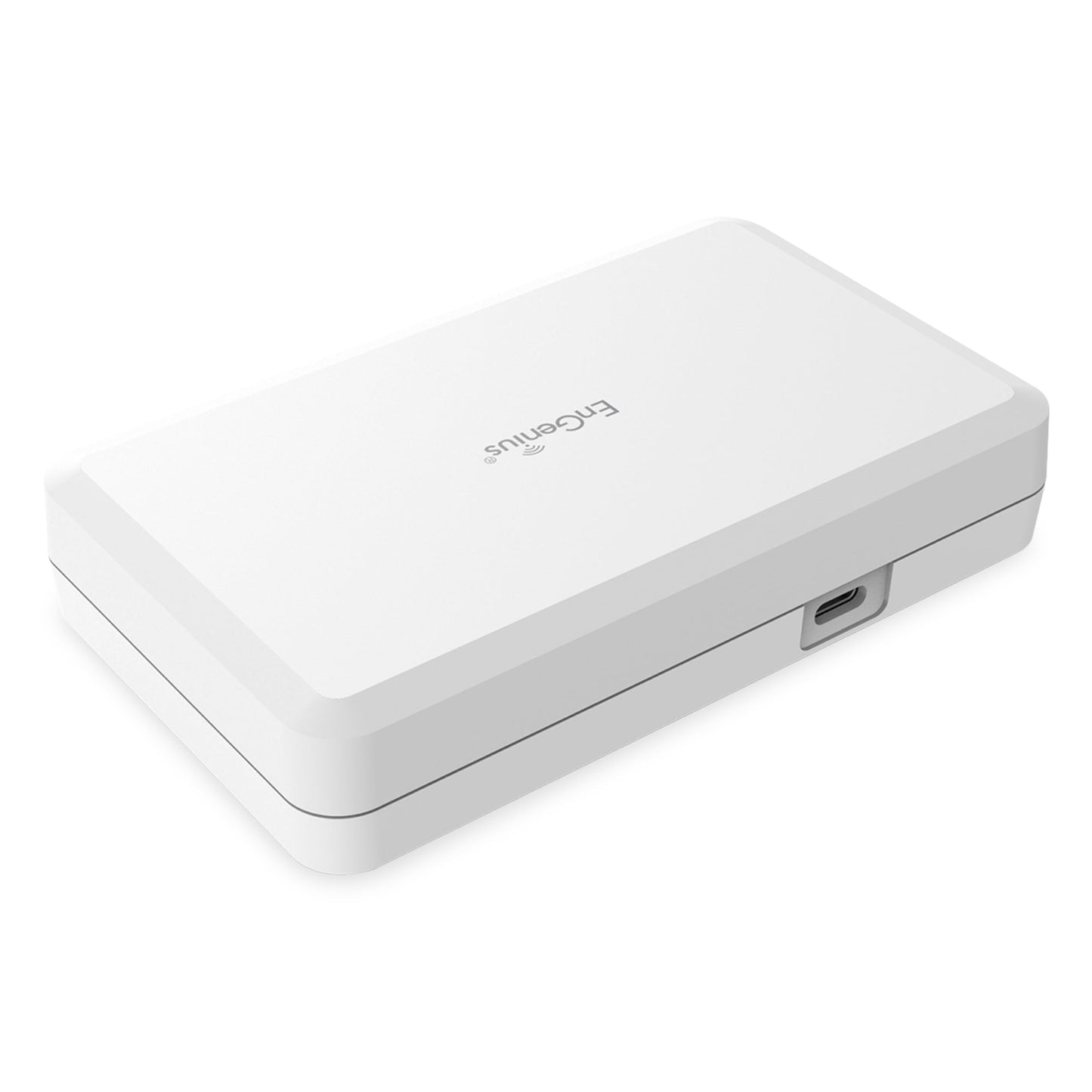

Type-C power source (come with power adapter)
Switching Capacity
12 Gbps
Flash Memory
32MB
LED Indicators
Port LED
Ports
Link/Activity/Speed (per Ethernet port)
MAC Address Table
8K
Jumbo Frame
10K
Multicast Group
Max 8 groups
QoS Number of Priority Queues
8
QoS Trust Mode
CoS/802.1p
CoS/802.1p-DSCP
DSCP
802.1w Rapid Spanning Tree
Domain Name System (DNS) settings
Multicast Filtering
IGMPv2
IGMP Snooping
IGMP Snooping Fast Leave
Port Statistics
802.1Q VLAN
Voice VLAN
Port-based VLAN
Jumbo Frame
IPv4 Settings
Link Layer Discovery Protocol (LLDP)
Weighted Round Robin Queue (WRR)
Simple Network Time Protocol (SNTP)
SYSLOG
Factory Default
Reboot Switch
Find Me
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Humidity (Non-Condensing)
Operating: 5% - 95%
Package Contents
1 x 5 Ports Gigabit Switch Extender
1 x Product Card

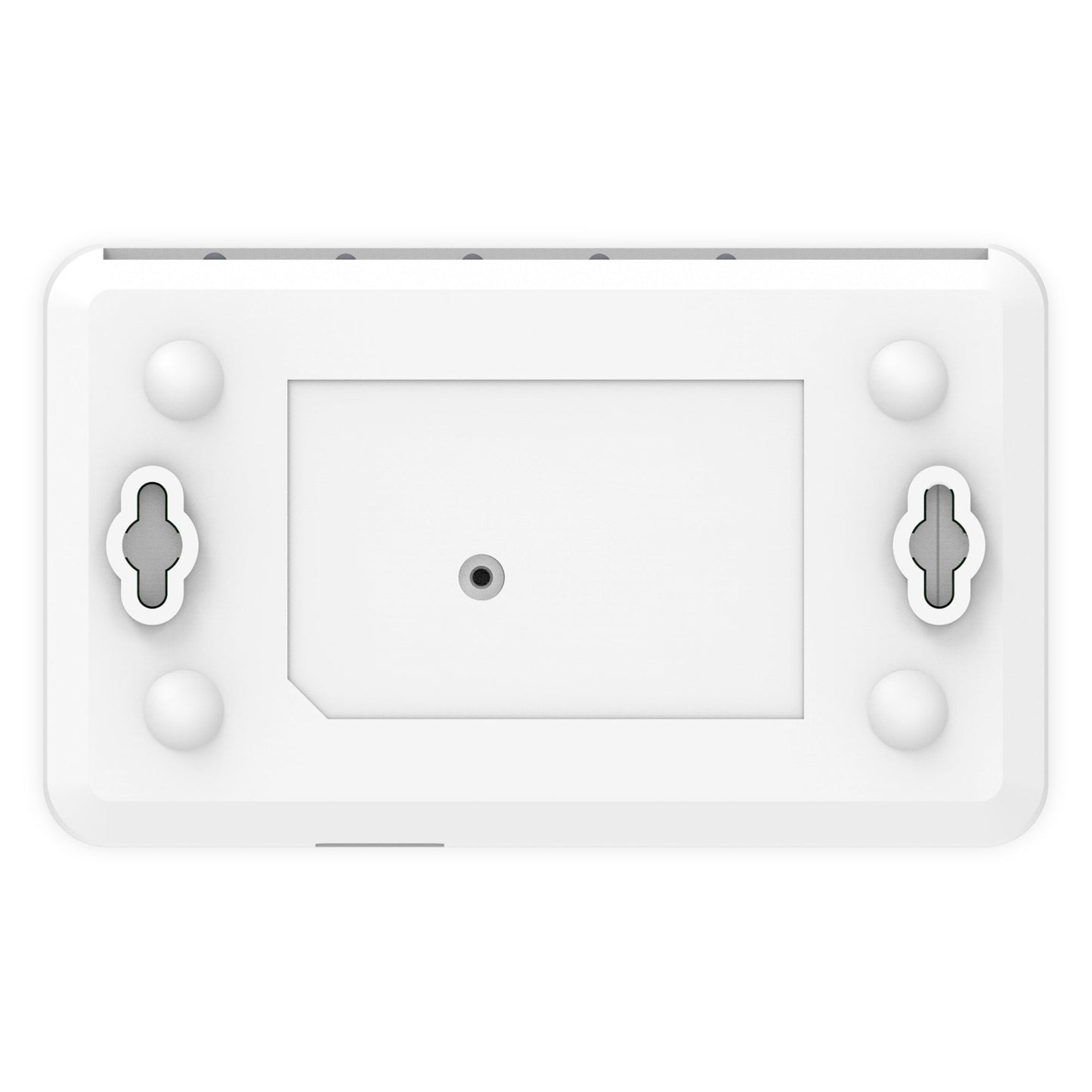

1 x Wall mount kit
EXT1106 Device
Weight: 0.27lbs. (124 g)
Length: 4.92” (125 mm)
Width: 2.09” (73.9 mm)
Height: 1.10” (28 mm)
EXT1106 Packaging
Weight: 0.52 lbs. (240 g)
Length: 3.26” (83 mm)
Width: 2.91” (74 mm)
Height: 5.39” (137 mm)
Warranty
5 years
Certifications
CE
FCC
LVD
