• 4x4:4 MU-MIMO Wi-Fi 6 (802.11ax) compatible for top speeds

• 8.4 Gbps tri-radio aggregate frame rate for gigabit Wi-Fi

• 5 GbE PoE+ port to maximize the connection speed and AP placement

• Tri-concurrent 802.11ax architecture backward compatible with all ac/a/b/g/n client devices

• The 1200 MHz band that supports AR/VR, ultra-high HD, and other applications

• The 6 GHz interference-free band allows ultra-fast Gigabit WiFi speeds

• Integrated enterprise security and guest access

• Powerful built-in Qualcomm Quad-core CPU for superior performance and advanced 1024-QAM for faster packet transmission

• OFDMA and MU-MIMO for fast, efficient transmissions between the AP
  and client devices and BSS coloring for increased spatial reuse

• Access point diagnostic tools for real time channel utilization

• Compatible with iPhone 15 Pro, MacBook Pro, iPad Pro, Galaxy S23, and Galaxy S23+

Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
IEEE 802.11ax on 6 GHz
(Backward compatible with 802.11b/g/n/ac)

Processor
Qualcomm® Networking Pro 1210 Platform

Antenna
4 x 2.4 GHz: 5 dBi
4 x 5 GHz: 6 dBi
4 x 6 GHz: 5 dBi

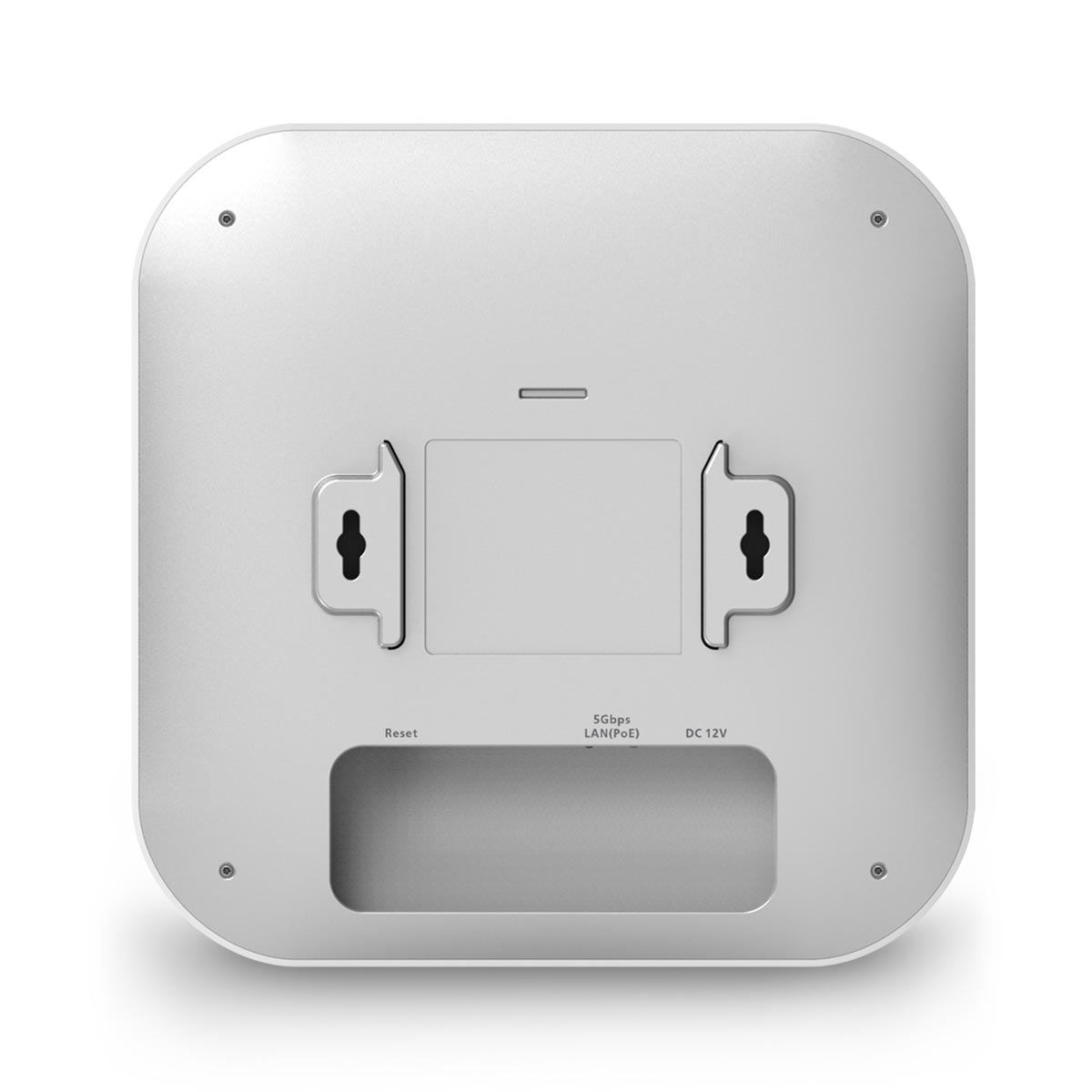

Physical Interface
1 x 10/100/1000/2500/5000 BASE-T, RJ-45 Ethernet Port
1x DC Jack
1 x Reset Button

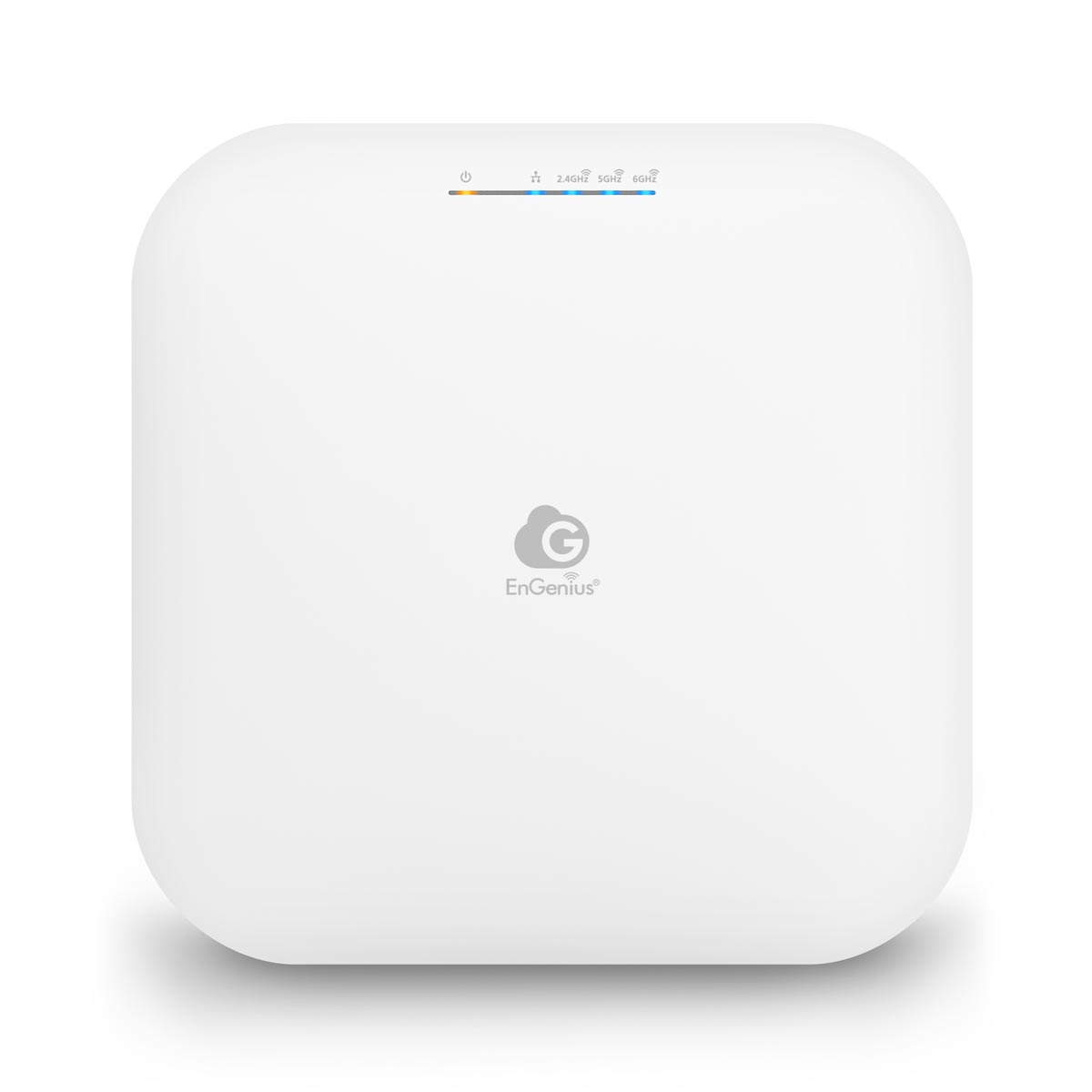

LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
1 x 6 GHz

Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter (Not Included)

Maximum Power Consumption
22.5W

Operating Frequency
Dual-Radio Concurrent 2.4 GHz, 5 GHz, & 6 GHz

Operation Modes
AP, Mesh

Frequency Radio
2.4 GHz: 2400 MHz ~ 2835 GHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6 GHz: 5.925GHz~6.425GHz, 6.425GHz~6.525GHz, 6.525GHz~6.875GHz, .6875GHz~7.125GHz

Transmit Power
Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
Up to 23 dBm on 6 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.

Radio Chains/Spatial Stream
4x4:4

SU-MIMO
Four (4) spatial stream SU-MIMO for 2.4GHz and four spatial stream SU-MIMO for 5GHz up to 3,548 Mbps wireless data rate to a single wireless client device under 2.4 GHz, 5 GHz, and 6 GHz radios.

MU-MIMO
Four (4) spatial streams multi-user (MU)-MIMO for up to 4800 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 6GHz simultaneously.
Four (4) spatial streams multi-user (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Four (4) spatial streams multi-user (MU)-MIMO for up to 1148 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps)
802.11ax:
6 GHz:
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11

Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Dynamic Frequency Selection (DFS) Certified

Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Multiple BSSID
8 SSIDs for 2.4GHz, 5GHz, & 6 GHz radios

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
IEEE 802.11e compliant
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
L2 Isolation

Temperature Range
Operating: 0ºC~40ºC
Storage: -40ºC~80ºC

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

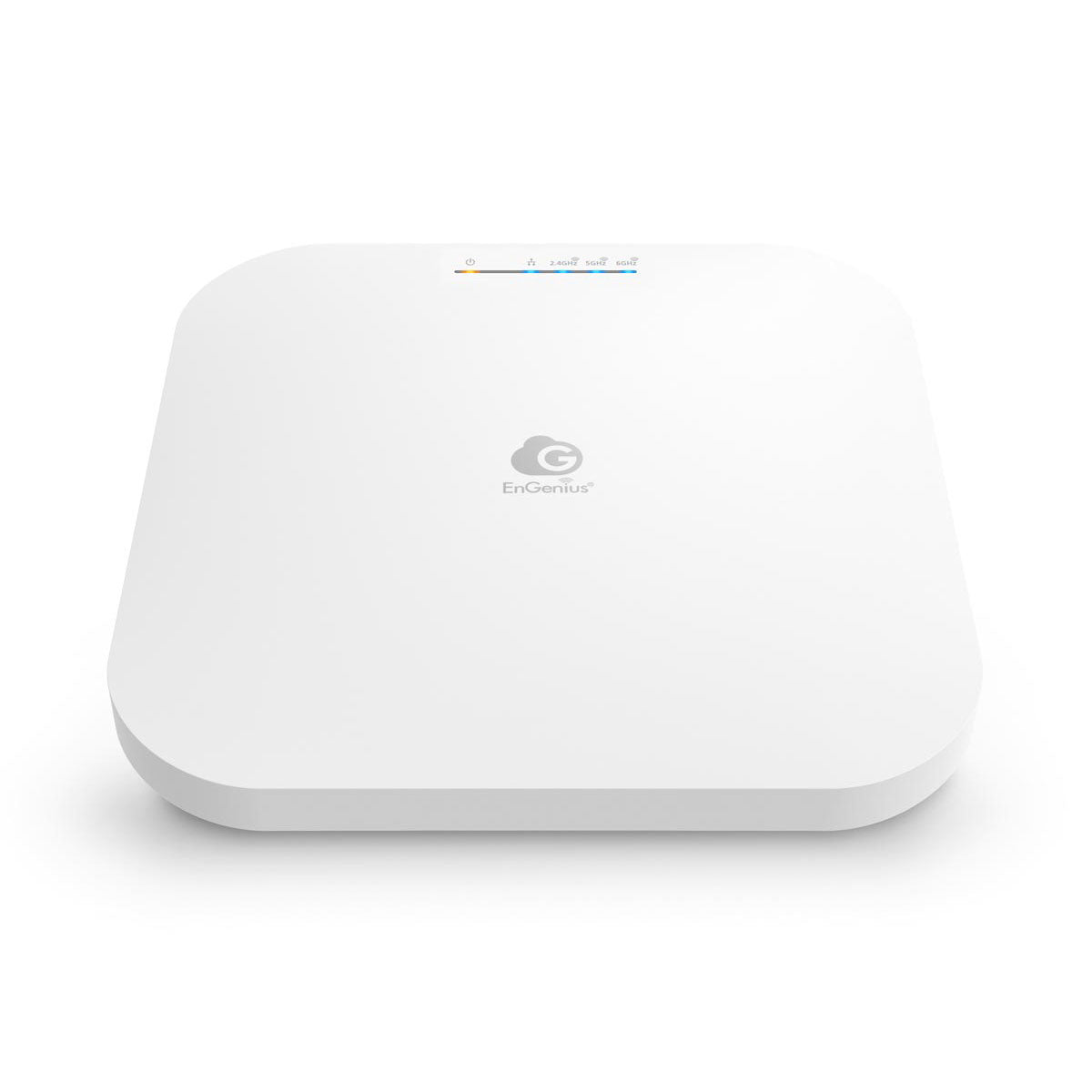

ECW336 Device
Weight: 630 g
Length: 205 mm
Width: 205 mm
Height: 33.2 mm

Packaging
Weight: 2.5 lbs. (1134 g)
Length: 9.65" (245 mm)
Width: 9.65" (245 mm)
Height: 3.35" (85 mm)

Package Contents
1 - ECW230S Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 - Ceiling and Wall Mount Screw Kits
1 - Quick Installation Guide

Certifications
FCC
CE IC

Warranty
2 Years
