• Fast and reliable AP utilizing 4 spatial streams and MU-MIMO for any professional office

• Supports up to 1,733 Mbps in 5-GHz band & 800 Mbps in 2.4-GHz band

• 802.11ac wave 2 compatible with ax/ac/a/b/g/n client devices

• Four (4) 6 dBi 5 GHz and four (4) 4 dBi 2.4 GHz, for 360 degree Wi-Fi coverage

• 1 GigE PoE+ compatible port for easy AP placement

• 1 GigE port for link aggregation to maximize wired speed

• High-powered radios to increase meshing distances on either 2.4 GHz or 5 GHz

• Cloud-manage unlimited number of APs from anywhere with the EnGenius Cloud app

• Real-time AP diagnostics, deep-dive analytics, and remote configurations

• No access point licensing or subscription fees needed

Standards
IEEE 802.11b/g/n on 2.4GHz
IEEE802.11a/n/ac on 5GHz

Processor
Qualcomm® Quad-Core CPU ARM Cortex A53s @ 2.2GHz

Antenna
Four (4) Internal 6 dBi 5 GHz Omni-Directional Antennas
Four (4) Internal 4 dBi 2.4 GHz Omni-Directional Antennas

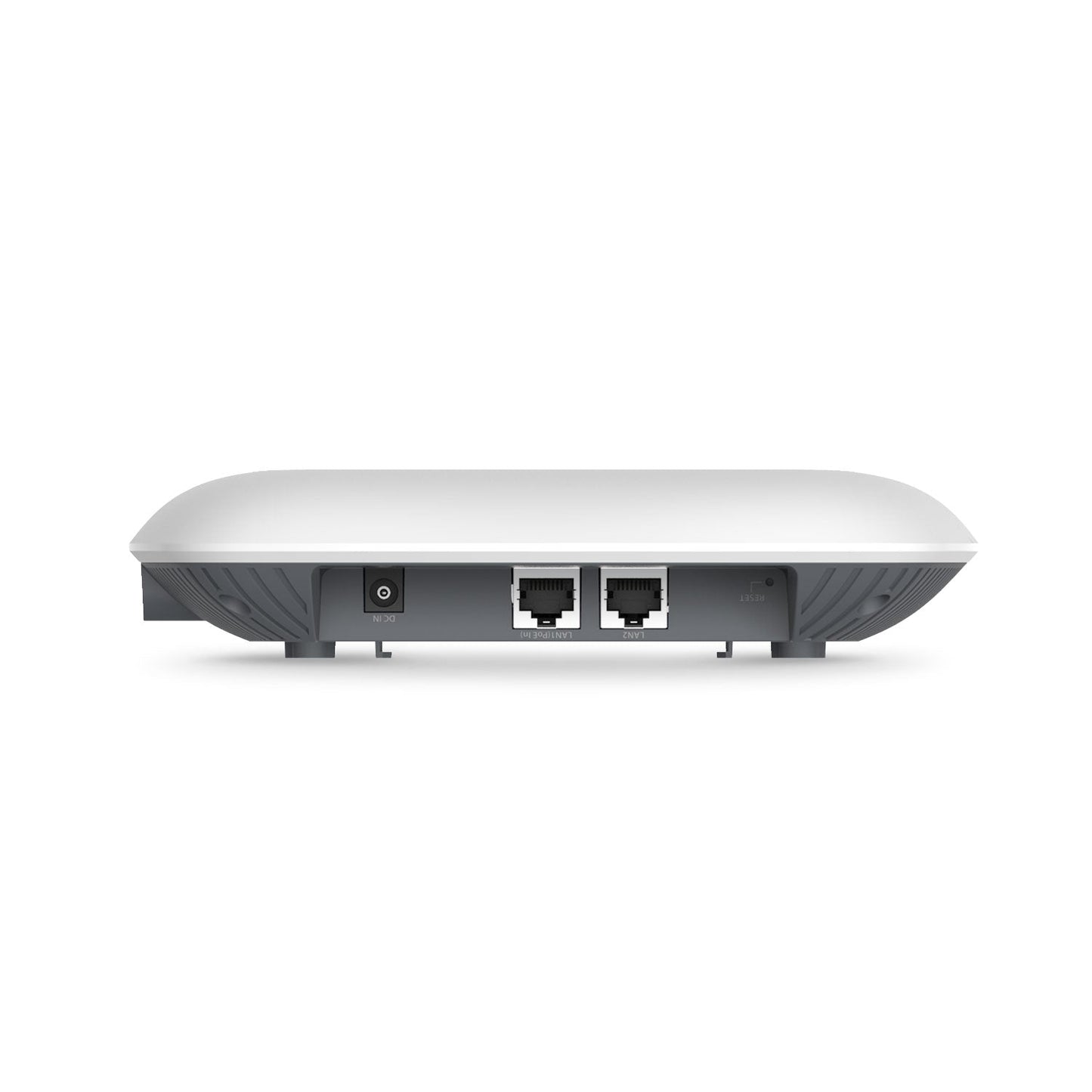

Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port (PoE+)
1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port
(Link Aggregation achieves 2Gbps Throughput)
- LAN1: Supports 802.3at PoE Input
- LAN2: Data Pass-Through
1 x Reset Button
1 x Power Connector

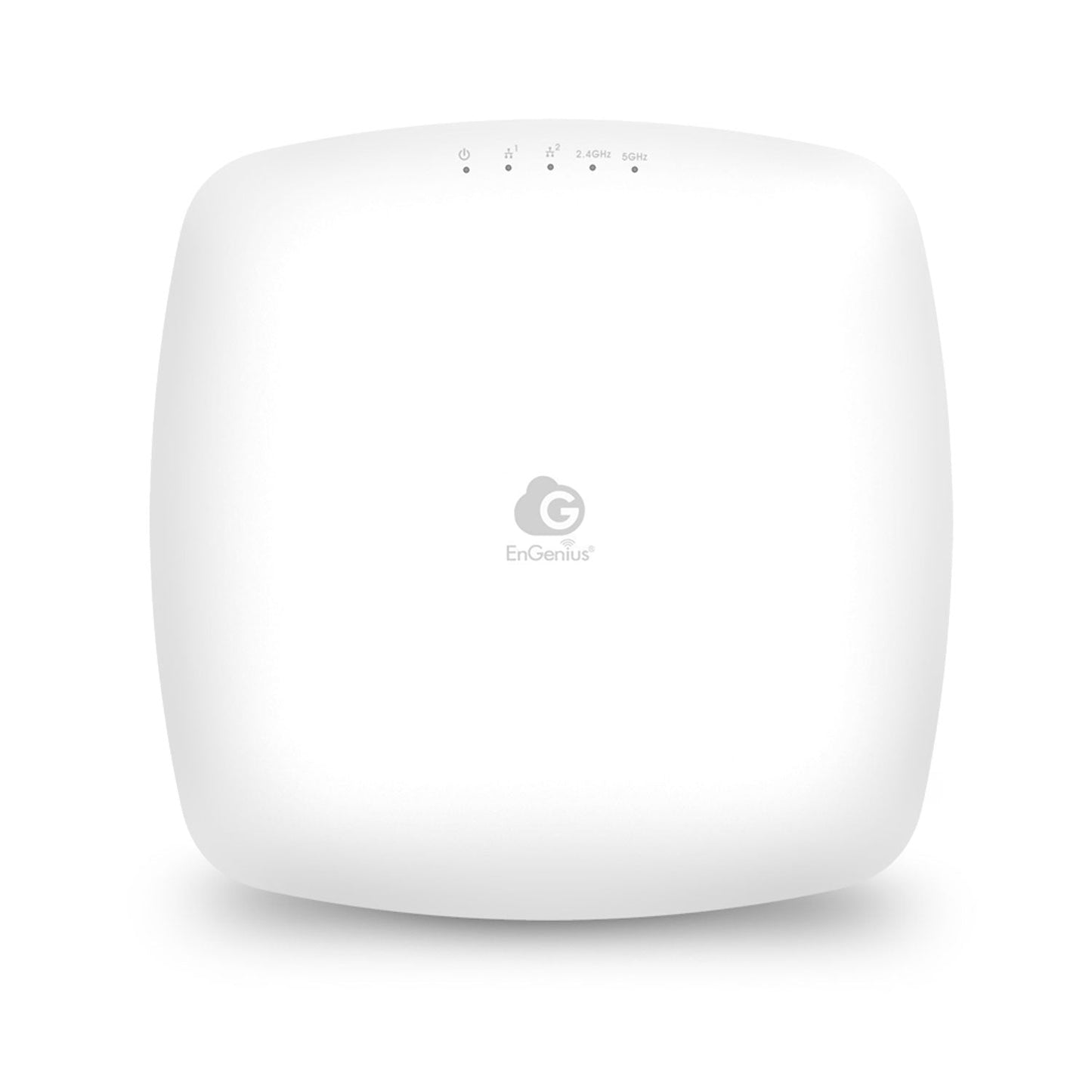

LED Indicators
1 x Power
1 x LAN
1 x LAN 2
1 x 2.4 GHz
1 x 5 GHz

Power Source
Power-over-Ethernet: 802.3at
IEEE 802.11e Compliant Source
12VDC /2A Power Adapter (Not Included)

Maximum Power Consumption
19.1W

Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5 GHz

Operation Modes
AP, Mesh, AP Mesh

Frequency Radio
2.4GHz: 2400 MHz ~ 2482 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz

Transmit Power
2.4GHz: 25 dBm
5GHz: 24 dBm
Maximum power is limited by regulatory domain

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.

Radio Chains/Spatial Stream
4x4:4

SU-MIMO
Four (4) spatial stream Single User (SU) MIMO for up to 800 Mbps wireless data rate with VHT40 bandwidth to a 4×4 wireless device under the 2.4GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 1733 Mbps wireless data rate with VHT80 to a 4×4 wireless device under the 5GHz radio.

MU-MIMO
Four (4) spatial stream MU-MIMO for up to 1733 Mbps wireless data rate with VHT80 to a 4×4 wireless device under the 5GHz radio simultaneously.

Supported Data Rates (Mbps)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 800 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM under HT40)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

Channelization
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)

Supported Modulation
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-band VLAN Pass Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Complaint With IEEE 802.11e Standard WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WPA3-PSK (SAE)
WPA3 Enterprise
WPA2 Enterprise (AES)
WPA2 AES-PSK
OWE
Hide SSID in Beacons
MAC Address Filtering, up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation

Temperature Range
Operating: 0°C to 40°C
Storage: -40ºC~80ºC

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

ECW130 Device
Weight: 634g
Width: 215mm
Length: 215mm
Height: 56mm

ECW130 Packaging
Weight: 2.25 lbs. (1.02kg)
Width: 9.96” (253mm)
Length: 9.80” (249mm)
Height: 4.21” (107mm)

Package Contents
1 – ECW130 Cloud Managed Outdoor Access Point

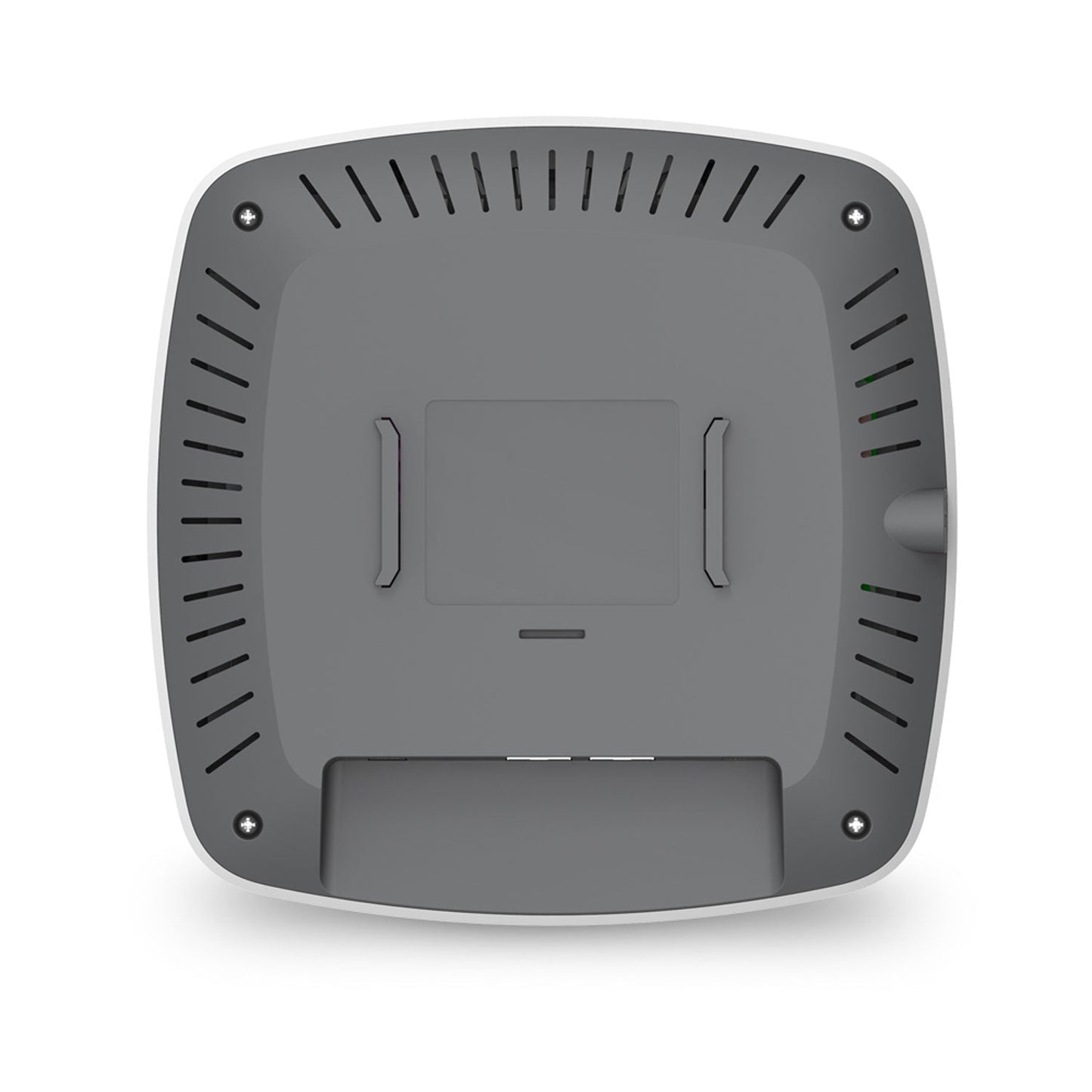

1 - Ceiling-Mount Brackets
1 - Wall-Mount Screw Set
1 - Quick Installation Guide

Certifications
FCC
CE
IC

Warranty
2 Years
