• Blazing Fast Gigabit Speeds: Wi-Fi 7 technology provides faster gigabit performance with higher modulation and broader channels

• Unmatched Speeds Across All Frequencies: Enjoy smooth streaming and gaming with speeds of 5.8 Gbps on 6 GHz, 2.9 Gbps on 5 GHz, and 700 Mbps on 2.4 GHz

• Backward Compatibility: Enjoy seamless connectivity for all your gadgets with Wi-Fi 7, without having to replace any older devices

• 10 GbE PoE+ Port: With an Ethernet port, you can benefit from greater throughput and installation flexibility up to 100 meters

• Latest Security Standards: Protect your Wi-Fi with WPA3 enterprise and WPA3 for top-notch security

• Cloud and App Management: Easily manage your network from anywhere with the flexibility of the EnGenius Cloud and a user-friendly mobile app

• Quick Setup and Remote Management: Easy network setup and management with quick device registration and remote monitoring

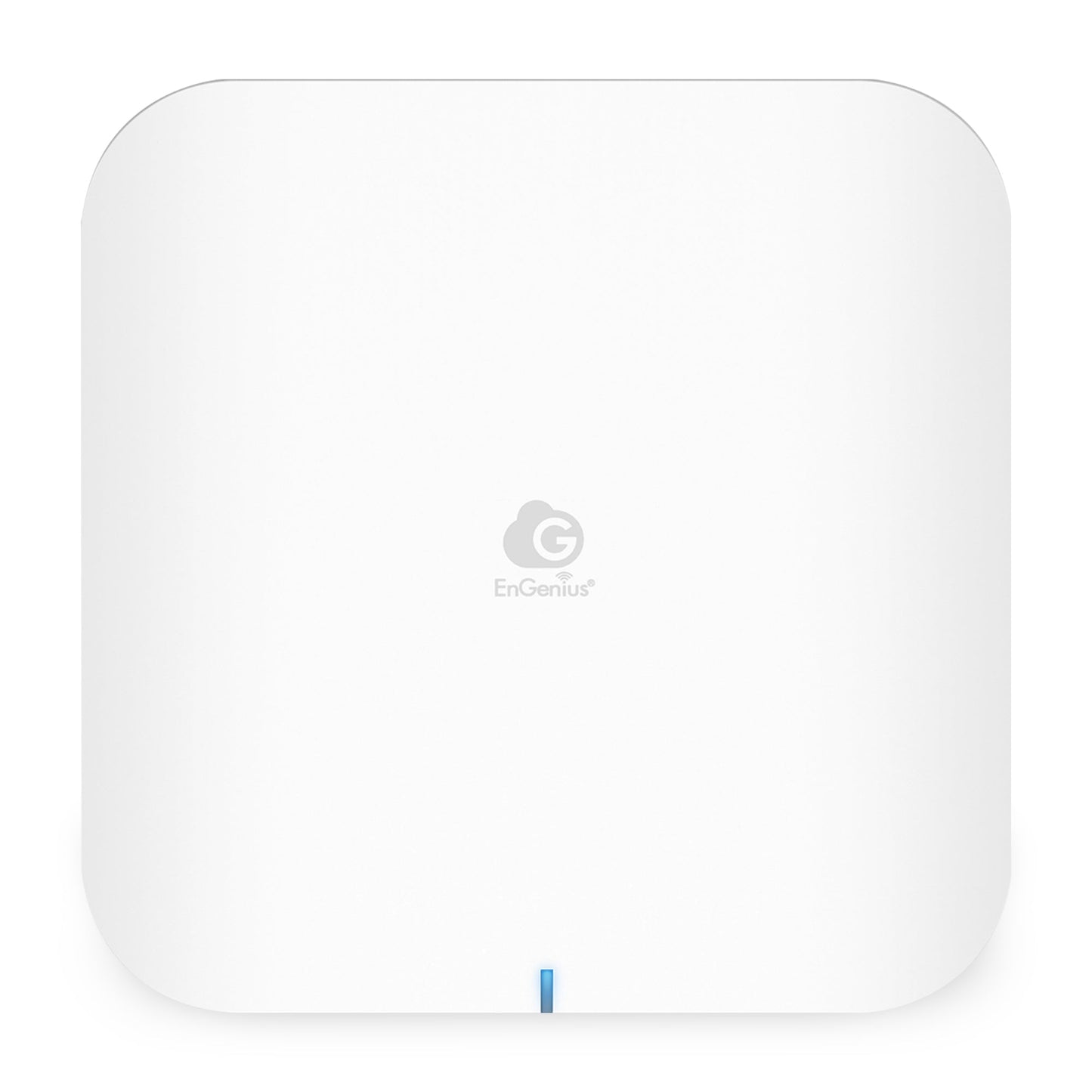

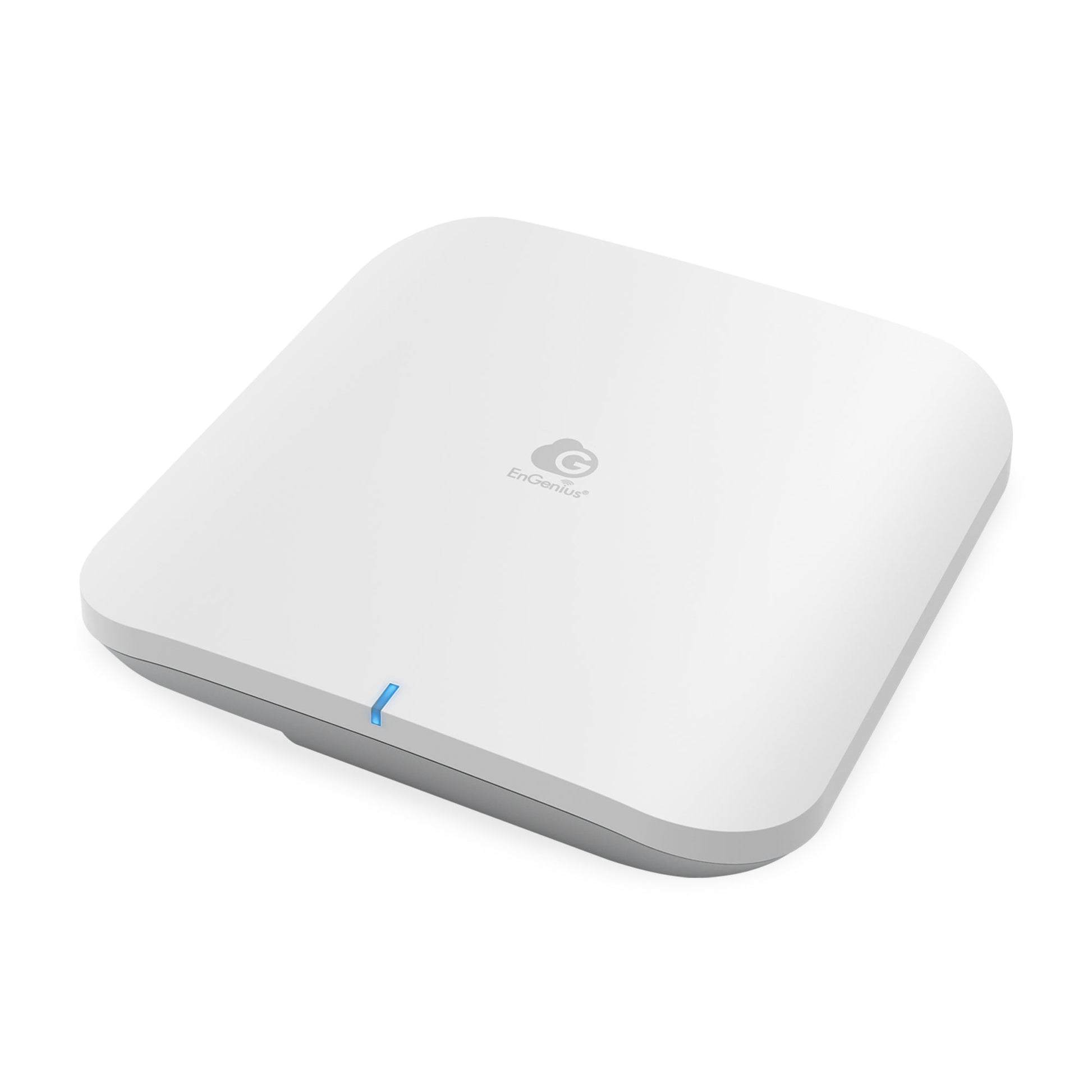

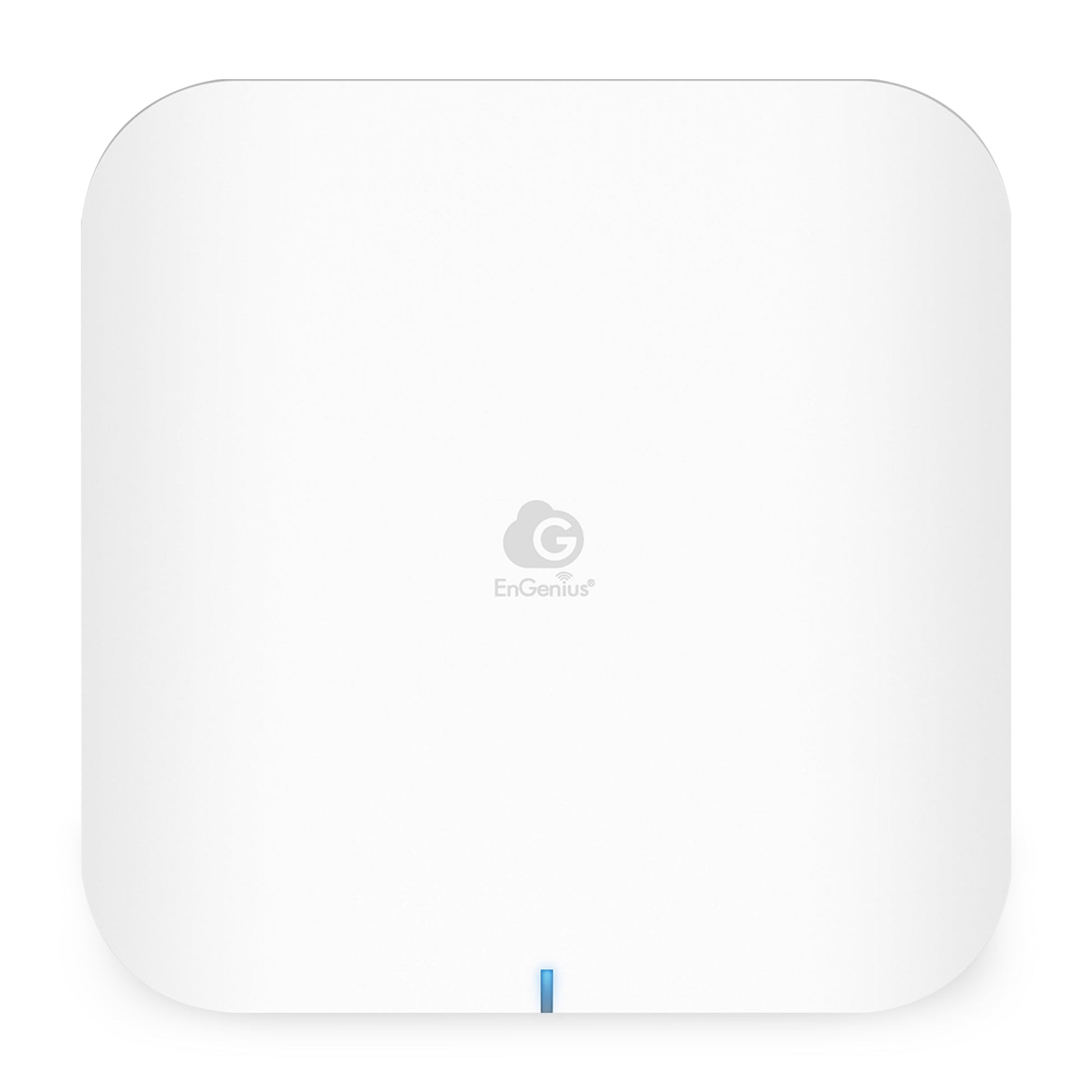

• Sleek Design: Our devices have a sleek ceiling-mount design and modern LED, seamlessly blending into any setting

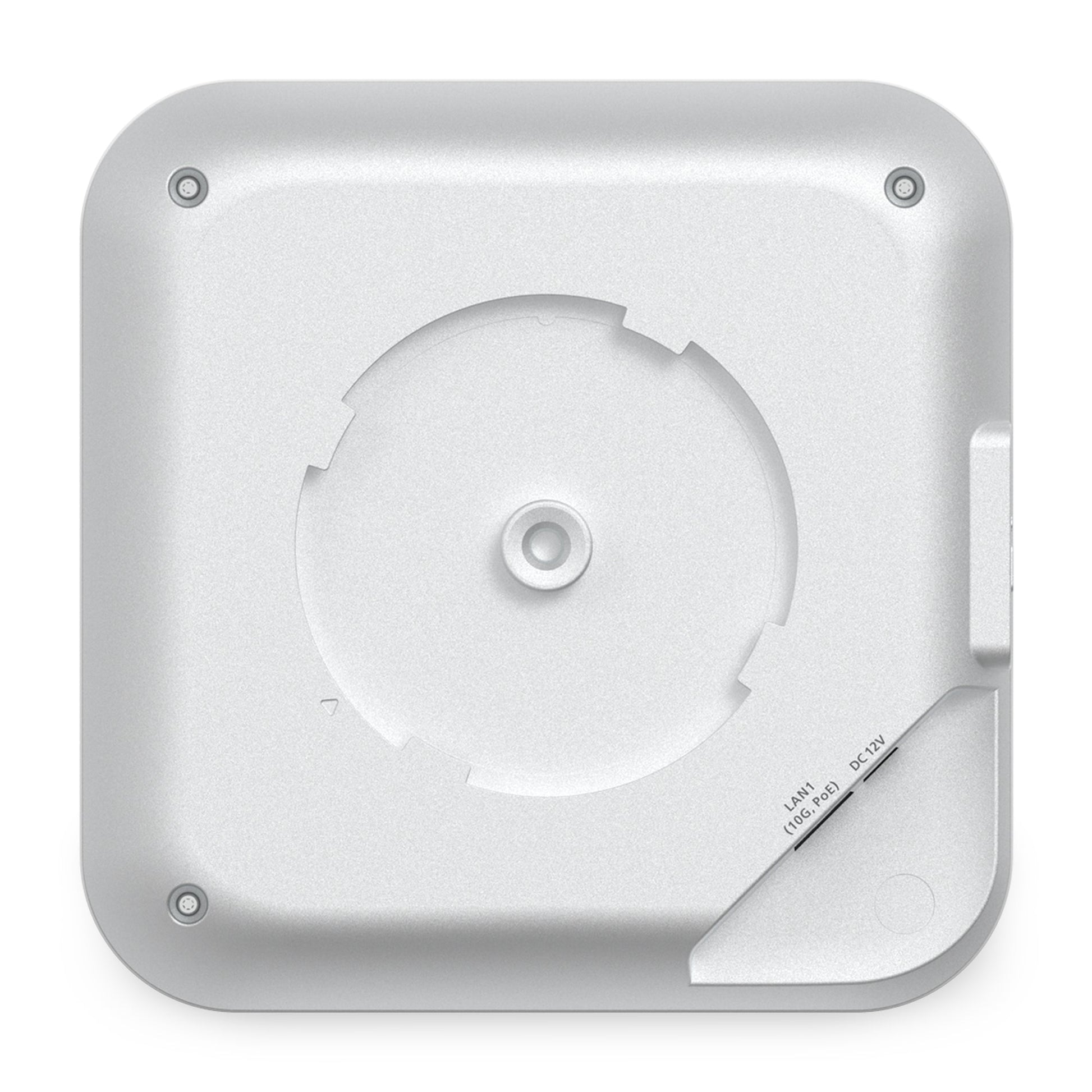

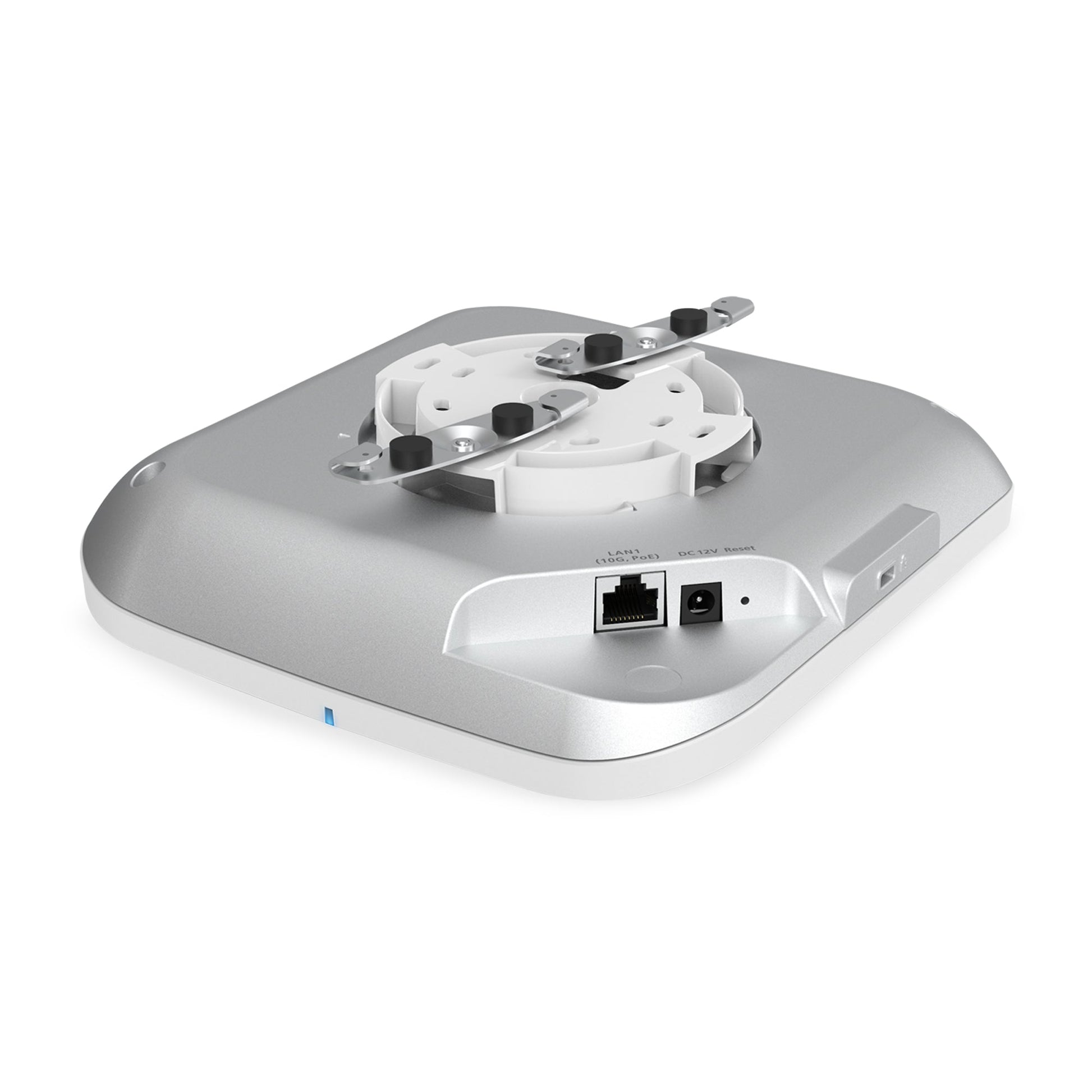

• Simple Installation: Our click-n-twist mount and Kensington lock slot ensure a hassle-free and secure installation process

Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
(Backward compatible with 802.11b/g/n/ac/ax)

Processor
Qualcomm® Networking Pro 1220

Antenna
2 x 2.4 GHz: 5 dBi (Integrated Omni-Directional)
2 x 5 GHz: 6 dBi (Integrated Omni-Directional)
2 x 6 GHz: 6 dBi (Integrated Omni-Directional)

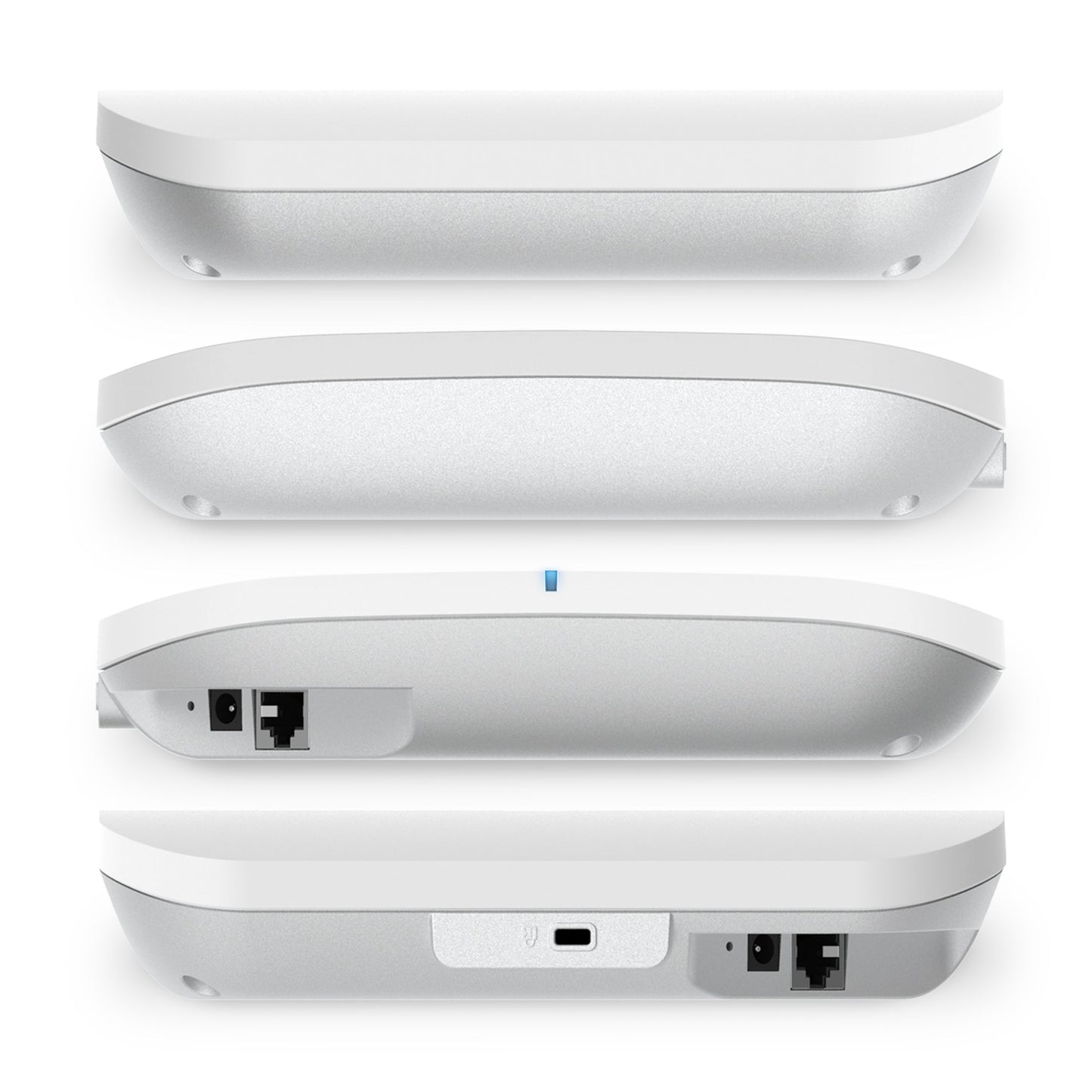

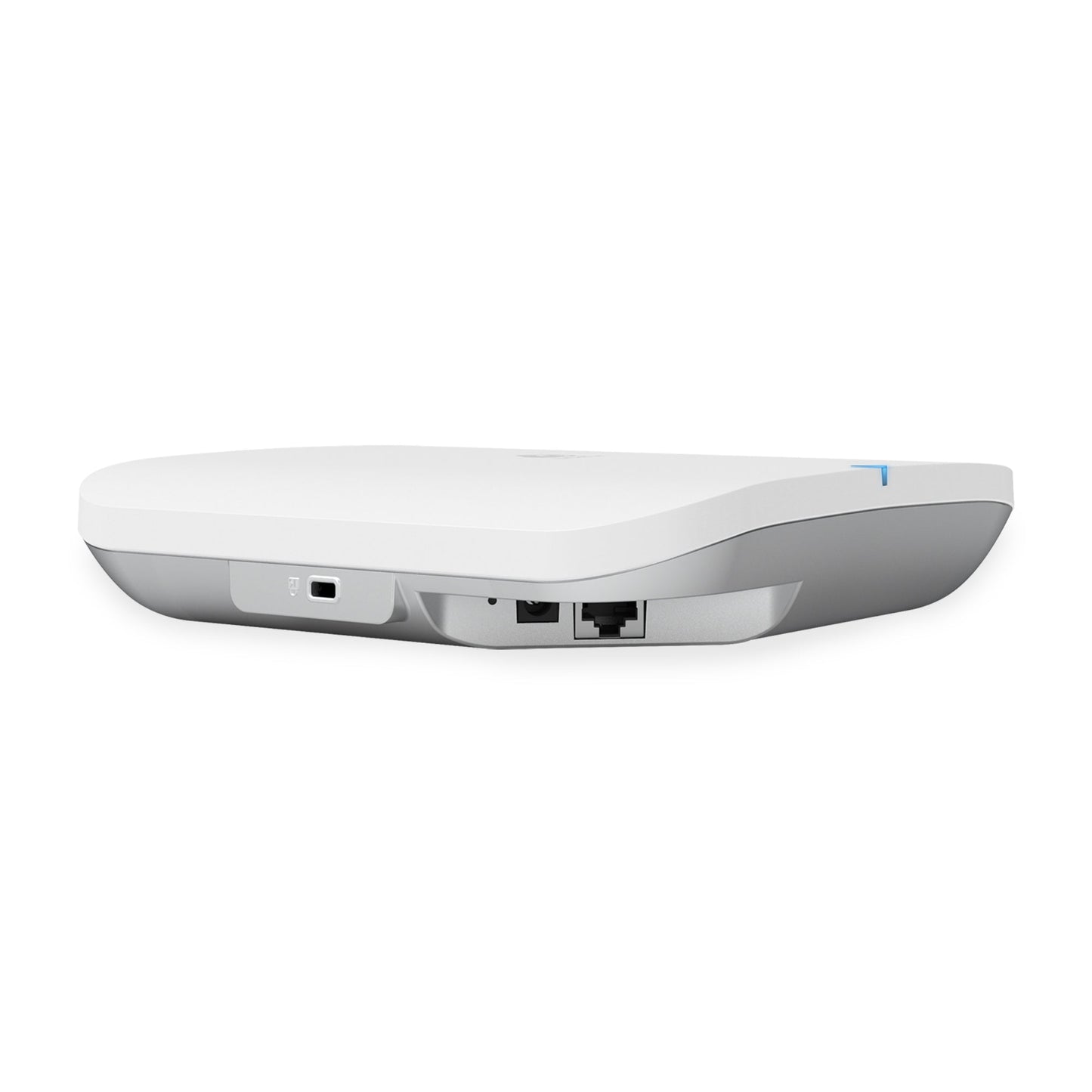

Physical Interface
1 x 10GE Port (PoE+)
1x DC Jack
1 x Reset Button

LED Indicators
1 x Multi-Color LED

Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter (Not Included)

Maximum Power Consumption
21W

Operating Frequency
Tri-Radio Concurrent 2.4 GHz, 5 GHz, & 6 GHz

Operation Modes
Managed Mode: AP, AP Mesh, Mesh

Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 GHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6 GHz: 5.925GHz~6.425GHz, 6.425GHz~6.525GHz, 6.525GHz~6.875GHz, .6875GHz~7.125GHz

Transmit Power
Up to 23 dBm on 2.4 GHz
Up to 22 dBm on 5 GHz
Up to 22 dBm on 6 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.

Radio Chains/Spatial Stream
2x2:2

SU-MIMO
Two (2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with VHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 2,900 Mbps wireless data rate with HE160 bandwidth to a 2x2 wireless device under the 5GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 5,800 Mbps wireless data rate with EHT320 bandwidth to a 2x2 wireless device under the 6GHz radio.

MU-MIMO
Two (2) spatial stream MU-MIMO for up to 700 Mbps wireless data rate with VHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio.
Two (2) spatial stream MU-MIMO for up to 2,900 Mbps wireless data rate with HE160 bandwidth to a 2x2 wireless device under the 5GHz radio.
Two (2) spatial stream MU-MIMO for up to 5,800 Mbps wireless data rate with EHT320 bandwidth to a 2x2 wireless device under the 6GHz radio.

Supported Data Rates (Mbps):
802.11be:
- 2.4 GHz: Max 700 (MCS0 to MCS11, NSS = 1 to 4)
- 5 GHz: Max 2,900 (MCS0 to MSC11, NSS = 1 to 4)
- 6 GHZ: Max 5,800 (MCS0 to MSC13, NSS = 1 to 4)
802.11ax:
- 2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
- 5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4)
- 6 GHZ: 18 to 4,800 (MCS0 to MSC13, NSS = 1 to 4)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11

Supported Radio Technologies
802.11be/ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization
802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/320 MHz
802.11ax supports high efficiency (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Max Concurrent Users
512 Per Radio

Multiple BSSID
8 SSIDs for 2.4GHz, 5GHz, & 6 GHz radios

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Complaint With IEEE 802.11e Standard
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Fast Roaming
802.11r/k

Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
Client Isolation
L2 Isolation

Temperature Range
Operating: 0ºC~40ºC
Storage: -40ºC~80ºC

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

ECW526 Device
Weight: 720 g
Length: 190 mm
Width: 190 mm
Height: 39.5 mm

ECW526 Packaging
Weight: 2.36 lbs. (1.07 kg)
Length: 9.69" (246 mm)
Width: 9.69" (246 mm)
Height: 2.83" (72 mm)

Package Contents
1 – ECW526 Cloud Managed Indoor Access Point
1 – Ceiling Mount Base
1 - Ceiling and Wall Mount Screw Kits
1 - T-rail Mount Kit
1 – Product Card

Certifications
FCC
CE
IC
UKCA

Warranty
2 Years
